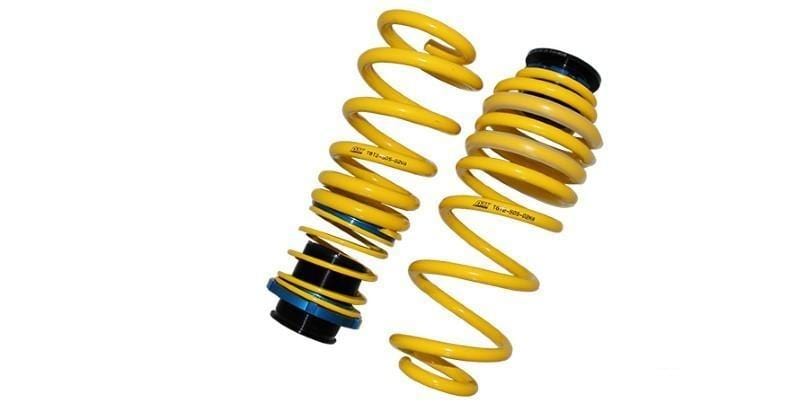

ABT Sportsline Height Adjustable Suspension Springs w/o Damper Control | Audi B9 / B9.5 A4/S4 | A5/S5

ABT Sportsline stands for innovative engineering, an extravagant design and some extra dynamism and sportiness. They are the worldwide leading luxury car tuning company for brands produced by the Volkswagen Group.

In all developments, roadworthiness and safety top the specs. And the market leader’s premium products and services are not only available in Kempten but all over the world. Customers can always be sure that they will get tested ABT quality. That’s what the name ABT has always guaranteed.

Features:

• FA-load: from 1136 kg up to 1215 kg
• RA-load: up to 1200 kg
• Quality Construction
• Lowering FA 15-40mm | RA 15-40mm

Fitment:

• Audi A4 Limousine (8W00) quattro, without electronical damper control
• Audi S4 Limousine (8W00) quattro, without electronical damper control
• Audi A5 Coup? (8W60) quattro, without electronical damper control
• Audi S5 Coup? (8W60) quattro, without electronical damper control

Note(s):

• Since 11.07.16-20 the vehicles without electronical damper control will be also fitted with a different strut, which has a diffenert diameter (48,5 mm instead of 50mm).
• The struts can only be differentiated by measuring the struts undernetah the spring. If the diameter shows 48.5 mm the ABT height adjsutable springs can only be fitted in connection with a threaded sleeve set Art.No.: 8W00 5002 116. This set is not included in the ABT height adjustable suspension springs and have to be ordered separately.
• The final lowering depends on the individual configuration of the vehicle; the lowering might be 20-25mm less for vehicles with Audi serial sport suspension.
• Addtionally and depending on the serial car configuration further technical systems (for example: Audi lane assist; adaptive cruise control; rear assist; parking system plus, etc.) needs to be checked and possibly re-adjusted
