Audi CV Axle Shaft Kit – Front and Rear 8A0501203JX – Aftermarket 3991411KIT
$240.99
🚚 DIRECT SHIP
Estimated dispatch: 2-3 days
Stock for this product is located at an off-site warehouse. Please contact us directly for lead times.
EARN REWARD POINTS
Purchasing this product will earn you points to redeem on future purchases. You can check your current points here.
BEST PRICE GUARANTEE
We will meet or beat the competition!
QUESTIONS? WE'RE HERE TO HELP!
If you have any question or just need a suggestion, please contact us :)
| Abs Ring Tooth Count | (Front Left CV Axle Shaft) 45 |
| Abs Ring Tooth Count | (Front Right CV Axle Shaft) 45 |
| Abs Ring Tooth Count | (Rear CV Axle Shaft) 45 |
| Abs Ring Type | (Front Left CV Axle Shaft) Toothed |
| Abs Ring Type | (Front Right CV Axle Shaft) Toothed |
| Abs Ring Type | (Rear CV Axle Shaft) Toothed |
| Abs Tone Ring Included | (Front Left CV Axle Shaft) Yes |
| Abs Tone Ring Included | (Front Right CV Axle Shaft) Yes |
| Abs Tone Ring Included | (Rear CV Axle Shaft) Yes |
| Axle Bolt Hex Size (mm) | (Front Left CV Axle Shaft) 27 |
| Axle Bolt Hex Size (mm) | (Front Right CV Axle Shaft) 27 |
| Axle Bolt Hex Size (mm) | (Rear CV Axle Shaft) 23.8 |
| Axle Bolt Length (mm) | (Front Left CV Axle Shaft) 97 |
| Axle Bolt Length (mm) | (Front Right CV Axle Shaft) 97 |
| Axle Bolt Length (mm) | (Rear CV Axle Shaft) 93 |
| Axle Bolt Thread Size | (Front Left CV Axle Shaft) M16*1.5 |
| Axle Bolt Thread Size | (Front Right CV Axle Shaft) M16*1.5 |
| Axle Bolt Thread Size | (Rear CV Axle Shaft) M14*1.5 |
| Axle Nut Included | (Front Left CV Axle Shaft) No |
| Axle Nut Included | (Front Right CV Axle Shaft) No |
| Axle Nut Included | (Rear CV Axle Shaft) No |
| Boot Material | (Front Left CV Axle Shaft) Neoprene |
| Boot Material | (Front Right CV Axle Shaft) Neoprene |
| Boot Material | (Rear CV Axle Shaft) Neoprene |
| Inboard Bolt Head Size (in) | (Front Left CV Axle Shaft) 1/4 |
| Inboard Bolt Head Size (in) | (Front Right CV Axle Shaft) 1/4 |
| Inboard Bolt Head Size (in) | (Rear CV Axle Shaft) 1/4 |
| Inboard Bolt Head Size (mm) | (Front Left CV Axle Shaft) 6 |
| Inboard Bolt Head Size (mm) | (Front Right CV Axle Shaft) 6 |
| Inboard Bolt Head Size (mm) | (Rear CV Axle Shaft) 6 |
| Inboard Bolt Head Type | (Front Left CV Axle Shaft) Allen |
| Inboard Bolt Head Type | (Front Right CV Axle Shaft) Allen |
| Inboard Bolt Head Type | (Rear CV Axle Shaft) Allen |
| Inboard Bolt Length (in) | (Front Left CV Axle Shaft) 2 2/9 |
| Inboard Bolt Length (in) | (Front Right CV Axle Shaft) 2 2/9 |
| Inboard Bolt Length (in) | (Rear CV Axle Shaft) 2 2/9 |
| Inboard Bolt Length (mm) | (Front Left CV Axle Shaft) 56.5 |
| Inboard Bolt Length (mm) | (Front Right CV Axle Shaft) 56.5 |
| Inboard Bolt Length (mm) | (Rear CV Axle Shaft) 56.5 |
| Inboard Bolt Thread Size | (Front Left CV Axle Shaft) M8*1.25 |
| Inboard Bolt Thread Size | (Front Right CV Axle Shaft) M8*1.25 |
| Inboard Bolt Thread Size | (Rear CV Axle Shaft) M8*1.25 |
| Inboard Joint Type | (Front Left CV Axle Shaft) Bolt-On |
| Inboard Joint Type | (Front Right CV Axle Shaft) Bolt-On |
| Inboard Joint Type | (Rear CV Axle Shaft) Bolt-On |
| Inboard Shaft Connection Style | (Front Left CV Axle Shaft) Bolt-On |
| Inboard Shaft Connection Style | (Front Right CV Axle Shaft) Bolt-On |
| Inboard Shaft Connection Style | (Rear CV Axle Shaft) Bolt-On |
| New Or Remanufactured | (Front Left CV Axle Shaft) New |
| New Or Remanufactured | (Front Right CV Axle Shaft) New |
| New Or Remanufactured | (Rear CV Axle Shaft) New |
| Number Of Bolt Holes | (Front Left CV Axle Shaft) 1 |
| Number Of Bolt Holes | (Front Right CV Axle Shaft) 1 |
| Number Of Bolt Holes | (Rear CV Axle Shaft) 1 |
| Number Of Inboard Joint Bolt Holes | (Front Left CV Axle Shaft) 6 |
| Number Of Inboard Joint Bolt Holes | (Front Right CV Axle Shaft) 6 |
| Number Of Inboard Joint Bolt Holes | (Rear CV Axle Shaft) 6 |
| Number Of Inboard Shaft Bolts | (Front Left CV Axle Shaft) 6 |
| Number Of Inboard Shaft Bolts | (Front Right CV Axle Shaft) 6 |
| Number Of Inboard Shaft Bolts | (Rear CV Axle Shaft) 6 |
| Number Of Outboard Shaft Bolts | (Front Left CV Axle Shaft) 1 |
| Number Of Outboard Shaft Bolts | (Front Right CV Axle Shaft) 1 |
| Number Of Outboard Shaft Bolts | (Rear CV Axle Shaft) 1 |
| Number Of Outboard Splines | (Front Left CV Axle Shaft) 38 |
| Number Of Outboard Splines | (Front Right CV Axle Shaft) 38 |
| Number Of Outboard Splines | (Rear CV Axle Shaft) 33 |
| Outboard Joint Type | (Front Left CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Joint Type | (Front Right CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Joint Type | (Rear CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Shaft Connection Style | (Front Left CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Shaft Connection Style | (Front Right CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Shaft Connection Style | (Rear CV Axle Shaft) Audi Style Spline Bolt |

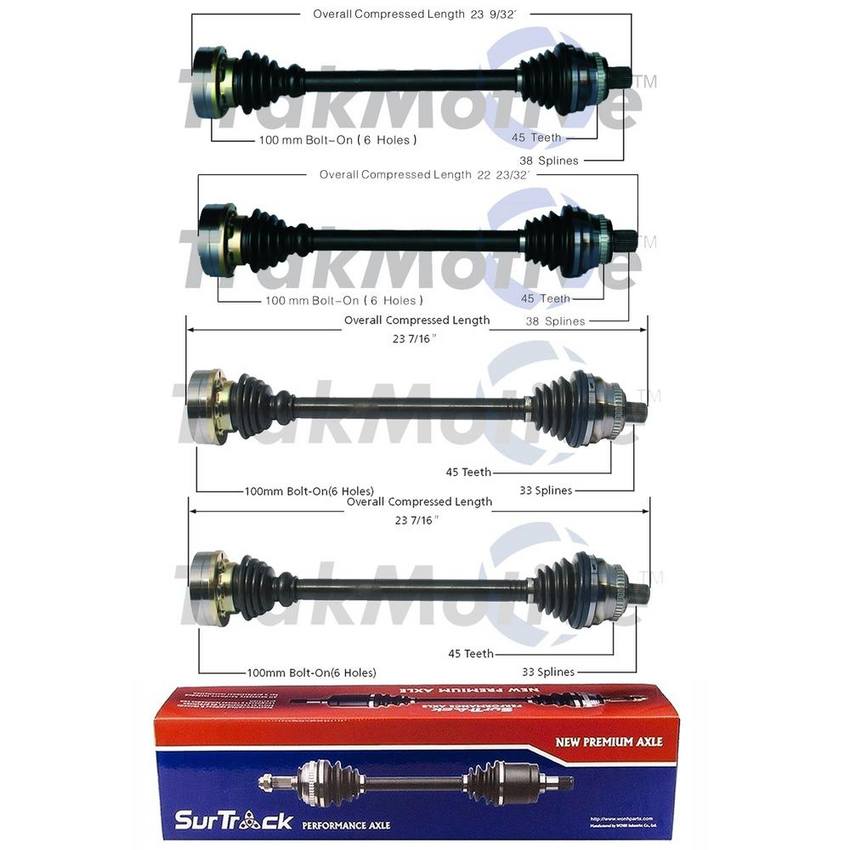

| Overall Compressed Length (in) | (Front Left CV Axle Shaft) 23.27 |
| Overall Compressed Length (in) | (Front Right CV Axle Shaft) 22.72 |
| Overall Compressed Length (in) | (Rear CV Axle Shaft) 23.43 |
| Overall Compressed Length (mm) | (Front Left CV Axle Shaft) 591 |
| Overall Compressed Length (mm) | (Front Right CV Axle Shaft) 577 |
| Overall Compressed Length (mm) | (Rear CV Axle Shaft) 595 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| OEM Part Number | 893407271BK |
| OEM Part Number | 893407272BK |
| OEM Part Number | 8A0407271K |
| OEM Part Number | 8A0407272K |
| OEM Part Number | 8A0501203E |
| OEM Part Number | 8A0501203J |
| OEM Part Number | 8A0501203JX |
