Mini CV Axle Shaft Kit – Front and Rear – Aftermarket 3991256KIT
$327.99
???? DIRECT SHIP
Estimated dispatch: 2-3 days
Stock for this product is located at our supplier. Please contact us directly for lead times.
EARN REWARD POINTS
Purchasing this product will earn you points to redeem on future purchases. You can check your current points here.
BEST PRICE GUARANTEE
We will meet or beat the competition!
QUESTIONS? WE'RE HERE TO HELP!
If you have any question or just need a suggestion, please contact us :)
| Axle Nut Head Type | (Front Left AAR CV Axle Shaft) Hex |
| Axle Nut Head Type | (Front Right AAR CV Axle Shaft) Hex |
| Axle Nut Head Type | (Rear Left CV Axle Shaft) Hex |
| Axle Nut Head Type | (Rear Right CV Axle Shaft) Hex |
| Axle Nut Height (in) | (Front Left AAR CV Axle Shaft) 0.79 |
| Axle Nut Height (in) | (Front Right AAR CV Axle Shaft) 0.79 |
| Axle Nut Height (in) | (Rear Right CV Axle Shaft) 0.79 |
| Axle Nut Height (mm) | (Front Left AAR CV Axle Shaft) 20 |
| Axle Nut Height (mm) | (Front Right AAR CV Axle Shaft) 20 |
| Axle Nut Height (mm) | (Rear Right CV Axle Shaft) 20 |
| Axle Nut Hex Size (in) | (Front Left AAR CV Axle Shaft) 1.25 |
| Axle Nut Hex Size (in) | (Front Right AAR CV Axle Shaft) 1.25 |
| Axle Nut Hex Size (in) | (Rear Left CV Axle Shaft) 1.25 |
| Axle Nut Hex Size (in) | (Rear Right CV Axle Shaft) 1.25 |
| Axle Nut Hex Size (mm) | (Front Left AAR CV Axle Shaft) 31.8 |
| Axle Nut Hex Size (mm) | (Front Right AAR CV Axle Shaft) 31.8 |
| Axle Nut Hex Size (mm) | (Rear Left CV Axle Shaft) 31.8 |
| Axle Nut Hex Size (mm) | (Rear Right CV Axle Shaft) 31.8 |
| Axle Nut Included | (Front Left AAR CV Axle Shaft) Yes |
| Axle Nut Included | (Front Right AAR CV Axle Shaft) Yes |
| Axle Nut Included | (Rear Left CV Axle Shaft) Yes |
| Axle Nut Included | (Rear Right CV Axle Shaft) Yes |
| Axle Nut Length (in) | (Front Left AAR CV Axle Shaft) 1.45 |
| Axle Nut Length (in) | (Front Right AAR CV Axle Shaft) 1.45 |
| Axle Nut Length (in) | (Rear Left CV Axle Shaft) 1.45 |
| Axle Nut Length (in) | (Rear Right CV Axle Shaft) 1.45 |
| Axle Nut Length (mm) | (Front Left AAR CV Axle Shaft) 36.72 |
| Axle Nut Length (mm) | (Front Right AAR CV Axle Shaft) 36.72 |
| Axle Nut Length (mm) | (Rear Left CV Axle Shaft) 36.72 |
| Axle Nut Length (mm) | (Rear Right CV Axle Shaft) 36.72 |
| Axle Nut Locking Type | (Front Left AAR CV Axle Shaft) Stake |
| Axle Nut Locking Type | (Front Right AAR CV Axle Shaft) Stake |
| Axle Nut Locking Type | (Rear Left CV Axle Shaft) Stake |
| Axle Nut Locking Type | (Rear Right CV Axle Shaft) Stake |
| Axle Nut Thread Size | (Front Left AAR CV Axle Shaft) M22*1.5 |
| Axle Nut Thread Size | (Front Right AAR CV Axle Shaft) M22*1.5 |
| Axle Nut Thread Size | (Rear Left CV Axle Shaft) M22*1.5 |
| Axle Nut Thread Size | (Rear Right CV Axle Shaft) M22*1.5 |
| Boot Material | (Front Left AAR CV Axle Shaft) Neoprene |
| Boot Material | (Front Right AAR CV Axle Shaft) Neoprene |
| Boot Material | (Rear Left CV Axle Shaft) Neoprene |
| Boot Material | (Rear Right CV Axle Shaft) Neoprene |
| Inboard Joint Type | (Front Left AAR CV Axle Shaft) Male |
| Inboard Joint Type | (Front Right AAR CV Axle Shaft) Female |
| Inboard Joint Type | (Rear Left CV Axle Shaft) Male |
| Inboard Joint Type | (Rear Right CV Axle Shaft) Male |
| Inboard Shaft Connection Style | (Front Left AAR CV Axle Shaft) Spline |
| Inboard Shaft Connection Style | (Front Right AAR CV Axle Shaft) Spline |
| Inboard Shaft Connection Style | (Rear Left CV Axle Shaft) Spline |
| Inboard Shaft Connection Style | (Rear Right CV Axle Shaft) Spline |
| New Or Remanufactured | (Front Left AAR CV Axle Shaft) New |
| New Or Remanufactured | (Front Right AAR CV Axle Shaft) New |
| New Or Remanufactured | (Rear Left CV Axle Shaft) New |
| New Or Remanufactured | (Rear Right CV Axle Shaft) New |
| Number Of Inboard Splines | (Front Left AAR CV Axle Shaft) 26 |
| Number Of Inboard Splines | (Front Right AAR CV Axle Shaft) 35 |
| Number Of Inboard Splines | (Rear Left CV Axle Shaft) 27 |
| Number Of Inboard Splines | (Rear Right CV Axle Shaft) 27 |
| Number Of Outboard Splines | (Front Left AAR CV Axle Shaft) 26 |
| Number Of Outboard Splines | (Front Right AAR CV Axle Shaft) 26 |
| Number Of Outboard Splines | (Rear Left CV Axle Shaft) 26 |
| Number Of Outboard Splines | (Rear Right CV Axle Shaft) 26 |
| Outboard Joint Type | (Front Left AAR CV Axle Shaft) Conventional |
| Outboard Joint Type | (Front Right AAR CV Axle Shaft) Conventional |
| Outboard Joint Type | (Rear Left CV Axle Shaft) Conventional |
| Outboard Joint Type | (Rear Right CV Axle Shaft) Conventional |
| Outboard Shaft Connection Style | (Front Left AAR CV Axle Shaft) Spline |
| Outboard Shaft Connection Style | (Front Right AAR CV Axle Shaft) Spline |
| Outboard Shaft Connection Style | (Rear Left CV Axle Shaft) Spline |
| Outboard Shaft Connection Style | (Rear Right CV Axle Shaft) Spline |

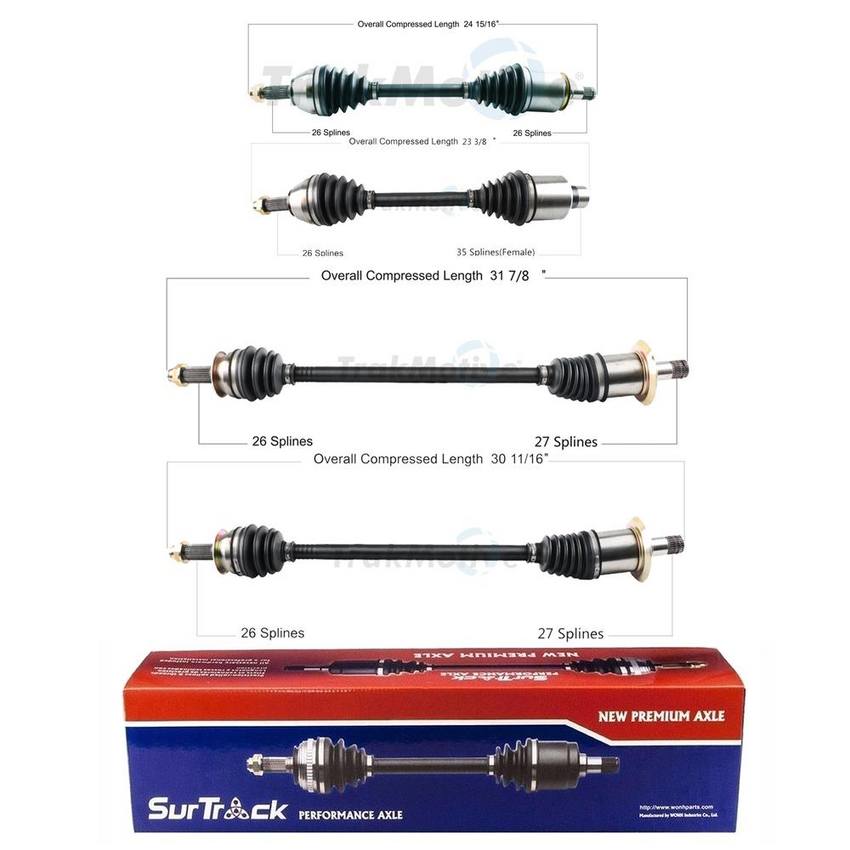

| Overall Compressed Length (in) | (Front Left AAR CV Axle Shaft) 24.96 |
| Overall Compressed Length (in) | (Front Right AAR CV Axle Shaft) 23.39 |
| Overall Compressed Length (in) | (Rear Left CV Axle Shaft) 31.85 |
| Overall Compressed Length (in) | (Rear Right CV Axle Shaft) 30.67 |
| Overall Compressed Length (mm) | (Front Left AAR CV Axle Shaft) 634 |
| Overall Compressed Length (mm) | (Front Right AAR CV Axle Shaft) 594 |
| Overall Compressed Length (mm) | (Rear Left CV Axle Shaft) 809 |
| Overall Compressed Length (mm) | (Rear Right CV Axle Shaft) 779 |
