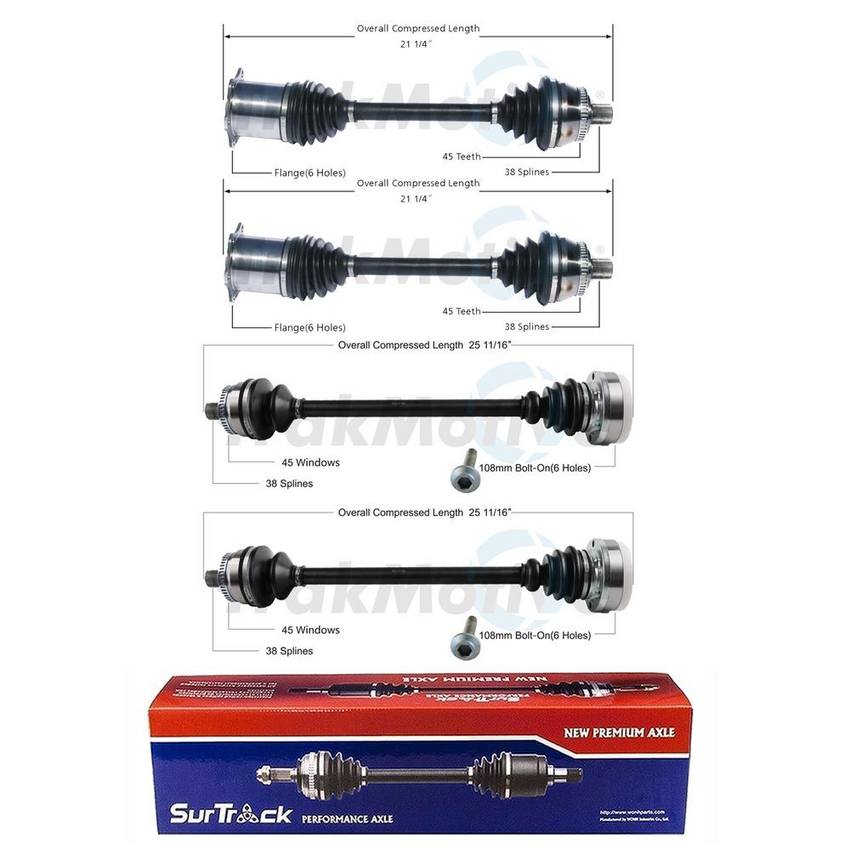

Audi CV Axle Shaft Kit – Front and Rear 4B3501203BX – Aftermarket 3991445KIT
$354.99
DIRECT SHIP
Estimated dispatch: 2-3 days
Stock for this product is located at our supplier. Please contact us directly for lead times.
EARN REWARD POINTS
Purchasing this product will earn you points to redeem on future purchases. You can check your current points here.
BEST PRICE GUARANTEE
We will meet or beat the competition!
QUESTIONS? WE'RE HERE TO HELP!
If you have any question or just need a suggestion, please contact us :)
| Abs Ring Tooth Count | (Front CV Axle Shaft) 45 |
| Abs Ring Tooth Count | (Rear CV Axle Shaft) 45 |
| Abs Ring Type | (Front CV Axle Shaft) Window |
| Abs Ring Type | (Rear CV Axle Shaft) Window |
| Abs Tone Ring Included | (Front CV Axle Shaft) Yes |
| Abs Tone Ring Included | (Rear CV Axle Shaft) Yes |
| Axle Bolt Hex Size (mm) | (Front CV Axle Shaft) 27 |
| Axle Bolt Hex Size (mm) | (Rear CV Axle Shaft) 17 |
| Axle Bolt Length (mm) | (Front CV Axle Shaft) 97 |
| Axle Bolt Length (mm) | (Rear CV Axle Shaft) 90 |
| Axle Bolt Thread Size | (Front CV Axle Shaft) M16*1.5 |
| Axle Bolt Thread Size | (Rear CV Axle Shaft) M16*1.5 |
| Axle Nut Included | (Front CV Axle Shaft) No |
| Axle Nut Included | (Rear CV Axle Shaft) No |
| Boot Material | (Front CV Axle Shaft) Neoprene |
| Boot Material | (Rear CV Axle Shaft) Neoprene |
| Inboard Joint Type | (Front CV Axle Shaft) Flange |
| Inboard Joint Type | (Rear CV Axle Shaft) Bolt-On |
| Inboard Shaft Connection Style | (Front CV Axle Shaft) Flange |
| Inboard Shaft Connection Style | (Rear CV Axle Shaft) Bolt-On |
| New Or Remanufactured | (Front CV Axle Shaft) New |
| New Or Remanufactured | (Rear CV Axle Shaft) New |
| Number Of Bolt Holes | (Front CV Axle Shaft) 1 |
| Number Of Bolt Holes | (Rear CV Axle Shaft) 6 |
| Number Of Inboard Splines | (Rear CV Axle Shaft) / |
| Number Of Outboard Shaft Bolts | (Front CV Axle Shaft) 1 |
| Number Of Outboard Shaft Bolts | (Rear CV Axle Shaft) 1 |
| Number Of Outboard Splines | (Front CV Axle Shaft) 38 |
| Number Of Outboard Splines | (Rear CV Axle Shaft) 38 |
| Outboard Joint Type | (Front CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Joint Type | (Rear CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Shaft Connection Style | (Front CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Shaft Connection Style | (Rear CV Axle Shaft) Spline |
| Overall Compressed Length (in) | (Front CV Axle Shaft) 21.26 |
| Overall Compressed Length (in) | (Rear CV Axle Shaft) 25.69 |
| Overall Compressed Length (mm) | (Front CV Axle Shaft) 540 |
| Overall Compressed Length (mm) | (Rear CV Axle Shaft) 652.5 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| OEM Part Number | 4B0407271AS |
| OEM Part Number | 4B3407271G |
| OEM Part Number | 4B3501203BX |
