Axle Assembly – Rear – Aftermarket VW8066

$52.99

DIRECT SHIP
Estimated dispatch: 2-3 days
Stock for this product is located at our supplier. Please contact us directly for lead times.

SKU: VW-8066 Category: Brand:

Axles are a vital link in the power train, delivering engine power straight to the wheel hubs. Modern axle assemblies feature multiple components in order to deliver power to the ground smoothly and reliably. These components include the axle shaft, inner and outer constant velocity (CV) joints, CV boots, clamps, and others. When an axle assembly is bad, you will often hear or feel a vibration or clicking sound, as the bearings in the CV no longer make a seamless fit and rotate smoothly. If this is replicable when going around a corner, the bad axle will be located on the UNLOADED side.

Abs Tone Ring Included (Rear CV Axle Shaft) No
Axle Nut Included (Rear CV Axle Shaft) No
Boot Material (Rear CV Axle Shaft) Neoprene
Inboard Bolt Head Size (in) (Rear CV Axle Shaft) 1/4
Inboard Bolt Head Size (mm) (Rear CV Axle Shaft) 6
Inboard Bolt Head Type (Rear CV Axle Shaft) Allen
Inboard Bolt Length (in) (Rear CV Axle Shaft) 2 2/7
Inboard Bolt Length (mm) (Rear CV Axle Shaft) 58
Inboard Bolt Thread Size (Rear CV Axle Shaft) M8*1.25
Inboard Joint Type (Rear CV Axle Shaft) Bolt-On
Inboard Shaft Connection Style (Rear CV Axle Shaft) Bolt-On
New Or Remanufactured (Rear CV Axle Shaft) New
Number Of Inboard Joint Bolt Holes (Rear CV Axle Shaft) 6
Number Of Inboard Shaft Bolts (Rear CV Axle Shaft) 6
Number Of Outboard Joint Bolt Holes (Rear CV Axle Shaft) 6
Outboard Bolt Head Size (in) (Rear CV Axle Shaft) 1/4
Outboard Bolt Head Size (mm) (Rear CV Axle Shaft) 6
Outboard Bolt Head Type (Rear CV Axle Shaft) Allen
Outboard Bolt Length (in) (Rear CV Axle Shaft) 2 2/7
Outboard Bolt Length (mm) (Rear CV Axle Shaft) 58
Outboard Joint Bolt Thread Size (Rear CV Axle Shaft) M8*1.25
Outboard Joint Type (Rear CV Axle Shaft) Bolt-On
Outboard Shaft Connection Style (Rear CV Axle Shaft) Bolt-On

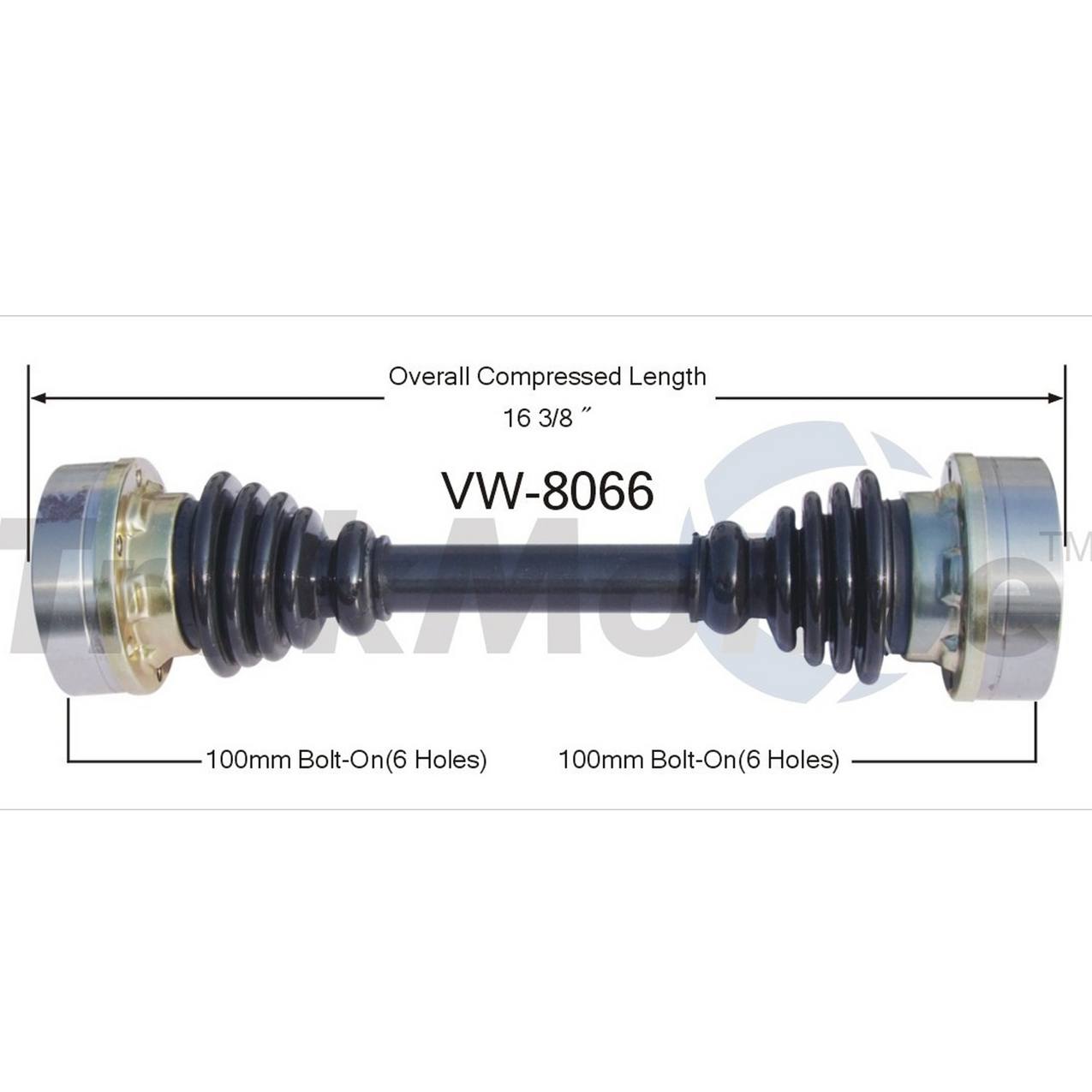

Overall Compressed Length (in) (Rear CV Axle Shaft) 16.38
Overall Compressed Length (mm) (Rear CV Axle Shaft) 416
Brand Part #
Brand Part #
ATE (AutoTech Reman) 3003
Auto Plus 349066
AutoZone 10940N
EMPI 90-6905 / 906905
ODM VW-8-8058 / VW88058
Worldparts 349066
