CV Axle Shaft – Front Passenger Side
$62.99
EARN REWARD POINTS
Purchasing this product will earn you points to redeem on future purchases. You can check your current points here.
BEST PRICE GUARANTEE
We will meet or beat the competition!
QUESTIONS? WE'RE HERE TO HELP!
If you have any question or just need a suggestion, please contact us :)
The Surtrack CV Axle Shaft part number AD-8075 is a reliable replacement part for your Audi, designed to fit seamlessly with part number 8A0407452DX.
Crafted from high-quality materials, this CV axle shaft is built to last and withstand the demands of your vehicle. Its precision-engineered design ensures that it fits perfectly with your Audi, providing optimal performance and durability.
With a smooth surface finish, this CV axle shaft reduces friction and wear, extending the life of your vehicle’s drivetrain. The axle’s splines are also precision-machined to ensure a secure and tight fit, reducing the risk of vibrations and potential damage to your vehicle’s other components.
The Surtrack CV Axle Shaft part number AD-8075 is an essential component to ensure your Audi’s drivetrain operates smoothly and efficiently. It is easy to install, making it the ideal choice for those who prefer to do their own vehicle repairs. By replacing your worn or damaged CV axle shaft with this high-quality replacement, you can rest assured that your Audi will be running at top performance for miles to come.
Invest in the Surtrack CV Axle Shaft part number AD-8075 and ensure a safe and smooth ride in your Audi.
| Abs Ring Tooth Count | (Front Right CV Axle Shaft) 45 |
| Abs Ring Type | (Front Right CV Axle Shaft) Toothed |
| Abs Tone Ring Included | (Front Right CV Axle Shaft) Yes |
| Axle Bolt Hex Size (mm) | (Front Right CV Axle Shaft) 23.8 |
| Axle Bolt Length (mm) | (Front Right CV Axle Shaft) 93 |
| Axle Bolt Thread Size | (Front Right CV Axle Shaft) M14*1.5 |
| Axle Nut Included | (Front Right CV Axle Shaft) No |
| Boot Material | (Front Right CV Axle Shaft) Neoprene |
| Inboard Bolt Head Size (in) | (Front Right CV Axle Shaft) 1/3 |
| Inboard Bolt Head Size (mm) | (Front Right CV Axle Shaft) 8 |
| Inboard Bolt Head Type | (Front Right CV Axle Shaft) Allen |
| Inboard Bolt Length (in) | (Front Right CV Axle Shaft) 2 1/6 |
| Inboard Bolt Length (mm) | (Front Right CV Axle Shaft) 55 |
| Inboard Bolt Thread Size | (Front Right CV Axle Shaft) M10*1.5 |
| Inboard Joint Type | (Front Right CV Axle Shaft) Bolt-On |
| Inboard Shaft Connection Style | (Front Right CV Axle Shaft) Bolt-On |
| New Or Remanufactured | (Front Right CV Axle Shaft) New |
| Number Of Bolt Holes | (Front Right CV Axle Shaft) 1 |
| Number Of Inboard Joint Bolt Holes | (Front Right CV Axle Shaft) 6 |
| Number Of Inboard Shaft Bolts | (Front Right CV Axle Shaft) 6 |
| Number Of Outboard Shaft Bolts | (Front Right CV Axle Shaft) 1 |
| Number Of Outboard Splines | (Front Right CV Axle Shaft) 33 |
| Outboard Joint Type | (Front Right CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Shaft Connection Style | (Front Right CV Axle Shaft) Audi Style Spline Bolt |

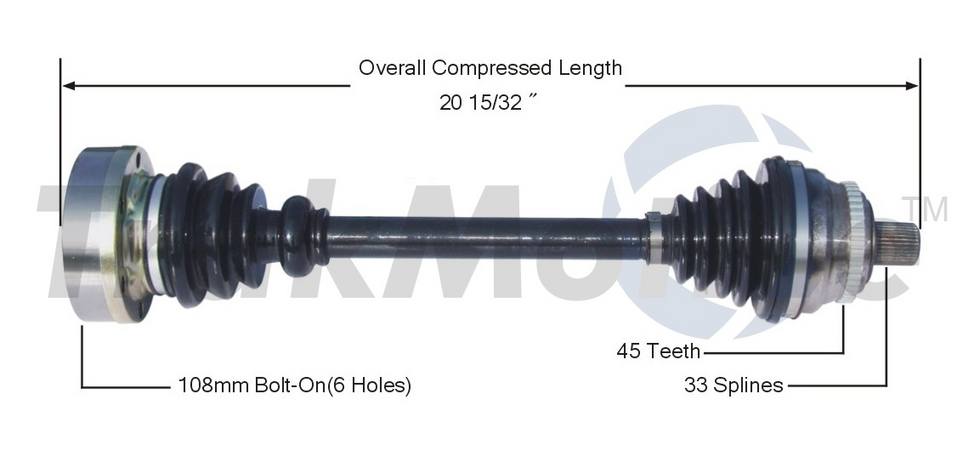

| Overall Compressed Length (in) | (Front Right CV Axle Shaft) 20.47 |
| Overall Compressed Length (mm) | (Front Right CV Axle Shaft) 520 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| OEM Part Number | 8A0407452DX |
| Brand | Part # |
|---|---|
| ARC | 80-3126 / 803126 |
| Auto Plus | 109075 |
| AutoZone | B10679N |
| EMPI | 80-9006 / 809006 |
| OEM Part Number | 8A0407452DX |
| Worldparts | 109075 |
