Dual Rear Caliper Adapter Kit

***Please see ES3202762 to build your own custom kit with these adapters!***

This caliper adapter kit allows you to mount the rear 4-piston Brembo calipers found on Touareg, Q7, and Cayenne models to the rear of MK5/MK6 chassis vehicles. A factory MK5 R32 / MK2 TTS rear caliper is used in conjunction with the 4-piston caliper in order to provide parking brake duties. This setup is intended to be used with the 310x22mm rotors found on the MK5 R32.

The 4-piston calipers are connected to the hydraulic system of the vehicle for increased braking force. Since they have no hand brake function, the factory rear MK5 R32 / MK2 TTS caliper is used for the hand brake function only. The hydraulic connection on the hand brake caliper is closed, so it requires a blanking plug.

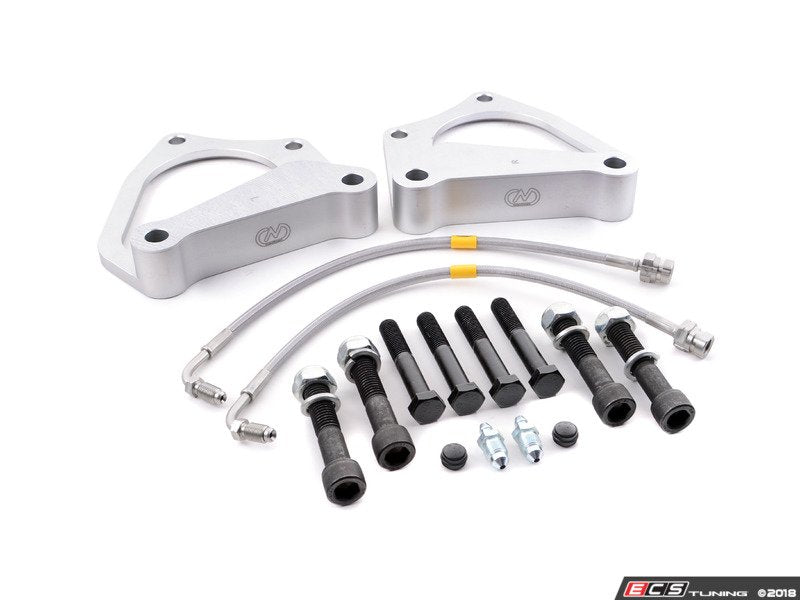

Includes:

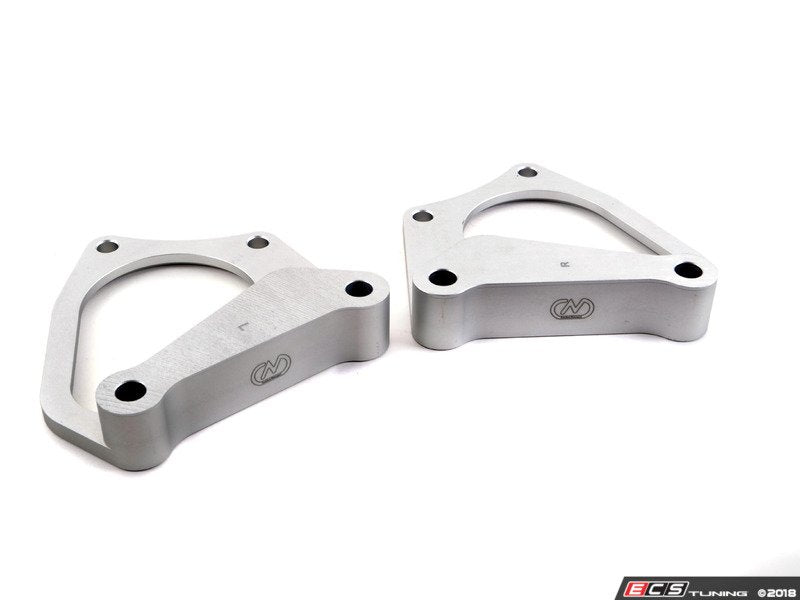

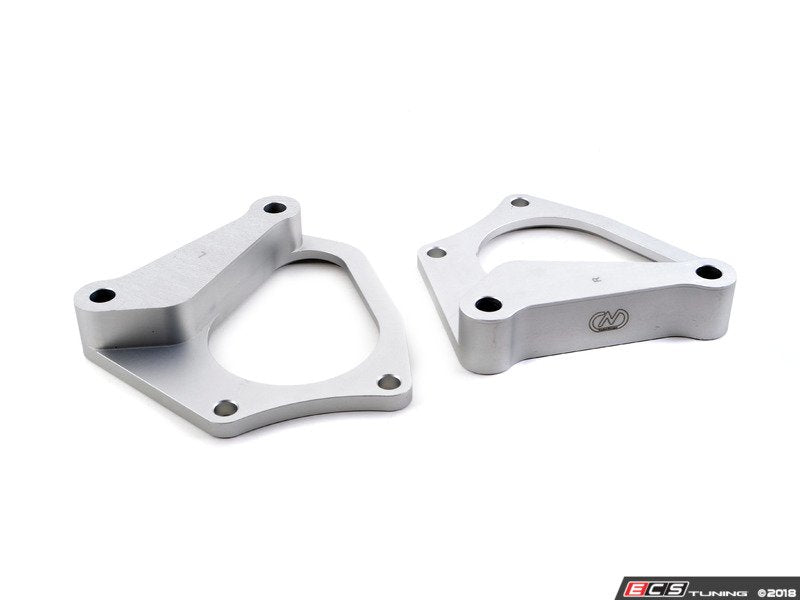

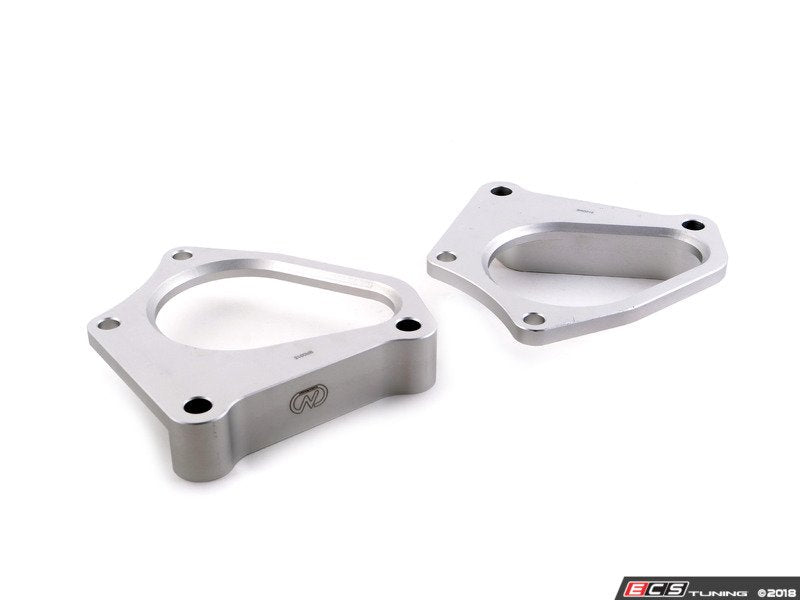

• 2 CNC machined 6061-T6 aluminum caliper brackets
• 1 set of mounting bolts/washers for caliper to hub
• 1 set of mounting bolts/washers for bracket to caliper
• 1 set of custom brake lines
• Printed installation instructions

Required Calipers:

• Main Left: 7L6615423L (Black Anodized), 95535242131 (Black Anodized), 95535242142 (Silver), or 95535242151 (Red)
• Main Right: 7L6615424L (Black Anodized), 95535242231 (Black Anodized), 95535242242 (Silver), or 95535242251 (Red)
• Hand Brake Left: 1K0615423G (Blue), 8J0615423E (Black)
• Hand Brake Right: 1K0615424G (Blue), 8J0615424E (Black)

Required Caliper Carriers:

• Left: 1K0615425T (Blue) or 1K0615425R (Black)
• Right: 1K0615426H (Blue) or 1K0615426G (Black)

Required Rotors:

• Left/Right: 1K0615601N

Creations Motorsport was founded in 2007 by a group of VAG enthusiasts in Germany. The company started life as a hobby which turned into something much bigger. CMS is known around the world for their brake adapters and other unique solutions for VW/Audi models. Braking components are taken very seriously and every brake adapter is track tested before it is put into production. All components are machined in-house at their Birmingham, United Kingdom facility.
