Fabless Fan Shroud – VW VR6 Corrado

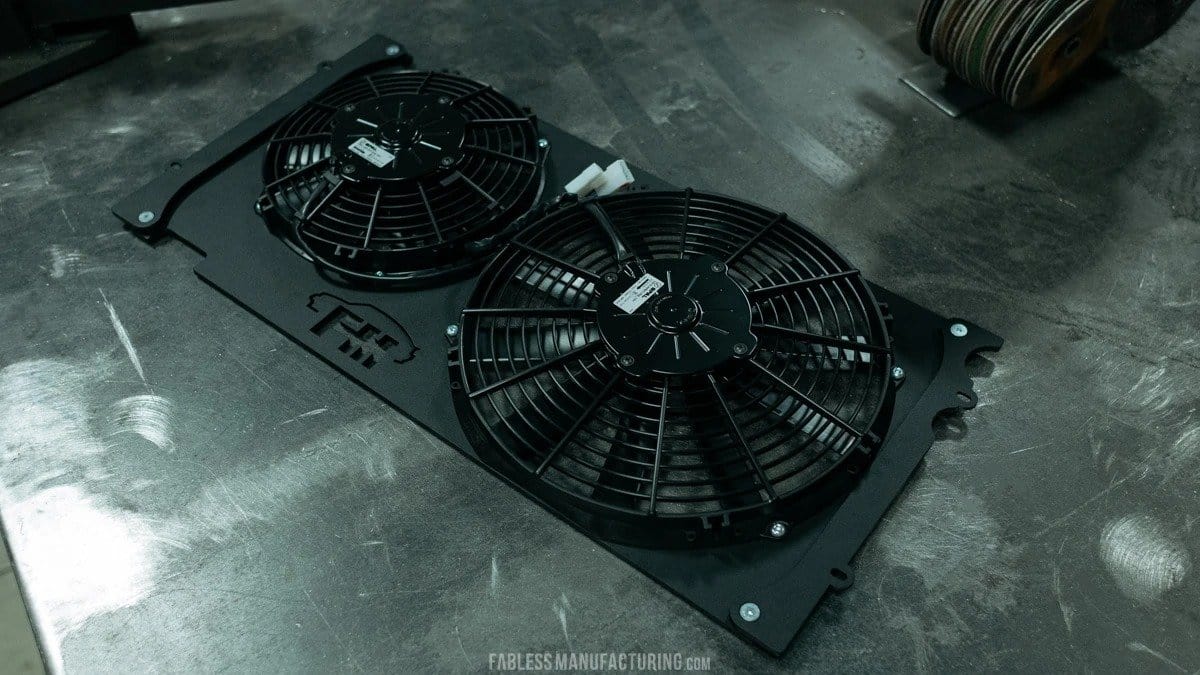

The Fabless Corrado Fan Shroud directly bolts onto Corrado VR6 radiators and allows you to run a 9′ & 12′ Spal slim fan set up. This is an easy way to create more room up front while also improving the volume of air flow.

This is the perfect solution for Corrado’s in factory or swapped applications that need additional cooling, or are low on space and need the slim design.

Features

• Compatible with Corrado VR6 Radiators
• Easy Install
• Predrilled mounting holes for the Spal Fans
• Combined CFM: 1457

Details

Included

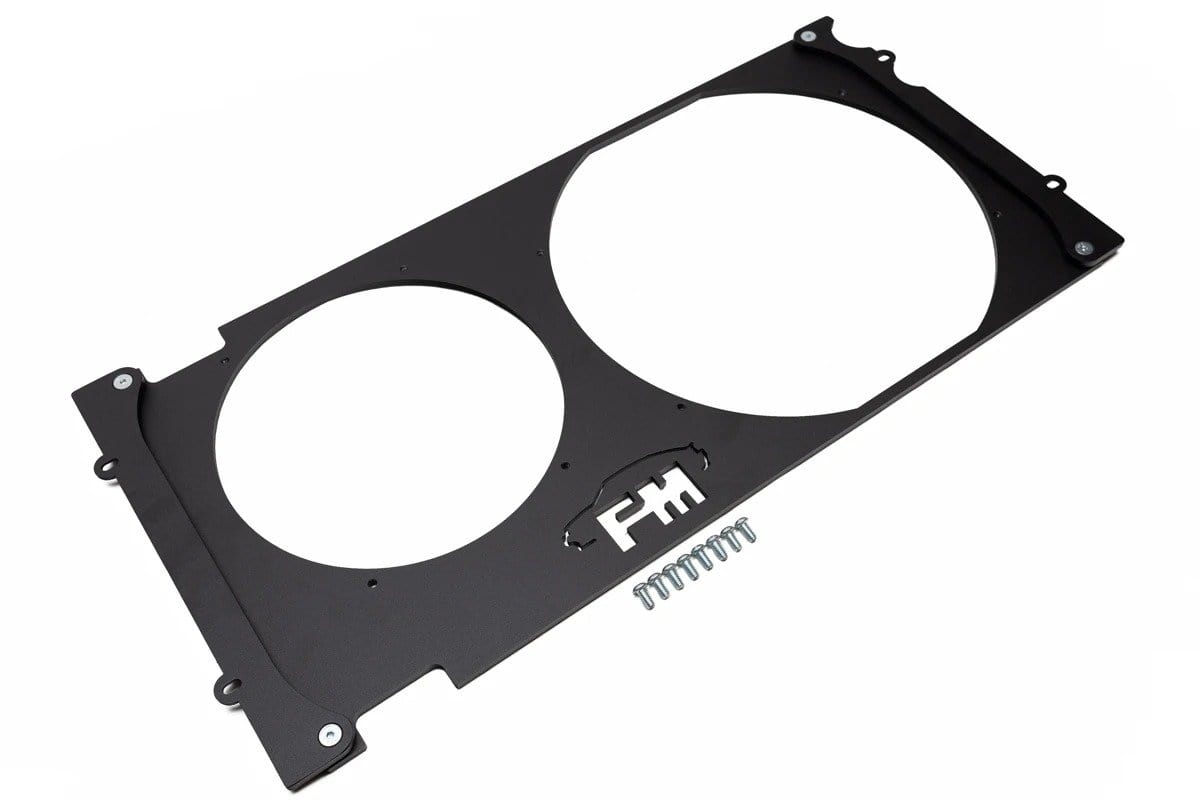

• Powder Coated Aluminum Fan Shroud (3 pieces)
• Fan shroud hardware (4 countersunk bolts, 4 washers)
• Hardware for Fans

Radiator and Fans are not included. Fans can be purchased separately.

Compatibility

Radiator

• VW Corrado VR6 OEM Radiator
• Part #: 535-121-251-E / 535121251 E / 535 121 251 E / 535121251E

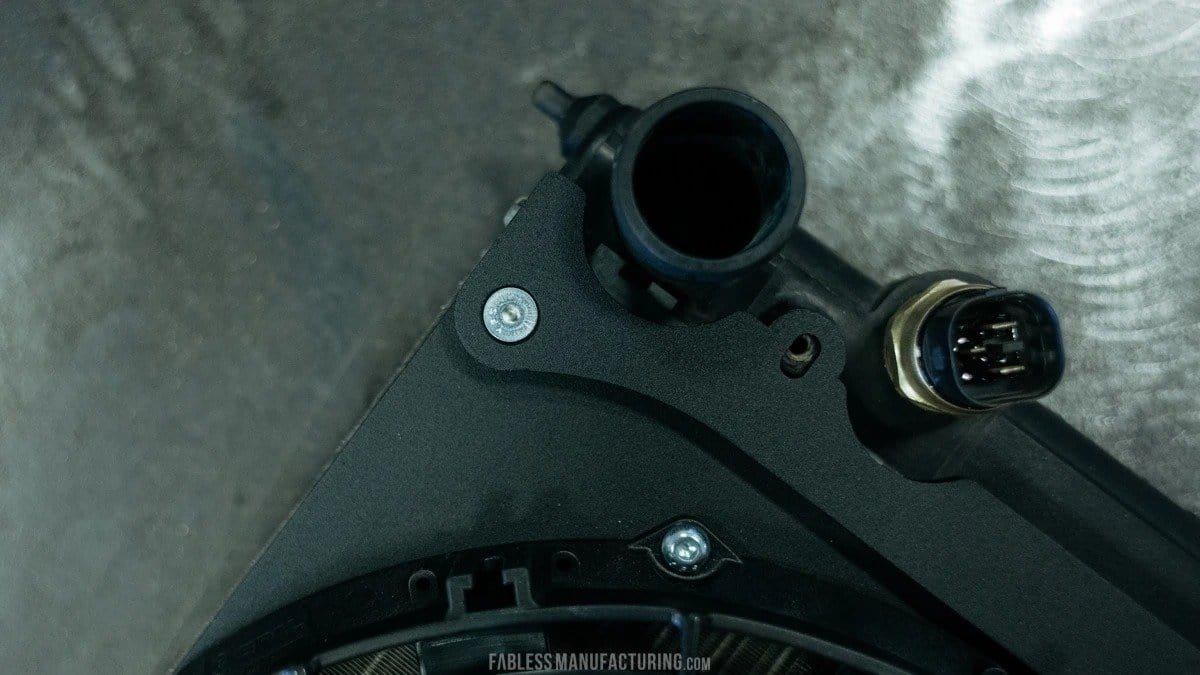

Note for aftermarket radiators: There may be interference between the shroud and mounts on the rad meant for a factory shroud. You can see the two cutouts in the top and bottom of our shroud are made to clear these mounts on an OEM rad, but aftermarket radiators may have slightly different locations. Since our shroud doesn’t utilize these locations, they can be trimmed to prevent any interference. If you are unsure, please send our customer service an email and we can confirm fitment before purchase.

Fans

• 9′ Spal Fan [Part #: 30100392]
• 12′ Spal Fan [Part #: 30100375]

Install Notes

• Spal recommends running a dedicated 40 amp relay for the fan set up.
• Spal fan’s don’t plug into your factory wiring, so pigtails will be needed.
• Complete Wiring Kit and diagram coming soon!
