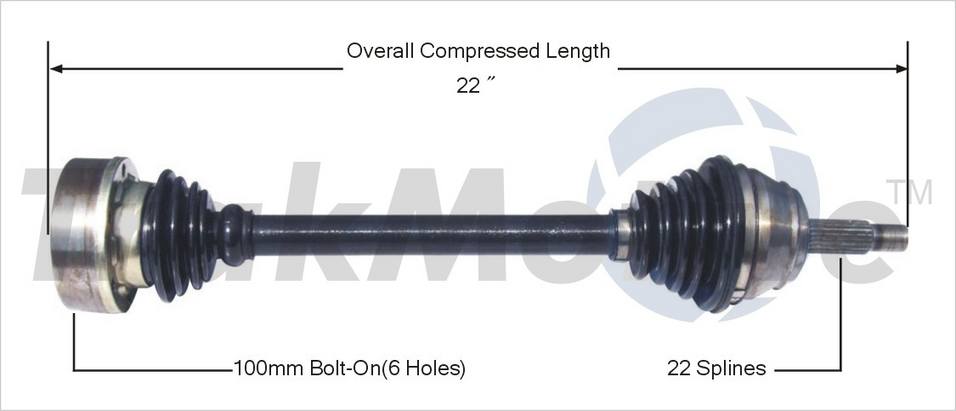

The Surtrack CV Axle Shaft part number VW-8016 is a high-quality replacement component designed to fit seamlessly into your Volkswagen vehicle. This durable and reliable part is compatible with several other part numbers including 1H0407271A, 1HM407271, 1HM407273, and 357407271H, making it an excellent choice for anyone needing a new CV axle shaft.
Constructed from premium materials, this part is designed to withstand the rigors of everyday use while ensuring maximum performance and longevity. The Surtrack CV Axle Shaft is rigorously tested to meet or exceed OEM specifications, so you can be confident that it will deliver the same level of performance as the original equipment.
One of the key features of this Surtrack CV Axle Shaft is its superior strength and durability. With its high-strength construction and advanced engineering, this component is built to handle extreme conditions and heavy loads. This makes it an ideal choice for drivers who frequently drive in harsh environments or under challenging conditions.
Another key benefit of this Surtrack CV Axle Shaft is its ease of installation. Designed for hassle-free installation, this component can be quickly and easily installed by anyone with basic automotive skills. This means that you can get back on the road and enjoy a smooth, reliable ride in no time at all.
In summary, the Surtrack CV Axle Shaft part number VW-8016 is a top-quality replacement component that offers superior strength, durability, and performance. Compatible with several other part numbers, this component is easy to install and will ensure that your Volkswagen vehicle runs smoothly and reliably for years to come.
Abs Tone Ring Included | (Front Left CV Axle Shaft) No |
Axle Nut Head Type | (Front Left CV Axle Shaft) Hex |
Axle Nut Height (in) | (Front Left CV Axle Shaft) 5/9 |
Axle Nut Height (mm) | (Front Left CV Axle Shaft) 14 |
Axle Nut Hex Size (in) | (Front Left CV Axle Shaft) 1 1/6 |
Axle Nut Hex Size (mm) | (Front Left CV Axle Shaft) 30 |
Axle Nut Included | (Front Left CV Axle Shaft) Yes |
Axle Nut Length (in) | (Front Left CV Axle Shaft) 1 1/3 |
Axle Nut Length (mm) | (Front Left CV Axle Shaft) 34.6 |
Axle Nut Locking Type | (Front Left CV Axle Shaft) Self-Lock |
Axle Nut Thread Size | (Front Left CV Axle Shaft) M20*1.5 |
Boot Material | (Front Left CV Axle Shaft) Neoprene |
Inboard Bolt Head Size (in) | (Front Left CV Axle Shaft) 1/4 |
Inboard Bolt Head Size (mm) | (Front Left CV Axle Shaft) 6 |
Inboard Bolt Head Type | (Front Left CV Axle Shaft) Allen |
Inboard Bolt Length (in) | (Front Left CV Axle Shaft) 2 2/7 |
Inboard Bolt Length (mm) | (Front Left CV Axle Shaft) 58 |
Inboard Bolt Thread Size | (Front Left CV Axle Shaft) M8*1.25 |
Inboard Joint Type | (Front Left CV Axle Shaft) Bolt-On |
Inboard Shaft Connection Style | (Front Left CV Axle Shaft) Bolt-On |
New Or Remanufactured | (Front Left CV Axle Shaft) New |
Number Of Inboard Joint Bolt Holes | (Front Left CV Axle Shaft) 6 |
Number Of Inboard Shaft Bolts | (Front Left CV Axle Shaft) 6 |
Number Of Outboard Splines | (Front Left CV Axle Shaft) 22 |
Outboard Joint Type | (Front Left CV Axle Shaft) Conventional |
Outboard Shaft Connection Style | (Front Left CV Axle Shaft) Conventional |
Overall Compressed Length (in) | (Front Left CV Axle Shaft) 22.01 |
Overall Compressed Length (mm) | (Front Left CV Axle Shaft) 559 |
Brand | Part # |
---|
Brand | Part # |
---|---|
OEM Part Number | 1H0407271A |
OEM Part Number | 1HM407271 |
OEM Part Number | 1HM407273 |
OEM Part Number | 357407271H |
OEM Part Number | 357407449X |
Brand | Part # |
---|---|
American Remanufactured | 40-18863 / 4018863 |
ARC | 80-3166 / 803166 |
ATE (AutoTech Reman) | 3079 |
Auto Plus | 349016 |
AutoZone | 6061N |
Car Components Technologies (CCT) | 6061 |
Cardone Reman | 60-7114 / 607114 |
Cardone Reman | 66-7114 / 667114 |
Cardone Reman | MP7114 |
CARQUEST | 801775 |
CarQuest NEW | 801775 |
Carquest Remanufactured | 411775 |
Diversified Shafts Solutions | 2231N |
Drive Tech America | VW-8863 / VW8863 |
EMPI | 80-6813 / 806813 |
Fenwick | CV3027 |
GSP | NCV73500 |
Heri Automotive | 75981 |
Heri Automotive | 93166 |
Mega Axles | MX-18835 / MX18835 |
Mega Axles | MX-18863 / MX18863 |
Mevotech | CV7053 |
MPV | MP-7114 / MP7114 |
NAPA | 942002 |
NAPA | 952154 |
ODM | VW-8-8519 / VW88519 |
OEM Part Number | 1H0407271A |
OEM Part Number | 1HM407271 |
OEM Part Number | 1HM407273 |
OEM Part Number | 357407271H |
OEM Part Number | 357407449X |
ProTech | VW10510 |
ProTech | VW10514 |
USA Industries | 708731 |
Worldparts | 349016 |
