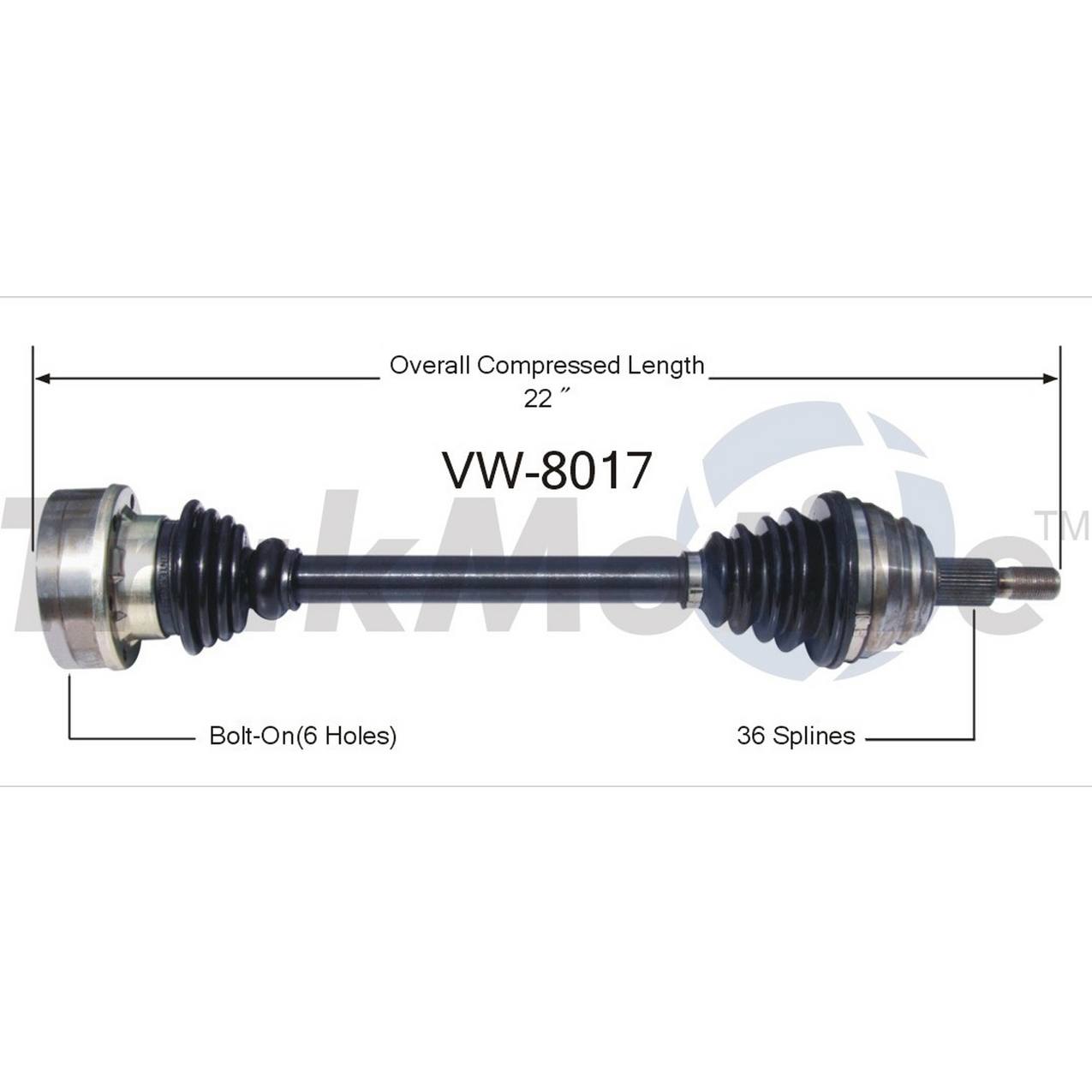

The Surtrack CV Axle Shaft part number VW-8017 is a reliable replacement for worn-out or damaged axles in Volkswagen vehicles. This part type is compatible with other part numbers 1J0407271AF, 1J0407271DF, 1J0407271EN, and 1J0407271QF, ensuring a perfect fit for your vehicle.
Constructed from high-quality materials, this CV axle shaft is designed to provide excellent performance and durability. With precise engineering, it ensures smooth power transmission to your vehicle’s wheels, resulting in a comfortable and stable ride.
This CV axle shaft also features a robust design that can withstand tough conditions and heavy loads, providing you with long-lasting performance. It is an excellent choice for those who want to restore their vehicle’s performance and reliability.
The Surtrack CV Axle Shaft part number VW-8017 is easy to install, making it an ideal choice for do-it-yourself enthusiasts. Its compatibility with other part numbers makes it a versatile option for various Volkswagen models.
Overall, the Surtrack CV Axle Shaft part number VW-8017 is a reliable and high-performance replacement for damaged or worn-out axles in your Volkswagen vehicle. Invest in this quality part to ensure your vehicle’s optimal performance and a comfortable driving experience.
Abs Tone Ring Included | (Front Left CV Axle Shaft) No |
Axle Nut Head Type | (Front Left CV Axle Shaft) Hex |
Axle Nut Height (in) | (Front Left CV Axle Shaft) 5/9 |
Axle Nut Height (mm) | (Front Left CV Axle Shaft) 14 |
Axle Nut Hex Size (in) | (Front Left CV Axle Shaft) 1 1/6 |
Axle Nut Hex Size (mm) | (Front Left CV Axle Shaft) 30 |
Axle Nut Included | (Front Left CV Axle Shaft) Yes |
Axle Nut Length (in) | (Front Left CV Axle Shaft) 1 1/3 |
Axle Nut Length (mm) | (Front Left CV Axle Shaft) 34.6 |
Axle Nut Locking Type | (Front Left CV Axle Shaft) Self-Lock |
Axle Nut Thread Size | (Front Left CV Axle Shaft) M20*1.5 |
Boot Material | (Front Left CV Axle Shaft) Neoprene |
Inboard Bolt Head Size (in) | (Front Left CV Axle Shaft) 1/4 |
Inboard Bolt Head Size (mm) | (Front Left CV Axle Shaft) 6 |
Inboard Bolt Head Type | (Front Left CV Axle Shaft) Allen |
Inboard Bolt Length (in) | (Front Left CV Axle Shaft) 2 2/7 |
Inboard Bolt Length (mm) | (Front Left CV Axle Shaft) 58 |
Inboard Bolt Thread Size | (Front Left CV Axle Shaft) M8*1.25 |
Inboard Joint Type | (Front Left CV Axle Shaft) Bolt-On |
Inboard Shaft Connection Style | (Front Left CV Axle Shaft) Bolt-On |
New Or Remanufactured | (Front Left CV Axle Shaft) New |
Number Of Inboard Joint Bolt Holes | (Front Left CV Axle Shaft) 6 |
Number Of Inboard Shaft Bolts | (Front Left CV Axle Shaft) 6 |
Number Of Outboard Splines | (Front Left CV Axle Shaft) 36 |
Outboard Joint Type | (Front Left CV Axle Shaft) Conventional |
Outboard Shaft Connection Style | (Front Left CV Axle Shaft) Conventional |
Overall Compressed Length (in) | (Front Left CV Axle Shaft) 22.01 |
Overall Compressed Length (mm) | (Front Left CV Axle Shaft) 559 |
Brand | Part # |
---|
Brand | Part # |
---|---|
OEM Part Number | 1J0407271AF |
OEM Part Number | 1J0407271DF |
OEM Part Number | 1J0407271EN |
OEM Part Number | 1J0407271QF |
OEM Part Number | 1J0407271QG |
Brand | Part # |
---|---|
Altrom | 652737 |
American Remanufactured | 40-18881 / 4018881 |
ARC | 80-5886 / 805886 |
Auto Plus | 349017 |
AutoZone | 7553N |
Cardone Reman | 60-7256 / 607256 |
Cardone Reman | MP7256 |
CARQUEST | 800440 |
CarQuest NEW | 800440 |
Carquest Remanufactured | 410440 |
Diversified Shafts Solutions | 2305N |
Drive Tech America | VW-8851 / VW8851 |
EMPI | 80-6839 / 806839 |
Fenwick | CV3855 |
GSP | NCV72052 |
GSP | NCV72057 |
Heri Automotive | 75970 |
Heri Automotive | 95886 |
IMC | 40754061 |
Mega Axles | MX-18813 / MX18813 |
Mevotech | CV7096 |
MPV | MP-7256 / MP7256 |
NAPA | 942013 |
NAPA | 952241 |
OEM Part Number | 1J0407271AF |
OEM Part Number | 1J0407271DF |
OEM Part Number | 1J0407271EN |
OEM Part Number | 1J0407271QF |
OEM Part Number | 1J0407271QG |
ProTech | VW10506 |
ToughOne | NCV72052 |
USA Industries | 708730 |
USA Industries | AX-9127 / AX9127 |
USA Industries | AX-9540 / AX9540 |
USA Industries | AX-9542 / AX9542 |
Worldparts | 349017 |
