Description

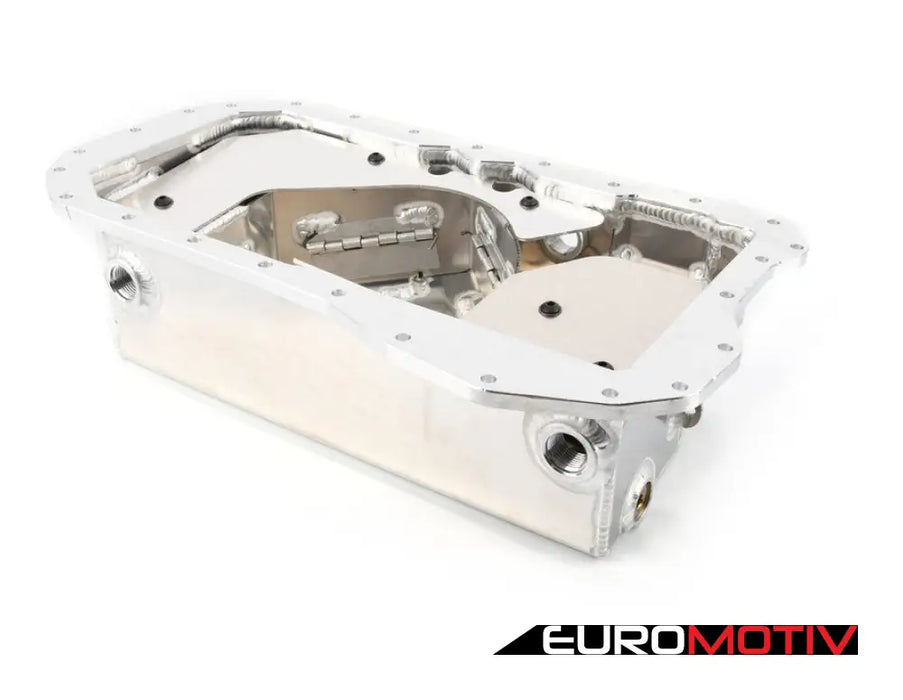

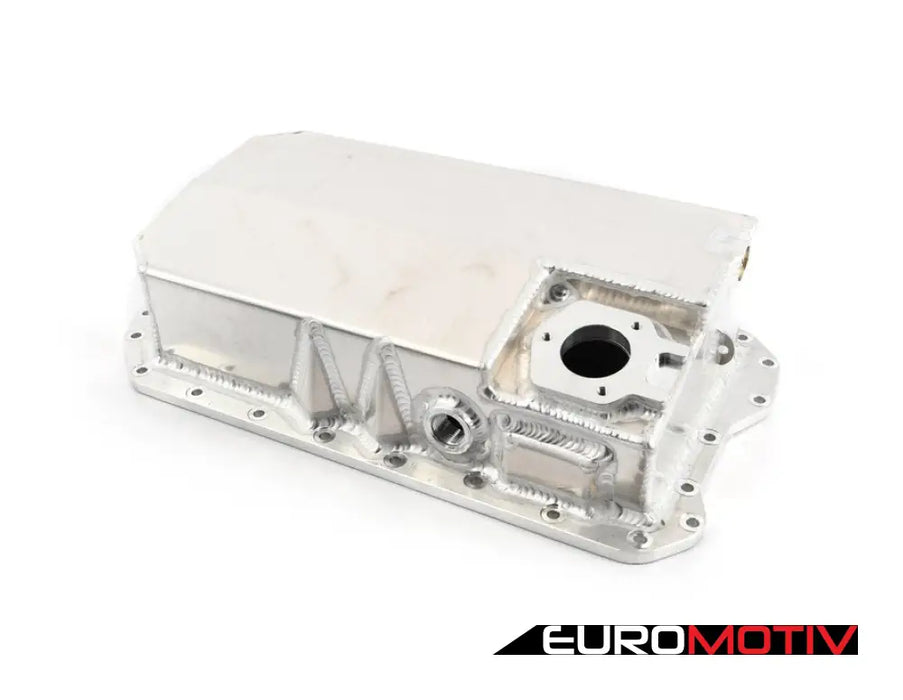

The iABED Industries Baffled Aluminum Oil Pan is designed to be a true baffled oil pan for all pre-2006 longitudinal and transverse VR6 engines.
Will work on AAA, AFP & BJS motors along with others.
Features:
- Full Aluminum construction.
- T6061 CNC Machined pan rail and oil level sensor provision plate
- Sheet Aluminum construction on outer body for longevity and resistance to corrosion.
- Complete baffle system that prevents oil from sliding up the walls of the crankcase through hard cornering.

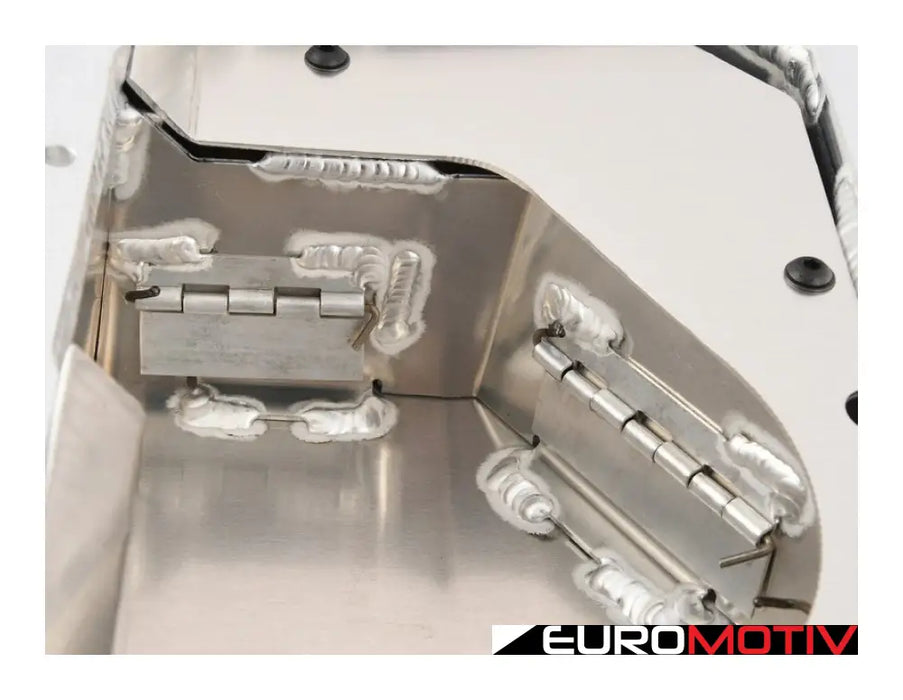

- Trap door basket design that maintains oil around the OE pickup tube at all times making it the perfect addition for track racers, weekend warriors or even grocery getters!
- 0.8L increased oil capacity without raising the minimum height of the oil level.
- Sits Approx 25mm closer to the pan rail compared to MK4 R32 and MK3 12V VR6 oil pan.
- Requires the use of MK5 R32 Oil Pump (ES269534)

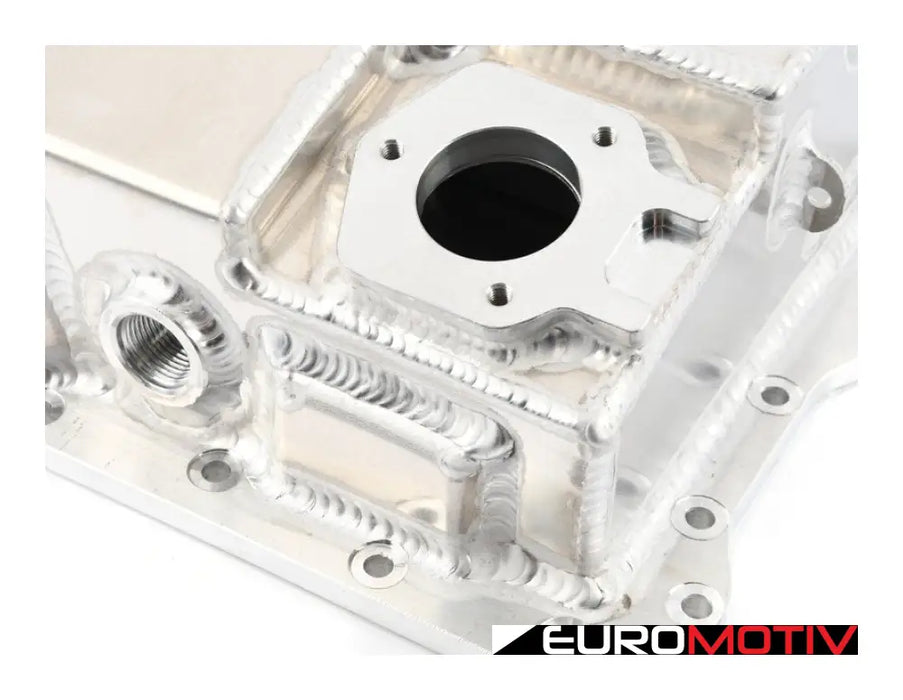

- Provision for OEM oil level sensor
- ¾-16” Magnetic drain plug as standard
- (3) 10-AN Oil Return ports provide channels for twin turbo , supercharger or even naturally aspirated oil return locations. Any combination has you covered.
