Description

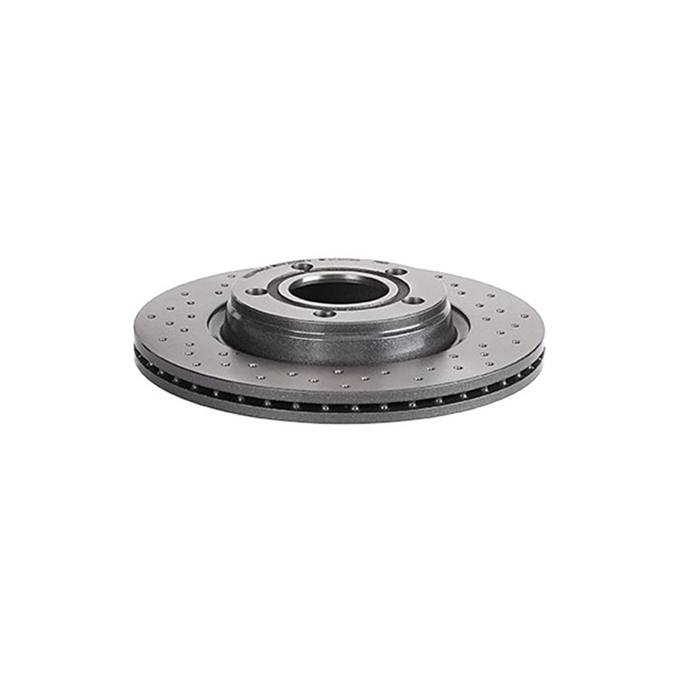

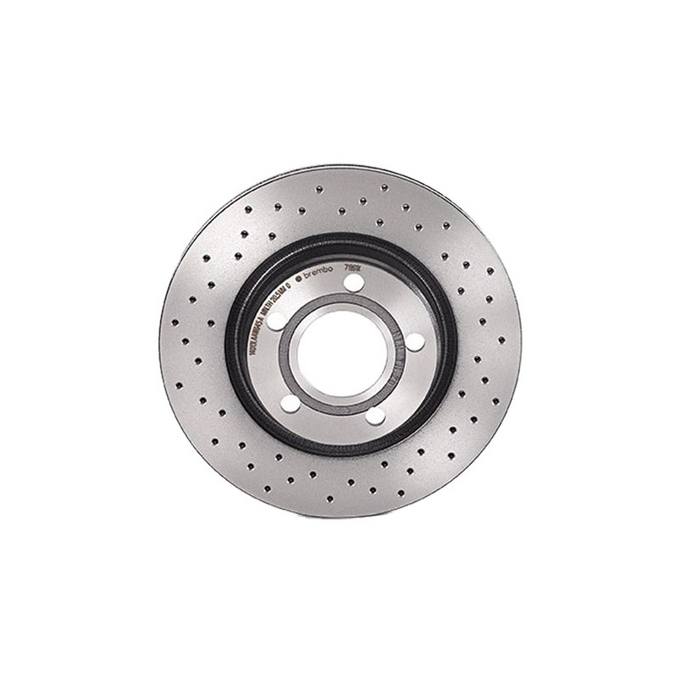

The Brembo 09.7196.1X Brake Rotor is designed to provide precise braking for Audi vehicles. This part features a drilled design that is compatible with other part numbers 8E0615301B, 8E0615301D, and 8E0615301P. It is made from high carbon construction for optimal strength and a long life. Get this item for the best price and high quality.

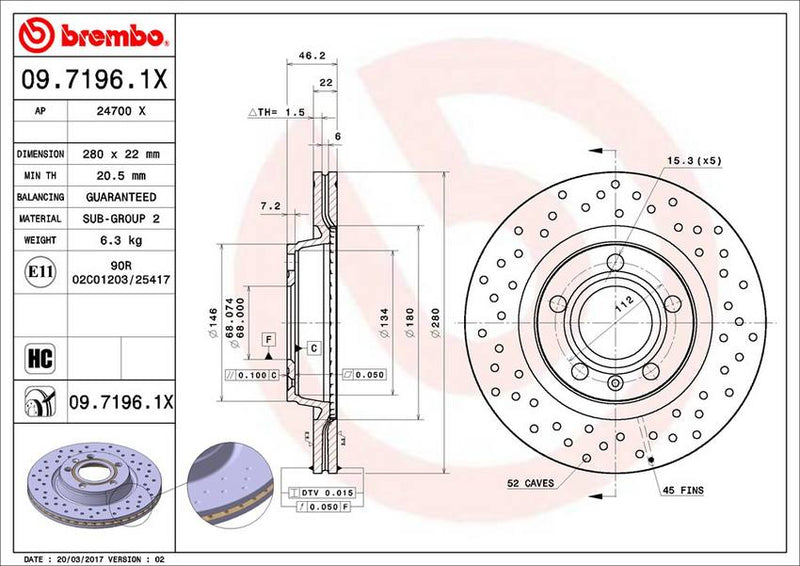

| Braking Surface | Drilled |
| Centering Diameter (MM) | 68 |
| Height (MM) | 46.2 |
| Material | High Carbon |
| Minimum Thickness (MM) | 20.5 |
| Nominal Thickness (MM) | 22 |
| Number of Holes | 5 |
| Outside Diameter (MM) | 280 |
| Rust Resistant Coating | UV Coated |
| Solid Or Vented Type Rotor | vented |
| Torque Spec(NM) | 120 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 8E0615301B |
| Audi | 8E0615301D |
| Audi | 8E0615301P |
| Volkswagen | 8E0615301B |
| Volkswagen | 8E0615301D |
| Volkswagen | 8E0615301P |
| Brand | Part # |
|---|---|
| Aimco | 34170 |
| ATE | CW22152 |
| Audi | 8E0615301B |
| Audi | 8E0615301D |
| Audi | 8E0615301P |
| Beck/Arnley | 083-2992 / 0832992 |
| Raybestos | 96782 |
| Volkswagen | 8E0615301B |
| Volkswagen | 8E0615301D |
| Volkswagen | 8E0615301P |
| Wagner | BD180082 |
| Zimmermann | 600.3207.20 / 600320720 |
