Description

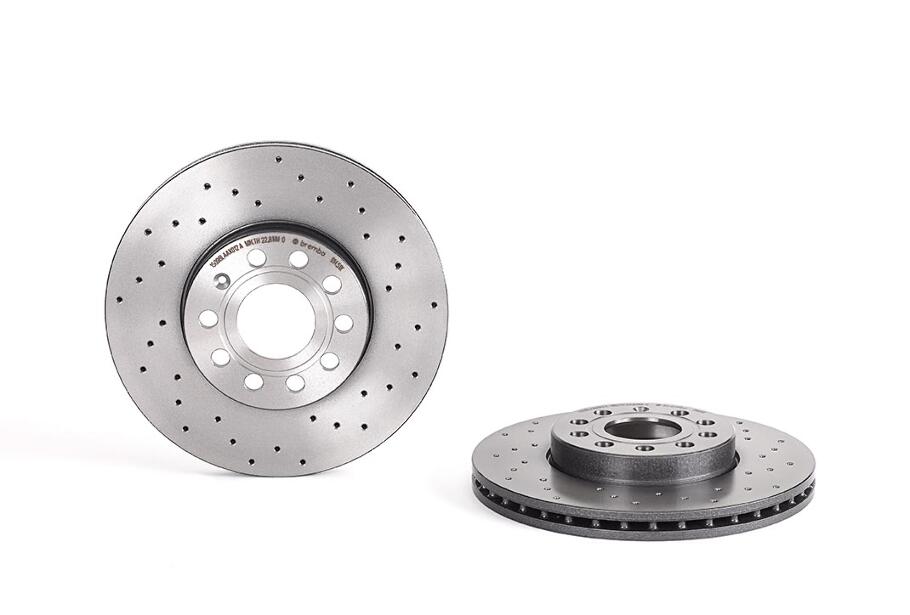

The Brembo 09.9145.1X Brake Rotor is a direct fit replacement part for select Audi and Volkswagen models. This brake rotor is designed to provide superior stopping power and braking performance in various road conditions and is engineered to meet OEM specifications for quality and functionality. This rotor is made from high-quality materials and is coated for superior corrosion and wear resistance. The rotor is also drilled for better heat dissipation and optimized performance. This part is compatible with part numbers 1K0615301K,1K0615301T,5C0615301A, and 5C0615301D, and is available at a competitive price. Get the superior braking performance of this Brembo brake rotor today and enjoy the highest quality and reliable performance.
| Braking Surface | Drilled |
| Centering Diameter (MM) | 65 |
| Fixing Screws | included |
| Height (MM) | 49.5 |
| Material | Grey Cast Iron |
| Minimum Thickness (MM) | 22.8 |
| Nominal Thickness (MM) | 25 |
| Number of Holes | 5 |
| Outside Diameter (MM) | 288 |
| Rust Resistant Coating | UV Coated |
| Solid Or Vented Type Rotor | vented |
| Torque Spec(NM) | 120 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1K0615301K |
| Audi | 1K0615301T |
| Audi | 5C0615301A |
| Audi | 5C0615301D |
| Audi | 5Q0615301H |
| Seat | 1K0615301K |
| Seat | 1K0615301T |
| Skoda | 1K0615301K |
| Skoda | 1K0615301T |
| Volkswagen | 1K0615301T |
| Volkswagen | 5C0615301A |
| Volkswagen | 5C0615301D |
| Volkswagen | 5Q0615301H |
| Brand | Part # |
|---|---|
| Aimco | 34303 |
| ATE | CW25145 |
| Audi | 1K0615301K |
| Audi | 1K0615301T |
| Audi | 5C0615301A |
| Audi | 5C0615301D |
| Audi | 5Q0615301H |
| Beck/Arnley | 083-3043 / 0833043 |
| Raybestos | 980456 |
| Seat | 1K0615301K |
| Seat | 1K0615301T |
| Skoda | 1K0615301K |
| Skoda | 1K0615301T |
| Volkswagen | 1K0615301T |
| Volkswagen | 5C0615301A |
| Volkswagen | 5C0615301D |
| Volkswagen | 5Q0615301H |
| Wagner | BD126323 |
| Zimmermann | 600.3221.20 / 600322120 |
