Description

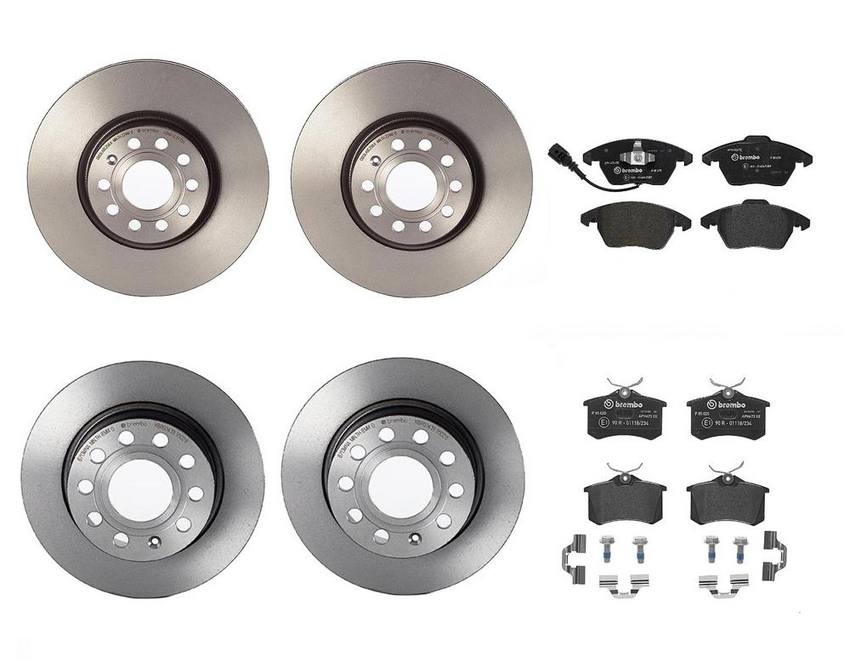

Kit Includes:
2 x Brembo 09.9772.11 Front Disc Brake Rotors
2 x Brembo 08.9488.11 Rear Disc Brake Rotors
1 x Brembo P85075 Front Disc Brake Pad Set
1 x Brembo P85020 Rear Disc Brake Pad Set
| Brake System | (Front pads) Teves |
| Brake System | (Rear pads) Lucas |
| Coated | ( Front Rotors ) Yes |
| Coated | ( Rear Rotors ) Yes |
| Features | (Rear pads) with hardware |
| Fixing Screws | ( Front Rotors ) Yes |
| Fixing Screws | ( Rear Rotors ) Yes |
| Height (mm) | (Front pads) 66 / 71.3 |
| Height (mm) | (Rear pads) 53 |
| High Carbon | ( Front Rotors ) Yes |
| Min TH (Discs)/Max Diameter (Drums) (mm) | ( Front Rotors ) 22 |
| Min TH (Discs)/Max Diameter (Drums) (mm) | ( Rear Rotors ) 8 |
| Nominal Thickness (mm) | ( Front Rotors ) 25 |
| Nominal Thickness (mm) | ( Rear Rotors ) 10 |
| Outside Diameter (mm) | ( Front Rotors ) 312 |
| Outside Diameter (mm) | ( Rear Rotors ) 255 |
| Wear Indicator | (Front pads) with electric wear indicator |
| Width (mm) | (Front pads) 156.5 / 155.3 |
| Width (mm) | (Rear pads) 87 |
| WVA | (Rear pads) 20961 / 23554 |
| WVA | (Rear pads) 23587 / 23588 / 23589 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1J0 698 451E / 1J0698451E |
| Audi | 1J0 698 451J / 1J0698451J |
| Audi | 1J0 698 451L / 1J0698451L |
| Audi | 1J0 698 451N / 1J0698451N |
| Audi | 1K0 615 301A AA / 1K0615301AAA |
| Audi | 1K0 615 601A AB / 1K0615601AAB |
| Audi | 1K0 615 601K / 1K0615601K |
| Audi | 1K0 698 151E / 1K0698151E |
| Audi | 1K0 698 451J / 1K0698451J |
| Audi | 1K0615301AA |
| Audi | 1K0615601AB |
| Audi | 1K0615601K |
| Audi | 3B0 698 451 / 3B0698451 |
| Audi | 3C0 698 151A / 3C0698151A |
| Audi | 3C0 698 151D / 3C0698151D |
| Audi | 4B0 698 451 / 4B0698451 |
| Audi | 4B0 698 451B / 4B0698451B |
| Audi | 4B0 698 451C / 4B0698451C |
| Audi | 4B0 698 451E / 4B0698451E |
| Audi | 4D0 698 151C / 4D0698151C |
| Audi | 4D0 698 451C / 4D0698451C |
| Audi | 5C0 615 301B / 5C0615301B |
| Audi | 5C0615301B |
| Audi | 5K0 698 151 / 5K0698151 |
| Audi | 5Q0 615 301F / 5Q0615301F |
| Audi | 5Q0615301F |
| Audi | 8E0 698 451 / 8E0698451 |
| Audi | 8E0 698 451A / 8E0698451A |
| Audi | 8E0 698 451B / 8E0698451B |
| Audi | 8J0 698 151 / 8J0698151 |
| Audi | 8J0 698 151C / 8J0698151C |
| Seat | 1K0615301AA |
| Skoda | 1K0615301AA |
| Volkswagen | 1E0 698 451 / 1E0698451 |
| Volkswagen | 1E0 698 451B / 1E0698451B |
| Volkswagen | 1E0 698 451C / 1E0698451C |
| Volkswagen | 1E0 698 451E / 1E0698451E |
| Volkswagen | 1E0 698 451G / 1E0698451G |
| Volkswagen | 1H0 690 451 / 1H0690451 |
| Volkswagen | 1H0 690 451A / 1H0690451A |
| Volkswagen | 1H0 698 451 / 1H0698451 |
| Volkswagen | 1H0 698 451A / 1H0698451A |
| Volkswagen | 1H0 698 451C / 1H0698451C |
| Volkswagen | 1H0 698 451D / 1H0698451D |
| Volkswagen | 1H0 698 451G / 1H0698451G |
| Volkswagen | 1J0 698 451 / 1J0698451 |
| Volkswagen | 1J0 698 451A / 1J0698451A |
| Volkswagen | 1J0 698 451B / 1J0698451B |
| Volkswagen | 1J0 698 451C / 1J0698451C |
| Volkswagen | 1J0 698 451D / 1J0698451D |
| Volkswagen | 1J0 698 451E / 1J0698451E |
| Volkswagen | 1J0 698 451F / 1J0698451F |
| Volkswagen | 1J0 698 451G / 1J0698451G |
| Volkswagen | 1J0 698 451J / 1J0698451J |
| Volkswagen | 1J0 698 451K / 1J0698451K |
| Volkswagen | 1J0 698 451P / 1J0698451P |
| Volkswagen | 1J0 698 451R / 1J0698451R |
| Volkswagen | 1K0 615 301 AA / 1K0615301AA |
| Volkswagen | 1K0 615 601 AB / 1K0615601AB |
| Volkswagen | 1K0 615 601K / 1K0615601K |
| Volkswagen | 1K0 698 451J / 1K0698451J |
| Volkswagen | 1K0615301AA |
| Volkswagen | 1K0615601AB |
| Volkswagen | 1K0615601K |
| Volkswagen | 3B0 698 451 / 3B0698451 |
| Volkswagen | 3C0 698 151A / 3C0698151A |
| Volkswagen | 3C0 698 151C / 3C0698151C |
| Volkswagen | 4B0 698 451A / 4B0698451A |
| Volkswagen | 4B0 698 451B / 4B0698451B |
| Volkswagen | 4B0 698 451E / 4B0698451E |
| Volkswagen | 561 615 301A / 561615301A |
| Volkswagen | 561615301A |
| Volkswagen | 5C0 615 301B / 5C0615301B |
| Volkswagen | 5C0 615 601 / 5C0615601 |
| Volkswagen | 5C0 698 151A / 5C0698151A |
| Volkswagen | 5C0615301B |
| Volkswagen | 5C0615601 |
| Volkswagen | 5K0 698 151 / 5K0698151 |
| Volkswagen | 5Q0 615 301F / 5Q0615301F |
| Volkswagen | 5Q0615301F |
| Volkswagen | 7D0 698 451J / 7D0698451J |
| Volkswagen | 8E0 698 451 / 8E0698451 |
| Volkswagen | 8E0 698 451A / 8E0698451A |
| Volkswagen | 8E0 698 451K / 8E0698451K |
