Description

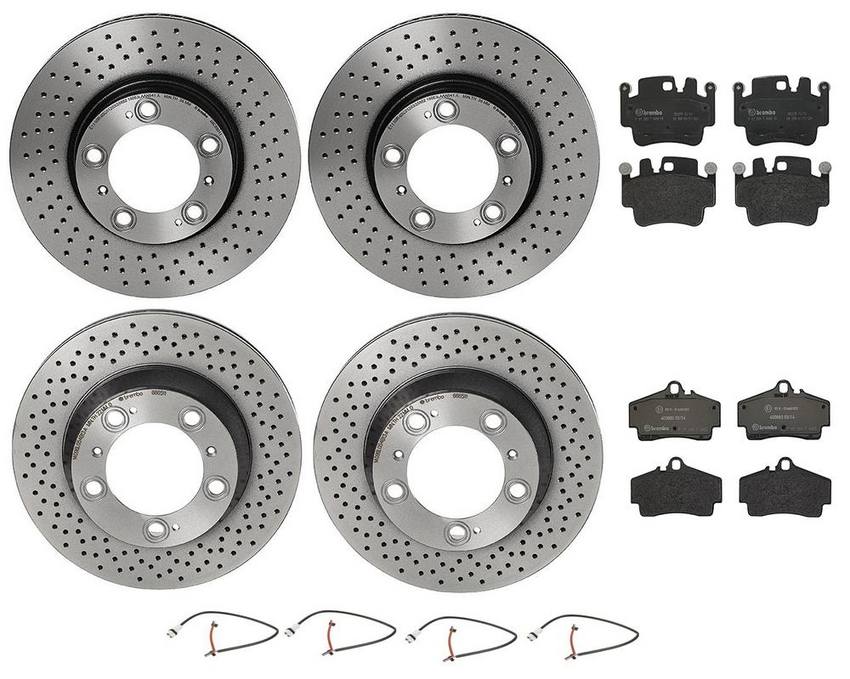

Kit Includes:
2 x Brembo 09.C880.11 Front Disc Brake Rotors
2 x Brembo 09.6665.11 Rear Disc Brake Rotors
4 x eEuroParts XHBSJ034 Front and Rear Disc Brake Pad Wear Sensors
1 x Brembo P65009 Front Disc Brake Pad Set
1 x Brembo P65008 Rear Disc Brake Pad Set
| Brake System | (Front Pads) Brembo |
| Brake System | (Rear Pads) Brembo |
| Braking Surface | (Front Rotors) Drilled |
| Braking Surface | (Rear Rotors) Drilled |
| Centring Diameter | (Rear Rotors) 98 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter (mm) | (Front Rotors) 318 |
| Diameter (mm) | (Rear Rotors) 299 |
| Fixing Screws | (Front Rotors) included |
| Fixing Screws | (Rear Rotors) Included |
| Friction Material Composition | (Front and Rear Pads) Low-Met |
| Height (mm) | (Front Pads) 90.1 |
| Height (mm) | (Front Rotors) 67 |
| Height (mm) | (Rear Pads) 73 |
| Height (mm) | (Rear Rotors) 75 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) High Carbon |
| Minimum Thickness (mm) | (Front Rotors) 26 |
| Minimum Thickness (mm) | (Rear Rotors) 22 |
| Nominal Thickness (mm) | (Front Pads) 17 |
| Nominal Thickness (mm) | (Front Rotors) 28 |
| Nominal Thickness (mm) | (Rear Pads) 15.5 |
| Nominal Thickness (mm) | (Rear Rotors) 24 |
| Number of Holes | (Rear Rotors) 5 |
| Pad Wear Sensor Included | Yes |
| Surface Finishing | (Rear Pads) chamfered |
| Ventilation Type | (Front Rotors) PVT |
| Ventilation Type | (Rear Rotors) vented |
| Wear Indicator | (Front Pads) prepared for wear indicator |
| Wear Indicator | (Rear Pads) prepared for wear indicator |
| Width (mm) | (Front Pads) 121 |
| Width (mm) | (Rear Pads) 112 |
| WVA | (Front Pads) 23329 |
| WVA | (Rear Pads) 21792 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Porsche | 986 352 939 10 / 98635293910 |
| Porsche | 996 351 405 01 / 99635140501 |
| Porsche | 996 351 406 00 / 99635140600 |
| Porsche | 996 351 406 01 / 99635140601 |
| Porsche | 996 351 406 02 / 99635140602 |
| Porsche | 996 352 401 03 / 99635240103 |
| Porsche | 996 352 401 04 / 99635240104 |
| Porsche | 996 352 939 00 / 99635293900 |
| Porsche | 996 352 939 03 / 99635293903 |
| Porsche | 996 352 948 90 / 99635294890 |
| Porsche | 996 352 949 02 / 99635294902 |
| Porsche | 996 352 949 03 / 99635294903 |
| Porsche | 996 352 949 30 / 99635294930 |
| Porsche | 996 612 365 00 / 99661236500 |
| Porsche | 99635140501 |
| Porsche | 99635140600 |
| Porsche | 99635140601 |
| Porsche | 99635140602 |
| Porsche | 99635240103 |
| Porsche | 99635240104 |
| Porsche | 99661236500 |
