Description

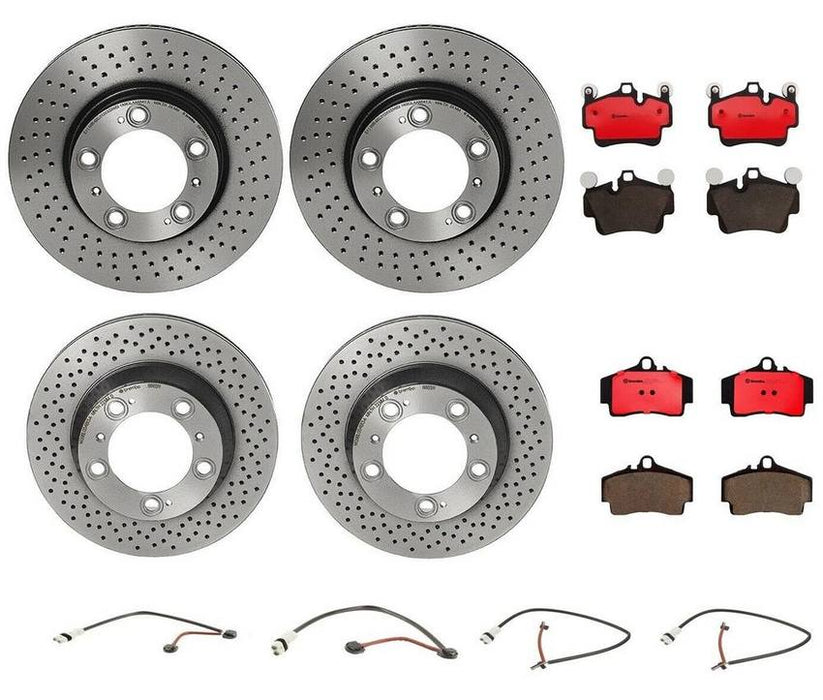

Kit Includes:
2 x Brembo 09.6665.11 Rear Disc Brake Rotors
2 x Brembo 09.C880.11 Front Disc Brake Rotors
1 x Brembo P65014N Front Disc Brake Pads Set
2 x eEuroParts XHBSJ027 Rear Disc Brake Pad Wear Sensors
1 x eEuroParts XHBSJ043 Front Passenger Right Brake Disc Pad Wear Sensor
1 x eEuroParts XHBSJ046 Front Driver Left Brake Disc Pad Wear Sensor
1 x Brembo P65008N Rear Disc Brake Pads Set
| Brake System | (Front Pads) Brembo |
| Brake System | (Rear Pads) Brembo |
| Coated | ( Front Right Rotor )Yes |
| Coated | ( Front Rotors ) Yes |
| Coated | ( Rear Rotors ) Yes |
| Disc Brake Rotor Construction | Vented |
| Features | (Front Pads) with counterweights |
| Fixing Screws | ( Front Right Rotor ) Yes |
| Fixing Screws | ( Front Rotors ) Yes |
| Friction Material Composition | (Pads) Ceramic |
| Height (mm) | (Front Pads) 86 |
| Height (mm) | (Rear Pads) 73 |
| High Carbon | ( Front Right Rotor ) Yes |
| High Carbon | ( Front Rotors ) Yes |
| Min TH (Discs)/Max Diameter (Drums) (mm) | ( Front Right Rotor )26 |
| Min TH (Discs)/Max Diameter (Drums) (mm) | ( Front Rotors ) 26 |
| Min TH (Discs)/Max Diameter (Drums) (mm) | ( Rear Rotors ) 22 |
| Nominal Thickness (mm) | ( Front Right Rotor )28 |
| Nominal Thickness (mm) | ( Front Rotors ) 28 |
| Nominal Thickness (mm) | ( Rear Rotors ) 24 |
| Nominal Thickness (mm) | (Front Pads) 17 |
| Nominal Thickness (mm) | (Rear Pads) 15.5 |
| Outside Diameter (mm) | ( Front Right Rotor )318 |
| Outside Diameter (mm) | ( Front Rotors ) 318 |
| Outside Diameter (mm) | ( Rear Rotors ) 299 |
| Pad Wear Sensor Included | Yes |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered |
| Surface Type | Drilled |
| Wear Indicator | (Front Pads) prepared for wear indicator |
| Wear Indicator | (Rear Pads) prepared for wear indicator |
| Width (mm) | (Front Pads) 121.1 |
| Width (mm) | (Rear Pads) 112 |
| WVA | (Front Pads) 24049 |
| WVA | (Rear Pads) 21792 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Porsche | 986 612 365 00 / 98661236500 |
| Porsche | 98661236500 |
| Porsche | 996 351 405 01 / 99635140501 |
| Porsche | 996 351 406 00 / 99635140600 |
| Porsche | 996 351 406 01 / 99635140601 |
| Porsche | 996 351 406 02 / 99635140602 |
| Porsche | 996 352 401 03 / 99635240103 |
| Porsche | 996 352 401 04 / 99635240104 |
| Porsche | 99635140501 |
| Porsche | 99635140600 |
| Porsche | 99635140601 |
| Porsche | 99635140602 |
| Porsche | 99635240103 |
| Porsche | 99635240104 |
| Porsche | 997 612 756 00 / 99761275600 |
| Porsche | 997 612 759 00 / 99761275900 |
| Porsche | 99761275600 |
| Porsche | 99761275900 |
