Description

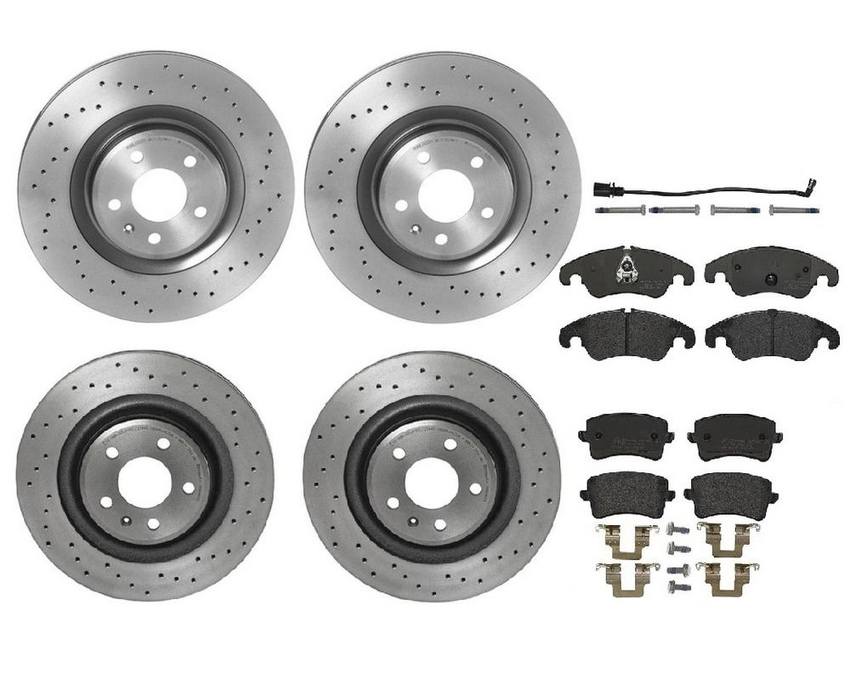

Kit Includes:
2 x Brembo 09.B039.1X Front Disc Brake Rotors Drilled
2 x Brembo 09.B040.1X Rear Disc Brake Rotors Drilled
1 x Brembo P85099 Rear Disc Brake Pad Set Low Met
1 x Brembo P85098 Front Disc Brake Pad Set Low Met
Abutment Clips Included | (Rear) Yes |
Brake System | (Front Pads) Lucas |
Brake System | (Rear Pads) Lucas |
Coated | ( Front Rotors ) Yes |
Coated | ( Rear Rotors ) Yes |
Features | (Front Pads) with hardware |
Features | (Rear Pads) with hardware |
Fixing Screws | ( Front Rotors ) Yes |
Fixing Screws | ( Rear Rotors ) Yes |
Friction Material Composition | Low-Met |
Height (mm) | (Front Pads) 72.9 / 73.5 |
Height (mm) | (Rear Pads) 59 |
High Carbon | ( Front Rotors ) Yes |
High Carbon | ( Rear Rotors ) Yes |
Min TH (Discs)/Max Diameter (Drums) (mm) | ( Front Rotors ) 28 |
Min TH (Discs)/Max Diameter (Drums) (mm) | ( Rear Rotors ) 20 |
Nominal Thickness (mm) | ( Front Rotors ) 29.5 |
Nominal Thickness (mm) | ( Rear Rotors ) 22 |
Outside Diameter (mm) | ( Front Rotors ) 345 |
Outside Diameter (mm) | ( Rear Rotors ) 330 |
Pad Wear Sensor Included | Yes |
Surface Type | (Front Rotors) Drilled and (Rear Rotors) Drilled |
Wear Indicator | (Front Pads) with electric wear indicator |
Width (mm) | (Front Pads) 188.2 |
Width (mm) | (Rear Pads) 116.6 |
WVA | (Front Pads) 24408 / 24409 / 24743 |
WVA | (Rear Pads) 24606 |
Brand | Part # |
---|
Brand | Part # |
---|---|
Audi | 4G0 698 151D / 4G0698151D |
Audi | 4G0698151D |
Audi | 8K0 69 8 45 51 / 8K06984551 |
Audi | 8K0 615 301K / 8K0615301K |
Audi | 8K0 615 301M / 8K0615301M |
Audi | 8K0 615 601C / 8K0615601C |
Audi | 8K0 698 151 / 8K0698151 |
Audi | 8K0 698 151B / 8K0698151B |
Audi | 8K0 698 151C / 8K0698151C |
Audi | 8K0 698 151D / 8K0698151D |
Audi | 8K0 698 151E / 8K0698151E |
Audi | 8K0 698 151G / 8K0698151G |
Audi | 8K0 698 151H / 8K0698151H |
Audi | 8K0 698 151J / 8K0698151J |
Audi | 8K0 698 151K / 8K0698151K |
Audi | 8K0 698 151L / 8K0698151L |
Audi | 8K0 698 451 / 8K0698451 |
Audi | 8K0 698 451A / 8K0698451A |
Audi | 8K0 698 451B / 8K0698451B |
Audi | 8K0 698 451C / 8K0698451C |
Audi | 8K0 698 451D / 8K0698451D |
Audi | 8K0615301K |
Audi | 8K0615301M |
Audi | 8K0615601C |
Audi | 8K0698151 |
Audi | 8K0698151B |
Audi | 8K0698151C |
Audi | 8K0698151D |
Audi | 8K0698151E |
Audi | 8K0698151G |
Audi | 8K0698151H |
Audi | 8K0698151J |
Audi | 8K0698151K |
Audi | 8K0698151L |
Audi | 8R0 698 151 / 8R0698151 |
Audi | 8R0 698 151A / 8R0698151A |
Audi | 8R0698151 |
Audi | 8R0698151A |
