Description

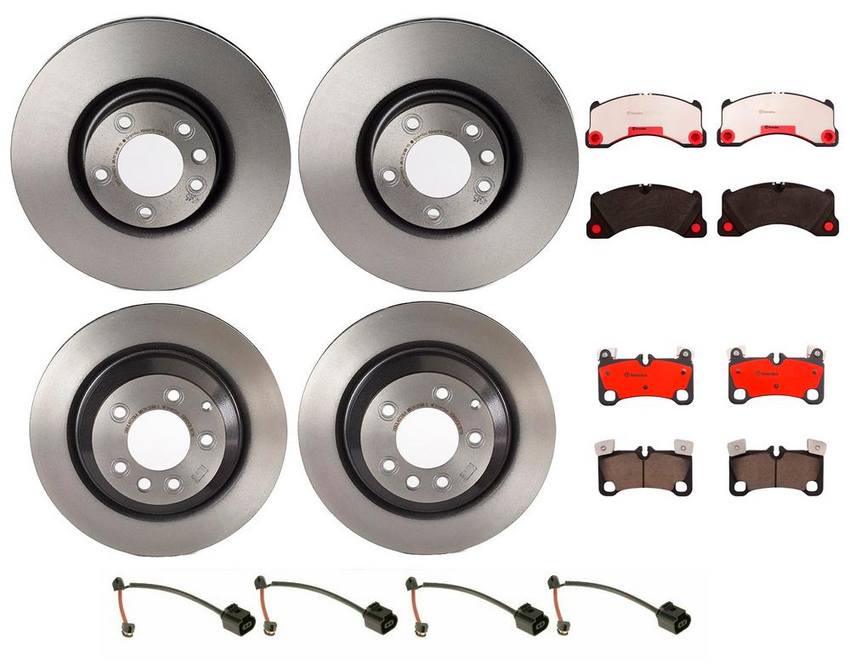

Kit Includes:
1 x Brembo P85103N Rear Disc Brake Pad Set Ceramic
1 x Brembo P65021N Front Disc Brake Pad Set Ceramic
2 x eEuroParts XHDZ014 Front Disc Brake Pad Wear Sensors
2 x eEuroParts XHDZ015 Rear Disc Brake Pad Wear Sensors
2 x Brembo 09.9871.11 Rear Disc Brake Rotors
2 x Brembo 09.9870.11 Front Disc Brake Rotors
| Brake System | (Front Pads) Brembo |
| Brake System | (Rear Pads) Brembo |
| Centring Diameter | (Front Rotors) 85 |
| Centring Diameter | (Rear Rotors) 85 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter (mm) | (Front Rotors) 368 |
| Diameter (mm) | (Rear Rotors) 358 |
| Friction Material Composition | (Front and Rear Pads) Ceramic |
| Height (mm) | (Front Pads) 94.2 |
| Height (mm) | (Front Rotors) 68.5 |
| Height (mm) | (Rear Pads) 77.1 |
| Height (mm) | (Rear Rotors) 73.5 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) High Carbon |
| Minimum Thickness (mm) | (Front Rotors) 34 |
| Minimum Thickness (mm) | (Rear Rotors) 26 |
| Nominal Thickness (mm) | (Front Pads) 16 |
| Nominal Thickness (mm) | (Front Rotors) 36 |
| Nominal Thickness (mm) | (Rear Pads) 16 |
| Nominal Thickness (mm) | (Rear Rotors) 28 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Pad Wear Sensor Included | Yes |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered; slotted |
| Torque Spec (Nm) | (Front Rotors) 160 |
| Torque Spec (Nm) | (Rear Rotors) 160 |
| Ventilation Type | (Front Rotors) PVT |
| Ventilation Type | (Rear Rotors) vented |
| Wear Indicator | (Front Pads) prepared for wear indicator |
| Wear Indicator | (Rear Pads) prepared for wear indicator |
| Width (mm) | (Front Pads) 209.6 |
| Width (mm) | (Rear Pads) 132.2 |
| WVA | (Front Pads) 25007 |
| WVA | (Rear Pads) 24296 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 7L8 615 601A / 7L8615601A |
| Audi | 7L8 615 601D / 7L8615601D |
| Audi | 7L8 615 601E / 7L8615601E |
| Audi | 7L8615601A |
| Audi | 7L8615601D |
| Audi | 7L8615601E |
| Porsche | 7L0 698 151M / 7L0698151M |
| Porsche | 7L0 698 151N / 7L0698151N |
| Porsche | 7L0 698 451E / 7L0698451E |
| Porsche | 7L0 698 451F / 7L0698451F |
| Porsche | 7L0698151M |
| Porsche | 7L0698151N |
| Porsche | 7L0698451E |
| Porsche | 7L0698451F |
| Porsche | 7P0 698 151C / 7P0698151C |
| Porsche | 7P0698151C |
| Porsche | 955 351 403 00 / 95535140300 |
| Porsche | 955 351 939 61 / 95535193961 |
| Porsche | 955 351 939 62 / 95535193962 |
| Porsche | 955 351 939 63 / 95535193963 |
| Porsche | 955 351 939 70 / 95535193970 |
| Porsche | 955 352 401 50 / 95535240150 |
| Porsche | 955 352 401 51 / 95535240151 |
| Porsche | 955 352 403 00 / 95535240300 |
| Porsche | 955 352 939 61 / 95535293961 |
| Porsche | 955 352 939 62 / 95535293962 |
| Porsche | 955 352 939 63 / 95535293963 |
| Porsche | 955 612 365 52 / 95561236552 |
| Porsche | 955 612 365 71 / 95561236571 |
| Porsche | 95535140300 |
| Porsche | 95535193961 |
| Porsche | 95535193962 |
| Porsche | 95535193963 |
| Porsche | 95535193970 |
| Porsche | 95535240150 |
| Porsche | 95535240151 |
| Porsche | 95535240300 |
| Porsche | 95535293961 |
| Porsche | 95535293962 |
| Porsche | 95535293963 |
| Porsche | 95561236552 |
| Porsche | 95561236571 |
| Volkswagen | 7L8 615 301A / 7L8615301A |
| Volkswagen | 7L8 615 601A / 7L8615601A |
| Volkswagen | 7L8 615 601D / 7L8615601D |
| Volkswagen | 7L8 615 601E / 7L8615601E |
| Volkswagen | 7L8615301A |
| Volkswagen | 7L8615601A |
| Volkswagen | 7L8615601D |
| Volkswagen | 7L8615601E |
