Description

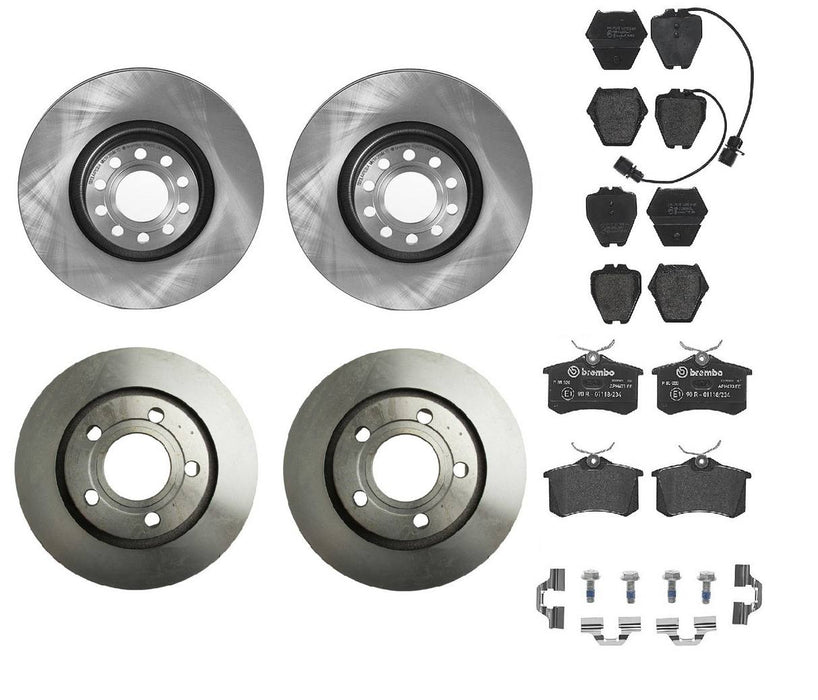

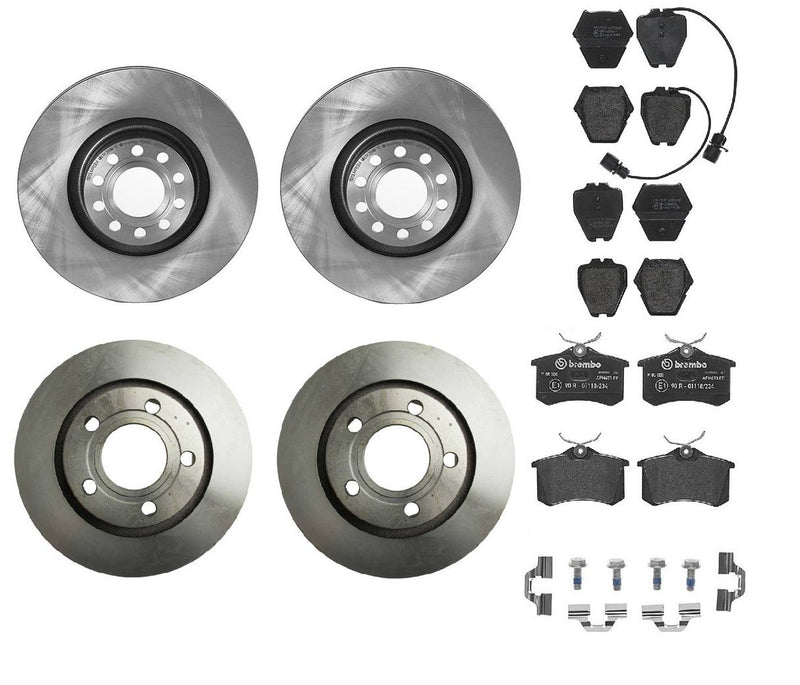

Kit Includes:

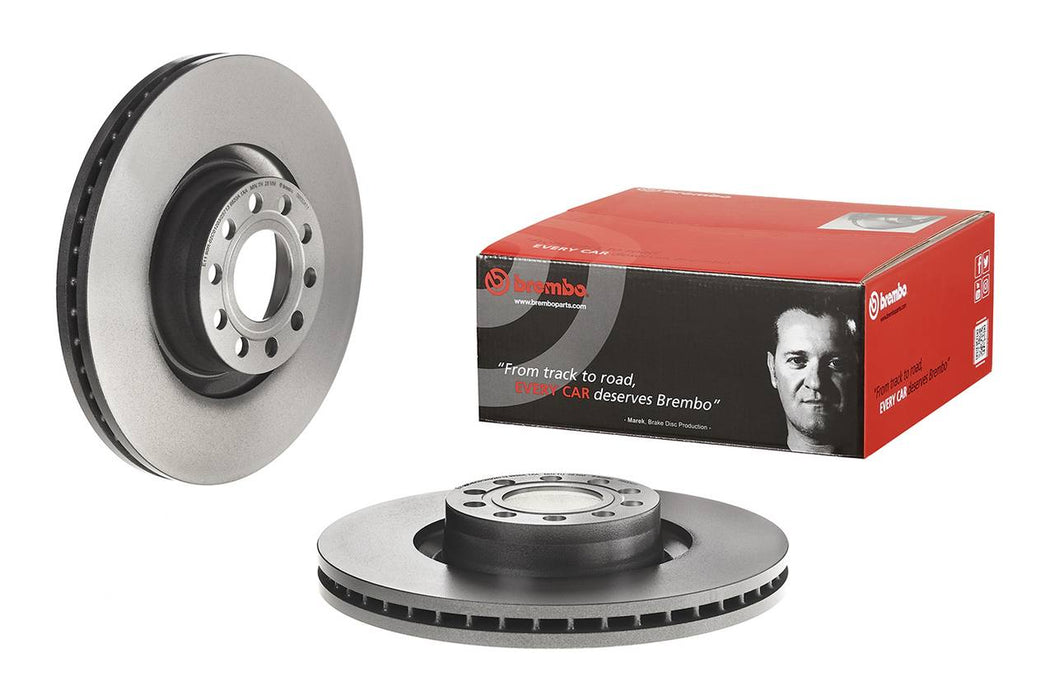

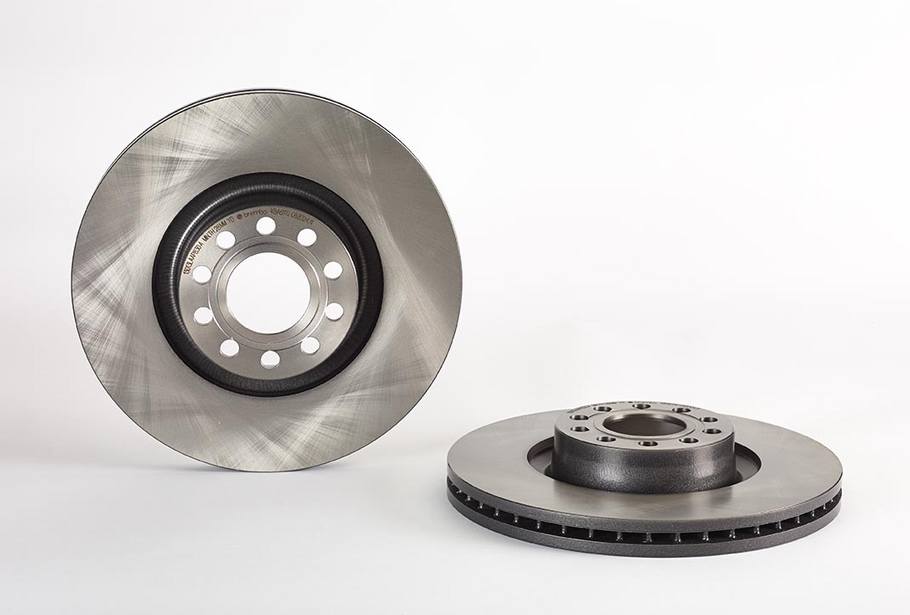

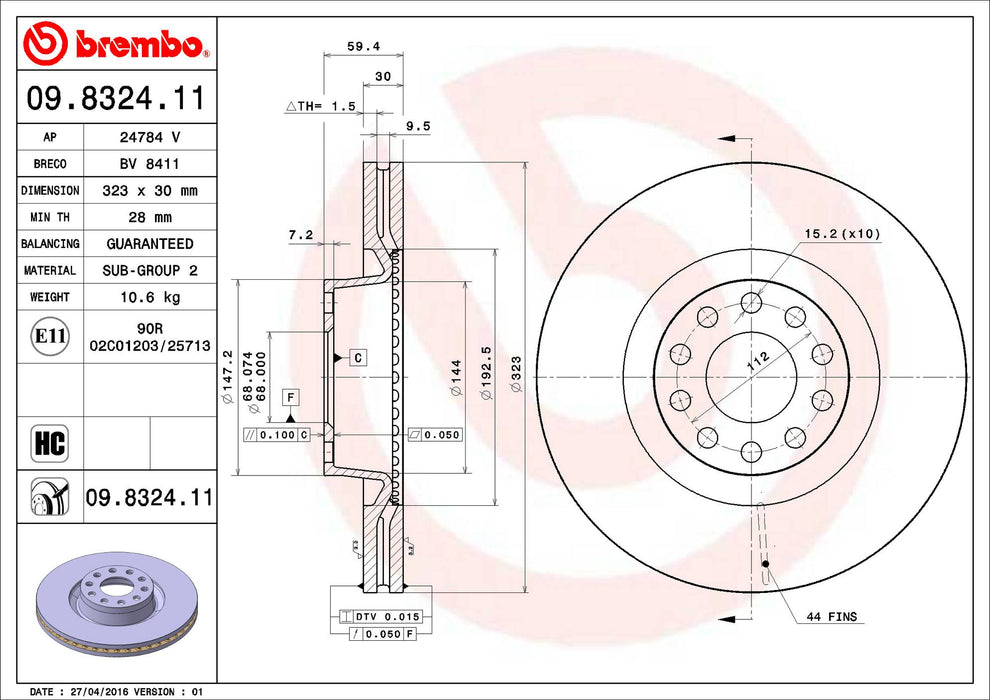

2 x Brembo 09.8324.11 Front Disc Brake Rotors

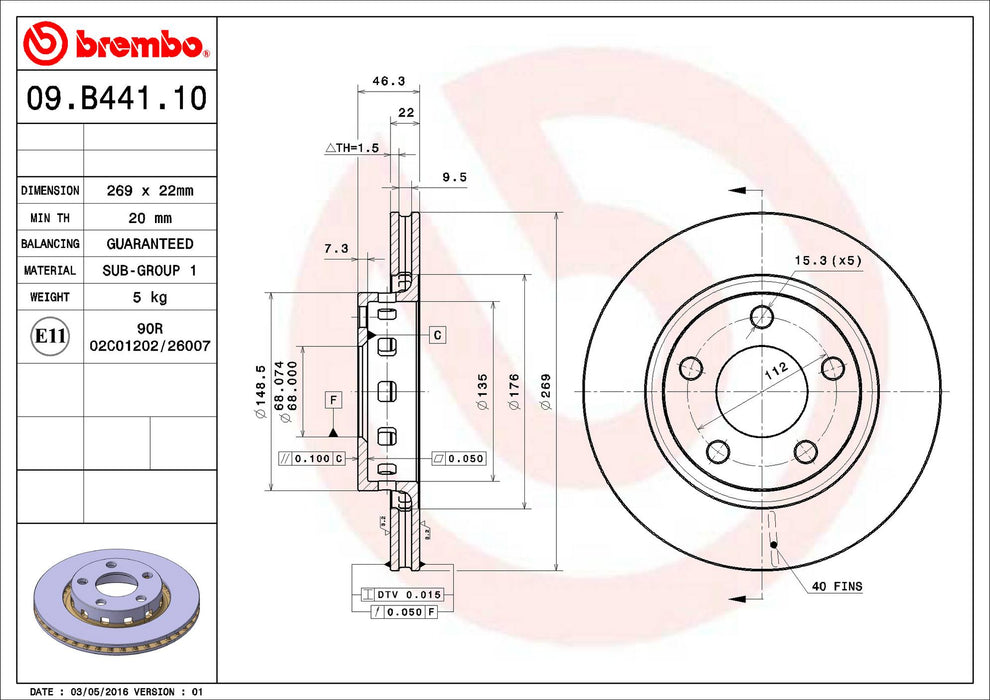

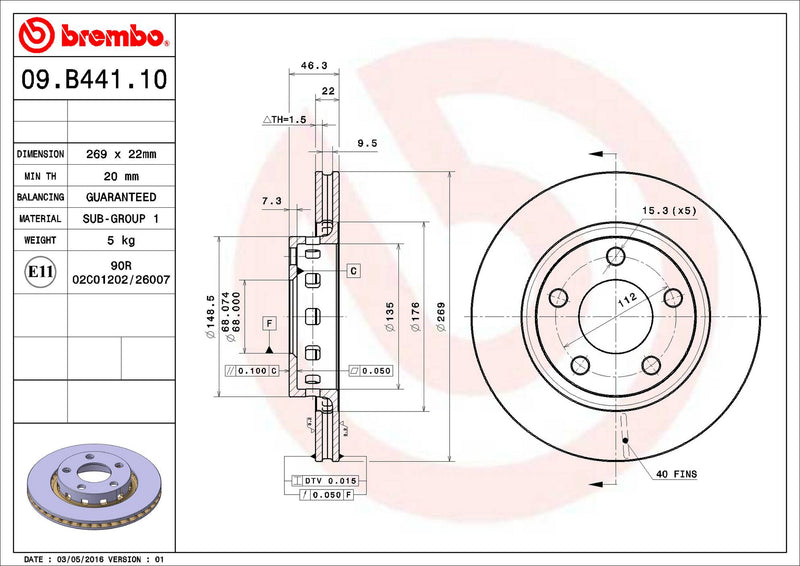

2 x Brembo 09.B441.10 Rear Disc Brake Rotors

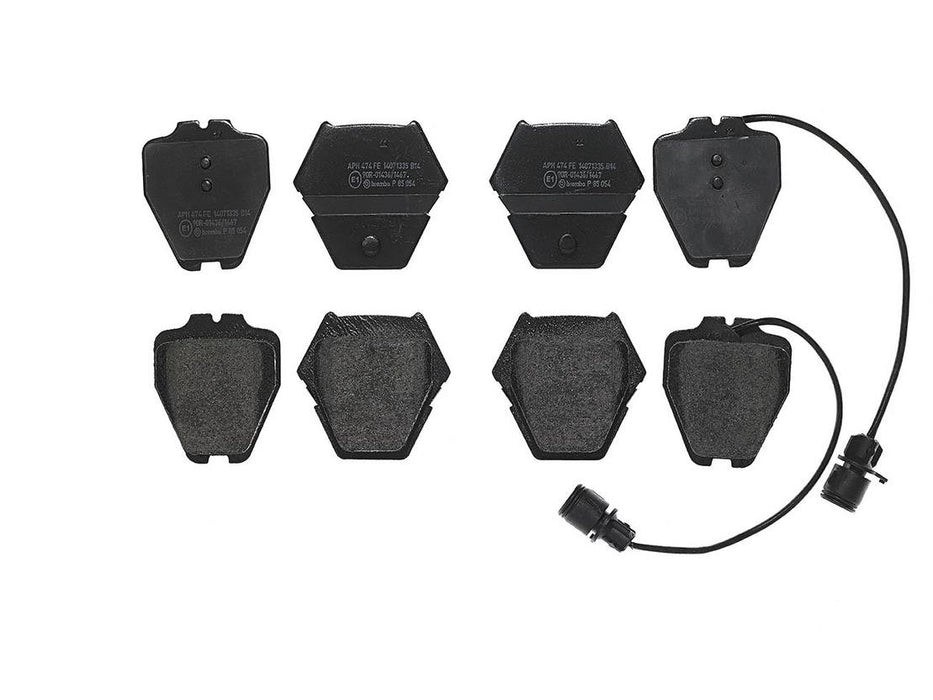

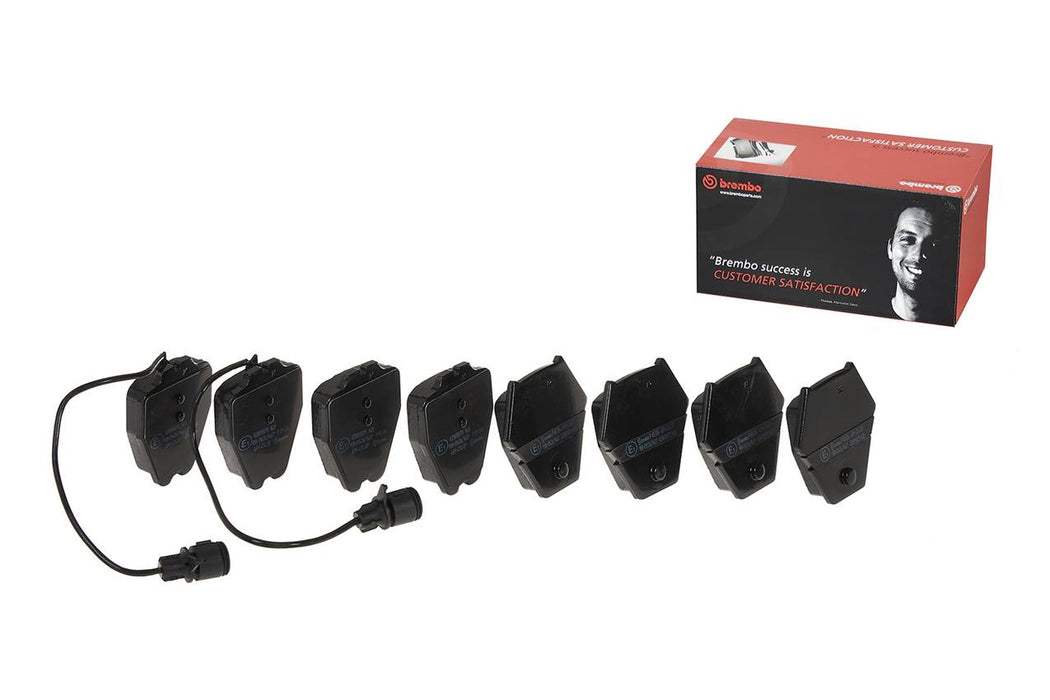

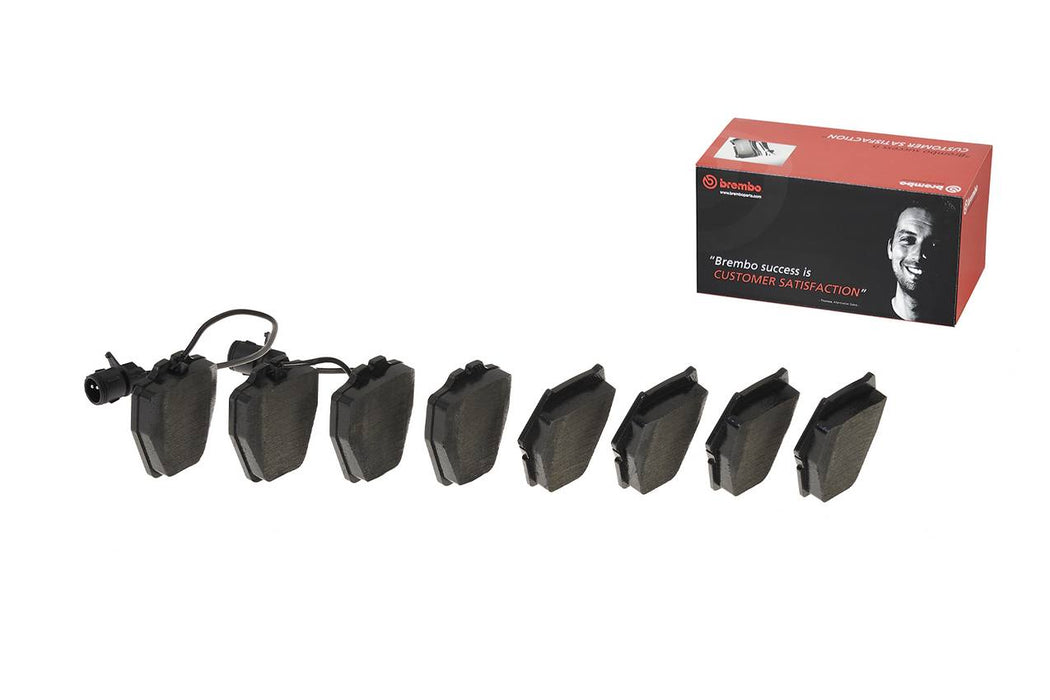

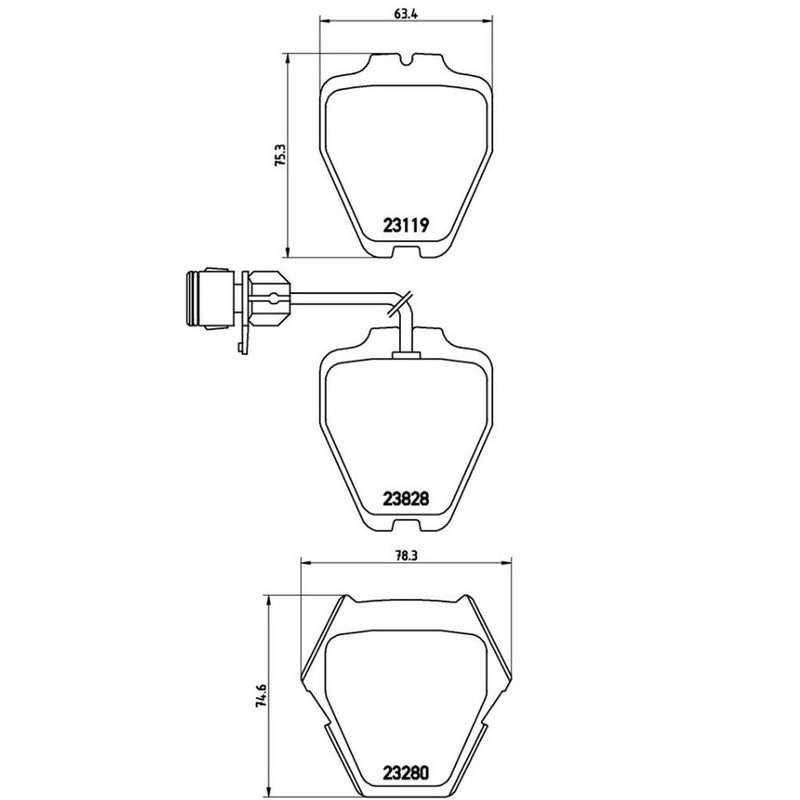

1 x Brembo P85054 Front Disc Brake Pad Set

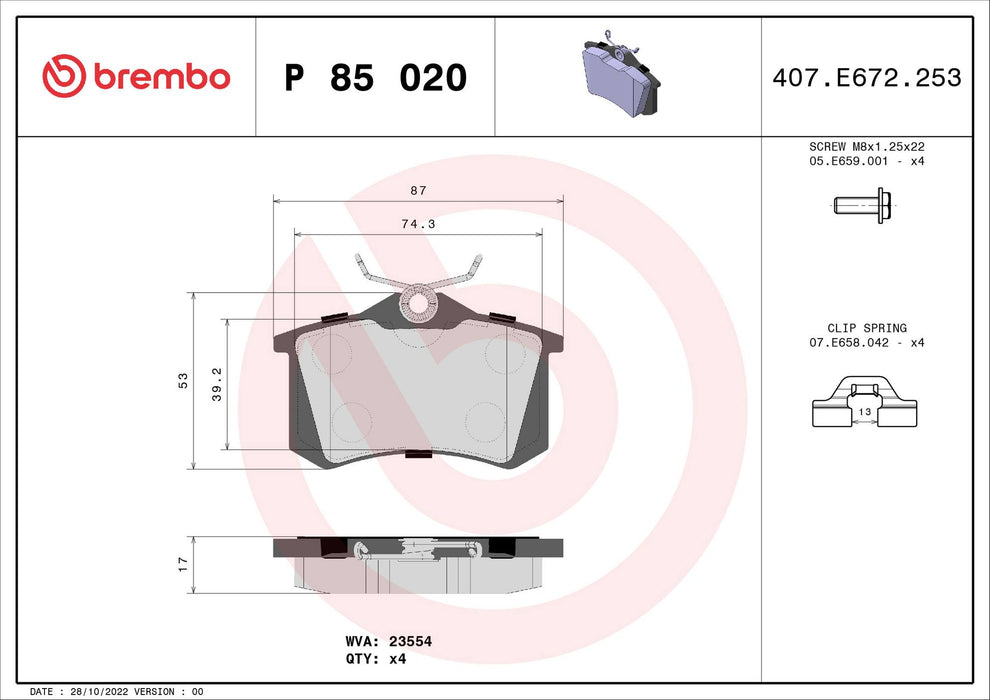

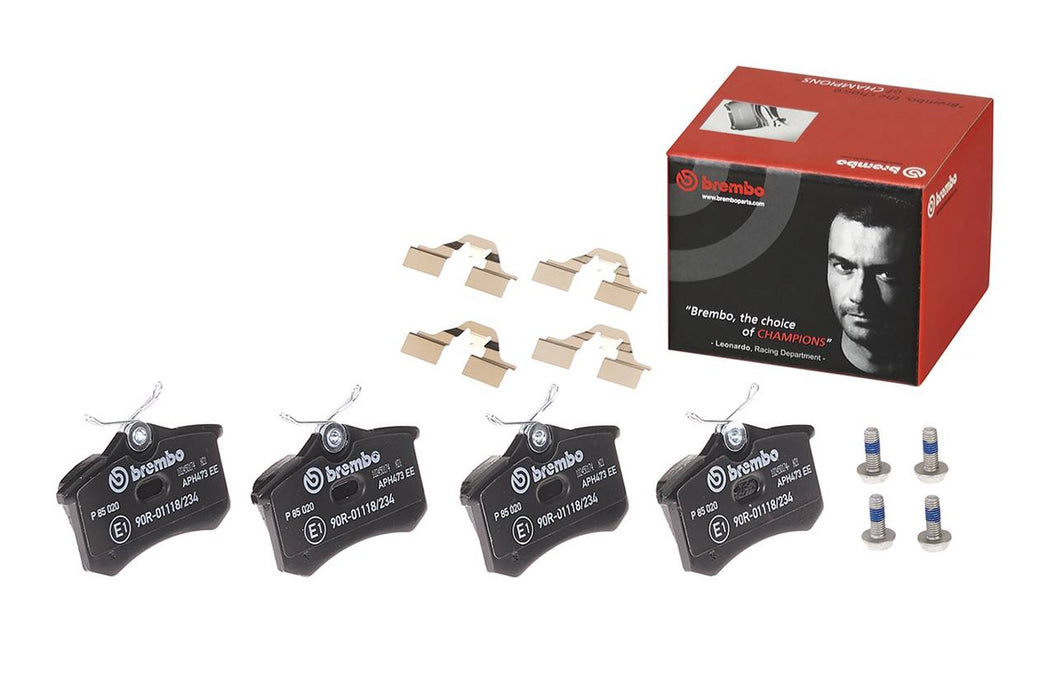

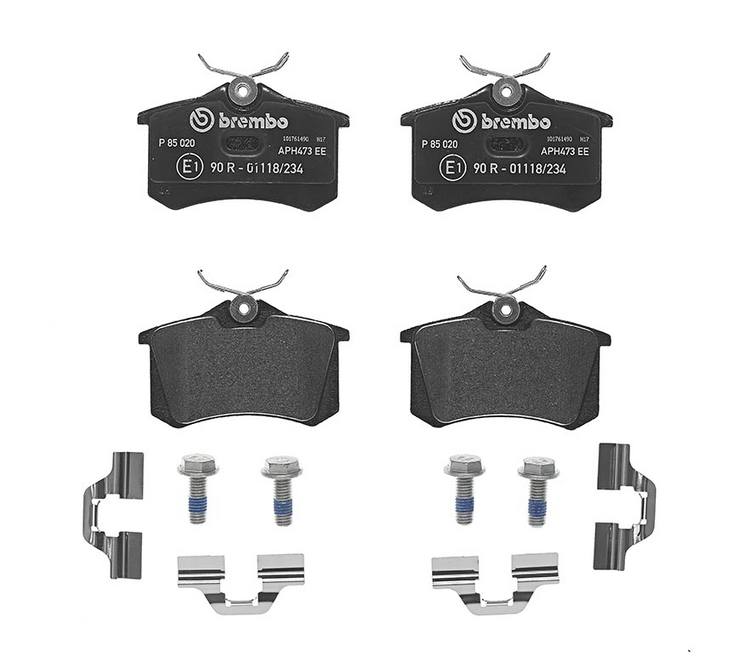

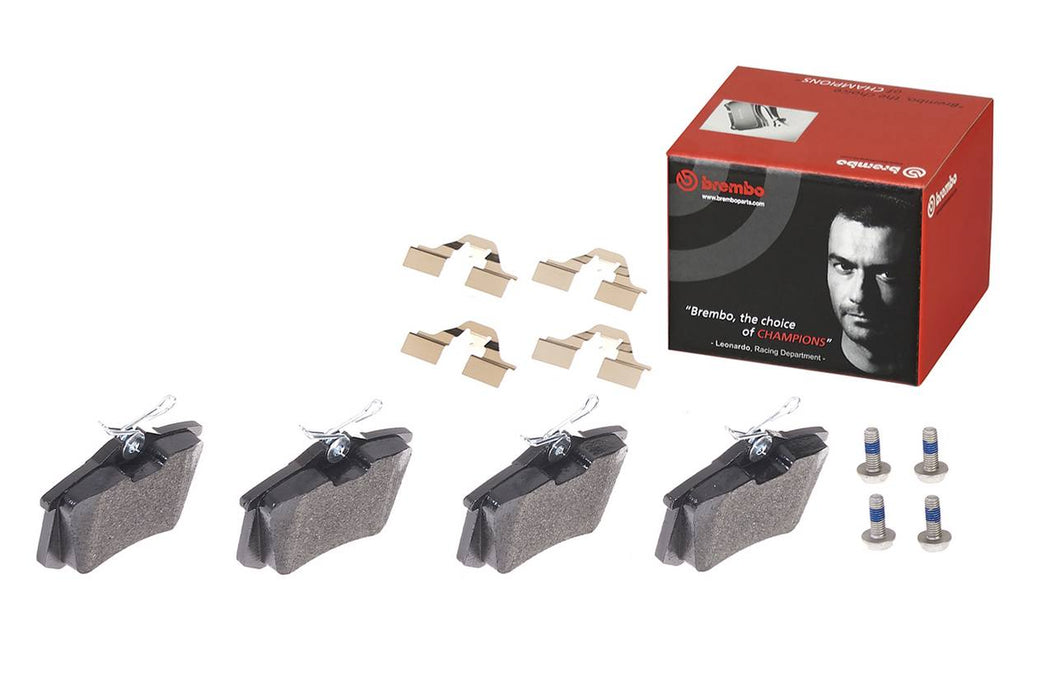

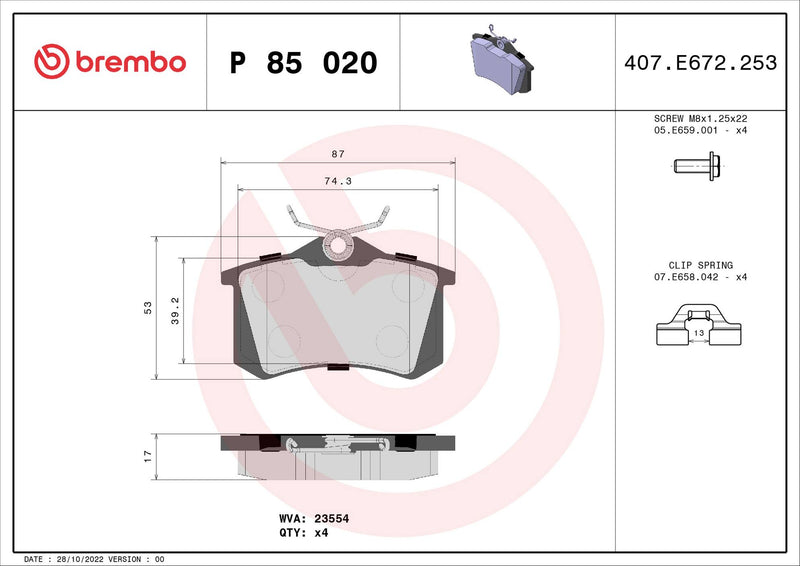

1 x Brembo P85020 Rear Disc Brake Pad Set
| Brake System | (Front Pads) Lucas |
| Brake System | (Rear Pads) Lucas |
| Coated | (Front Rotors) Yes |
| Features | (Rear Pads) with hardware |
| Friction Material Composition | (Pads) Low-Met |
| Height (mm) | (Front Pads) 74.6 / 75.3 |
| Height (mm) | (Rear Pads) 53 |
| High Carbon | (Front Rotors) Yes |
| Min TH (Discs)/Max Diameter (Drums) (mm) | (Front Rotors) 28 |
| Min TH (Discs)/Max Diameter (Drums) (mm) | (Rear Rotors) 20 |
| Nominal Thickness (mm) | (Front Rotors) 30 |
| Nominal Thickness (mm) | (Rear Rotors) 22 |
| Outside Diameter (mm) | (Front Rotors) 323 |
| Outside Diameter (mm) | (Rear Rotors) 269 |
| Pad Wear Sensor Included | Yes |
| Torque Spec (DaNm) | (Front Rotors) 12 |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (mm) | (Front Pads) 63.4 / 78.3 |
| Width (mm) | (Rear Pads) 87 |
| WVA | (Front Pads) 23119 / 23280 / 23828 |
| WVA | (Rear Pads) 20961 / 23554 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Volkswagen | 1J0 698 451C / 1J0698451C |
| Audi | 3B0698451 |
| Volkswagen | 1J0 698 451F / 1J0698451F |
| Volkswagen | 1J0 698 451 / 1J0698451 |
| Audi | 4B0698451B |
| Volkswagen | 1J0698451R |
| Volkswagen | 1H0 698 451D / 1H0698451D |
| Audi | 1J0 698 451J / 1J0698451J |
| Audi | 4B0 698 451 / 4B0698451 |
| Audi | 1J0698451J |
| Audi | 1J0 698 451L / 1J0698451L |
| Volkswagen | 1H0698451D |
| Audi | 4B0698451 |
| Volkswagen | 425056 |
| Audi | 4B3 698 151 / 4B3698151 |
| Volkswagen | 1H0698451G |
| Volkswagen | 8E0 698 451K / 8E0698451K |
| Volkswagen | 8E0698451K |
| Audi | 8E0 698 451A / 8E0698451A |
| Volkswagen | 4B0 698 451E / 4B0698451E |
| Audi | 8E0698451 |
| Volkswagen | 1E0 698 451 / 1E0698451 |
| Volkswagen | 4B0 698 451A / 4B0698451A |
| Volkswagen | 1E0 698 451B / 1E0698451B |
| Audi | 4D0 698 151C / 4D0698151C |
| Volkswagen | 1J0 698 451J / 1J0698451J |
| Audi | 1J0 698 451N / 1J0698451N |
| Volkswagen | 1H0690451 |
| Volkswagen | 1H0 698 451G / 1H0698451G |
| Volkswagen | 1J0 698 451R / 1J0698451R |
| Volkswagen | 1J0698451D |
| Audi | 4B3698151 |
| Audi | 4B0698451C |
| Audi | 4D0615601B |
| Volkswagen | 1E0698451C |
| Audi | 1J0698451L |
| Volkswagen | 8E0698451 |
| Volkswagen | 1J0698451A |
| Volkswagen | 1J0 698 451P / 1J0698451P |
| Volkswagen | 1J0698451G |
| Volkswagen | 1E0698451E |
| Volkswagen | 1J0698451J |
| Volkswagen | 1J0698451B |
| Volkswagen | 1H0 698 451A / 1H0698451A |
| Audi | 1J0698451E |
| Volkswagen | 1E0698451 |
| Audi | 4B0 698 451B / 4B0698451B |
| Audi | 4D0 698 451C / 4D0698451C |
| Volkswagen | 4B0698451A |
| Audi | 1K0 698 451J / 1K0698451J |
| Volkswagen | 1J0 698 451B / 1J0698451B |
| Volkswagen | 3B0 698 451 / 3B0698451 |
| Volkswagen | 1H0698451C |
| Volkswagen | 1J0698451K |
| Volkswagen | 8E0 698 451 / 8E0698451 |
| Volkswagen | 1E0 698 451G / 1E0698451G |
| Audi | 1K0698451J |
| Volkswagen | 7D0 698 451J / 7D0698451J |
| Audi | 4B0 698 151S / 4B0698151S |
| Audi | 4B0 698 451C / 4B0698451C |
| Audi | 4B3 698 151B / 4B3698151B |
| Audi | 3B0 698 451 / 3B0698451 |
| Volkswagen | 1K0 698 451J / 1K0698451J |
| Audi | 4D0 698 151S / 4D0698151S |
| Volkswagen | 8E0698451A |
| Audi | 4B0698451E |
| Volkswagen | 1J0 698 451A / 1J0698451A |
| Volkswagen | 1J0 698 451E / 1J0698451E |
| Volkswagen | 1K0698451J |
| Volkswagen | 7D0698451J |
| Audi | 8E0 698 451 / 8E0698451 |
| Audi | 4D0 615 601B / 4D0615601B |
| Volkswagen | 4B0698451E |
| Audi | 8E0 698 451B / 8E0698451B |
| Volkswagen | 1J0 698 451D / 1J0698451D |
| Volkswagen | 1H0 698 451C / 1H0698451C |
| Audi | 8E0698451A |
| Volkswagen | 1E0698451G |
| Volkswagen | 1J0698451 |
| Audi | 4D0698151AC |
| Audi | 1J0 698 451E / 1J0698451E |
| Volkswagen | 1H0698451 |
| Volkswagen | 1H0 690 451 / 1H0690451 |
| Volkswagen | 1J0698451E |
| Audi | 4B3698151B |
| Audi | 4D0 698 151A AC / 4D0698151AAC |
| Audi | 4B0698151S |
| Audi | 4B0 698 451E / 4B0698451E |
| Volkswagen | 8E0 698 451A / 8E0698451A |
| Volkswagen | 1J0 698 451G / 1J0698451G |
| Audi | 4D0698151S |
| Volkswagen | 1E0 698 451E / 1E0698451E |
| Volkswagen | 1J0698451C |
| Volkswagen | 1J0698451F |
| Volkswagen | 4B0698451B |
| Volkswagen | 1J0698451P |
| Audi | 8E0698451B |
| Volkswagen | 1J0 698 451K / 1J0698451K |
| Volkswagen | 3B0698451 |
| Volkswagen | 1E0698451B |
| Volkswagen | 1E0 698 451C / 1E0698451C |
| Audi | 4D0615301A |
| Volkswagen | 4B0 698 451B / 4B0698451B |
| Volkswagen | 1H0 698 451 / 1H0698451 |
| Volkswagen | 1H0690451A |
| Volkswagen | 1H0 690 451A / 1H0690451A |
| Audi | 4D0 615 301A / 4D0615301A |
| Volkswagen | 1H0698451A |
| Audi | 4D0698451C |
| Audi | 4D0698151C |
| Audi | 1J0698451N |
