VW Brakes Kit – Pads & Rotors Front and Rear (288mm/232mm) (Xtra) (Low-Met) 8E0698451L – Brembo 1596224KIT

SKU: BBHN_1596224KIT
No reviews

Price:
Sale price$388.99
Stock:

Description

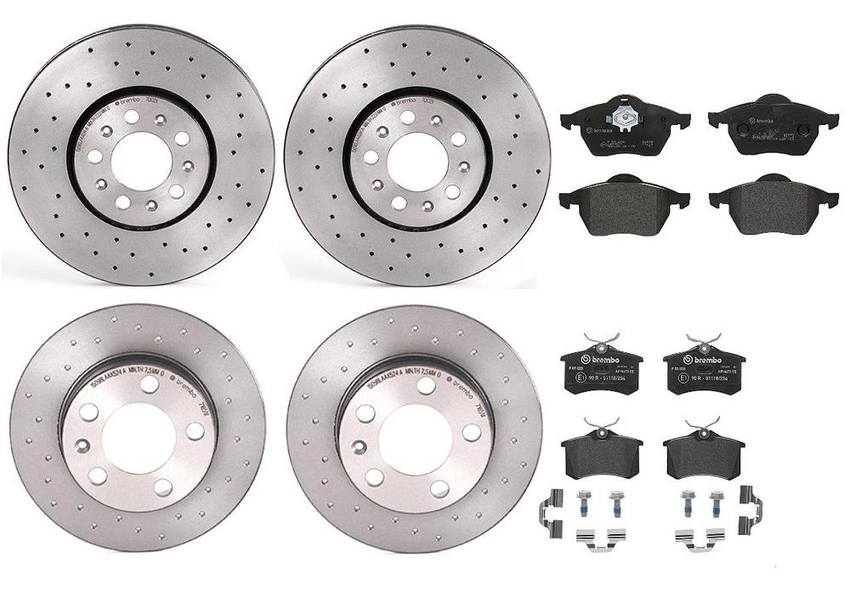

Kit Includes:

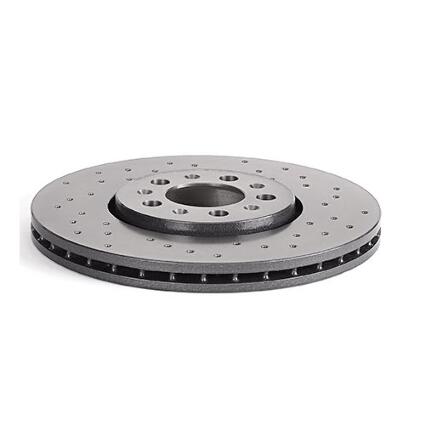

2 x Brembo 09.7010.2X Front Disc Brake Rotors

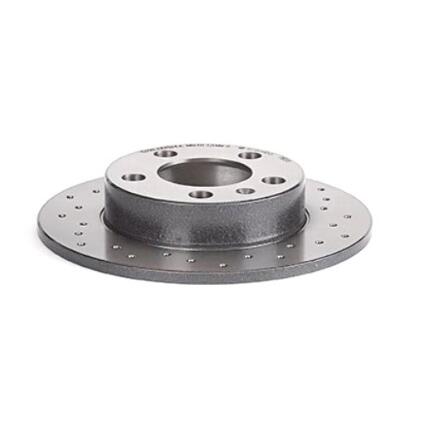

2 x Brembo 08.7165.1X Rear Disc Brake Rotors

1 x Brembo P85039 Front Disc Brake Pad Set

1 x Brembo P85020 Rear Disc Brake Pad Set

Brake System (Front Pads) Teves
Brake System (Rear Pads) Lucas
Coated (Front Rotors) UV Coated
Coated (Rear Rotors) UV Coated
Disc Brake Rotor Construction (Front Rotors) Vented, (Rear Rotors) Solid
Features (Rear Pads) with hardware
Fixing Screws (Front Rotors) Yes
Fixing Screws (Rear Rotors) Yes
Friction Material Composition (Pads) Low-Met
Height (mm) (Front Pads) 74.2
Height (mm) (Rear Pads) 52.8
Material (Front Rotors) High Carbon, (Rear Rotors) Grey Cast Iron
Min TH (Discs)/Max Diameter (Drums) (mm) (Front Rotors) 22
Min TH (Discs)/Max Diameter (Drums) (mm) (Rear Rotors) 7
Nominal Thickness (mm) (Front Rotors) 25
Nominal Thickness (mm) (Rear Pads) 17.2
Nominal Thickness (mm) (Rear Rotors) 9
Outside Diameter (mm) (Front Rotors) 288
Outside Diameter (mm) (Rear Rotors) 232
Surface Finishing (Rear Pads) chamfered
Surface Type Drilled
Torque Spec (DaNm) (Front Rotors) 12
Torque Spec (DaNm) (Rear Rotors) 12
Width (mm) (Front Pads) 155.8 / 156.6
Width (mm) (Rear Pads) 87
WVA (Front Pads) 21848 / 21849
WVA (Rear Pads) 20961 / 23554
Brand Part #
Brand Part #
Audi 1J0 615 301 / 1J0615301
Audi 1J0 615 301C / 1J0615301C
Audi 1J0 615 301K / 1J0615301K
Audi 1J0 615 301R / 1J0615301R
Audi 1J0 615 301S / 1J0615301S
Audi 1J0 615 601 / 1J0615601
Audi 1J0 615 601C / 1J0615601C
Audi 1J0 698 151K / 1J0698151K
Audi 1J0 698 151L / 1J0698151L
Audi 1J0 698 151M / 1J0698151M
Audi 1J0 698 451E / 1J0698451E
Audi 1J0 698 451J / 1J0698451J
Audi 1J0 698 451L / 1J0698451L
Audi 1J0 698 451N / 1J0698451N
Audi 1J0615301
Audi 1J0615301C
Audi 1J0615301K
Audi 1J0615301R
Audi 1J0615301S
Audi 1J0615601
Audi 1J0615601C
Audi 1J0698151K
Audi 1J0698151L
Audi 1J0698151M
Audi 1J0698451E
Audi 1J0698451J
Audi 1J0698451L
Audi 1J0698451N
Audi 1K0 698 451J / 1K0698451J
Audi 1K0698451J
Audi 3B0 698 451 / 3B0698451
Audi 3B0698451
Audi 4B0 698 451 / 4B0698451
Audi 4B0 698 451B / 4B0698451B
Audi 4B0 698 451C / 4B0698451C
Audi 4B0 698 451E / 4B0698451E
Audi 4B0698451
Audi 4B0698451B
Audi 4B0698451C
Audi 4B0698451E
Audi 4D0 698 151C / 4D0698151C
Audi 4D0 698 451C / 4D0698451C
Audi 4D0698151C
Audi 4D0698451C
Audi 6R0 615 301A / 6R0615301A
Audi 6R0615301A
Audi 8E0 698 451 / 8E0698451
Audi 8E0 698 451A / 8E0698451A
Audi 8E0 698 451B / 8E0698451B
Audi 8E0698451
Audi 8E0698451A
Audi 8E0698451B
Audi 8N0 698 151A / 8N0698151A
Audi 8N0 698 151C / 8N0698151C
Audi 8N0 698 151E / 8N0698151E
Audi 8N0698151A
Audi 8N0698151C
Audi 8N0698151E
Seat 1J0615301C
Seat 1J0615301K
Seat 1J0615301R
Seat 1J0615301S
Seat 1J0615601
Seat 1J0615601C
Skoda 1J0615301C
Skoda 1J0615301K
Skoda 1J0615301R
Skoda 1J0615301S
Skoda 1J0615601
Skoda 1J0615601C
Volkswagen 1E0 698 451 / 1E0698451
Volkswagen 1E0 698 451B / 1E0698451B
Volkswagen 1E0 698 451C / 1E0698451C
Volkswagen 1E0 698 451E / 1E0698451E
Volkswagen 1E0 698 451G / 1E0698451G
Volkswagen 1E0698451
Volkswagen 1E0698451B
Volkswagen 1E0698451C
Volkswagen 1E0698451E
Volkswagen 1E0698451G
Volkswagen 1H0 690 451 / 1H0690451
Volkswagen 1H0 690 451A / 1H0690451A
Volkswagen 1H0 698 451 / 1H0698451
Volkswagen 1H0 698 451A / 1H0698451A
Volkswagen 1H0 698 451C / 1H0698451C
Volkswagen 1H0 698 451D / 1H0698451D
Volkswagen 1H0 698 451G / 1H0698451G
Volkswagen 1H0690451
Volkswagen 1H0690451A
Volkswagen 1H0698451
Volkswagen 1H0698451A
Volkswagen 1H0698451C
Volkswagen 1H0698451D
Volkswagen 1H0698451G
Volkswagen 1J0 615 301C / 1J0615301C
Volkswagen 1J0 615 301K / 1J0615301K
Volkswagen 1J0 615 301R / 1J0615301R
Volkswagen 1J0 615 301S / 1J0615301S
Volkswagen 1J0 615 601 / 1J0615601
Volkswagen 1J0 615 601C / 1J0615601C
Volkswagen 1J0 615 601P / 1J0615601P
Volkswagen 1J0 698 451 / 1J0698451
Volkswagen 1J0 698 451A / 1J0698451A
Volkswagen 1J0 698 451B / 1J0698451B
Volkswagen 1J0 698 451C / 1J0698451C
Volkswagen 1J0 698 451D / 1J0698451D
Volkswagen 1J0 698 451E / 1J0698451E
Volkswagen 1J0 698 451F / 1J0698451F
Volkswagen 1J0 698 451G / 1J0698451G
Volkswagen 1J0 698 451J / 1J0698451J
Volkswagen 1J0 698 451K / 1J0698451K
Volkswagen 1J0 698 451P / 1J0698451P
Volkswagen 1J0 698 451R / 1J0698451R
Volkswagen 1J0615301C
Volkswagen 1J0615301K
Volkswagen 1J0615301R
Volkswagen 1J0615301S
Volkswagen 1J0615601
Volkswagen 1J0615601C
Volkswagen 1J0615601P
Volkswagen 1J0698451
Volkswagen 1J0698451A
Volkswagen 1J0698451B
Volkswagen 1J0698451C
Volkswagen 1J0698451D
Volkswagen 1J0698451E
Volkswagen 1J0698451F
Volkswagen 1J0698451G
Volkswagen 1J0698451J
Volkswagen 1J0698451K
Volkswagen 1J0698451P
Volkswagen 1J0698451R
Volkswagen 1K0 698 451J / 1K0698451J
Volkswagen 1K0698451J
Volkswagen 2Q0 615 601H / 2Q0615601H
Volkswagen 2Q0615601H
Volkswagen 3B0 698 451 / 3B0698451
Volkswagen 3B0698451
Volkswagen 425056
Volkswagen 4B0 698 451A / 4B0698451A
Volkswagen 4B0 698 451B / 4B0698451B
Volkswagen 4B0 698 451E / 4B0698451E
Volkswagen 4B0698451A
Volkswagen 4B0698451B
Volkswagen 4B0698451E
Volkswagen 6R0 615 301A / 6R0615301A
Volkswagen 6R0615301A
Volkswagen 7D0 698 451J / 7D0698451J
Volkswagen 7D0698451J
Volkswagen 8E0 698 451 / 8E0698451
Volkswagen 8E0 698 451A / 8E0698451A
Volkswagen 8E0 698 451K / 8E0698451K
Volkswagen 8E0698451
Volkswagen 8E0698451A
Volkswagen 8E0698451K
