Description

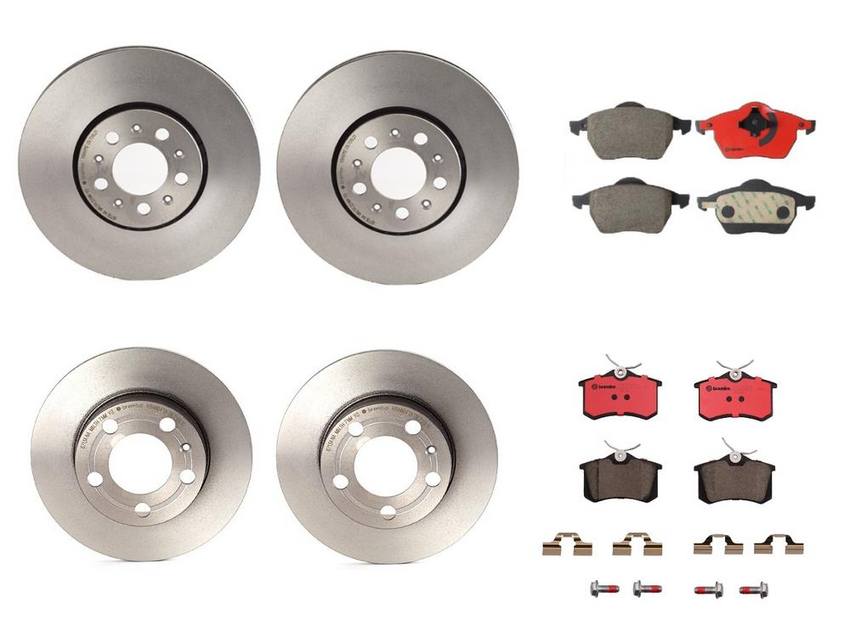

Kit Includes:
2 x Brembo 09.7010.21 Front Disc Brake Rotors
2 x Brembo 08.7165.11 Rear Disc Brake Rotors
1 x Brembo P85039N Front Disc Brake Pad Set Ceramic
1 x Brembo P85020N Rear Disc Brake Pad Set Ceramic
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Centring Diameter | ( Front Rotors ) 65 |
| Centring Diameter | ( Rear Rotors ) 65 |
| Coated | ( Front Rotors ) UV Coated |
| Coated | ( Rear Rotors ) UV Coated |
| Diameter (mm) | ( Front Rotors ) 288 |
| Diameter (mm) | ( Rear Rotors ) 232 |
| Features | (Rear Pads) with hardware |
| Fixing Screws | ( Front Rotors ) Included |
| Fixing Screws | ( Rear Rotors ) Included |
| Friction Material Composition | (Pads) Ceramic |
| Height (mm) | ( Front Rotors ) 34.2 |
| Height (mm) | ( Rear Rotors ) 40.3 |
| Height (mm) | (Front Pads) 74 |
| Height (mm) | (Rear Pads) 52.8 |
| Material | ( Front Rotors ) High Carbon |
| Material | ( Rear Rotors ) Grey Cast Iron |
| Minimum Thickness (mm) | ( Front Rotors ) 22 |
| Minimum Thickness (mm) | ( Rear Rotors ) 7 |
| Nominal Thickness (mm) | ( Front Rotors ) 25 |
| Nominal Thickness (mm) | ( Rear Rotors ) 9 |
| Nominal Thickness (mm) | (Front Pads) 20 |
| Nominal Thickness (mm) | (Rear Pads) 17.2 |
| Number of Holes | ( Front Rotors ) 5 |
| Number of Holes | ( Rear Rotors ) 5 |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered |
| Torque Spec (Nm) | ( Front Rotors ) 120 |
| Torque Spec (Nm) | ( Rear Rotors ) 120 |
| Ventilation Type | ( Front Rotors ) vented |
| Ventilation Type | ( Rear Rotors ) solid |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (mm) | (Front Pads) 156.3 |
| Width (mm) | (Rear Pads) 87 |
| WVA | (Front Pads) 21848 / 21849 |
| WVA | (Rear Pads) 20961 / 23554 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1J0 615 301 / 1J0615301 |
| Audi | 1J0 615 301C / 1J0615301C |
| Audi | 1J0 615 301K / 1J0615301K |
| Audi | 1J0 615 301R / 1J0615301R |
| Audi | 1J0 615 301S / 1J0615301S |
| Audi | 1J0 615 601 / 1J0615601 |
| Audi | 1J0 615 601C / 1J0615601C |
| Audi | 1J0 698 151K / 1J0698151K |
| Audi | 1J0 698 151L / 1J0698151L |
| Audi | 1J0 698 151M / 1J0698151M |
| Audi | 1J0 698 451E / 1J0698451E |
| Audi | 1J0 698 451J / 1J0698451J |
| Audi | 1J0 698 451L / 1J0698451L |
| Audi | 1J0 698 451N / 1J0698451N |
| Audi | 1J0615301 |
| Audi | 1J0615301C |
| Audi | 1J0615301K |
| Audi | 1J0615301R |
| Audi | 1J0615301S |
| Audi | 1J0615601 |
| Audi | 1J0615601C |
| Audi | 1J0698151K |
| Audi | 1J0698151L |
| Audi | 1J0698151M |
| Audi | 1J0698451E |
| Audi | 1J0698451J |
| Audi | 1J0698451L |
| Audi | 1J0698451N |
| Audi | 1K0 698 451J / 1K0698451J |
| Audi | 1K0698451J |
| Audi | 3B0 698 451 / 3B0698451 |
| Audi | 3B0698451 |
| Audi | 4B0 698 451 / 4B0698451 |
| Audi | 4B0 698 451B / 4B0698451B |
| Audi | 4B0 698 451C / 4B0698451C |
| Audi | 4B0 698 451E / 4B0698451E |
| Audi | 4B0698451 |
| Audi | 4B0698451B |
| Audi | 4B0698451C |
| Audi | 4B0698451E |
| Audi | 4D0 698 151C / 4D0698151C |
| Audi | 4D0 698 451C / 4D0698451C |
| Audi | 4D0698151C |
| Audi | 4D0698451C |
| Audi | 6R0 615 301A / 6R0615301A |
| Audi | 6R0615301A |
| Audi | 8E0 698 451 / 8E0698451 |
| Audi | 8E0 698 451A / 8E0698451A |
| Audi | 8E0 698 451B / 8E0698451B |
| Audi | 8E0698451 |
| Audi | 8E0698451A |
| Audi | 8E0698451B |
| Audi | 8N0 698 151A / 8N0698151A |
| Audi | 8N0 698 151C / 8N0698151C |
| Audi | 8N0 698 151E / 8N0698151E |
| Audi | 8N0698151A |
| Audi | 8N0698151C |
| Audi | 8N0698151E |
| Seat | 1J0615301C |
| Seat | 1J0615301K |
| Seat | 1J0615301R |
| Seat | 1J0615301S |
| Seat | 1J0615601 |
| Seat | 1J0615601C |
| Skoda | 1J0615301C |
| Skoda | 1J0615301K |
| Skoda | 1J0615301R |
| Skoda | 1J0615301S |
| Skoda | 1J0615601 |
| Skoda | 1J0615601C |
| Volkswagen | 1E0 698 451 / 1E0698451 |
| Volkswagen | 1E0 698 451B / 1E0698451B |
| Volkswagen | 1E0 698 451C / 1E0698451C |
| Volkswagen | 1E0 698 451E / 1E0698451E |
| Volkswagen | 1E0 698 451G / 1E0698451G |
| Volkswagen | 1E0698451 |
| Volkswagen | 1E0698451B |
| Volkswagen | 1E0698451C |
| Volkswagen | 1E0698451E |
| Volkswagen | 1E0698451G |
| Volkswagen | 1H0 690 451 / 1H0690451 |
| Volkswagen | 1H0 690 451A / 1H0690451A |
| Volkswagen | 1H0 698 451 / 1H0698451 |
| Volkswagen | 1H0 698 451A / 1H0698451A |
| Volkswagen | 1H0 698 451C / 1H0698451C |
| Volkswagen | 1H0 698 451D / 1H0698451D |
| Volkswagen | 1H0 698 451G / 1H0698451G |
| Volkswagen | 1H0690451 |
| Volkswagen | 1H0690451A |
| Volkswagen | 1H0698451 |
| Volkswagen | 1H0698451A |
| Volkswagen | 1H0698451C |
| Volkswagen | 1H0698451D |
| Volkswagen | 1H0698451G |
| Volkswagen | 1J0 615 301C / 1J0615301C |
| Volkswagen | 1J0 615 301K / 1J0615301K |
| Volkswagen | 1J0 615 301R / 1J0615301R |
| Volkswagen | 1J0 615 301S / 1J0615301S |
| Volkswagen | 1J0 615 601 / 1J0615601 |
| Volkswagen | 1J0 615 601C / 1J0615601C |
| Volkswagen | 1J0 615 601P / 1J0615601P |
| Volkswagen | 1J0 698 451 / 1J0698451 |
| Volkswagen | 1J0 698 451A / 1J0698451A |
| Volkswagen | 1J0 698 451B / 1J0698451B |
| Volkswagen | 1J0 698 451C / 1J0698451C |
| Volkswagen | 1J0 698 451D / 1J0698451D |
| Volkswagen | 1J0 698 451E / 1J0698451E |
| Volkswagen | 1J0 698 451F / 1J0698451F |
| Volkswagen | 1J0 698 451G / 1J0698451G |
| Volkswagen | 1J0 698 451J / 1J0698451J |
| Volkswagen | 1J0 698 451K / 1J0698451K |
| Volkswagen | 1J0 698 451P / 1J0698451P |
| Volkswagen | 1J0 698 451R / 1J0698451R |
| Volkswagen | 1J0615301C |
| Volkswagen | 1J0615301K |
| Volkswagen | 1J0615301R |
| Volkswagen | 1J0615301S |
| Volkswagen | 1J0615601 |
| Volkswagen | 1J0615601C |
| Volkswagen | 1J0615601P |
| Volkswagen | 1J0698451 |
| Volkswagen | 1J0698451A |
| Volkswagen | 1J0698451B |
| Volkswagen | 1J0698451C |
| Volkswagen | 1J0698451D |
| Volkswagen | 1J0698451E |
| Volkswagen | 1J0698451F |
| Volkswagen | 1J0698451G |
| Volkswagen | 1J0698451J |
| Volkswagen | 1J0698451K |
| Volkswagen | 1J0698451P |
| Volkswagen | 1J0698451R |
| Volkswagen | 1K0 698 451J / 1K0698451J |
| Volkswagen | 1K0698451J |
| Volkswagen | 2Q0 615 601H / 2Q0615601H |
| Volkswagen | 2Q0615601H |
| Volkswagen | 3B0 698 451 / 3B0698451 |
| Volkswagen | 3B0698451 |
| Volkswagen | 425056 |
| Volkswagen | 4B0 698 451A / 4B0698451A |
| Volkswagen | 4B0 698 451B / 4B0698451B |
| Volkswagen | 4B0 698 451E / 4B0698451E |
| Volkswagen | 4B0698451A |
| Volkswagen | 4B0698451B |
| Volkswagen | 4B0698451E |
| Volkswagen | 6R0 615 301A / 6R0615301A |
| Volkswagen | 6R0615301A |
| Volkswagen | 7D0 698 451J / 7D0698451J |
| Volkswagen | 7D0698451J |
| Volkswagen | 8E0 698 451 / 8E0698451 |
| Volkswagen | 8E0 698 451A / 8E0698451A |
| Volkswagen | 8E0 698 451K / 8E0698451K |
| Volkswagen | 8E0698451 |
| Volkswagen | 8E0698451A |
| Volkswagen | 8E0698451K |
