Description

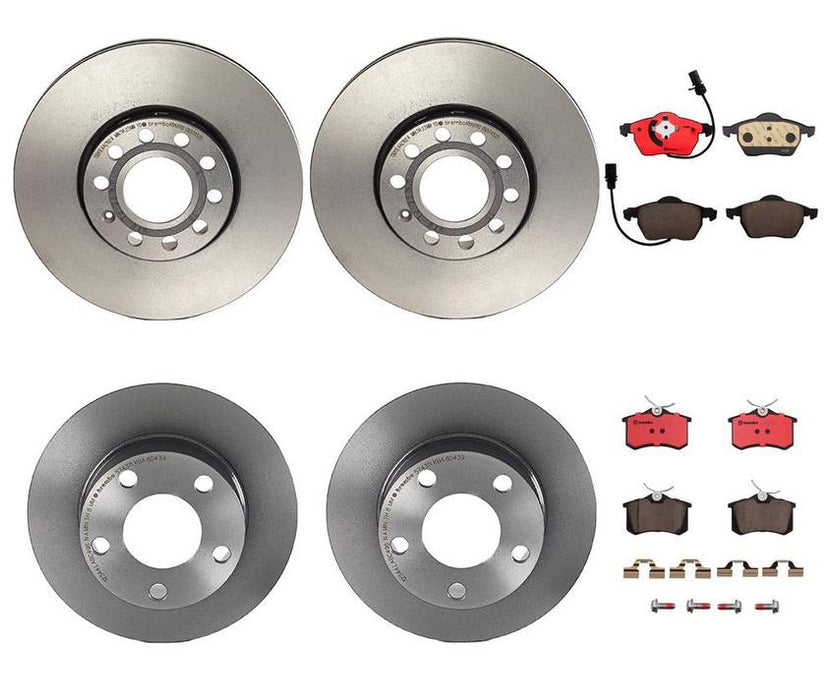

Kit Includes:

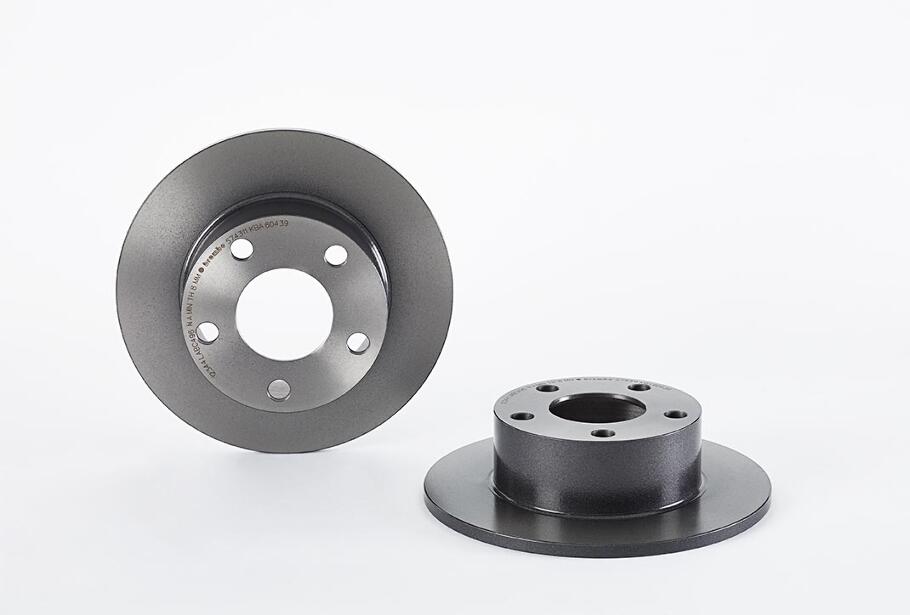

2 x Brembo 08.5743.11 Rear Disc Brake Rotors

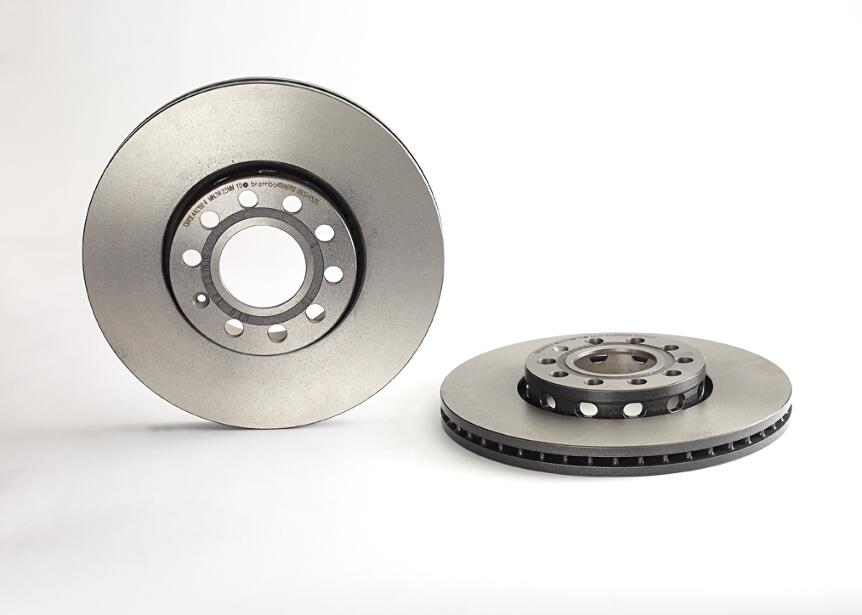

2 x Brembo 09.5745.21 Front Disc Brake Rotors
1 x Brembo P85020N Rear Disc Brake Pad Set Ceramic
1 x Brembo P85085N Front Disc Brake Pad Set Ceramic
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Centring Diameter | (Front Rotors) 68 |
| Centring Diameter | (Rear Rotors) 68 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter (mm) | (Front Rotors) 288 |
| Diameter (mm) | (Rear Rotors) 245 |
| Features | (Rear Pads) with hardware |
| Fixing Screws | (Front Rotors) Included |
| Friction Material Composition | (Pads) Ceramic |
| Height (mm) | (Front Pads) 74 |
| Height (mm) | (Front Rotors) 46.2 |
| Height (mm) | (Rear Pads) 52.8 |
| Height (mm) | (Rear Rotors) 63.9 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (mm) | (Front Rotors) 23 |
| Minimum Thickness (mm) | (Rear Rotors) 8 |
| Nominal Thickness (mm) | (Front Pads) 20.4 / 19.6 |
| Nominal Thickness (mm) | (Front Rotors) 25 |
| Nominal Thickness (mm) | (Rear Pads) 17.2 |
| Nominal Thickness (mm) | (Rear Rotors) 10 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered |
| Torque Spec (Nm) | (Front Rotors) 120 |
| Torque Spec (Nm) | (Rear Rotors) 120 |
| Ventilation Type | (Front Rotors) vented |
| Ventilation Type | (Rear Rotors) solid |
| Width (mm) | (Front Pads) 156.3 / 156.4 |
| Width (mm) | (Rear Pads) 87 |
| WVA | (Front Pads) 20676 / 23018 / 23019 |
| WVA | (Rear Pads) 20961 / 23554 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1J0 698 451E / 1J0698451E |
| Audi | 1J0 698 451J / 1J0698451J |
| Audi | 1J0 698 451L / 1J0698451L |
| Audi | 1J0 698 451N / 1J0698451N |
| Audi | 1J0698451E |
| Audi | 1J0698451J |
| Audi | 1J0698451L |
| Audi | 1J0698451N |
| Audi | 1K0 698 451J / 1K0698451J |
| Audi | 1K0698451J |
| Audi | 3B0 698 451 / 3B0698451 |
| Audi | 3B0698451 |
| Audi | 4A0 615 301C / 4A0615301C |
| Audi | 4A0 615 301D / 4A0615301D |
| Audi | 4A0 615 601A / 4A0615601A |
| Audi | 4A0615301C |
| Audi | 4A0615301D |
| Audi | 4A0615601A |
| Audi | 4B0 698 151A AB / 4B0698151AAB |
| Audi | 4B0 698 151A AF / 4B0698151AAF |
| Audi | 4B0 698 151E / 4B0698151E |
| Audi | 4B0 698 151K / 4B0698151K |
| Audi | 4B0 698 451 / 4B0698451 |
| Audi | 4B0 698 451B / 4B0698451B |
| Audi | 4B0 698 451C / 4B0698451C |
| Audi | 4B0 698 451E / 4B0698451E |
| Audi | 4B0698151AB |
| Audi | 4B0698151AF |
| Audi | 4B0698151E |
| Audi | 4B0698151K |
| Audi | 4B0698451 |
| Audi | 4B0698451B |
| Audi | 4B0698451C |
| Audi | 4B0698451E |
| Audi | 4D0 698 151C / 4D0698151C |
| Audi | 4D0 698 151J / 4D0698151J |
| Audi | 4D0 698 451C / 4D0698451C |
| Audi | 4D0698151C |
| Audi | 4D0698151J |
| Audi | 4D0698451C |
| Audi | 8E0 615 301Q / 8E0615301Q |
| Audi | 8E0 698 451 / 8E0698451 |
| Audi | 8E0 698 451A / 8E0698451A |
| Audi | 8E0 698 451B / 8E0698451B |
| Audi | 8E0615301Q |
| Audi | 8E0698451 |
| Audi | 8E0698451A |
| Audi | 8E0698451B |
| Skoda | 4A0615301D |
| Skoda | 4A0615301E |
| Skoda | 4A0615601A |
| Skoda | 8E0615301Q |
| Volkswagen | 1E0 698 451 / 1E0698451 |
| Volkswagen | 1E0 698 451B / 1E0698451B |
| Volkswagen | 1E0 698 451C / 1E0698451C |
| Volkswagen | 1E0 698 451E / 1E0698451E |
| Volkswagen | 1E0 698 451G / 1E0698451G |
| Volkswagen | 1E0698451 |
| Volkswagen | 1E0698451B |
| Volkswagen | 1E0698451C |
| Volkswagen | 1E0698451E |
| Volkswagen | 1E0698451G |
| Volkswagen | 1H0 690 451 / 1H0690451 |
| Volkswagen | 1H0 690 451A / 1H0690451A |
| Volkswagen | 1H0 698 451 / 1H0698451 |
| Volkswagen | 1H0 698 451A / 1H0698451A |
| Volkswagen | 1H0 698 451C / 1H0698451C |
| Volkswagen | 1H0 698 451D / 1H0698451D |
| Volkswagen | 1H0 698 451G / 1H0698451G |
| Volkswagen | 1H0690451 |
| Volkswagen | 1H0690451A |
| Volkswagen | 1H0698451 |
| Volkswagen | 1H0698451A |
| Volkswagen | 1H0698451C |
| Volkswagen | 1H0698451D |
| Volkswagen | 1H0698451G |
| Volkswagen | 1J0 698 451 / 1J0698451 |
| Volkswagen | 1J0 698 451A / 1J0698451A |
| Volkswagen | 1J0 698 451B / 1J0698451B |
| Volkswagen | 1J0 698 451C / 1J0698451C |
| Volkswagen | 1J0 698 451D / 1J0698451D |
| Volkswagen | 1J0 698 451E / 1J0698451E |
| Volkswagen | 1J0 698 451F / 1J0698451F |
| Volkswagen | 1J0 698 451G / 1J0698451G |
| Volkswagen | 1J0 698 451J / 1J0698451J |
| Volkswagen | 1J0 698 451K / 1J0698451K |
| Volkswagen | 1J0 698 451P / 1J0698451P |
| Volkswagen | 1J0 698 451R / 1J0698451R |
| Volkswagen | 1J0698451 |
| Volkswagen | 1J0698451A |
| Volkswagen | 1J0698451B |
| Volkswagen | 1J0698451C |
| Volkswagen | 1J0698451D |
| Volkswagen | 1J0698451E |
| Volkswagen | 1J0698451F |
| Volkswagen | 1J0698451G |
| Volkswagen | 1J0698451J |
| Volkswagen | 1J0698451K |
| Volkswagen | 1J0698451P |
| Volkswagen | 1J0698451R |
| Volkswagen | 1K0 698 451J / 1K0698451J |
| Volkswagen | 1K0698451J |
| Volkswagen | 3B0 698 451 / 3B0698451 |
| Volkswagen | 3B0698451 |
| Volkswagen | 425056 |
| Volkswagen | 4A0 615 301C / 4A0615301C |
| Volkswagen | 4A0 615 301E / 4A0615301E |
| Volkswagen | 4A0 615 601A / 4A0615601A |
| Volkswagen | 4A0615301C |
| Volkswagen | 4A0615301E |
| Volkswagen | 4A0615601A |
| Volkswagen | 4B0 698 151 AF / 4B0698151AF |
| Volkswagen | 4B0 698 151K / 4B0698151K |
| Volkswagen | 4B0 698 151N / 4B0698151N |
| Volkswagen | 4B0 698 451A / 4B0698451A |
| Volkswagen | 4B0 698 451B / 4B0698451B |
| Volkswagen | 4B0 698 451E / 4B0698451E |
| Volkswagen | 4B0698151AF |
| Volkswagen | 4B0698151K |
| Volkswagen | 4B0698151N |
| Volkswagen | 4B0698451A |
| Volkswagen | 4B0698451B |
| Volkswagen | 4B0698451E |
| Volkswagen | 7D0 698 451J / 7D0698451J |
| Volkswagen | 7D0698451J |
| Volkswagen | 8E0 615 601 / 8E0615601 |
| Volkswagen | 8E0 698 451 / 8E0698451 |
| Volkswagen | 8E0 698 451A / 8E0698451A |
| Volkswagen | 8E0 698 451K / 8E0698451K |
| Volkswagen | 8E0615601 |
| Volkswagen | 8E0698451 |
| Volkswagen | 8E0698451A |
| Volkswagen | 8E0698451K |
