Description

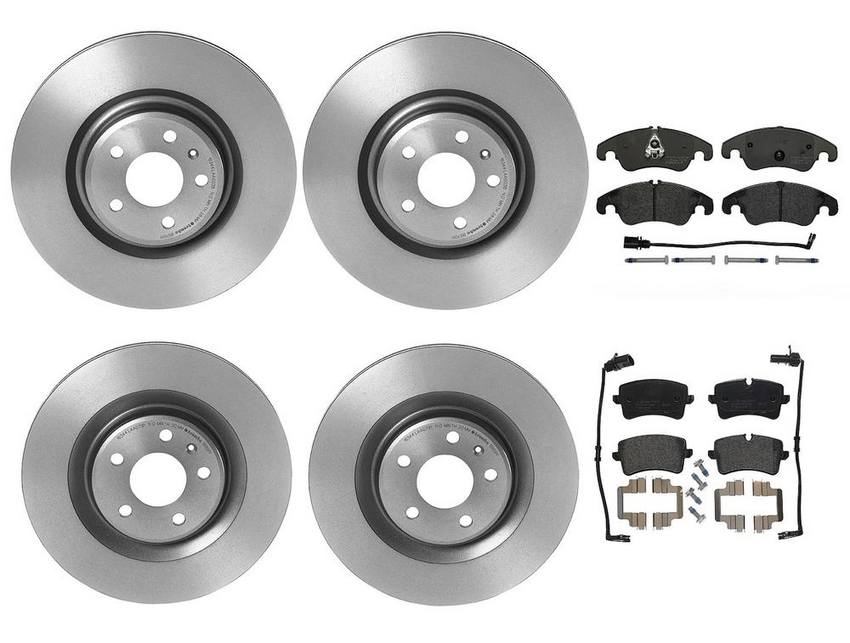

Kit Includes:
2 x Brembo 09.B970.11 Front Disc Brake Rotors
2 x Brembo 09.B969.11 Rear Disc Brake Rotors
1 x Brembo P85117 Rear Disc Brake Pad Set
1 x Brembo P85098 Front Disc Brake Pad Set
| Brake System | (Front Pads) Lucas |
| Brake System | (Rear Pads) Lucas |
| Coated | ( Front Rotors ) Yes |
| Coated | ( Rear Rotors ) Yes |
| Features | (Front Pads) with hardware |
| Features | (Rear Pads) with hardware |
| Fixing Screws | ( Front Rotors ) Yes |
| Fixing Screws | ( Rear Rotors ) Yes |
| Friction Material Composition | (Pads) Low-Met |
| Height (mm) | (Front Pads) 72.9 / 73.5 |
| Height (mm) | (Rear Pads) 59 / 60 |
| High Carbon | ( Front Rotors ) Yes |
| High Carbon | ( Rear Rotors ) Yes |
| Min TH (Discs)/Max Diameter (Drums) (mm) | ( Front Rotors ) 28 |
| Minimum Thickness (mm) | ( Rear Rotors ) 20 |
| Nominal Thickness (mm) | ( Front Rotors ) 30 |
| Nominal Thickness (mm) | ( Rear Rotors ) 22 |
| Outside Diameter (mm) | ( Front Rotors ) 345 |
| Outside Diameter (mm) | ( Rear Rotors ) 330 |
| Pillar Vent | ( Front Rotors ) Yes |
| Pillar Vent | ( Rear Rotors ) Yes |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Wear Indicator | (Rear Pads) with electric wear indicator |
| Width (mm) | (Front Pads) 188.2 |
| Width (mm) | (Rear Pads) 116.6 |
| WVA | (Front Pads) 24408 / 24409 / 24743 |
| WVA | (Rear Pads) 24606 / 25214 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 4G0 615 301 / 4G0615301 |
| Audi | 4G0 615 301A AE / 4G0615301AAE |
| Audi | 4G0 615 301A AF / 4G0615301AAF |
| Audi | 4G0 615 301G / 4G0615301G |
| Audi | 4G0 615 301M / 4G0615301M |
| Audi | 4G0 615 301Q / 4G0615301Q |
| Audi | 4G0 698 151D / 4G0698151D |
| Audi | 4G0 698 451A / 4G0698451A |
| Audi | 4G0 698 451B / 4G0698451B |
| Audi | 4G0 698 451C / 4G0698451C |
| Audi | 4G0615301 |
| Audi | 4G0615301AE |
| Audi | 4G0615301AF |
| Audi | 4G0615301G |
| Audi | 4G0615301M |
| Audi | 4G0615301Q |
| Audi | 4H0 615 601D / 4H0615601D |
| Audi | 4H0 615 601H / 4H0615601H |
| Audi | 4H0 615 601K / 4H0615601K |
| Audi | 4H0 698 451A / 4H0698451A |
| Audi | 4H0 698 451C / 4H0698451C |
| Audi | 4H0 698 451D / 4H0698451D |
| Audi | 4H0 698 451K / 4H0698451K |
| Audi | 4H0615601D |
| Audi | 4H0615601H |
| Audi | 4H0615601K |
| Audi | 8K0 698 151 / 8K0698151 |
| Audi | 8K0 698 151B / 8K0698151B |
| Audi | 8K0 698 151C / 8K0698151C |
| Audi | 8K0 698 151D / 8K0698151D |
| Audi | 8K0 698 151E / 8K0698151E |
| Audi | 8K0 698 151G / 8K0698151G |
| Audi | 8K0 698 151H / 8K0698151H |
| Audi | 8K0 698 151J / 8K0698151J |
| Audi | 8K0 698 151K / 8K0698151K |
| Audi | 8K0 698 151L / 8K0698151L |
| Audi | 8R0 698 151 / 8R0698151 |
| Audi | 8R0 698 151A / 8R0698151A |
| Porsche | 95B 615 301B / 95B615301B |
| Porsche | 95B 615 601A / 95B615601A |
| Porsche | 95B615301B |
| Porsche | 95B615601A |
