Description

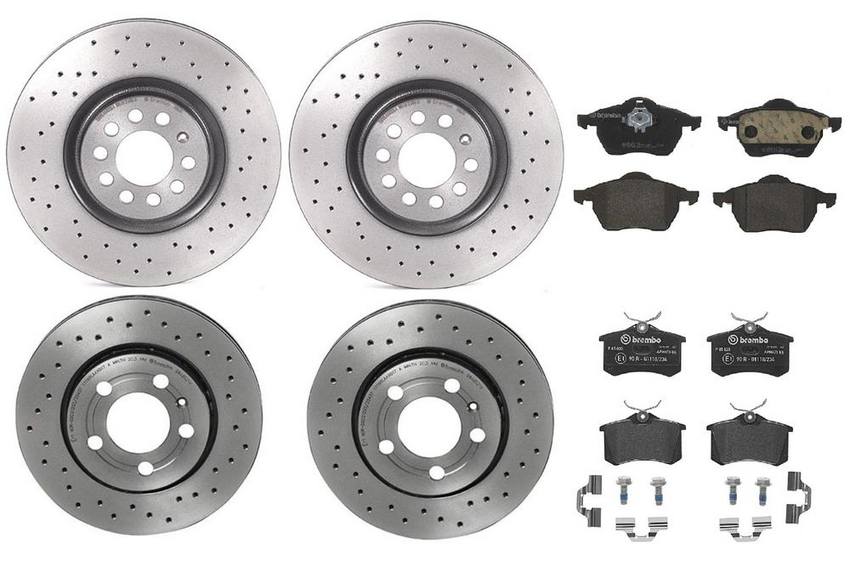

Kit Includes:
2 x Brembo 09.7880.1X Front Disc Brake Rotors
2 x Brembo 09.A652.1X Rear Disc Brake Rotors
1 x Brembo P85036 Front Disc Brake Pad Set
1 x Brembo P85020 Rear Disc Brake Pad Set
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Coated | (Front Rotors) Yes |
| Coated | (Rear Rotors) Yes |
| Features | (Rear Pads) with hardware |
| Fixing Screws | (Front Rotors) Yes |
| Friction Material Composition | Low-Met |
| Height (mm) | (Front Pads) 74 |
| Height (mm) | (Rear Pads) 53 |
| High Carbon | (Front Rotors) Yes |
| Min TH (Discs)/Max Diameter (Drums) (mm) | (Front Rotors) 23 |
| Min TH (Discs)/Max Diameter (Drums) (mm) | (Rear Rotors) 20 |
| Nominal Thickness (mm) | (Front Rotors) 25 |
| Nominal Thickness (mm) | (Rear Rotors) 20 |
| Outside Diameter (mm) | (Front Rotors) 312 |
| Outside Diameter (mm) | (Rear Rotors) 256 |
| Surface Type | (Front Rotors) Drilled |
| Surface Type | (Rear Rotors) Drilled |
| Torque Spec (DaNm) | (Front Rotors) 12 |
| Width (mm) | (Front Pads) 156.25 |
| Width (mm) | (Rear Pads) 87 |
| WVA | (Front Pads) 20676 / 21624 / 21646 |
| WVA | (Rear Pads) 20961 / 23554 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1J0 698 451E / 1J0698451E |
| Audi | 1J0 698 451J / 1J0698451J |
| Audi | 1J0 698 451L / 1J0698451L |
| Audi | 1J0 698 451N / 1J0698451N |
| Audi | 1K0 698 451J / 1K0698451J |
| Audi | 3B0 698 451 / 3B0698451 |
| Audi | 4B0 698 451 / 4B0698451 |
| Audi | 4B0 698 451B / 4B0698451B |
| Audi | 4B0 698 451C / 4B0698451C |
| Audi | 4B0 698 451E / 4B0698451E |
| Audi | 4D0 698 151C / 4D0698151C |
| Audi | 4D0 698 451C / 4D0698451C |
| Audi | 8D0 698 151A / 8D0698151A |
| Audi | 8D0 698 151C / 8D0698151C |
| Audi | 8D0 698 151E / 8D0698151E |
| Audi | 8E0 698 451 / 8E0698451 |
| Audi | 8E0 698 451A / 8E0698451A |
| Audi | 8E0 698 451B / 8E0698451B |
| Audi | 8L0 615 301 / 8L0615301 |
| Audi | 8L0615301 |
| Audi | 8N0 615 301A / 8N0615301A |
| Audi | 8N0 698 151 / 8N0698151 |
| Audi | 8N0615301A |
| Seat | 8N0615301A |
| Skoda | 8N0615301A |
| Volkswagen | 1E0 698 451 / 1E0698451 |
| Volkswagen | 1E0 698 451B / 1E0698451B |
| Volkswagen | 1E0 698 451C / 1E0698451C |
| Volkswagen | 1E0 698 451E / 1E0698451E |
| Volkswagen | 1E0 698 451G / 1E0698451G |
| Volkswagen | 1H0 690 451 / 1H0690451 |
| Volkswagen | 1H0 690 451A / 1H0690451A |
| Volkswagen | 1H0 698 451 / 1H0698451 |
| Volkswagen | 1H0 698 451A / 1H0698451A |
| Volkswagen | 1H0 698 451C / 1H0698451C |
| Volkswagen | 1H0 698 451D / 1H0698451D |
| Volkswagen | 1H0 698 451G / 1H0698451G |
| Volkswagen | 1J0 698 451 / 1J0698451 |
| Volkswagen | 1J0 698 451A / 1J0698451A |
| Volkswagen | 1J0 698 451B / 1J0698451B |
| Volkswagen | 1J0 698 451C / 1J0698451C |
| Volkswagen | 1J0 698 451D / 1J0698451D |
| Volkswagen | 1J0 698 451E / 1J0698451E |
| Volkswagen | 1J0 698 451F / 1J0698451F |
| Volkswagen | 1J0 698 451G / 1J0698451G |
| Volkswagen | 1J0 698 451J / 1J0698451J |
| Volkswagen | 1J0 698 451K / 1J0698451K |
| Volkswagen | 1J0 698 451P / 1J0698451P |
| Volkswagen | 1J0 698 451R / 1J0698451R |
| Volkswagen | 1K0 698 451J / 1K0698451J |
| Volkswagen | 3A0 698 151A / 3A0698151A |
| Volkswagen | 3B0 698 451 / 3B0698451 |
| Volkswagen | 4B0 698 451A / 4B0698451A |
| Volkswagen | 4B0 698 451B / 4B0698451B |
| Volkswagen | 4B0 698 451E / 4B0698451E |
| Volkswagen | 7D0 698 451J / 7D0698451J |
| Volkswagen | 8D0 698 151A / 8D0698151A |
| Volkswagen | 8D0 698 151C / 8D0698151C |
| Volkswagen | 8E0 698 451 / 8E0698451 |
| Volkswagen | 8E0 698 451A / 8E0698451A |
| Volkswagen | 8E0 698 451K / 8E0698451K |
| Volkswagen | 8L0 615 301 / 8L0615301 |
| Volkswagen | 8L0 615 601 / 8L0615601 |
| Volkswagen | 8L0615301 |
| Volkswagen | 8L0615601 |
| Volkswagen | 8N0 615 301A / 8N0615301A |
| Volkswagen | 8N0 615 601B / 8N0615601B |
| Volkswagen | 8N0 698 151 / 8N0698151 |
| Volkswagen | 8N0615301A |
| Volkswagen | 8N0615601B |
