Description

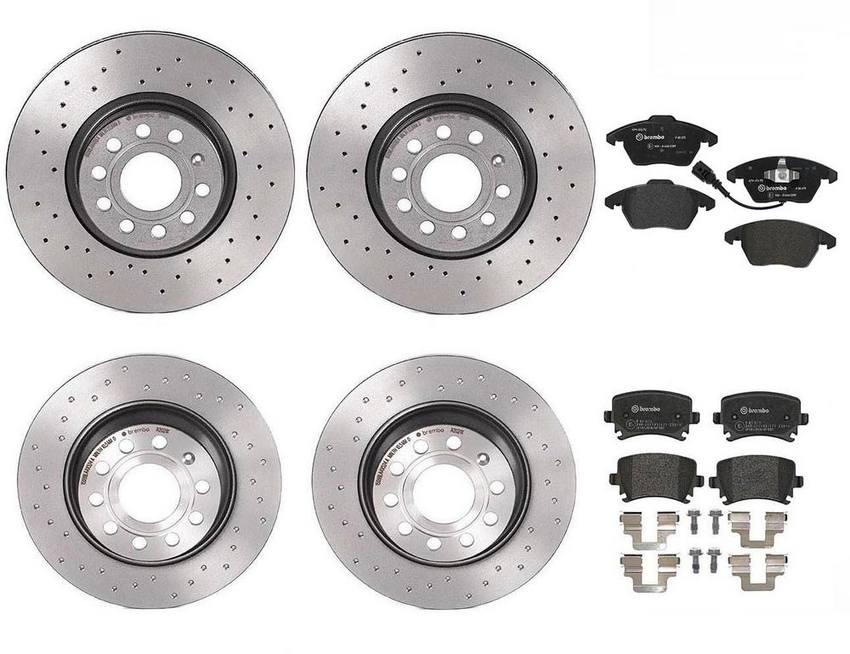

Kit Includes:

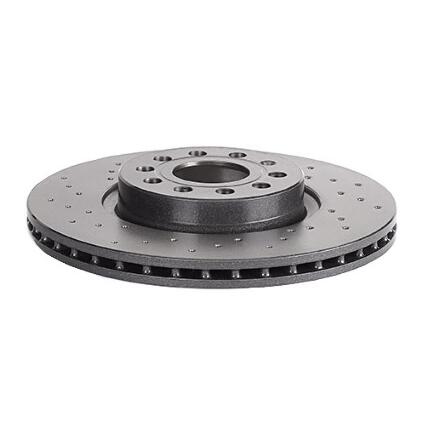

2 x Brembo 09.9772.1X Front Disc Brake Rotors

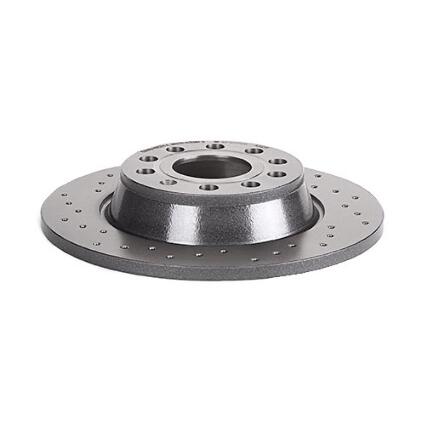

2 x Brembo 08.A202.1X Rear Disc Brake Rotors
1 x Brembo P85075 Front Disc Brake Pad Set
1 x Brembo P85073 Rear Disc Brake Pad Set
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Braking Surface | (Front Rotors) Drilled |
| Braking Surface | (Rear Rotors) Drilled |
| Centring Diameter | (Front Rotors) 65 |
| Centring Diameter | (Rear Rotors) 65 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter (mm) | (Front Rotors) 312 |
| Diameter (mm) | (Rear Rotors) 282 |
| Features | (Rear Pads) with hardware |
| Fixing Screws | (Front Rotors) Included |
| Fixing Screws | (Rear Rotors) Included |
| Friction Material Composition | (Front and Rear Pads) Low-Met |
| Height (mm) | (Front Pads) 66 / 71.3 |
| Height (mm) | (Front Rotors) 49.5 |
| Height (mm) | (Rear Pads) 56 |
| Height (mm) | (Rear Rotors) 48.2 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (mm) | (Front Rotors) 22.8 |
| Minimum Thickness (mm) | (Rear Rotors) 10.5 |
| Nominal Thickness (mm) | (Front Pads) 20.1 |
| Nominal Thickness (mm) | (Front Rotors) 25 |
| Nominal Thickness (mm) | (Rear Pads) 17.2 |
| Nominal Thickness (mm) | (Rear Rotors) 12 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered |
| Torque Spec (Nm) | (Front Rotors) 120 |
| Torque Spec (Nm) | (Rear Rotors) 120 |
| Ventilation Type | (Front Rotors) vented |
| Ventilation Type | (Rear Rotors) solid |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Wear Indicator | (Rear Pads) prepared for wear indicator |
| Width (mm) | (Front Pads) 156.5 / 155.3 |
| Width (mm) | (Rear Pads) 105.3 |
| WVA | (Front Pads) 23587 / 23588 / 23589 |
| WVA | (Rear Pads) 23914 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1K0 615 301A AA / 1K0615301AAA |
| Audi | 1K0 615 601M / 1K0615601M |
| Audi | 1K0615301AA |
| Audi | 1K0615601M |
| Audi | 5C0 615 301B / 5C0615301B |
| Audi | 5C0615301B |
| Audi | 5Q0 615 301F / 5Q0615301F |
| Audi | 5Q0615301F |
| Seat | 1K0615301AA |
| Skoda | 1K0615301AA |
| Volkswagen | 1K0 615 301 AA / 1K0615301AA |
| Volkswagen | 1K0 615 601 AD / 1K0615601AD |
| Volkswagen | 1K0615301AA |
| Volkswagen | 1K0615601AD |
| Volkswagen | 561 615 301A / 561615301A |
| Volkswagen | 561615301A |
| Volkswagen | 5C0 615 301B / 5C0615301B |
| Volkswagen | 5C0615301B |
| Volkswagen | 5Q0 615 301F / 5Q0615301F |
| Volkswagen | 5Q0615301F |
