Description

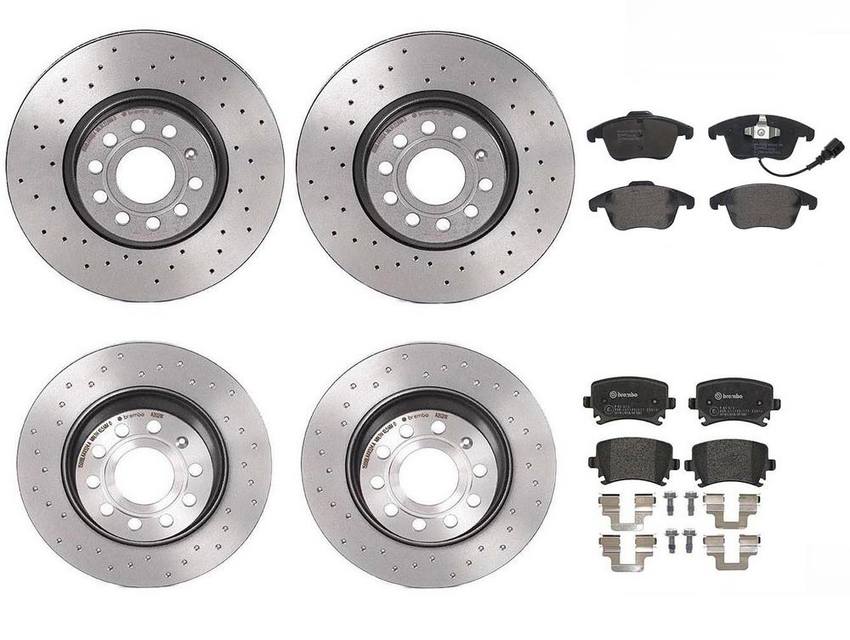

Kit Includes:

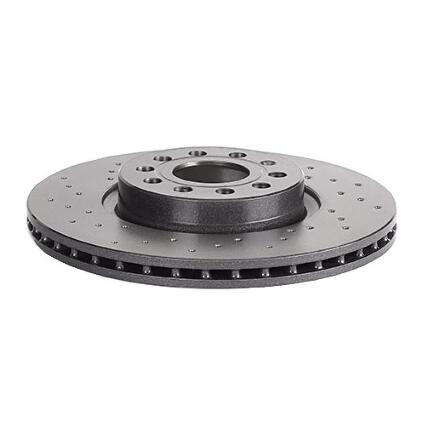

2 x Brembo 09.9772.1X Front Disc Brake Rotors

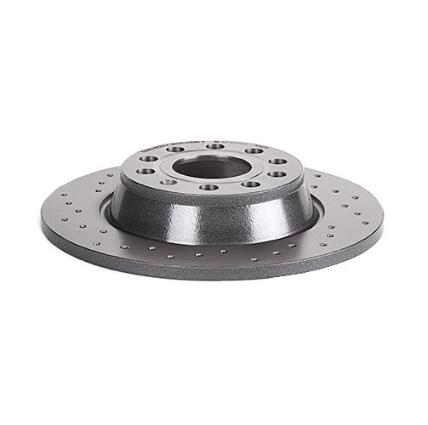

2 x Brembo 08.A202.1X Rear Disc Brake Rotors
1 x Brembo P85130 Front Disc Brake Pad Set
1 x Brembo P85073 Rear Disc Brake Pad Set
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Braking Surface | (Front Rotors) Drilled |
| Braking Surface | (Rear Rotors) Drilled |
| Centring Diameter | (Front Rotors) 65 |
| Centring Diameter | (Rear Rotors) 65 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter (mm) | (Front Rotors) 312 |
| Diameter (mm) | (Rear Rotors) 282 |
| Fixing Screws | (Front Rotors) Included |
| Fixing Screws | (Rear Rotors) Included |
| Friction Material Composition | (Front and Rear Pads) Ceramic |
| Height (mm) | (Front Pads) 66.4 / 71.9 |
| Height (mm) | (Front Rotors) 49.5 |
| Height (mm) | (Rear Pads) 56 |
| Height (mm) | (Rear Rotors) 48.2 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (mm) | (Front Rotors) 22.8 |
| Minimum Thickness (mm) | (Rear Rotors) 10.5 |
| Nominal Thickness (mm) | (Front Pads) 20 |
| Nominal Thickness (mm) | (Front Rotors) 25 |
| Nominal Thickness (mm) | (Rear Pads) 17.2 |
| Nominal Thickness (mm) | (Rear Rotors) 12 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered |
| Torque Spec (Nm) | (Front Rotors) 120 |
| Torque Spec (Nm) | (Rear Rotors) 120 |
| Ventilation Type | (Front Rotors) vented |
| Ventilation Type | (Rear Rotors) solid |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Wear Indicator | (Rear Pads) prepared for wear indicator |
| Width (mm) | (Front Pads) 155.2 |
| Width (mm) | (Rear Pads) 105.3 |
| WVA | (Front Pads) 24334 / 24333 / 24557 |
| WVA | (Rear Pads) 23914 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1K0 615 301A AA / 1K0615301AAA |
| Audi | 1K0 615 601M / 1K0615601M |
| Audi | 1K0 698 451D / 1K0698451D |
| Audi | 1K0 698 451G / 1K0698451G |
| Audi | 1K0 698 451K / 1K0698451K |
| Audi | 1K0615301AA |
| Audi | 1K0615601M |
| Audi | 3AA 698 451 / 3AA698451 |
| Audi | 4F0 698 451A / 4F0698451A |
| Audi | 4F0 698 451D / 4F0698451D |
| Audi | 5C0 615 301B / 5C0615301B |
| Audi | 5C0615301B |
| Audi | 5N0 698 151 / 5N0698151 |
| Audi | 5N0 698 151A / 5N0698151A |
| Audi | 5N0 698 151B / 5N0698151B |
| Audi | 5Q0 615 301F / 5Q0615301F |
| Audi | 5Q0615301F |
| Audi | 8E0 698 451F / 8E0698451F |
| Audi | 8E0 698 451J / 8E0698451J |
| Audi | 8E0 698 451M / 8E0698451M |
| Seat | 1K0615301AA |
| Skoda | 1K0615301AA |
| Volkswagen | 1K0 615 301 AA / 1K0615301AA |
| Volkswagen | 1K0 615 601 AD / 1K0615601AD |
| Volkswagen | 1K0 698 451E / 1K0698451E |
| Volkswagen | 1K0 698 451F / 1K0698451F |
| Volkswagen | 1K0 698 451G / 1K0698451G |
| Volkswagen | 1K0 698 451H / 1K0698451H |
| Volkswagen | 1K0 698 451K / 1K0698451K |
| Volkswagen | 1K0615301AA |
| Volkswagen | 1K0615601AD |
| Volkswagen | 3C0 698 451 / 3C0698451 |
| Volkswagen | 3C0 698 451A / 3C0698451A |
| Volkswagen | 3C0 698 451B / 3C0698451B |
| Volkswagen | 3C0 698 451C / 3C0698451C |
| Volkswagen | 3C0 698 451D / 3C0698451D |
| Volkswagen | 3C0 698 451E / 3C0698451E |
| Volkswagen | 3C0 698 451F / 3C0698451F |
| Volkswagen | 561 615 301A / 561615301A |
| Volkswagen | 561615301A |
| Volkswagen | 5C0 615 301B / 5C0615301B |
| Volkswagen | 5C0615301B |
| Volkswagen | 5N0 698 451 / 5N0698451 |
| Volkswagen | 5Q0 615 301F / 5Q0615301F |
| Volkswagen | 5Q0615301F |
