Volkswagen Disc Brake Pad and Rotor Kit – Front and Rear (312mm/282mm) (Xtra) (Low-Met) 5Q0615301F

SKU: BBHN_1635307KIT
No reviews
Price:
$452.99
Stock:

Description

Kit Includes:

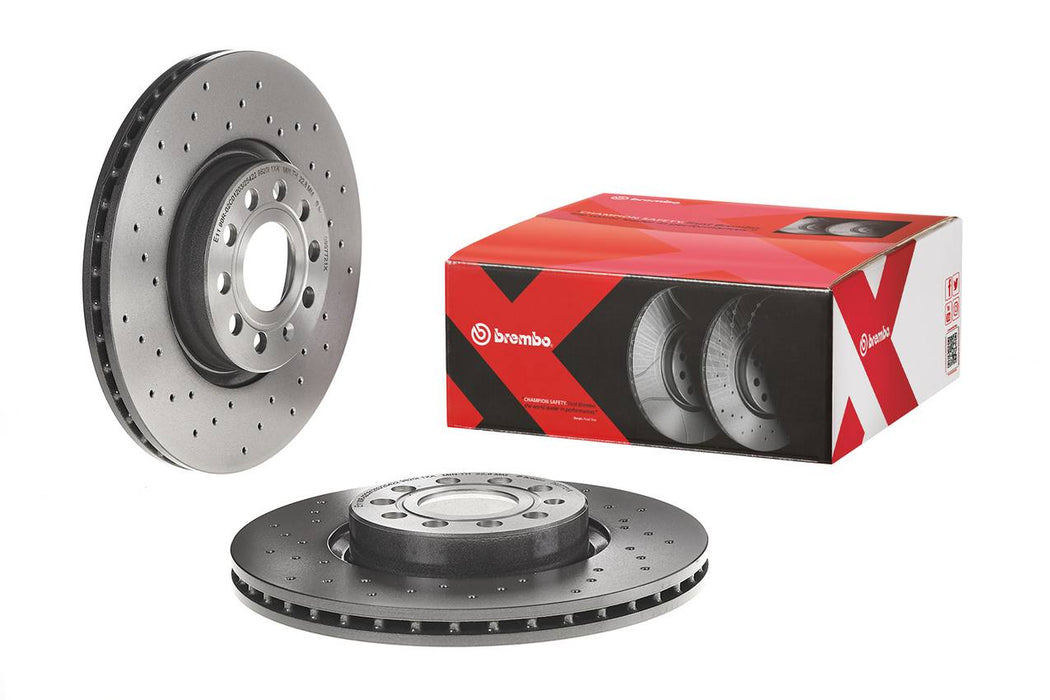

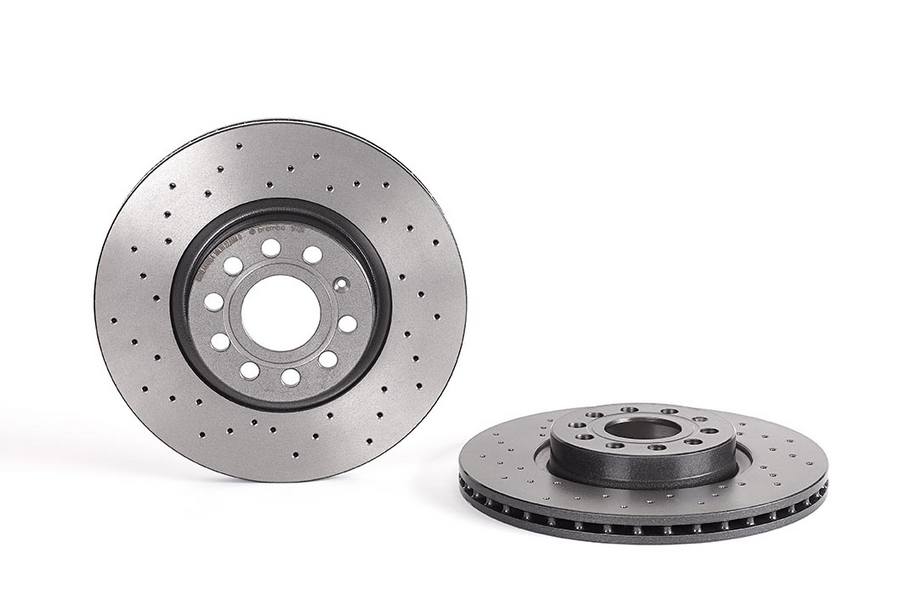

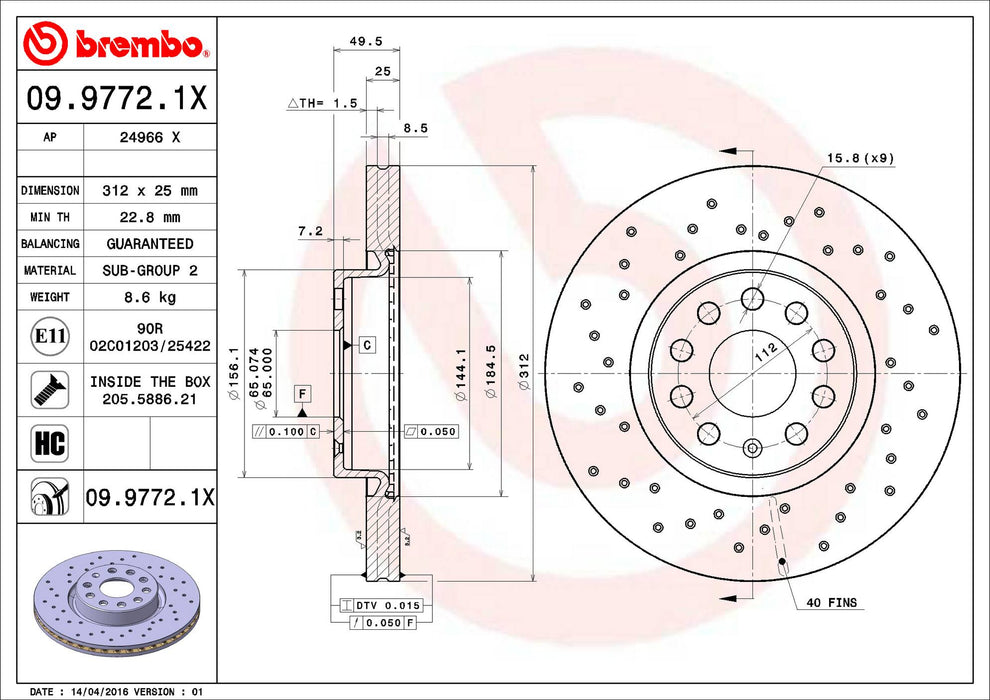

2 x Brembo 09.9772.1X Front Disc Brake Rotors

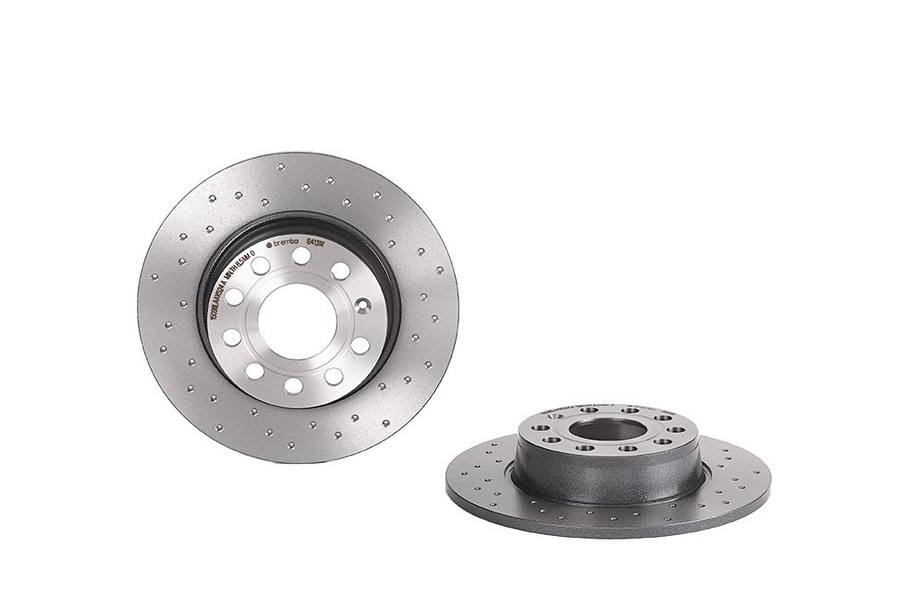

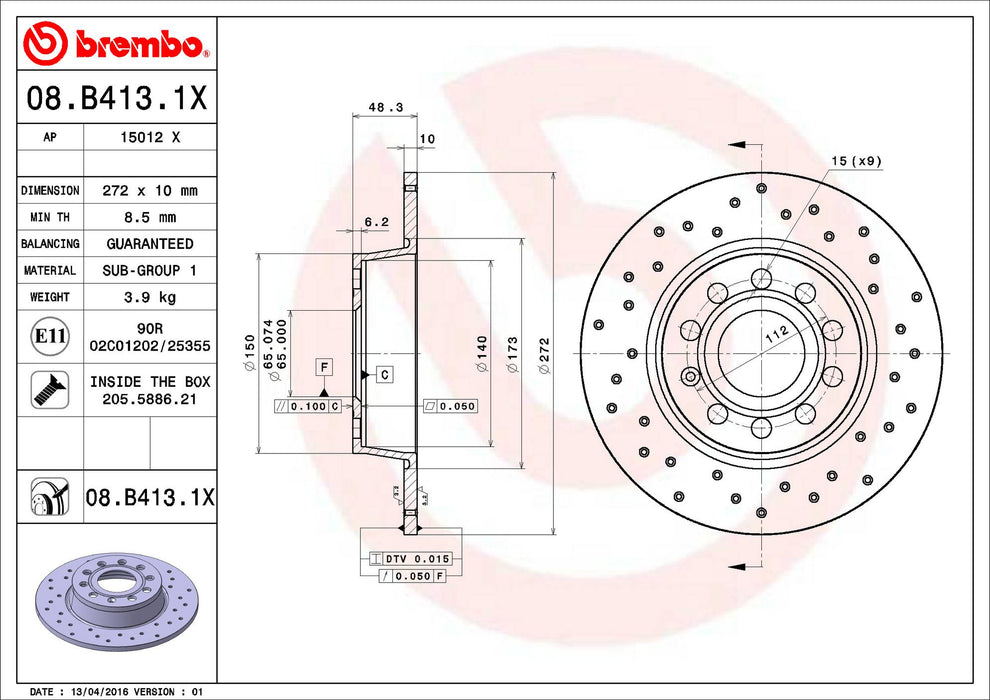

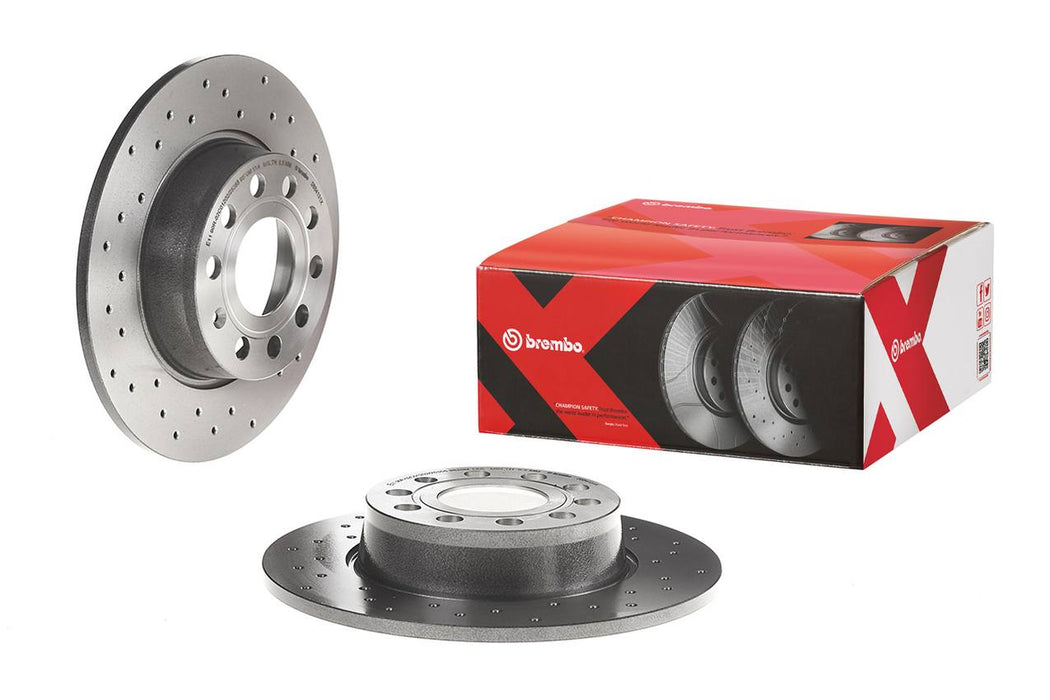

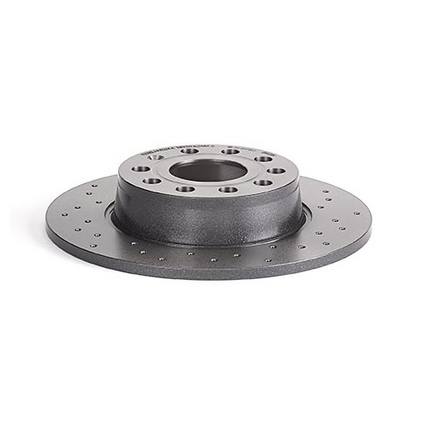

2 x Brembo 08.B413.1X Rear Disc Brake Rotors

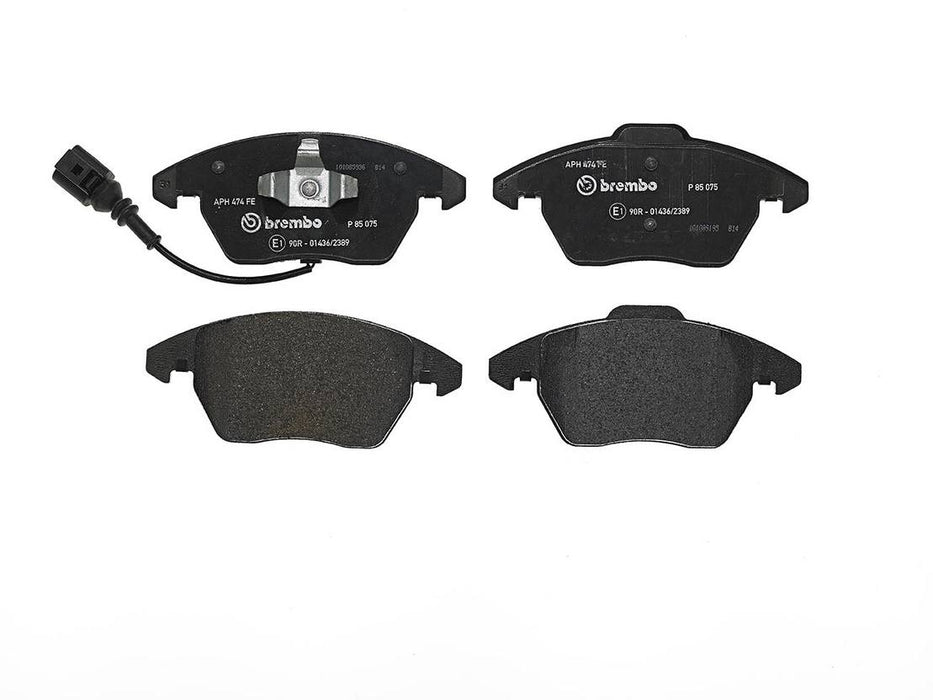

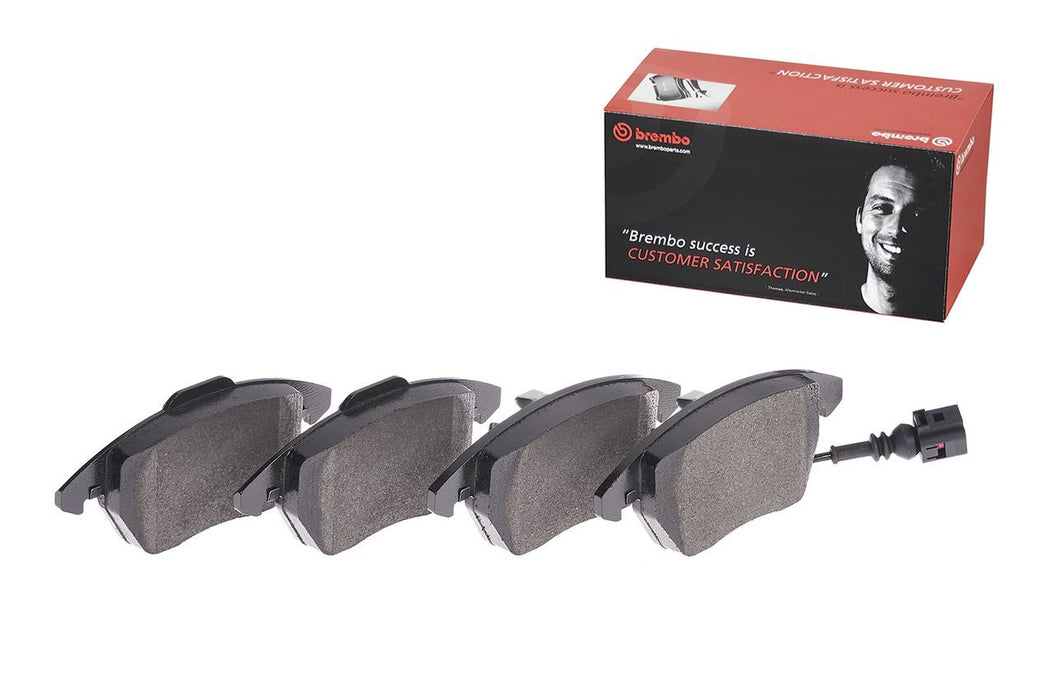

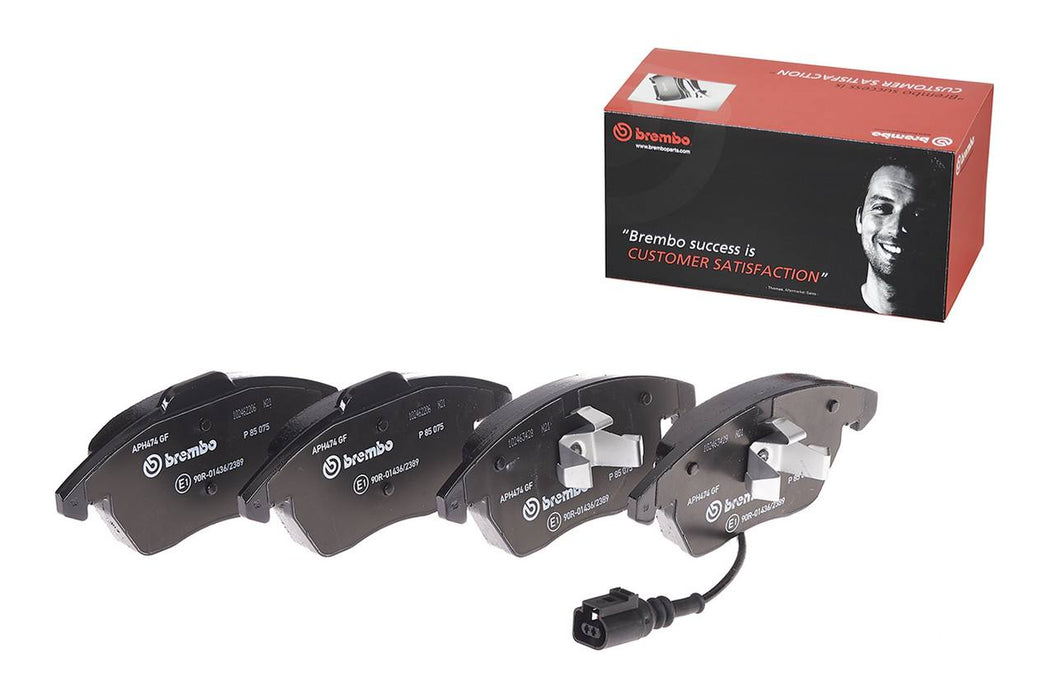

1 x Brembo P85075 Front Disc Brake Pad Set

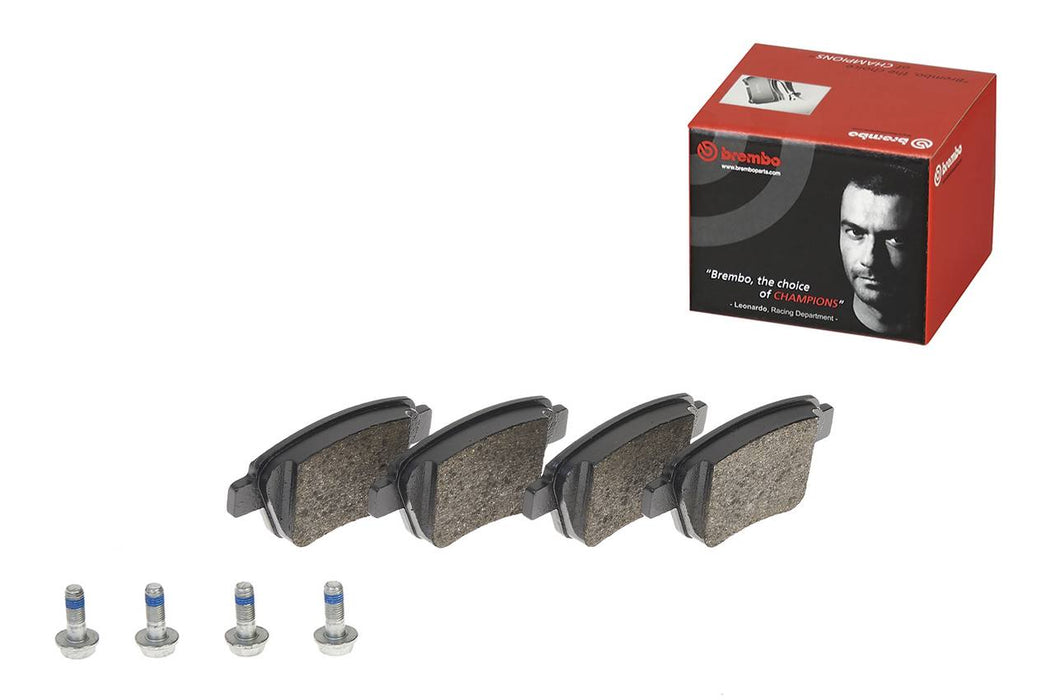

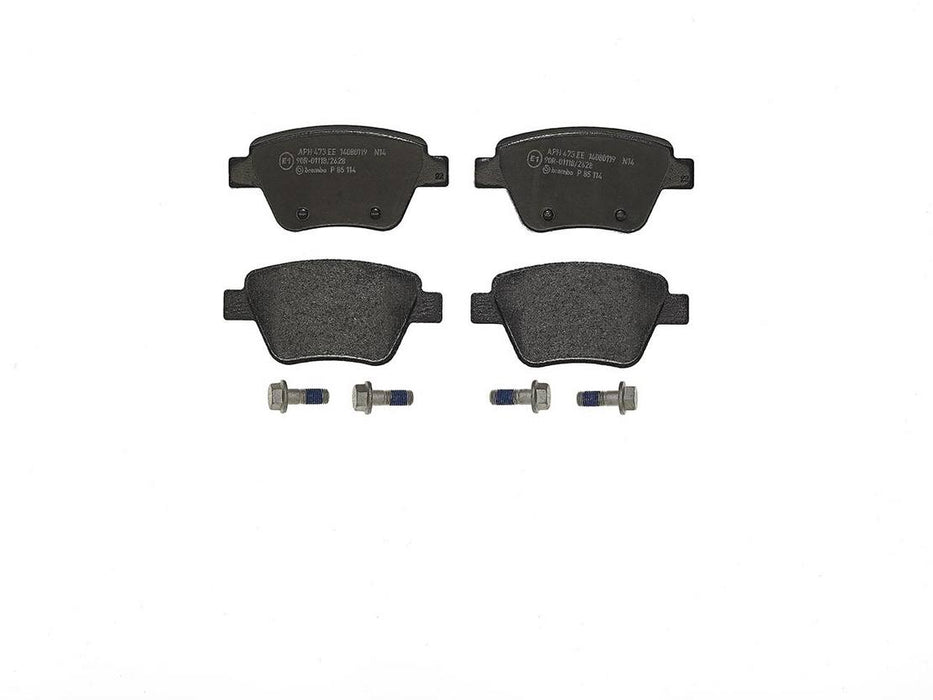

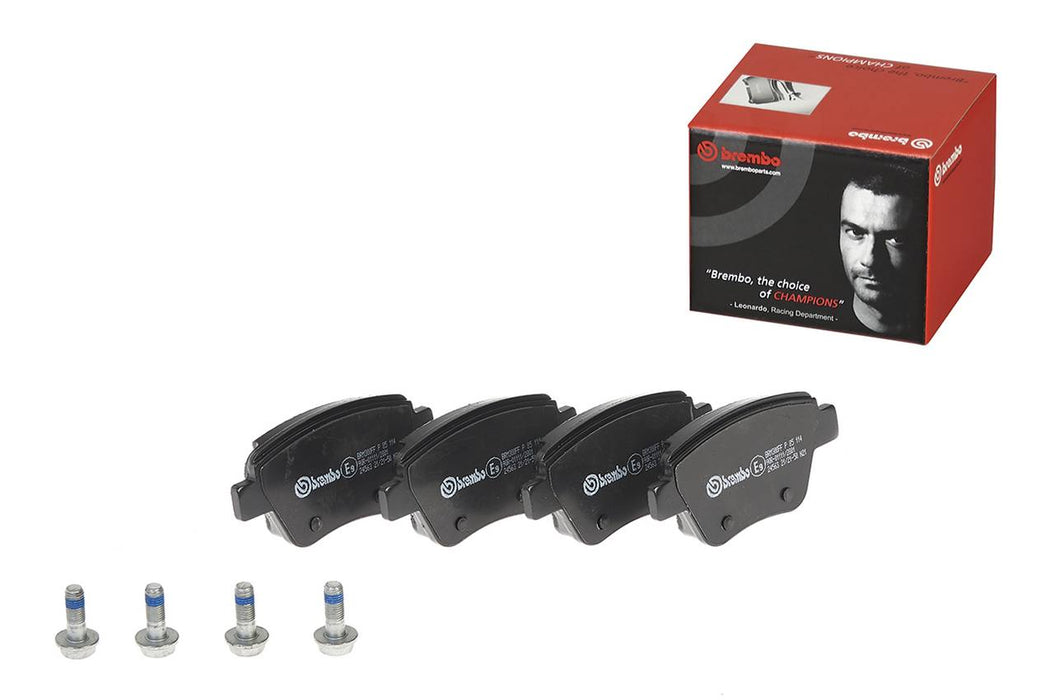

1 x Brembo P85114 Rear Disc Brake Pad Set

Brake System ( Front Pads ) Teves
Brake System ( Rear Pads ) Bosch
Coated ( Front Rotors ) Yes
Coated ( Rear Rotors ) Yes
Features ( Rear Pads ) with hardware
Fixing Screws ( Front Rotors ) Yes
Fixing Screws ( Rear Rotors ) Yes
Friction Material Composition Low-Met

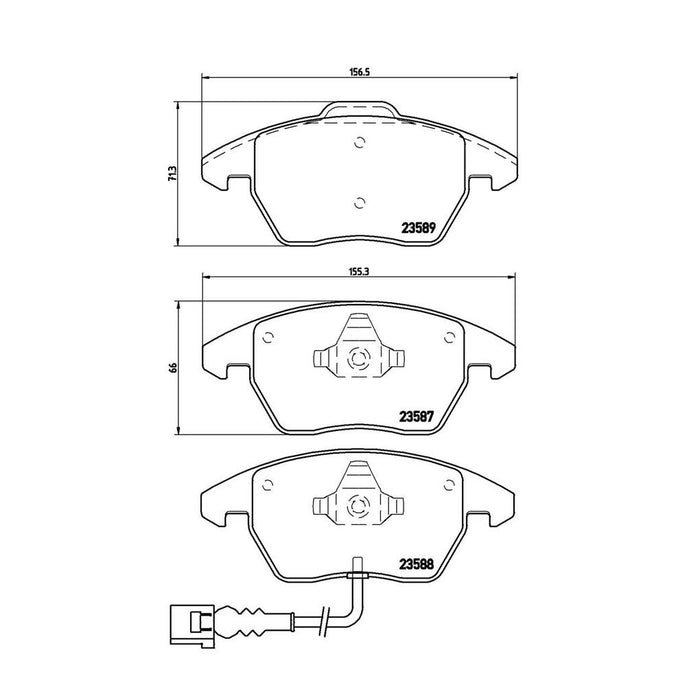

Height (mm) ( Front Pads ) 66 / 71.3

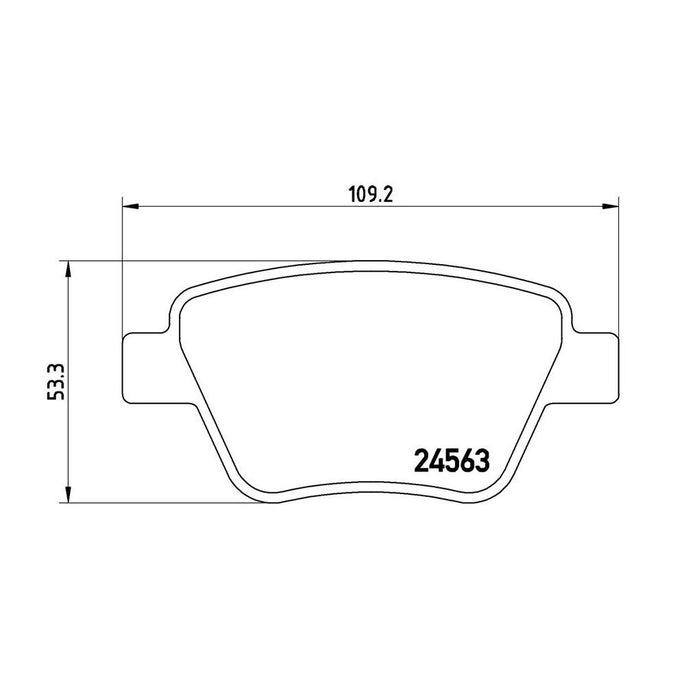

Height (mm) ( Rear Pads ) 53.3
High Carbon ( Front Rotors ) Yes
Min TH (Discs)/Max Diameter (Drums) (mm) ( Front Rotors ) 22
Min TH (Discs)/Max Diameter (Drums) (mm) ( Rear Rotors ) 10
Nominal Thickness (mm) ( Front Pads ) 20.1
Nominal Thickness (mm) ( Front Rotors ) 25
Nominal Thickness (mm) ( Rear Pads ) 16.5
Nominal Thickness (mm) ( Rear Rotors ) 12
Outside Diameter (mm) ( Front Rotors ) 312
Outside Diameter (mm) ( Rear Rotors ) 282
Surface Finishing ( Front Pads ) chamfered
Surface Finishing ( Rear Pads ) chamfered
Surface Type (Front Rotors) Drilled
Surface Type (Rear Rotors) Drilled
Wear Indicator ( Front Pads ) with electric wear indicator
Width (mm) ( Front Pads ) 156.5 / 155.3
Width (mm) ( Rear Pads ) 109.2
WVA ( Front Pads ) 23587 / 23588 / 23589
WVA ( Rear Pads ) 24563
Brand Part #
Brand Part #
Volkswagen 5Q0615301F
Audi 5Q0 615 301F / 5Q0615301F
Skoda 1K0615301AA
Audi 8J0 698 151 / 8J0698151
Volkswagen 5Q0 615 301F / 5Q0615301F
Volkswagen 5K0 698 451 / 5K0698451
Audi 5K0 698 151 / 5K0698151
Volkswagen 561615301A
Volkswagen 5K0 698 151 / 5K0698151
Volkswagen 5C0 615 301B / 5C0615301B
Audi 1K0 698 151E / 1K0698151E
Volkswagen 3C0 698 151A / 3C0698151A
Volkswagen 5K0 698 451A / 5K0698451A
Audi 1K0 615 301A AA / 1K0615301AAA
Volkswagen 3C0 698 151C / 3C0698151C
Volkswagen 5C0615301B
Audi 5C0 615 301B / 5C0615301B
Audi 1K0615301AA
Volkswagen 1K0 615 301 AA / 1K0615301AA
Audi 3C0 698 151A / 3C0698151A
Volkswagen 561 615 301A / 561615301A
Seat 1K0615301AA
Audi 5Q0615301F
Volkswagen 5C0 698 151A / 5C0698151A
Audi 8J0 698 151C / 8J0698151C
Audi 5C0615301B
Volkswagen 1K0615301AA
Audi 3C0 698 151D / 3C0698151D
