Description

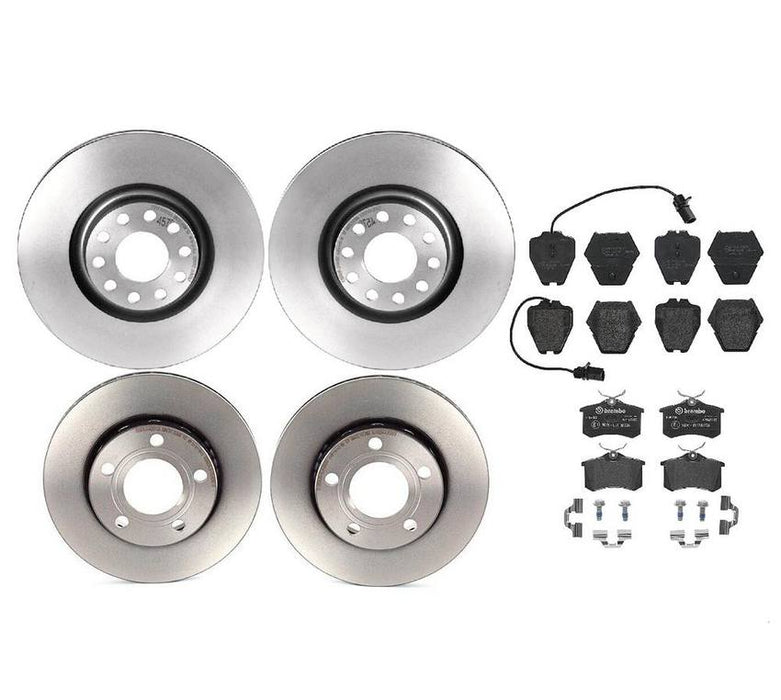

Kit Includes:
2 x Brembo 09.8689.11 Front Disc Brake Rotors
2 x Brembo 09.A597.11 Rear Disc Brake Rotors
1 x Brembo P85067 Front Disc Brake Pad Set
1 x Brembo P85020 Rear Disc Brake Pad Set
| Brake System | (Front Pads) Lucas |
| Brake System | (Rear Pads) Lucas |
| Centring Diameter | ( Front Rotors ) 68 |
| Centring Diameter | ( Rear Rotors ) 68 |
| Coated | ( Front Rotors ) UV Coated |
| Coated | ( Rear Rotors ) UV Coated |
| Diameter (mm) | ( Front Rotors ) 321 |
| Diameter (mm) | ( Rear Rotors ) 256 |
| Features | (Rear Pads) with hardware |
| Friction Material Composition | (Pads) Low-Met |
| Height (mm) | ( Front Rotors ) 46.2 |
| Height (mm) | ( Rear Rotors ) 47.8 |
| Height (mm) | (Front Pads) 75.3 / 74.6 |
| Height (mm) | (Rear Pads) 53 |
| Material | ( Front Rotors ) High Carbon |
| Material | ( Rear Rotors ) High Carbon |
| Minimum Thickness (mm) | ( Front Rotors ) 28 |
| Minimum Thickness (mm) | ( Rear Rotors ) 20 |
| Nominal Thickness (mm) | ( Front Rotors ) 30 |
| Nominal Thickness (mm) | ( Rear Rotors ) 22 |
| Nominal Thickness (mm) | (Front Pads) 17.5 |
| Nominal Thickness (mm) | (Rear Pads) 17.2 |
| Number of Holes | ( Front Rotors ) 5 |
| Number of Holes | ( Rear Rotors ) 5 |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered |
| Torque Spec (Nm) | ( Front Rotors ) 120 |
| Torque Spec (Nm) | ( Rear Rotors ) 120 |
| Ventilation Type | ( Front Rotors ) PVT |
| Ventilation Type | ( Rear Rotors ) vented |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (mm) | (Front Pads) 63.5 / 78.3 |
| Width (mm) | (Rear Pads) 87 |
| WVA | (Front Pads) 23119 / 23280 / 23830 |
| WVA | (Rear Pads) 20961 / 23554 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1J0 698 451E / 1J0698451E |
| Audi | 1J0 698 451J / 1J0698451J |
| Audi | 1J0 698 451L / 1J0698451L |
| Audi | 1J0 698 451N / 1J0698451N |
| Audi | 1K0 698 451J / 1K0698451J |
| Audi | 3B0 698 451 / 3B0698451 |
| Audi | 4B0 698 151L / 4B0698151L |
| Audi | 4B0 698 451 / 4B0698451 |
| Audi | 4B0 698 451B / 4B0698451B |
| Audi | 4B0 698 451C / 4B0698451C |
| Audi | 4B0 698 451E / 4B0698451E |
| Audi | 4D0 698 151C / 4D0698151C |
| Audi | 4D0 698 151M / 4D0698151M |
| Audi | 4D0 698 151N / 4D0698151N |
| Audi | 4D0 698 451C / 4D0698451C |
| Audi | 8D0 615 301K / 8D0615301K |
| Audi | 8D0 615 601D / 8D0615601D |
| Audi | 8D0615301K |
| Audi | 8D0615601D |
| Audi | 8E0 698 451 / 8E0698451 |
| Audi | 8E0 698 451A / 8E0698451A |
| Audi | 8E0 698 451B / 8E0698451B |
| Volkswagen | 1E0 698 451 / 1E0698451 |
| Volkswagen | 1E0 698 451B / 1E0698451B |
| Volkswagen | 1E0 698 451C / 1E0698451C |
| Volkswagen | 1E0 698 451E / 1E0698451E |
| Volkswagen | 1E0 698 451G / 1E0698451G |
| Volkswagen | 1H0 690 451 / 1H0690451 |
| Volkswagen | 1H0 690 451A / 1H0690451A |
| Volkswagen | 1H0 698 451 / 1H0698451 |
| Volkswagen | 1H0 698 451A / 1H0698451A |
| Volkswagen | 1H0 698 451C / 1H0698451C |
| Volkswagen | 1H0 698 451D / 1H0698451D |
| Volkswagen | 1H0 698 451G / 1H0698451G |
| Volkswagen | 1J0 698 451 / 1J0698451 |
| Volkswagen | 1J0 698 451A / 1J0698451A |
| Volkswagen | 1J0 698 451B / 1J0698451B |
| Volkswagen | 1J0 698 451C / 1J0698451C |
| Volkswagen | 1J0 698 451D / 1J0698451D |
| Volkswagen | 1J0 698 451E / 1J0698451E |
| Volkswagen | 1J0 698 451F / 1J0698451F |
| Volkswagen | 1J0 698 451G / 1J0698451G |
| Volkswagen | 1J0 698 451J / 1J0698451J |
| Volkswagen | 1J0 698 451K / 1J0698451K |
| Volkswagen | 1J0 698 451P / 1J0698451P |
| Volkswagen | 1J0 698 451R / 1J0698451R |
| Volkswagen | 1K0 698 451J / 1K0698451J |
| Volkswagen | 3B0 698 451 / 3B0698451 |
| Volkswagen | 4B0 698 451A / 4B0698451A |
| Volkswagen | 4B0 698 451B / 4B0698451B |
| Volkswagen | 4B0 698 451E / 4B0698451E |
| Volkswagen | 7D0 698 451J / 7D0698451J |
| Volkswagen | 8D0 615 601D / 8D0615601D |
| Volkswagen | 8D0615601D |
| Volkswagen | 8E0 698 451 / 8E0698451 |
| Volkswagen | 8E0 698 451A / 8E0698451A |
| Volkswagen | 8E0 698 451K / 8E0698451K |
