Description

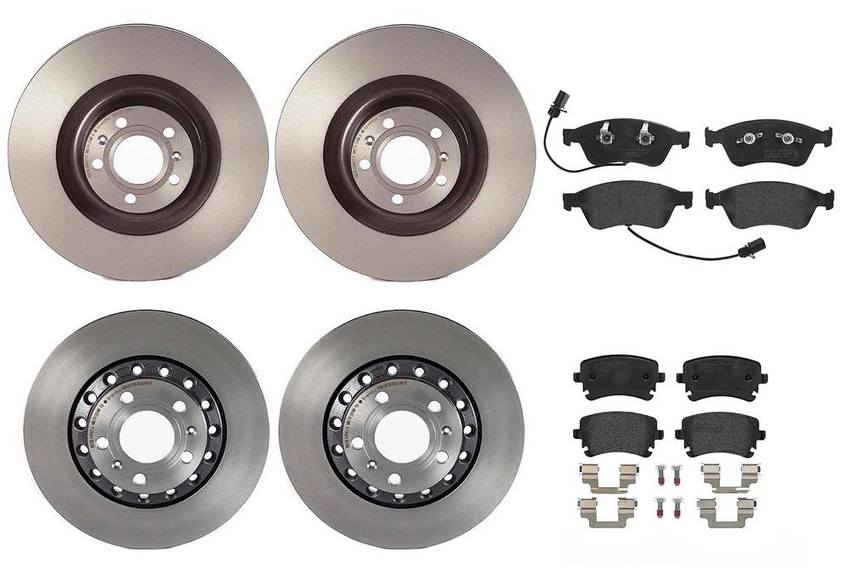

Kit Includes:

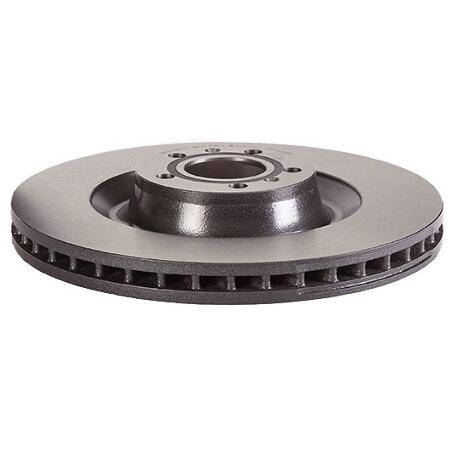

2 x Brembo 09.9915.11 Front Disc Brake Rotors

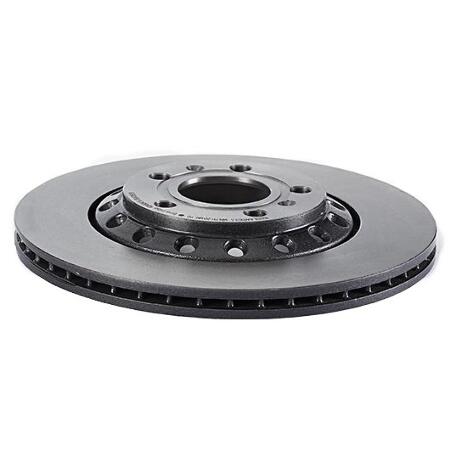

2 x Brembo 09.A269.11 Rear Disc Brake Rotors
1 x Brembo P85087 Front Disc Brake Pad Set
1 x Brembo P85076 Rear Disc Brake Pad Set
| Brake System | ( Front Pads ) Teves |
| Brake System | ( Rear Pads ) Lucas |
| Centring Diameter | ( Front Rotors ) 68 |
| Centring Diameter | ( Rear Rotors ) 68 |
| Coated | ( Front Rotors ) UV Coated |
| Coated | ( Rear Rotors ) UV Coated |
| Diameter (mm) | ( Front Rotors ) 360 |
| Diameter (mm) | ( Rear Rotors ) 310 |
| Features | ( Rear Pads ) with hardware |
| Fixing Screws | ( Front Rotors ) Included |
| Fixing Screws | ( Rear Rotors ) Included |
| Friction Material Composition | Low-Met |
| Height (mm) | ( Front Pads ) 72.6 |
| Height (mm) | ( Front Rotors ) 59.4 |
| Height (mm) | ( Rear Pads ) 59 |
| Height (mm) | ( Rear Rotors ) 42.2 |
| Material | ( Front Rotors ) High Carbon |
| Material | ( Rear Rotors ) High Carbon |
| Minimum Thickness (mm) | ( Front Rotors ) 31 |
| Minimum Thickness (mm) | ( Rear Rotors ) 20 |
| Nominal Thickness (mm) | ( Front Pads ) 20 |
| Nominal Thickness (mm) | ( Front Rotors ) 34 |
| Nominal Thickness (mm) | ( Rear Pads ) 17.4 |
| Nominal Thickness (mm) | ( Rear Rotors ) 22 |
| Number of Holes | ( Front Rotors ) 5 |
| Number of Holes | ( Rear Rotors ) 5 |
| Surface Finishing | ( Front Pads ) chamfered |
| Surface Finishing | ( Rear Pads ) chamfered |
| Torque Spec (Nm) | ( Front Rotors ) 120 |
| Torque Spec (Nm) | ( Rear Rotors ) 120 |
| Ventilation Type | ( Front Rotors ) vented |
| Ventilation Type | ( Rear Rotors ) vented |
| Wear Indicator | ( Front Pads ) with electric wear indicator |
| Width (mm) | ( Front Pads ) 193.2 / 193.4 |
| Width (mm) | ( Rear Pads ) 116.5 |
| WVA | ( Front Pads ) 23885 / 23897 |
| WVA | ( Rear Pads ) 23326 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 3D0 698 451A / 3D0698451A |
| Audi | 4B3 698 451 / 4B3698451 |
| Audi | 4B3 698 451A / 4B3698451A |
| Audi | 4E0 615 301A / 4E0615301A |
| Audi | 4E0 615 301G / 4E0615301G |
| Audi | 4E0 615 301P / 4E0615301P |
| Audi | 4E0 615 301T / 4E0615301T |
| Audi | 4E0 615 601A / 4E0615601A |
| Audi | 4E0 615 601K / 4E0615601K |
| Audi | 4E0 698 151E / 4E0698151E |
| Audi | 4E0 698 151J / 4E0698151J |
| Audi | 4E0 698 151K / 4E0698151K |
| Audi | 4E0615301A |
| Audi | 4E0615301G |
| Audi | 4E0615301P |
| Audi | 4E0615301T |
| Audi | 4E0615601A |
| Audi | 4E0615601K |
| Audi | 4F0 698 451 / 4F0698451 |
| Audi | 4F0 698 451F / 4F0698451F |
| Audi | 4F0 698 451H / 4F0698451H |
| Audi | 8E0 698 451C / 8E0698451C |
| Audi | 8E0 698 451H / 8E0698451H |
| Audi | 8E0 698 451N / 8E0698451N |
| Audi | 8E0 698 451P / 8E0698451P |
| Volkswagen | 3D0 615 301M / 3D0615301M |
| Volkswagen | 3D0 615 601D / 3D0615601D |
| Volkswagen | 3D0615301M |
| Volkswagen | 3D0615601D |
| Volkswagen | 4E0 615 301A / 4E0615301A |
| Volkswagen | 4E0 615 301G / 4E0615301G |
| Volkswagen | 4E0 615 301P / 4E0615301P |
| Volkswagen | 4E0 615 301T / 4E0615301T |
| Volkswagen | 4E0 615 601A / 4E0615601A |
| Volkswagen | 4E0 615 601K / 4E0615601K |
| Volkswagen | 4E0615301A |
| Volkswagen | 4E0615301G |
| Volkswagen | 4E0615301P |
| Volkswagen | 4E0615301T |
| Volkswagen | 4E0615601A |
| Volkswagen | 4E0615601K |
