Description

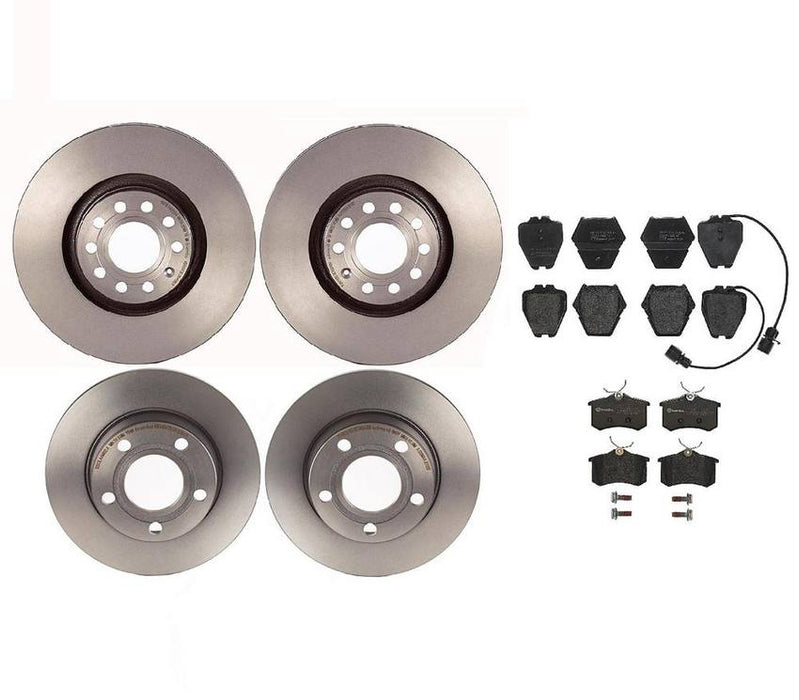

Kit Includes:

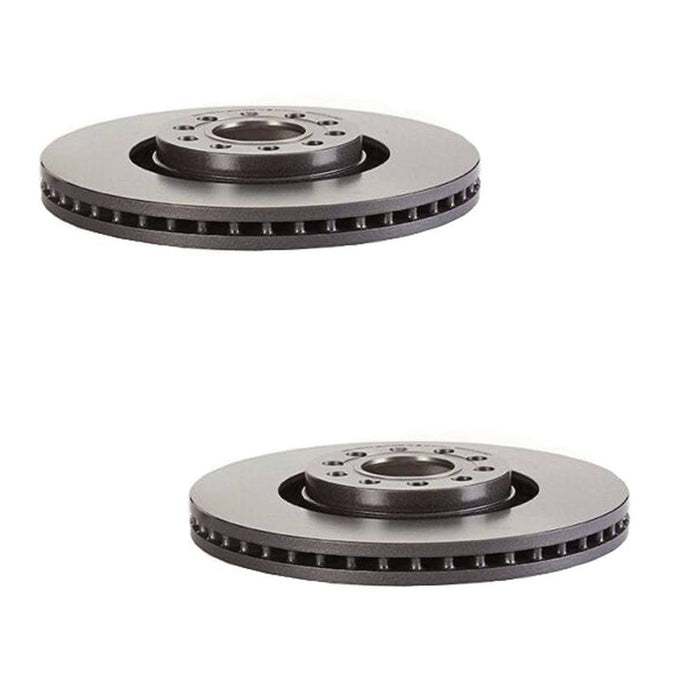

2 x Brembo 09.A598.11 Front Disc Brake Rotors

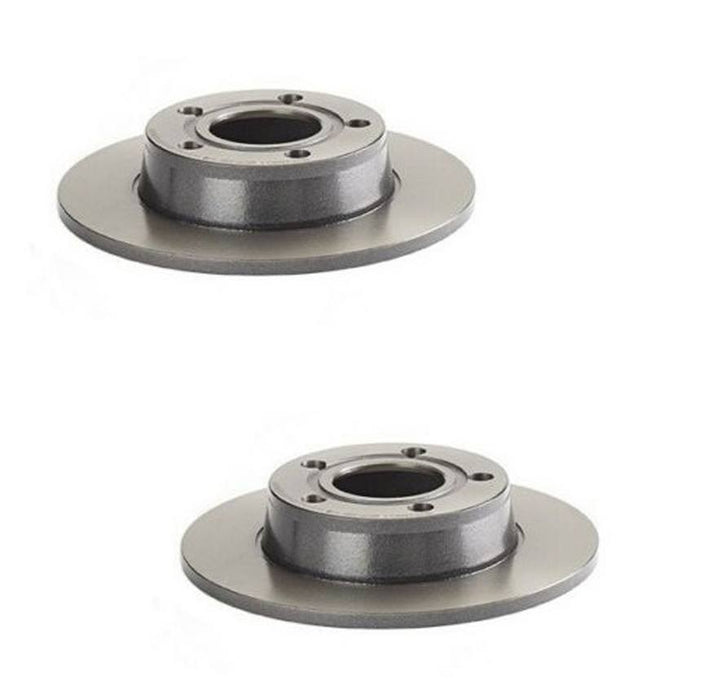

2 x Brembo 08.9084.11 Rear Disc Brake Rotors
1 x Brembo P85054 Front Disc Brake Pad Set
1 x Brembo P85017 Rear Disc Brake Pad Set
| Brake System | ( Front Pads ) Lucas |
| Brake System | ( Rear Pads ) Lucas |
| Centring Diameter | ( Front Rotors ) 68 |
| Centring Diameter | ( Rear Rotors ) 68 |
| Coated | ( Front Rotors ) UV Coated |
| Coated | ( Rear Rotors ) UV Coated |
| Diameter (mm) | ( Front Rotors ) 320 |
| Diameter (mm) | ( Rear Rotors ) 255 |
| Features | ( Rear Pads ) with hardware |
| Fixing Screws | ( Front Rotors ) Included |
| Friction Material Composition | Low-Met |
| Height (mm) | ( Front Pads ) 74.6 / 75.3 |
| Height (mm) | ( Front Rotors ) 46.2 |
| Height (mm) | ( Rear Pads ) 53 |
| Height (mm) | ( Rear Rotors ) 47.8 |
| Material | ( Front Rotors ) High Carbon |
| Material | ( Rear Rotors ) Grey Cast Iron |
| Minimum Thickness (mm) | ( Front Rotors ) 28 |
| Minimum Thickness (mm) | ( Rear Rotors ) 8 |
| Nominal Thickness (mm) | ( Front Pads ) 17.5 |
| Nominal Thickness (mm) | ( Front Rotors ) 29.9 |
| Nominal Thickness (mm) | ( Rear Pads ) 15.2 |
| Nominal Thickness (mm) | ( Rear Rotors ) 10 |
| Number of Holes | ( Front Rotors ) 5 |
| Number of Holes | ( Rear Rotors ) 5 |
| Surface Finishing | ( Front Pads ) chamfered |
| Surface Finishing | ( Rear Pads ) chamfered |
| Torque Spec (Nm) | ( Front Rotors ) 120 |
| Torque Spec (Nm) | ( Rear Rotors ) 120 |
| Ventilation Type | ( Front Rotors ) vented |
| Ventilation Type | ( Rear Rotors ) solid |
| Wear Indicator | ( Front Pads ) with electric wear indicator |
| Width (mm) | ( Front Pads ) 63.4 / 78.3 |
| Width (mm) | ( Rear Pads ) 87 |
| WVA | ( Front Pads ) 23119 / 23280 / 23828 |
| WVA | ( Rear Pads ) 20961 / 23554 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 440 602 070R / 440602070R |
| Audi | 440 607 960R / 440607960R |
| Audi | 4B0 615 601B / 4B0615601B |
| Audi | 4B0 698 151S / 4B0698151S |
| Audi | 4B0615601B |
| Audi | 4B3 698 151 / 4B3698151 |
| Audi | 4B3 698 151B / 4B3698151B |
| Audi | 4D0 698 151A AC / 4D0698151AAC |
| Audi | 4D0 698 151S / 4D0698151S |
| Audi | 8D0 615 301M / 8D0615301M |
| Audi | 8D0615301M |
| Audi | 8E0 615 301A AD / 8E0615301AAD |
| Audi | 8E0 698 451D / 8E0698451D |
| Audi | 8E0 698 451E / 8E0698451E |
| Audi | 8E0 698 451L / 8E0698451L |
| Audi | 8E0615301AD |
| Seat | 8D0615301M |
| Seat | 8E0615301AD |
