Description

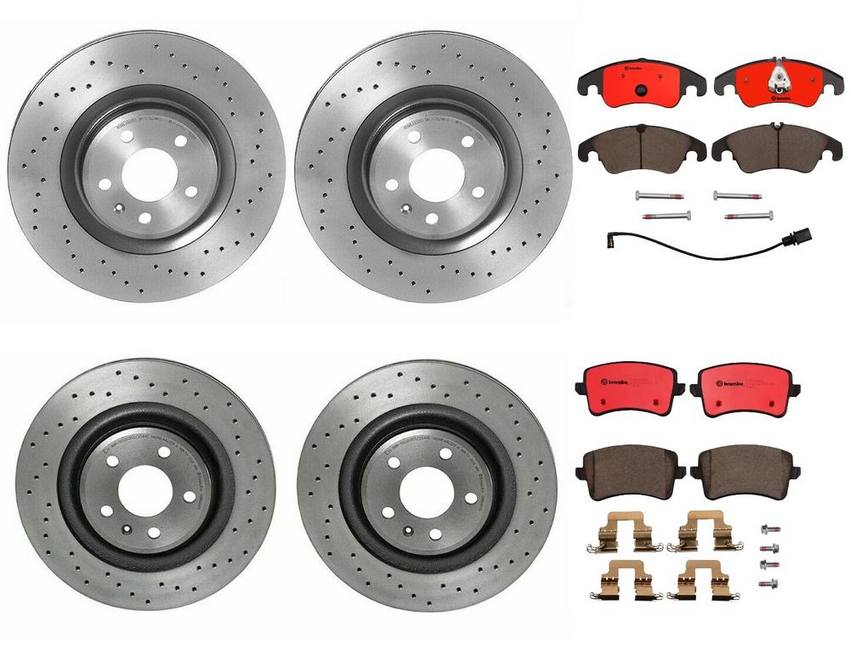

Kit Includes:
2 x Brembo 09.B039.1X Front Disc Brake Rotors Drilled
2 x Brembo 09.B040.1X Rear Disc Brake Rotors Drilled
1 x Brembo P85099N Rear Disc Brake Pad Set Ceramic
1 x Brembo P85098N Front Disc Brake Pad Set Ceramic
| Abutment Clips Included | (Rear) Yes |
| Brake System | (Front Pads) Lucas |
| Brake System | (Rear Pads) Lucas |
| Coated | ( Front Rotors ) Yes |
| Coated | ( Rear Rotors ) Yes |
| Features | (Front Pads) with hardware |
| Features | (Rear Pads) with hardware |
| Fixing Screws | ( Front Rotors ) Yes |
| Fixing Screws | ( Rear Rotors ) Yes |
| Friction Material Composition | Ceramic |
| Height (mm) | (Front Pads) 72.9 / 73.5 |
| Height (mm) | (Rear Pads) 58.6 |
| High Carbon | ( Front Rotors ) Yes |
| High Carbon | ( Rear Rotors ) Yes |
| Min TH (Discs)/Max Diameter (Drums) (mm) | ( Front Rotors ) 28 |
| Min TH (Discs)/Max Diameter (Drums) (mm) | ( Rear Rotors ) 20 |
| Nominal Thickness (mm) | ( Front Rotors ) 29.5 |
| Nominal Thickness (mm) | ( Rear Rotors ) 22 |
| Outside Diameter (mm) | ( Front Rotors ) 345 |
| Outside Diameter (mm) | ( Rear Rotors ) 330 |
| Pad Wear Sensor Included | Yes |
| Surface Type | (Front Rotors) Drilled and (Rear Rotors) Drilled |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (mm) | (Front Pads) 188.2 |
| Width (mm) | (Rear Pads) 116.1 |
| WVA | (Front Pads) 24408 / 24409 / 24743 |
| WVA | (Rear Pads) 24606 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 4G0 698 151D / 4G0698151D |
| Audi | 4G0698151D |
| Audi | 8K0 69 8 45 51 / 8K06984551 |
| Audi | 8K0 615 301K / 8K0615301K |
| Audi | 8K0 615 301M / 8K0615301M |
| Audi | 8K0 615 601C / 8K0615601C |
| Audi | 8K0 698 151 / 8K0698151 |
| Audi | 8K0 698 151B / 8K0698151B |
| Audi | 8K0 698 151C / 8K0698151C |
| Audi | 8K0 698 151D / 8K0698151D |
| Audi | 8K0 698 151E / 8K0698151E |
| Audi | 8K0 698 151G / 8K0698151G |
| Audi | 8K0 698 151H / 8K0698151H |
| Audi | 8K0 698 151J / 8K0698151J |
| Audi | 8K0 698 151K / 8K0698151K |
| Audi | 8K0 698 151L / 8K0698151L |
| Audi | 8K0 698 451 / 8K0698451 |
| Audi | 8K0 698 451A / 8K0698451A |
| Audi | 8K0 698 451B / 8K0698451B |
| Audi | 8K0 698 451C / 8K0698451C |
| Audi | 8K0 698 451D / 8K0698451D |
| Audi | 8K0615301K |
| Audi | 8K0615301M |
| Audi | 8K0615601C |
| Audi | 8K0698151 |
| Audi | 8K0698151B |
| Audi | 8K0698151C |
| Audi | 8K0698151D |
| Audi | 8K0698151E |
| Audi | 8K0698151G |
| Audi | 8K0698151H |
| Audi | 8K0698151J |
| Audi | 8K0698151K |
| Audi | 8K0698151L |
| Audi | 8R0 698 151 / 8R0698151 |
| Audi | 8R0 698 151A / 8R0698151A |
| Audi | 8R0698151 |
| Audi | 8R0698151A |
