Description

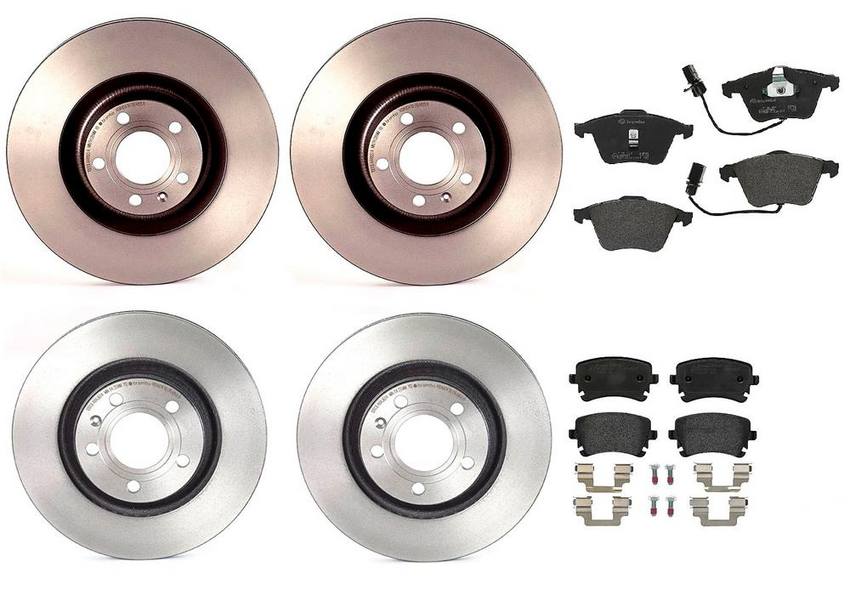

Kit Includes:
2 x Brembo 09.A815.11 Front Disc Brake Rotors
2 x Brembo 09.A814.11 Rear Disc Brake Rotors
1 x Brembo P85056 Front Disc Brake Pad Set
1 x Brembo P85076 Rear Disc Brake Pad Set
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Centring Diameter | (Front Rotors) 68 |
| Centring Diameter | (Rear Rotors) 68 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter (mm) | (Front Rotors) 345 |
| Diameter (mm) | (Rear Rotors) 300 |
| Features | (Rear Pads) with hardware |
| Fixing Screws | (Front Rotors) Included |
| Fixing Screws | (Rear Rotors) Included |
| Friction Material Composition | (Rear Pads) Low-Met |
| Height (mm) | (Front Pads) 72.8 |
| Height (mm) | (Front Rotors) 46.2 |
| Height (mm) | (Rear Pads) 59 |
| Height (mm) | (Rear Rotors) 35.9 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) High Carbon |
| Minimum Thickness (mm) | (Front Rotors) 28 |
| Minimum Thickness (mm) | (Rear Rotors) 20 |
| Nominal Thickness (mm) | (Front Pads) 20.1 |
| Nominal Thickness (mm) | (Front Rotors) 39 |
| Nominal Thickness (mm) | (Rear Pads) 17.4 |
| Nominal Thickness (mm) | (Rear Rotors) 22 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered |
| Torque Spec (Nm) | (Front Rotors) 120 |
| Torque Spec (Nm) | (Rear Rotors) 120 |
| Ventilation Type | (Front Rotors) vented |
| Ventilation Type | (Rear Rotors) vented |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (mm) | (Front Pads) 156.5 / 155.3 |
| Width (mm) | (Rear Pads) 116.5 |
| WVA | (Front Pads) 23762 / 23763 |
| WVA | (Rear Pads) 23326 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 8E0615301K |
| Audi | 8E0615301T |
| Audi | 8E0615601K |
| Audi | 8E0615601R |
