Description

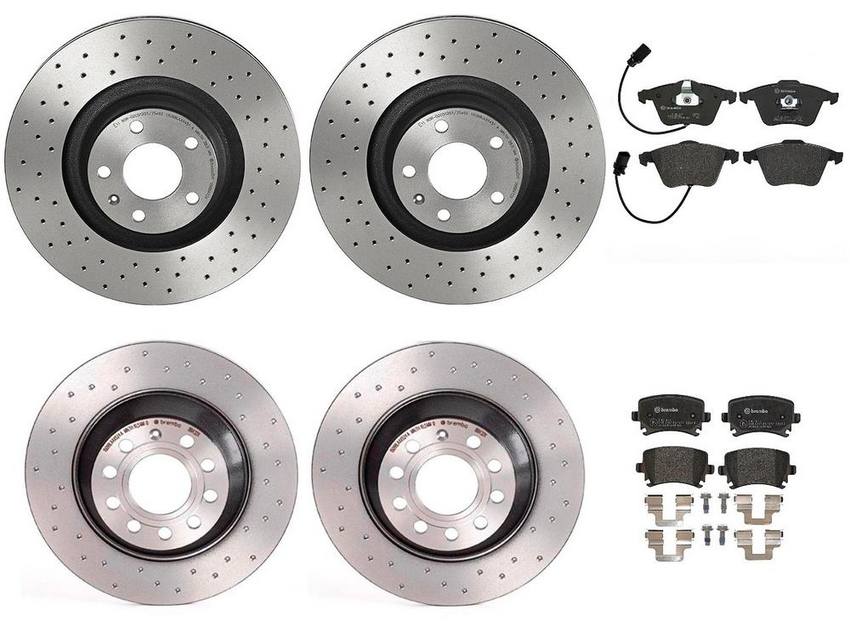

Kit Includes:

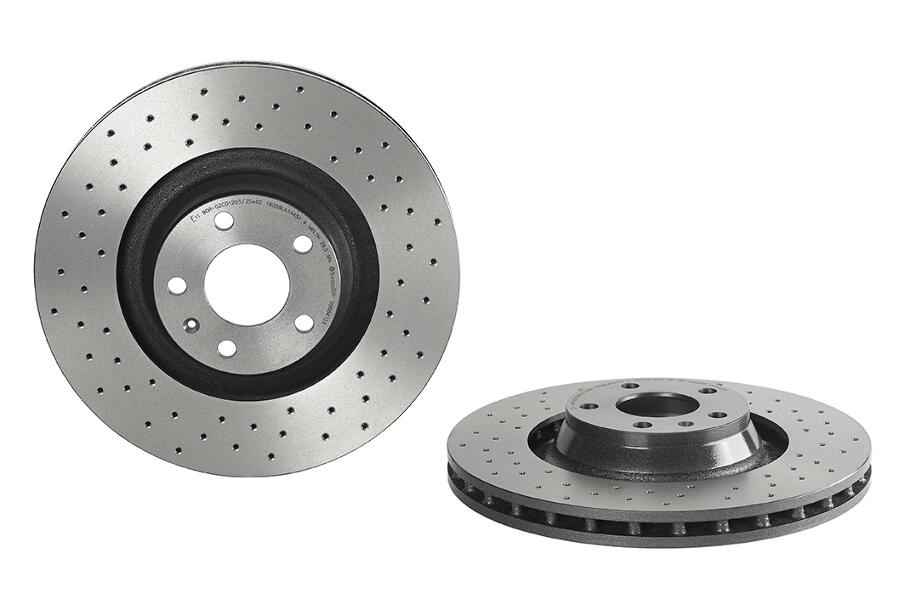

2 x Brembo 09.8841.3X Front Disc Brake Rotors Drilled Xtra

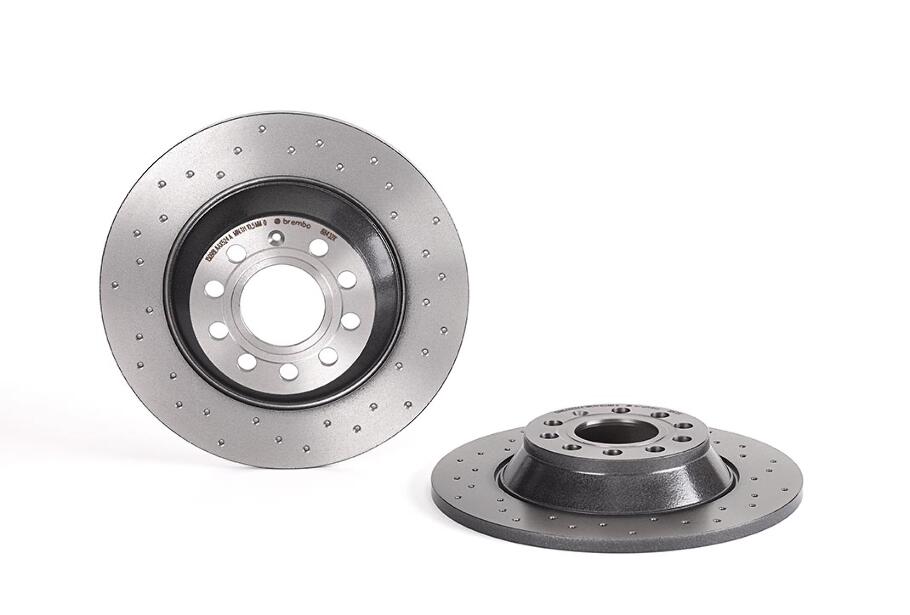

2 x Brembo 08.8843.2X Rear Disc Brake Rotors Drilled Xtra
1 x Brembo P85084 Front Disc Brake Pad Set Low-Met
1 x Brembo P85073 Rear Disc Brake Pad Set Low-Met
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Braking Surface | (Front & Rear Rotors) Drilled |
| Centring Diameter | (Front Rotors) 68 |
| Centring Diameter | (Rear Rotors) 68 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter (mm) | (Front Rotors) 347 |
| Diameter (mm) | (Rear Rotors) 302 |
| Features | (Rear Pads) with hardware |
| Fixing Screws | (Front Rotors) Included |
| Fixing Screws | (Rear Rotors) Included |
| Friction Material Composition | (Front and Rear Pads) Low-Met |
| Height (mm) | (Front Pads) 72.8 |
| Height (mm) | (Front Rotors) 59.4 |
| Height (mm) | (Rear Pads) 56 |
| Height (mm) | (Rear Rotors) 49.2 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (mm) | (Front Rotors) 28.5 |
| Minimum Thickness (mm) | (Rear Rotors) 10.5 |
| Nominal Thickness (mm) | (Front Pads) 20.3 |
| Nominal Thickness (mm) | (Front Rotors) 30 |
| Nominal Thickness (mm) | (Rear Pads) 17.2 |
| Nominal Thickness (mm) | (Rear Rotors) 12 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered |
| Torque Spec (Nm) | (Front Rotors) 120 |
| Torque Spec (Nm) | (Rear Rotors) 120 |
| Ventilation Type | (Front Rotors) PVT |
| Ventilation Type | (Rear Rotors) solid |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Wear Indicator | (Rear Pads) prepared for wear indicator |
| Width (mm) | (Front Pads) 155.1 / 156.4 |
| Width (mm) | (Rear Pads) 105.3 |
| WVA | (Front Pads) 23763 / 23801 |
| WVA | (Rear Pads) 23914 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1K0 698 451D / 1K0698451D |
| Audi | 1K0 698 451G / 1K0698451G |
| Audi | 1K0 698 451K / 1K0698451K |
| Audi | 1K0698451D |
| Audi | 1K0698451G |
| Audi | 1K0698451K |
| Audi | 3AA 698 451 / 3AA698451 |
| Audi | 3AA698451 |
| Audi | 3AA698451A |
| Audi | 4F0 615 301G / 4F0615301G |
| Audi | 4F0 615 601E / 4F0615601E |
| Audi | 4F0 698 151D / 4F0698151D |
| Audi | 4F0 698 151K / 4F0698151K |
| Audi | 4F0 698 451A / 4F0698451A |
| Audi | 4F0 698 451D / 4F0698451D |
| Audi | 4F0615301G |
| Audi | 4F0615601E |
| Audi | 4F0698151D |
| Audi | 4F0698151K |
| Audi | 4F0698451A |
| Audi | 4F0698451D |
| Audi | 8E0 698 151G / 8E0698151G |
| Audi | 8E0 698 451F / 8E0698451F |
| Audi | 8E0 698 451J / 8E0698451J |
| Audi | 8E0 698 451M / 8E0698451M |
| Audi | 8E0698151G |
| Audi | 8E0698451F |
| Audi | 8E0698451J |
| Audi | 8E0698451M |
| Volkswagen | 1K0 698 451E / 1K0698451E |
| Volkswagen | 1K0 698 451F / 1K0698451F |
| Volkswagen | 1K0 698 451G / 1K0698451G |
| Volkswagen | 1K0 698 451H / 1K0698451H |
| Volkswagen | 1K0 698 451K / 1K0698451K |
| Volkswagen | 1K0698451E |
| Volkswagen | 1K0698451F |
| Volkswagen | 1K0698451G |
| Volkswagen | 1K0698451H |
| Volkswagen | 1K0698451K |
| Volkswagen | 3AA698451 |
| Volkswagen | 3AA698451A |
| Volkswagen | 3C0 698 451 / 3C0698451 |
| Volkswagen | 3C0 698 451A / 3C0698451A |
| Volkswagen | 3C0 698 451B / 3C0698451B |
| Volkswagen | 3C0 698 451C / 3C0698451C |
| Volkswagen | 3C0 698 451D / 3C0698451D |
| Volkswagen | 3C0 698 451E / 3C0698451E |
| Volkswagen | 3C0 698 451F / 3C0698451F |
| Volkswagen | 3C0698451 |
| Volkswagen | 3C0698451A |
| Volkswagen | 3C0698451B |
| Volkswagen | 3C0698451C |
| Volkswagen | 3C0698451D |
| Volkswagen | 3C0698451E |
| Volkswagen | 3C0698451F |
| Volkswagen | 5N0 698 451 / 5N0698451 |
| Volkswagen | 5N0698451 |
