Description

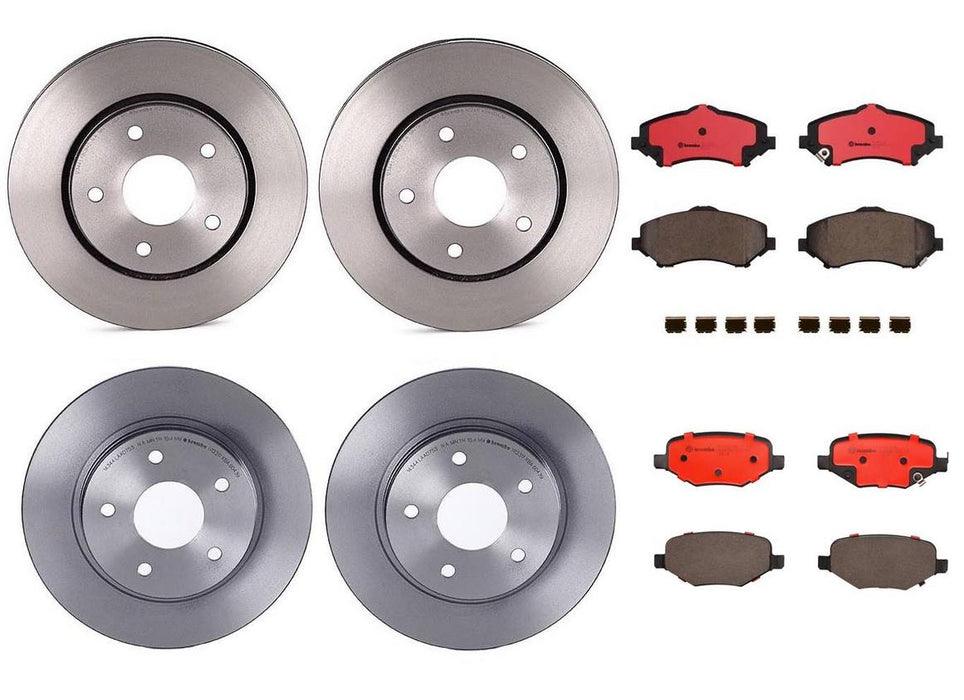

Kit Includes:

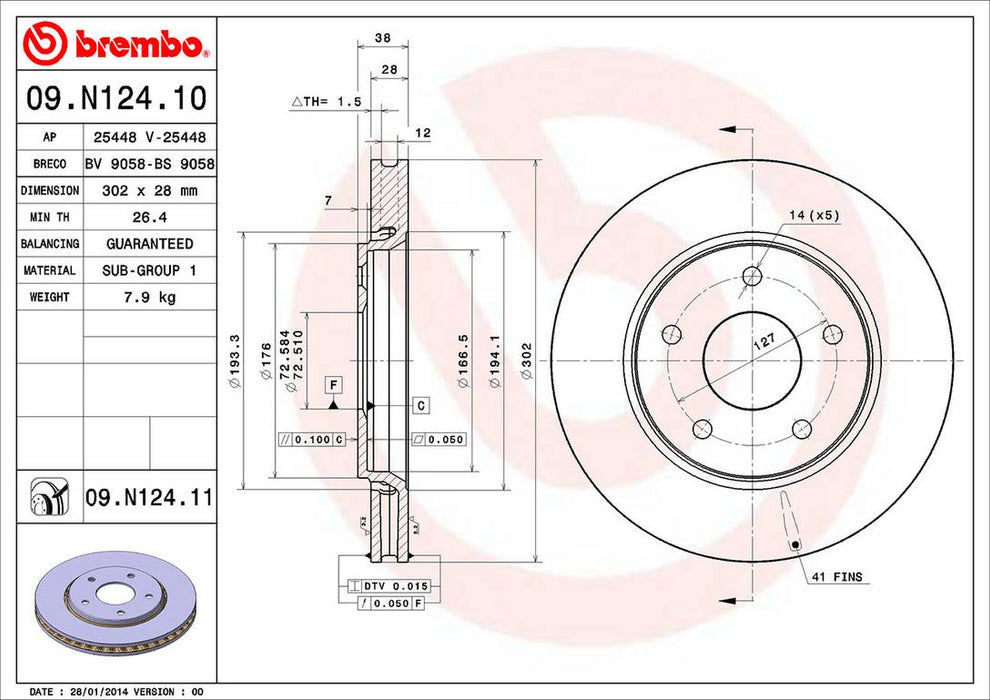

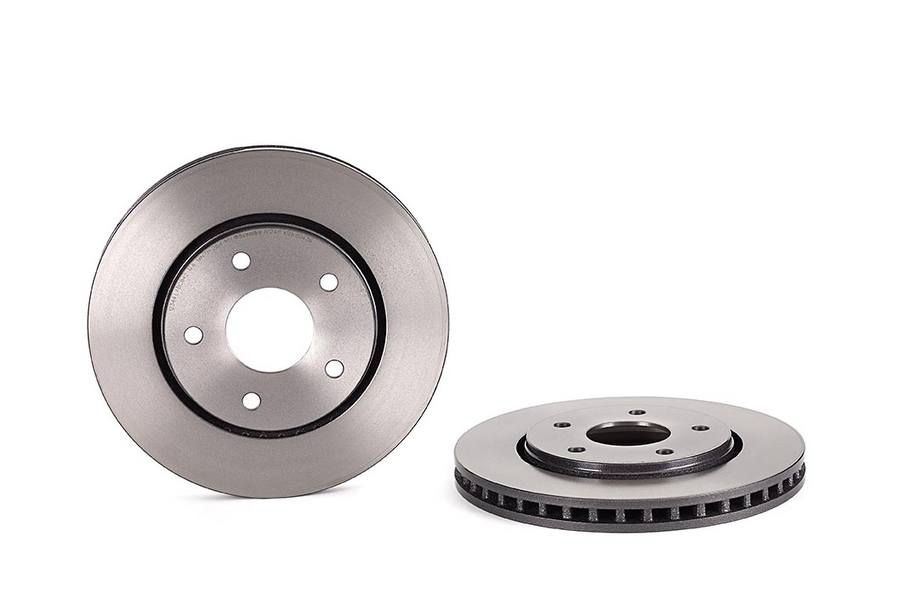

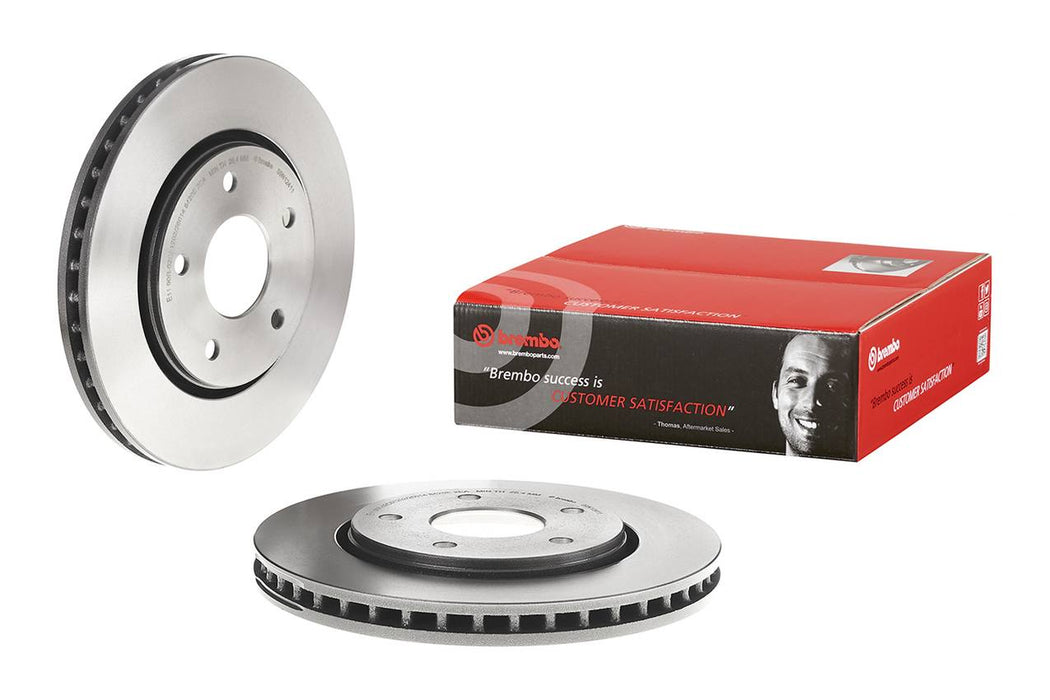

2 x Brembo 09.N124.11 Front Disc Brake Rotors

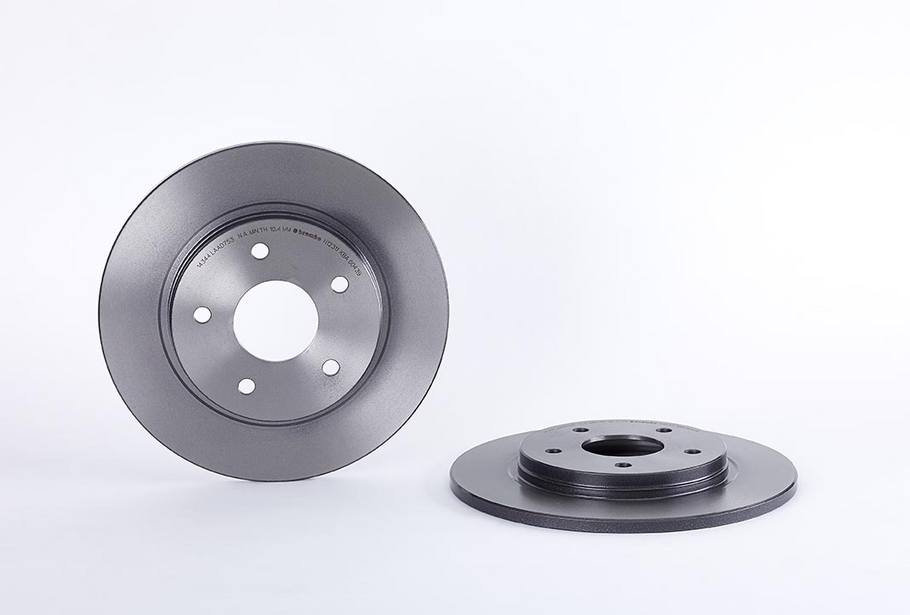

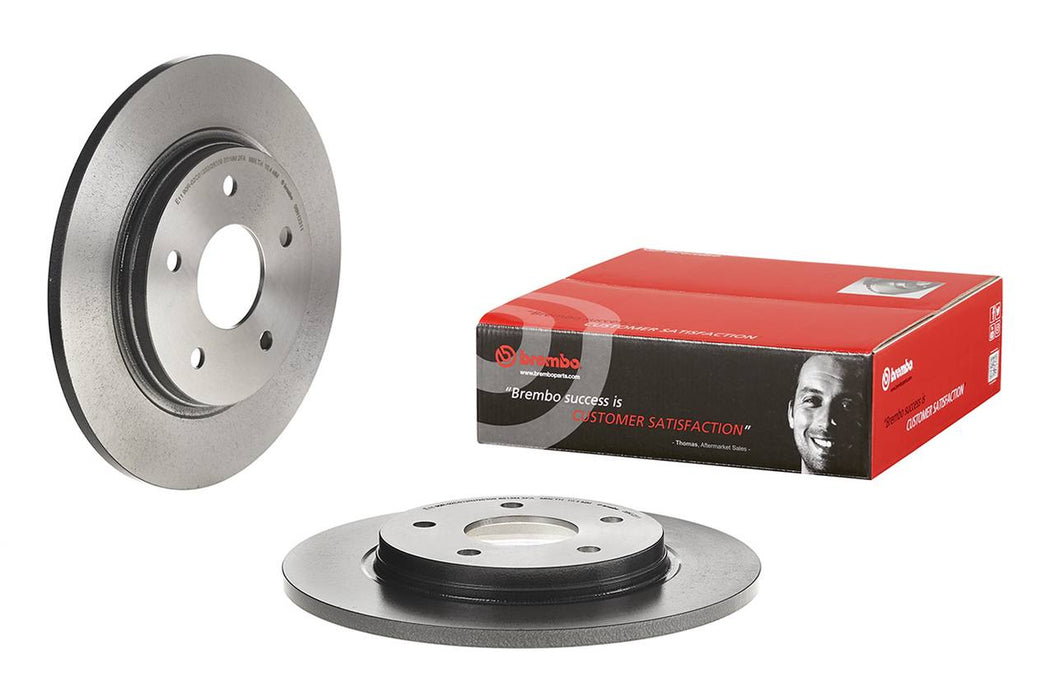

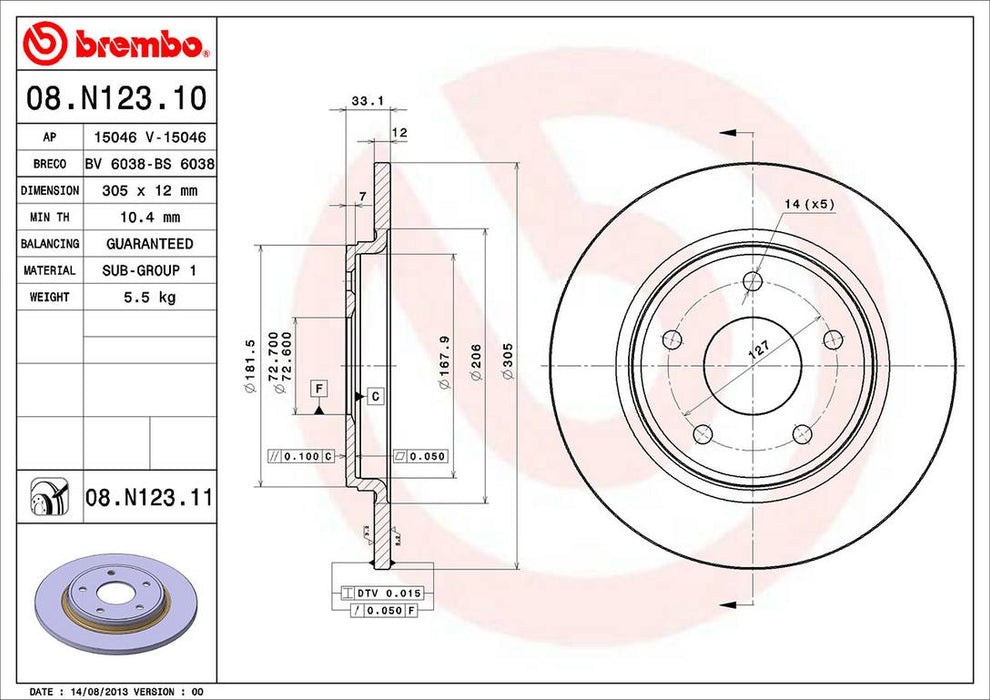

2 x Brembo 08.N123.11 Rear Disc Brake Rotors

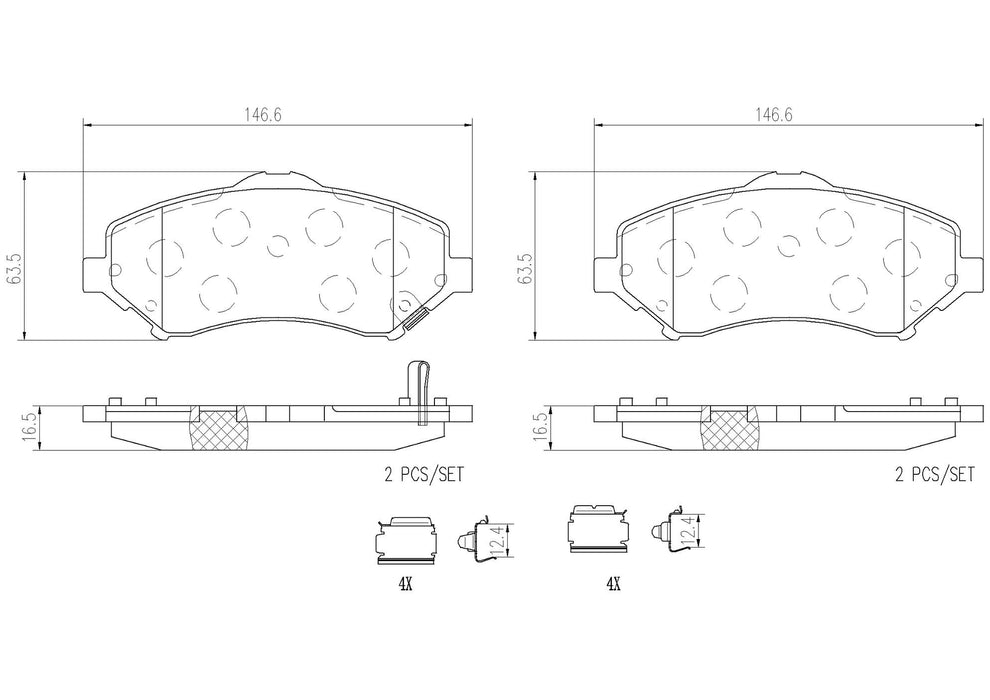

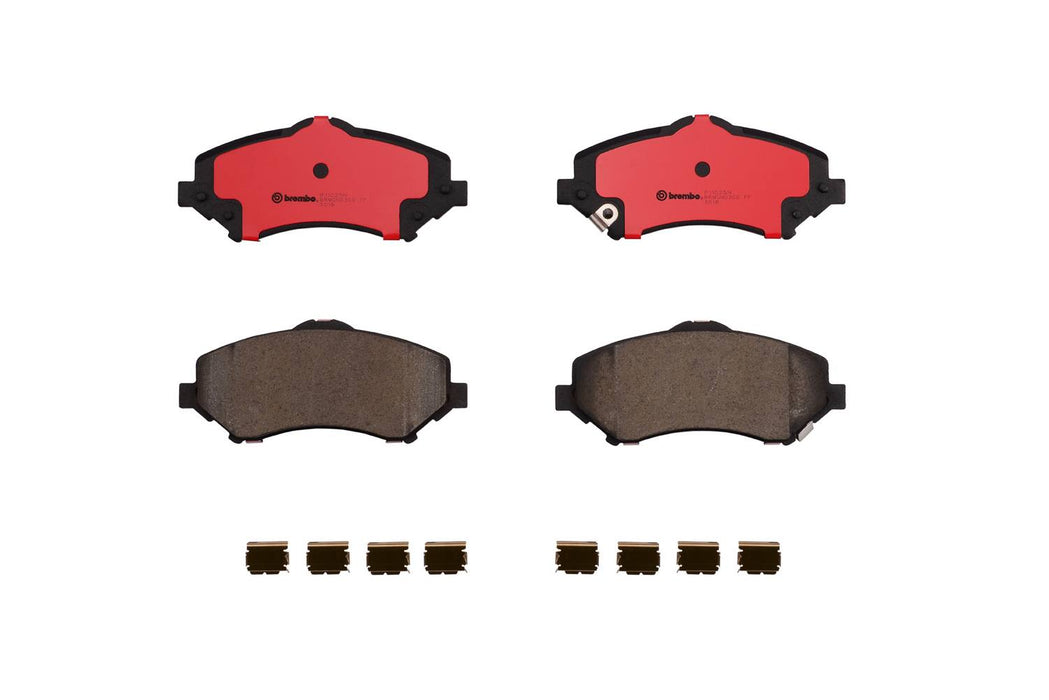

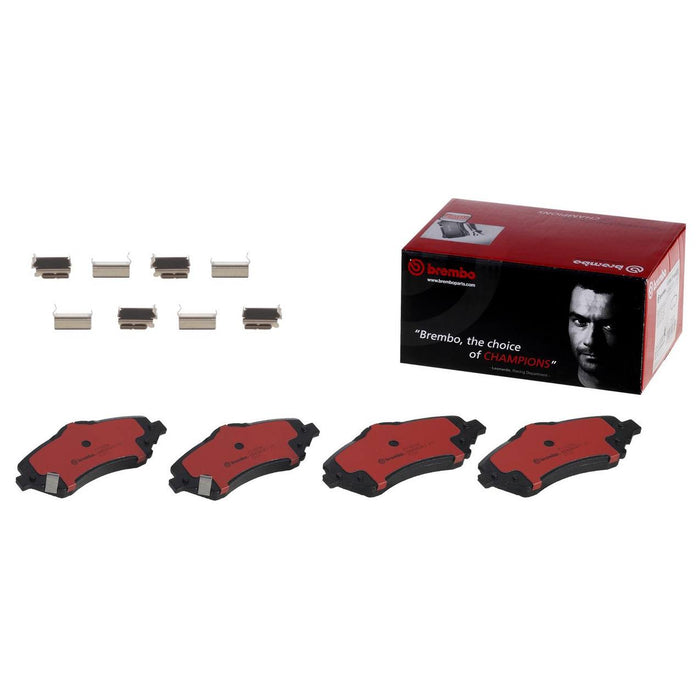

1 x Brembo P11025N Front Disc Brake Pad Set

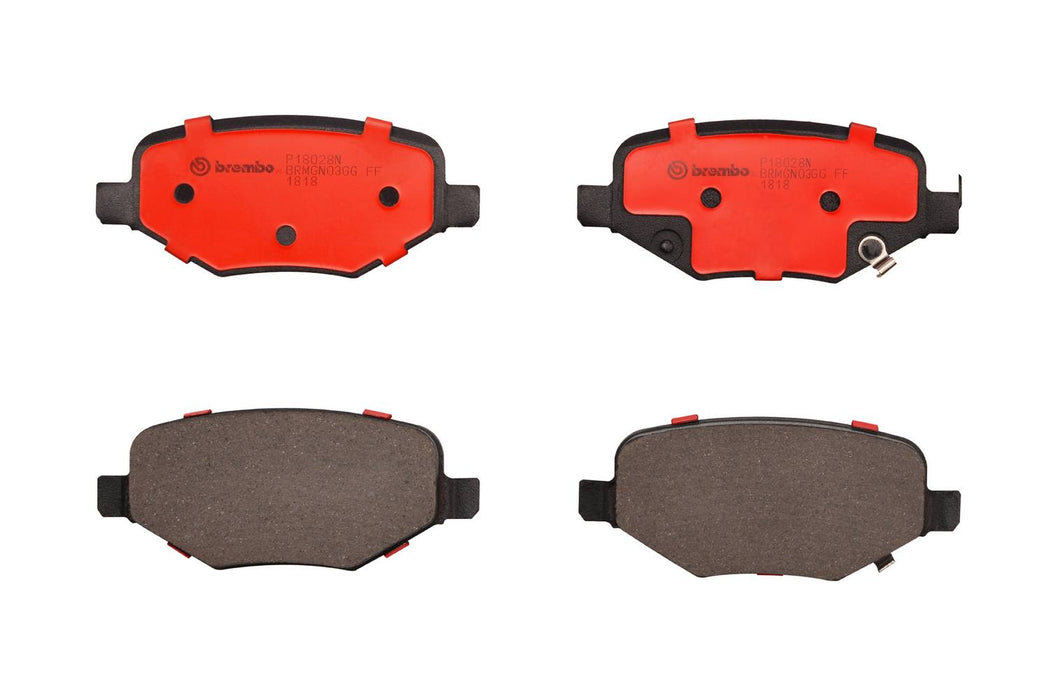

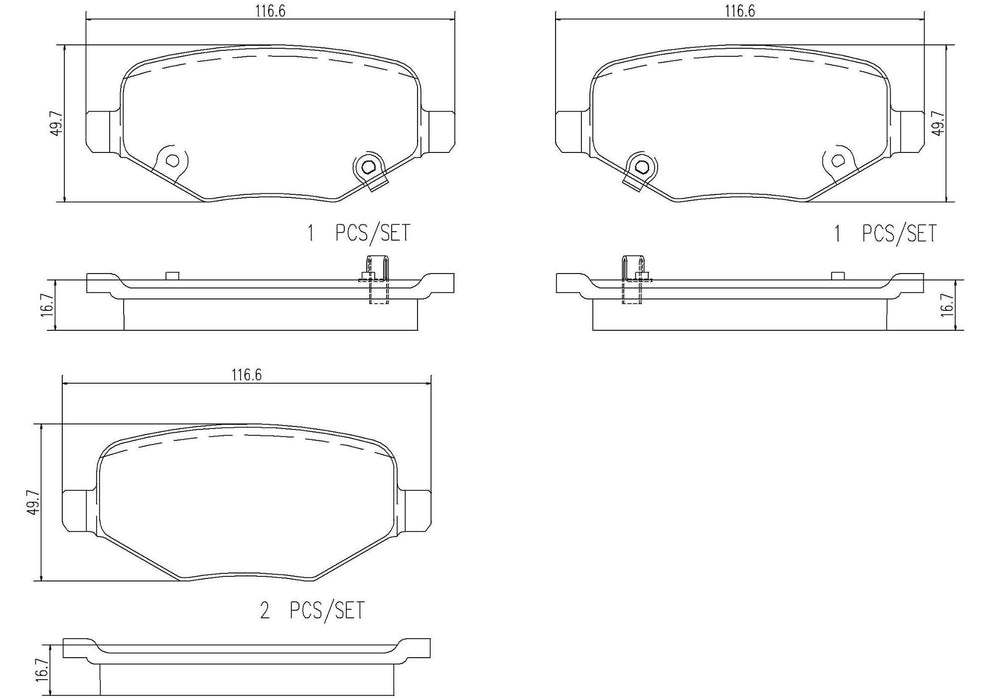

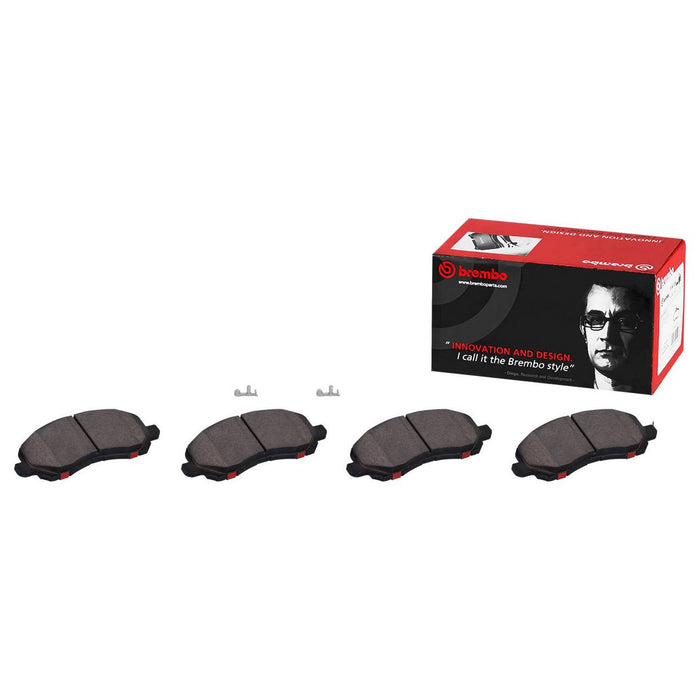

1 x Brembo P18028N Rear Disc Brake Pad Set
| Brake System | (Front Pads) Bosch |
| Centring Diameter | (Front Rotors) 72.5 |
| Centring Diameter | (Rear Rotors) 72.6 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter (mm) | (Front Rotors) 302 |
| Diameter (mm) | (Rear Rotors) 305 |
| Features | (Front Pads) with hardware |
| Features | (Rear Pads) with hardware |
| Friction Material Composition | (Front and Rear Pads) Ceramic |
| Height (mm) | (Front Pads) 64 |
| Height (mm) | (Front Rotors) 38 |
| Height (mm) | (Rear Pads) 49.7 |
| Height (mm) | (Rear Rotors) 33.1 |
| Material | (Front Rotors) Grey Cast Iron |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (mm) | (Front Rotors) 26.4 |
| Minimum Thickness (mm) | (Rear Rotors) 10.4 |
| Nominal Thickness (mm) | (Front Pads) 16.5 |
| Nominal Thickness (mm) | (Front Rotors) 28 |
| Nominal Thickness (mm) | (Rear Pads) 16.7 |
| Nominal Thickness (mm) | (Rear Rotors) 12 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Surface Finishing | (Front Pads) chamfered |
| Torque Spec (Nm) | (Front Rotors) 129 |
| Torque Spec (Nm) | (Rear Rotors) 129 |
| Ventilation Type | (Front Rotors) vented |
| Ventilation Type | (Rear Rotors) solid |
| Wear Indicator | (Front Pads) with acoustic wear indicator |
| Wear Indicator | (Rear Pads) with acoustic wear indicator |
| Width (mm) | (Front Pads) 146.6 |
| Width (mm) | (Rear Pads) 116.6 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Chrysler | 68192439AA |
| Fiat | K04721995AA |
| Volkswagen | 7B0615601A |
| Chrysler | 4721996AA |
| Chrysler | 68053152AA |
| Jeep | 680448866AC |
| Jeep | 68044866AA |
| Fiat | K04721996AB |
| Dodge | 68044866AA |
| Chrysler | 4779783AB |
| Dodge | 68093323AB |
| Dodge | 4721996AB |
| Chrysler | 4721933AB |
| Dodge | 68044866AC |
| Dodge | 68192439AB |
| Chrysler | 68068762AA |
| Dodge | 4721677AA |
| Chrysler | 68029263AA |
| Chrysler | 68093323AB |
| Dodge | 68192439AA |
| Dodge | 68053152AB |
| Chrysler | 4721996AB |
| Chrysler | 4721677AA |
| Jeep | 68003701AB |
| Volkswagen | 7B0698151C |
| Chrysler | 4721995AA |
| Chrysler | 68192439AB |
| Ram | 68093323AB |
| Chrysler | 68093323AA |
| Dodge | 68029263AA |
| Volkswagen | 7B0698151D |
| Dodge | 68003701AA |
| Chrysler | 4779783AA |
| Fiat | K04721996AA |
| Dodge | 68003701AB |
| Volkswagen | 7B0698151F |
| Volkswagen | 7B0615601B |
| Jeep | 68003701AA |
| Fiat | K04721995AB |
