Description

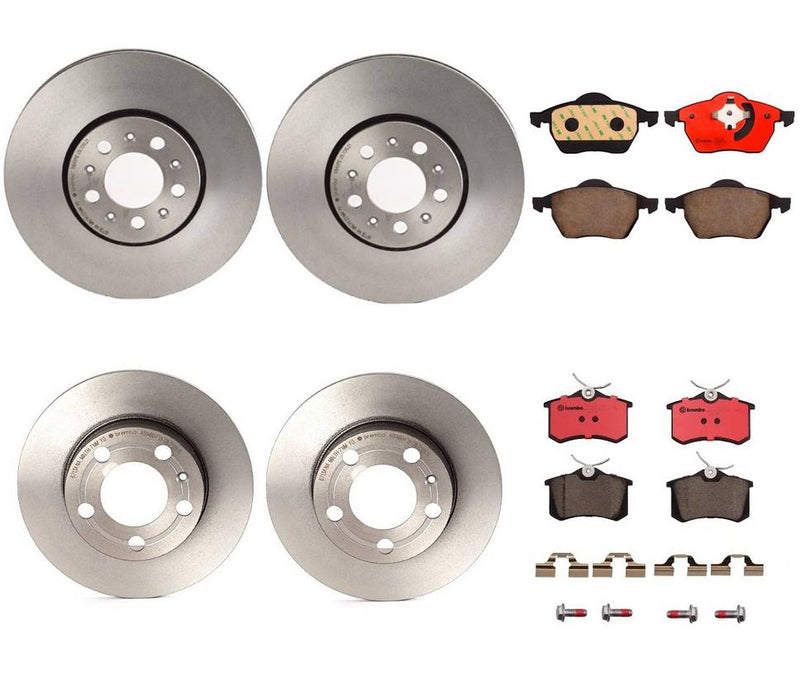

Kit Includes:

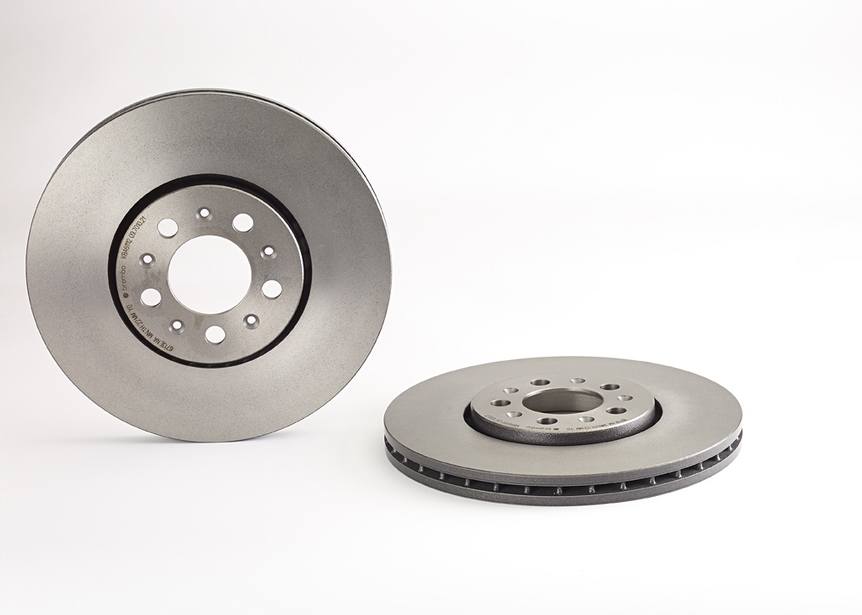

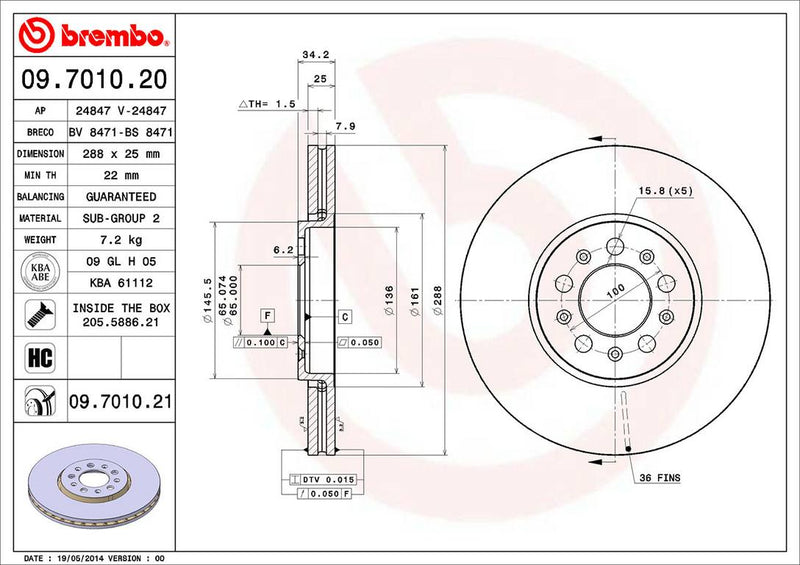

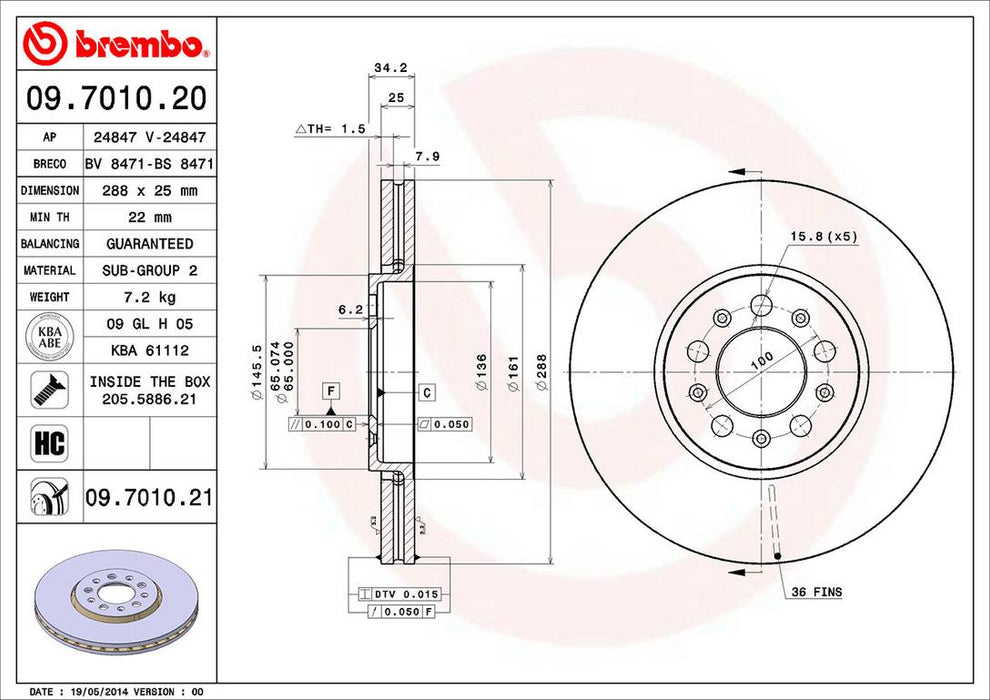

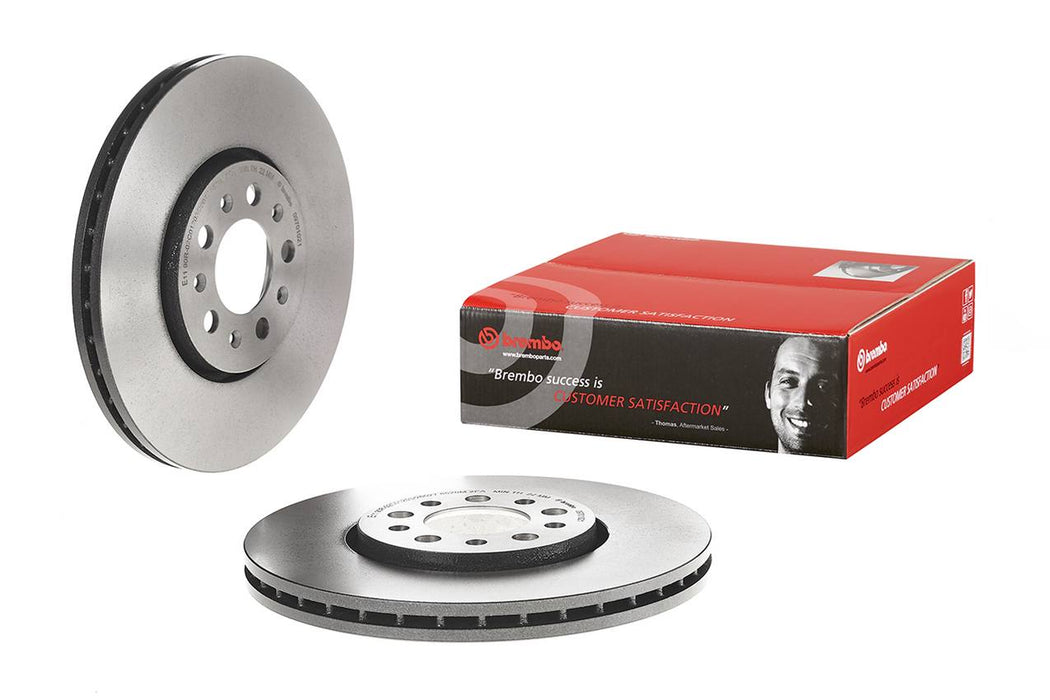

2 x Brembo 09.7010.21 Front Disc Brake Rotors

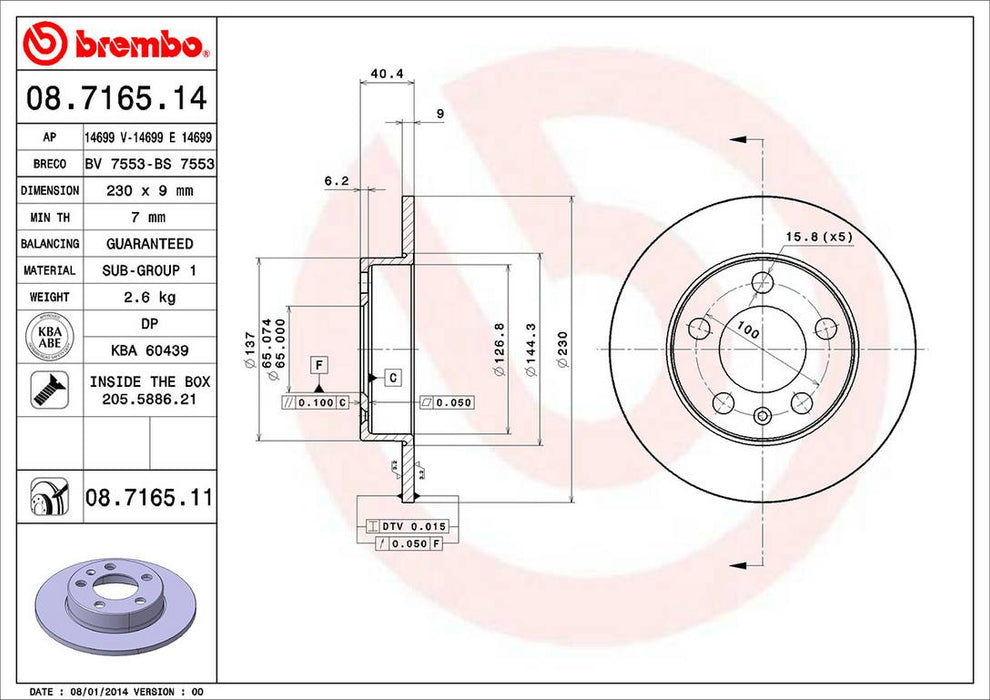

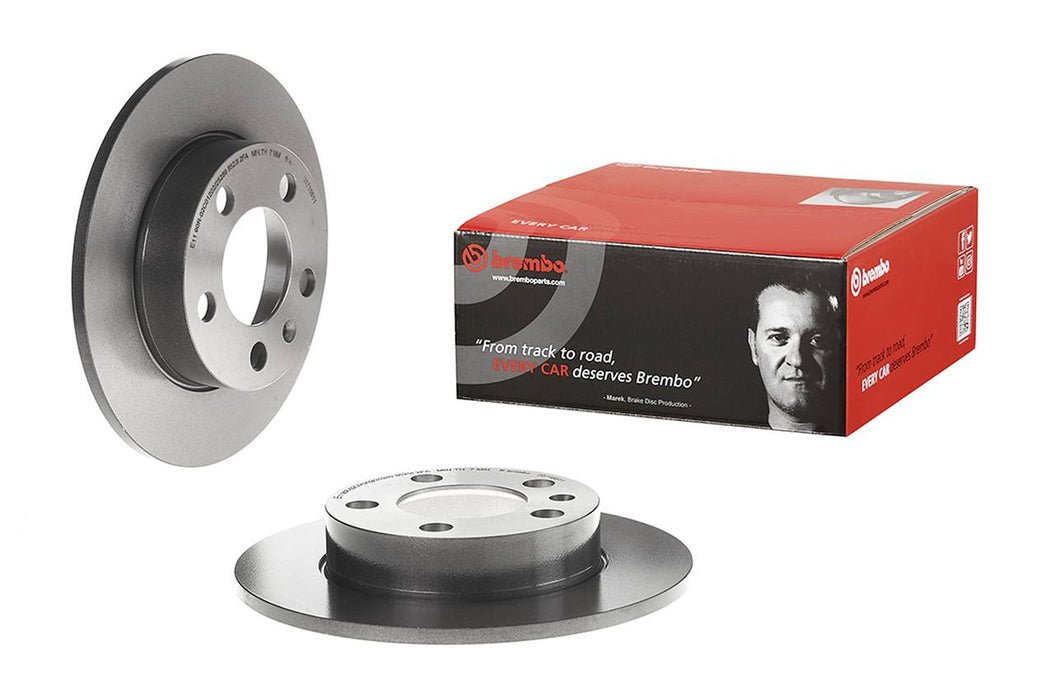

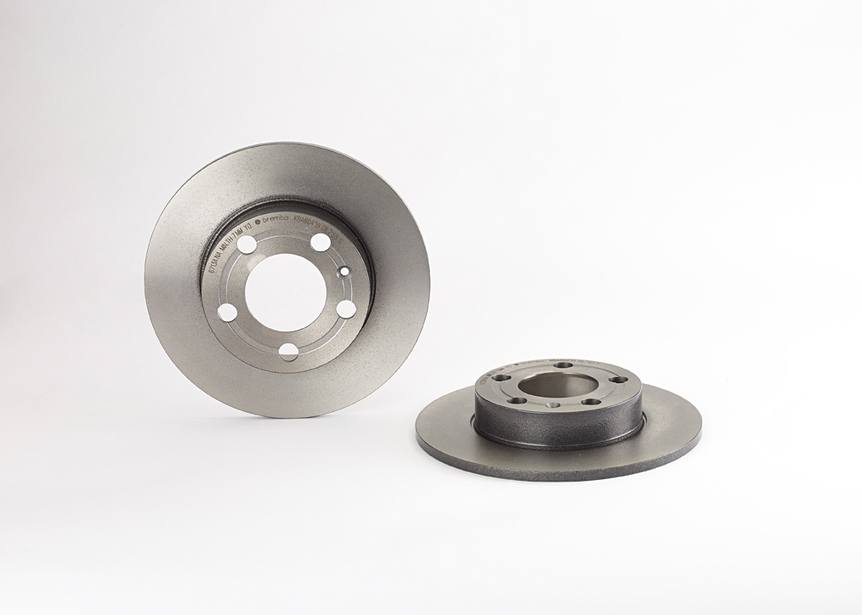

2 x Brembo 08.7165.11 Rear Disc Brake Rotors

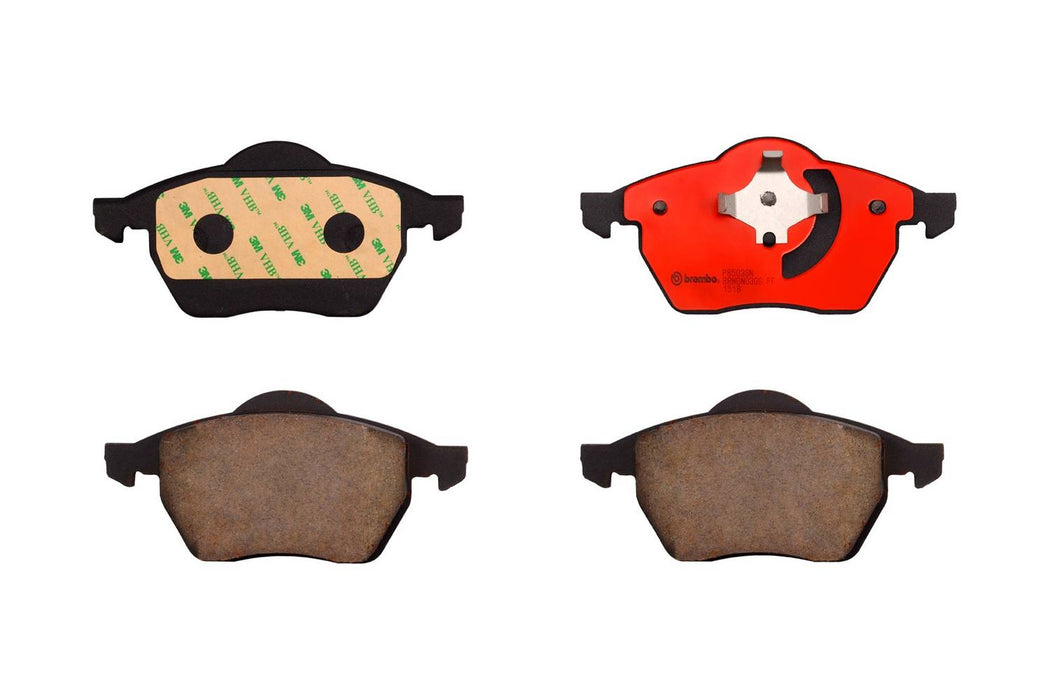

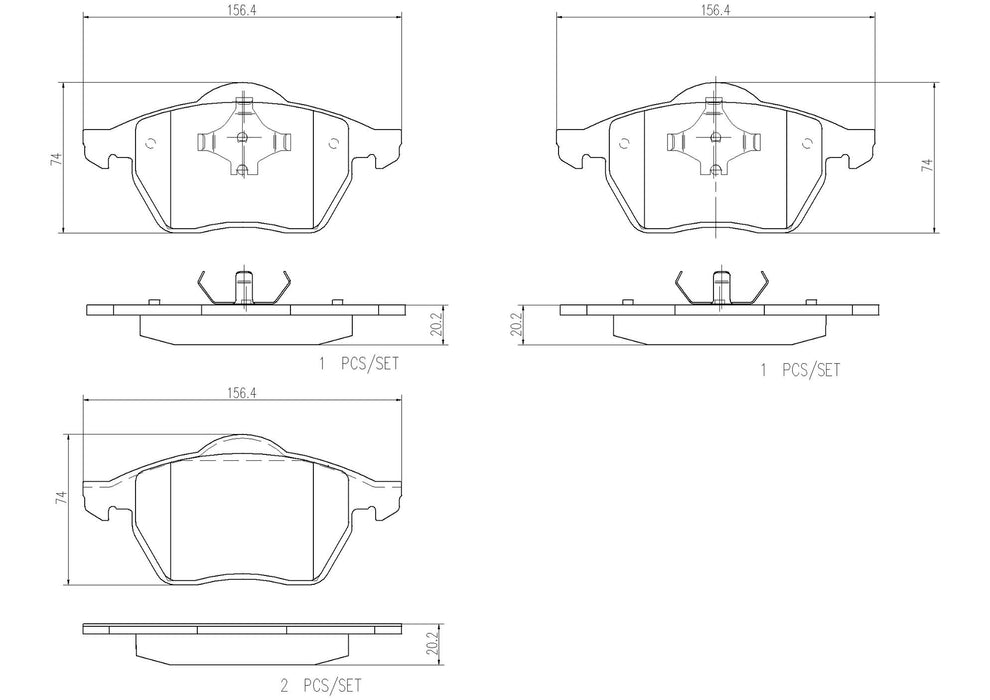

1 x Brembo P85036N Front Disc Brake Pad Set Ceramic

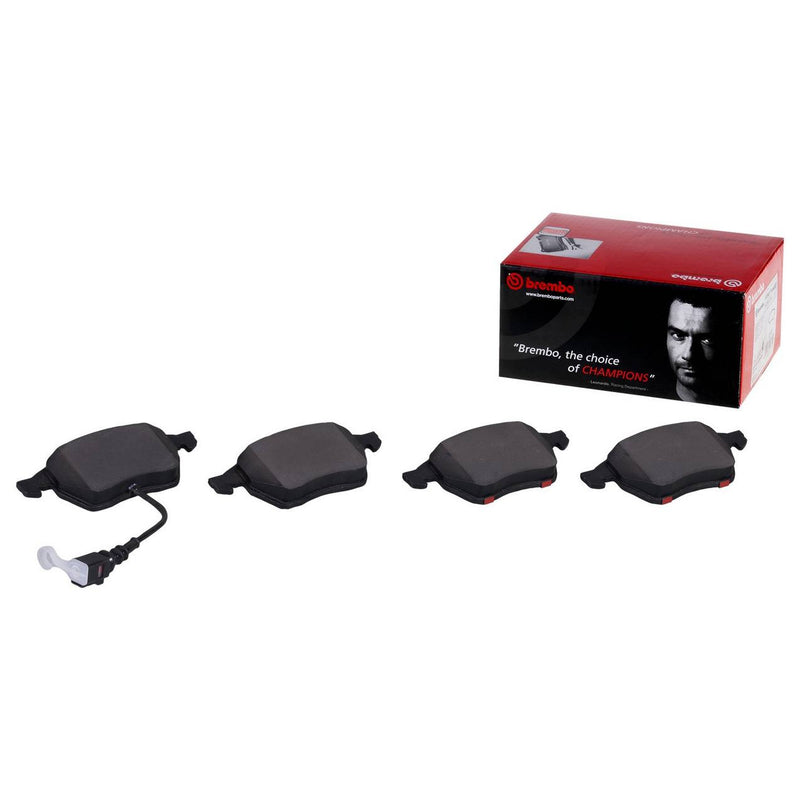

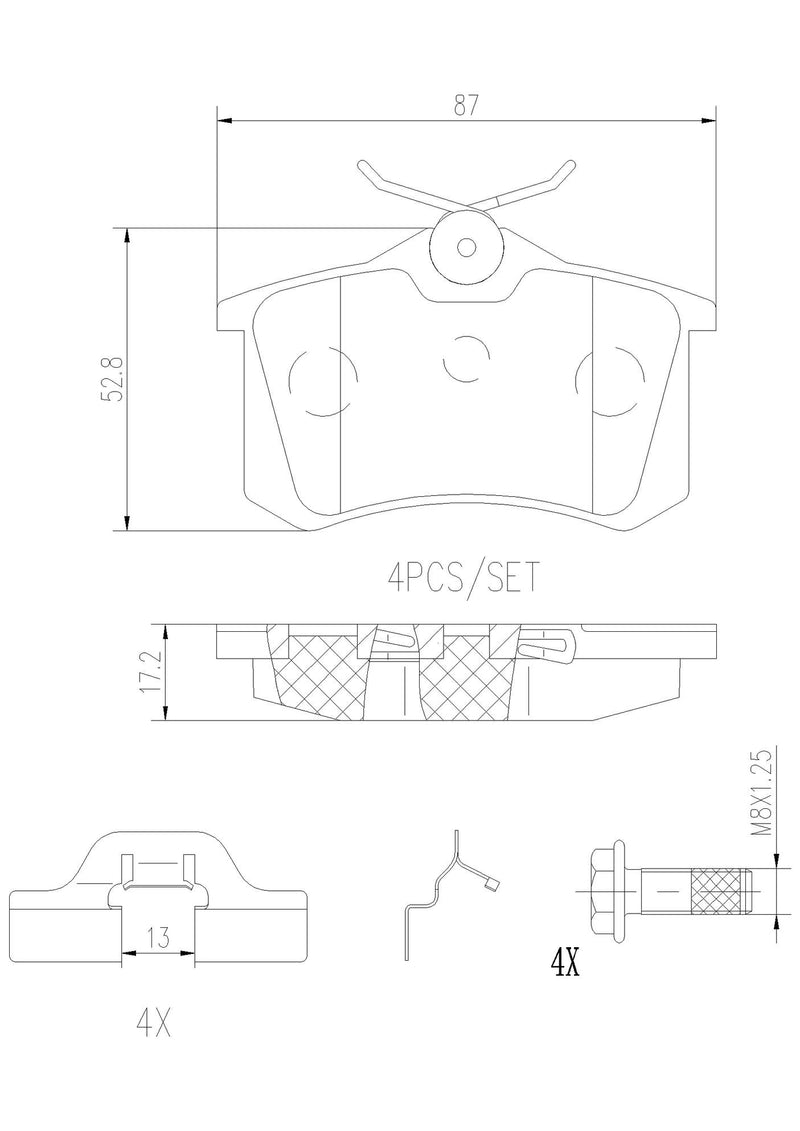

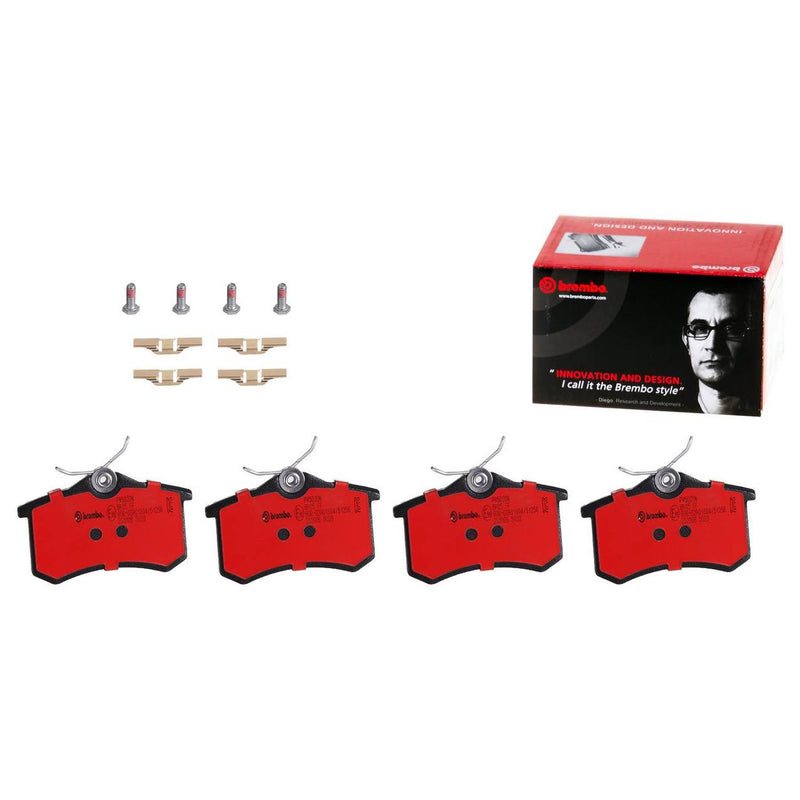

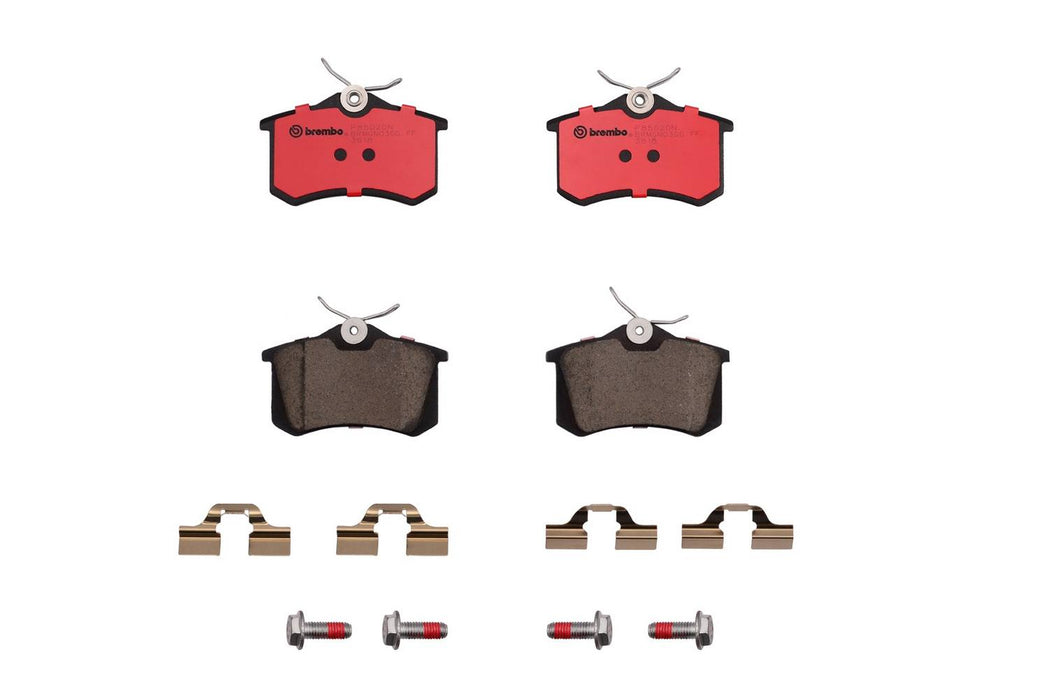

1 x Brembo P85020N Rear Disc Brake Pad Set Ceramic
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Centring Diameter | ( Front Rotors ) 65 |
| Centring Diameter | ( Rear Rotors ) 65 |
| Coated | ( Front Rotors ) UV Coated |
| Coated | ( Rear Rotors ) UV Coated |
| Diameter (mm) | ( Front Rotors ) 288 |
| Diameter (mm) | ( Rear Rotors ) 232 |
| Features | (Rear Pads) with hardware |
| Fixing Screws | ( Front Rotors ) Included |
| Fixing Screws | ( Rear Rotors ) Included |
| Friction Material Composition | (Pads) Ceramic |
| Height (mm) | ( Front Rotors ) 34.2 |
| Height (mm) | ( Rear Rotors ) 40.3 |
| Height (mm) | (Front Pads) 74 |
| Height (mm) | (Rear Pads) 52.8 |
| Material | ( Front Rotors ) High Carbon |
| Material | ( Rear Rotors ) Grey Cast Iron |
| Minimum Thickness (mm) | ( Front Rotors ) 22 |
| Minimum Thickness (mm) | ( Rear Rotors ) 7 |
| Nominal Thickness (mm) | ( Front Rotors ) 25 |
| Nominal Thickness (mm) | ( Rear Rotors ) 9 |
| Nominal Thickness (mm) | (Front Pads) 20.2 |
| Nominal Thickness (mm) | (Rear Pads) 17.2 |
| Number of Holes | ( Front Rotors ) 5 |
| Number of Holes | ( Rear Rotors ) 5 |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered |
| Torque Spec (Nm) | ( Front Rotors ) 120 |
| Torque Spec (Nm) | ( Rear Rotors ) 120 |
| Ventilation Type | ( Front Rotors ) vented |
| Ventilation Type | ( Rear Rotors ) solid |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (mm) | (Front Pads) 156.4 |
| Width (mm) | (Rear Pads) 87 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1J0698451N |
| Volkswagen | 1J0615301K |
| Volkswagen | 8E0698451A |
| Volkswagen | 8D0698151A |
| Audi | 8D0698151E |
| Volkswagen | 1H0698451A |
| Volkswagen | 5Q0698451C |
| Seat | 1J0615301S |
| Audi | 1J0615301R |
| Audi | 6C0698451A |
| Audi | 4D0698451C |
| Volkswagen | 4B0698451E |
| Volkswagen | 7D0698451J |
| Audi | 8N0698151 |
| Volkswagen | 1J0698451 |
| Audi | 8E0698451 |
| Volkswagen | 1J0615601 |
| Audi | 4D0698151C |
| Volkswagen | 1E0698451G |
| Audi | 1J0698451E |
| Audi | 1J0698451P |
| Volkswagen | 3A0698151A |
| Seat | 1J0615301C |
| Skoda | 1J0615301R |
| Volkswagen | 1J0698451R |
| Volkswagen | 425056 |
| Volkswagen | 1J0615301S |
| Audi | 1J0698451D |
| Audi | 1J0615601Q |
| Audi | 1J0615601 |
| Volkswagen | 1J0698451F |
| Skoda | 1J0615301C |
| Audi | 1J0615301K |
| Skoda | 1J0615601C |
| Audi | 1J0615301 |
| Audi | 1J0615601C |
| Skoda | 1J0615601 |
| Volkswagen | 1J0698451A |
| Audi | 5Q0698451N |
| Volkswagen | 4B0698451B |
| Audi | 8E0698451A |
| Volkswagen | 1J0698451C |
| Audi | 8D0698151A |
| Volkswagen | 1J0698451D |
| Audi | 4B0698451 |
| Audi | 1J0698451J |
| Volkswagen | 1J0698451G |
| Volkswagen | 8D0698151C |
| Volkswagen | 1J0615601C |
| Seat | 1J0615601C |
| Volkswagen | 8E0698451 |
| Volkswagen | 1J0698451P |
| Volkswagen | 1H0698451G |
| Volkswagen | 1J0698451J |
| Audi | 4B0698451E |
| Audi | 3B0698451 |
| Volkswagen | 1J0615301C |
| Volkswagen | 1J0615301R |
| Volkswagen | 3B0698451 |
| Seat | 1J0615601 |
| Volkswagen | 1J0698451B |
| Volkswagen | 1E0698451E |
| Volkswagen | 1E0698451 |
| Volkswagen | 6R0615301D |
| Volkswagen | 5K0298451B |
| Volkswagen | 1E0698451B |
| Volkswagen | 6C0698451A |
| Volkswagen | 5Q0698451N |
| Seat | 1J0615301K |
| Volkswagen | 1H0690451A |
| Audi | 4B0698451C |
| Audi | 4B0698451B |
| Audi | 6R0615301A |
| Audi | 8E0698451B |
| Skoda | 1J0615301S |
| Volkswagen | 1J0615601P |
| Volkswagen | 8N0698151 |
| Audi | 1J0615301C |
| Volkswagen | 1J0698451E |
| Volkswagen | 2Q0615601H |
| Audi | 5Q0698451C |
| Volkswagen | 1H0698451 |
| Skoda | 1J0615301K |
| Volkswagen | 1H0698451D |
| Seat | 1J0615301R |
| Audi | 8D0698151C |
| Volkswagen | 6R0615301A |
| Audi | 1K0698451J |
| Volkswagen | 1H0690451 |
| Audi | 1J0615301S |
| Volkswagen | 5Q0698451E |
| Volkswagen | 1E0698451C |
| Audi | 5K0298451B |
| Volkswagen | 1J0698451K |
| Volkswagen | 1H0698451C |
| Volkswagen | 4B0698451A |
| Volkswagen | 8E0698451K |
| Audi | 1J0698451L |
| Volkswagen | 1K0698451J |
