Description
Kit Includes:

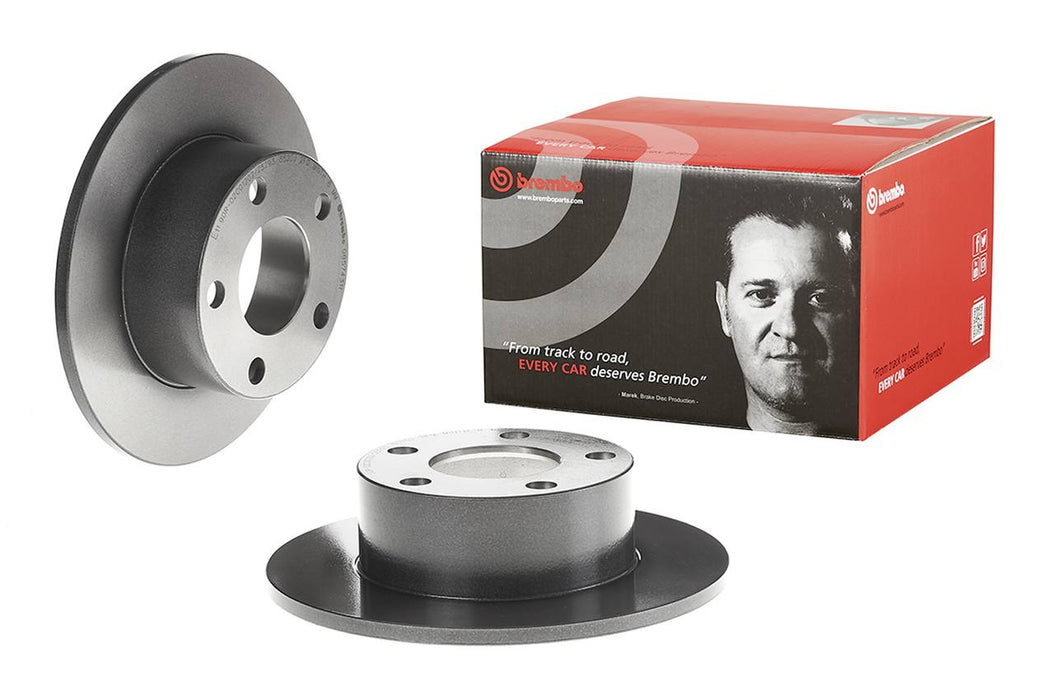

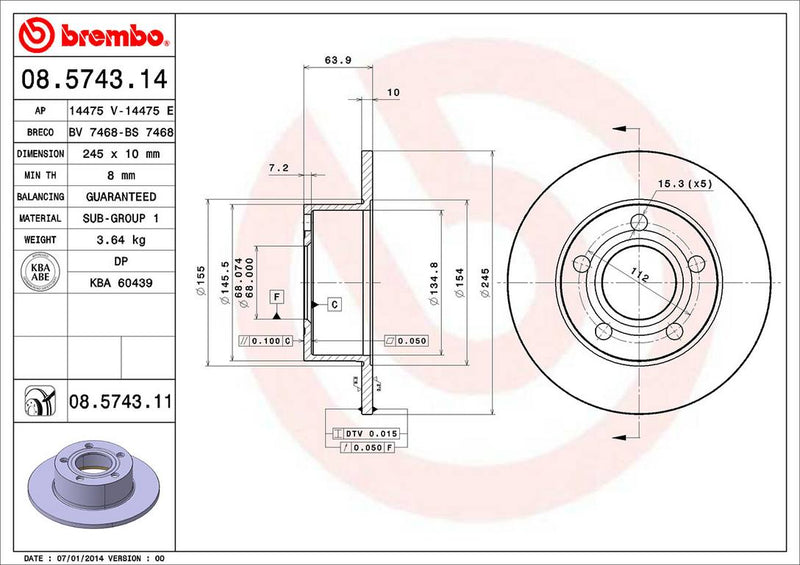

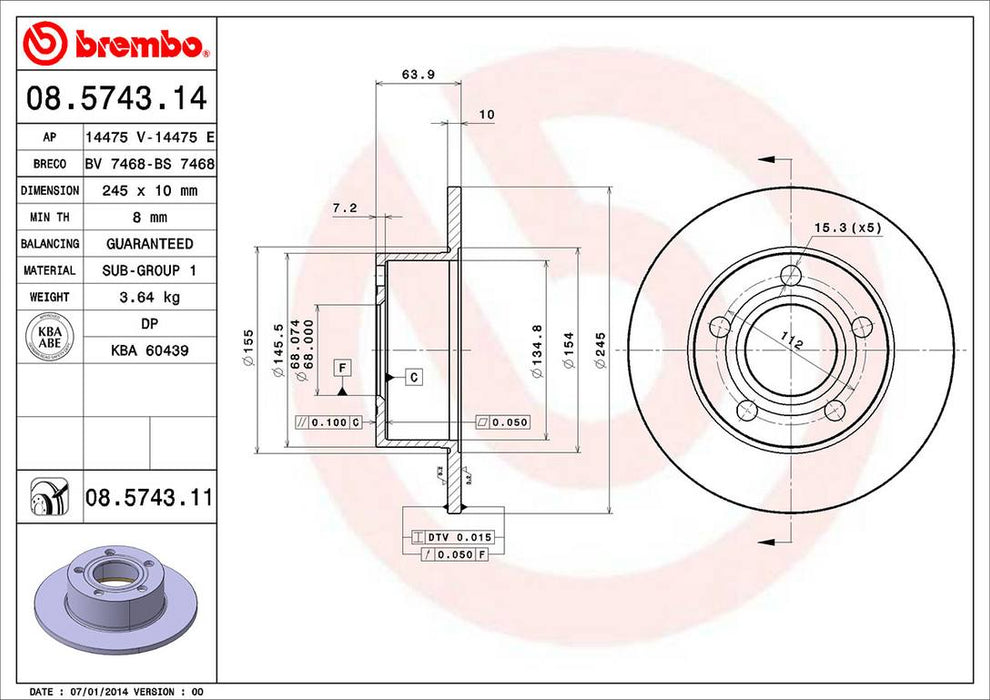

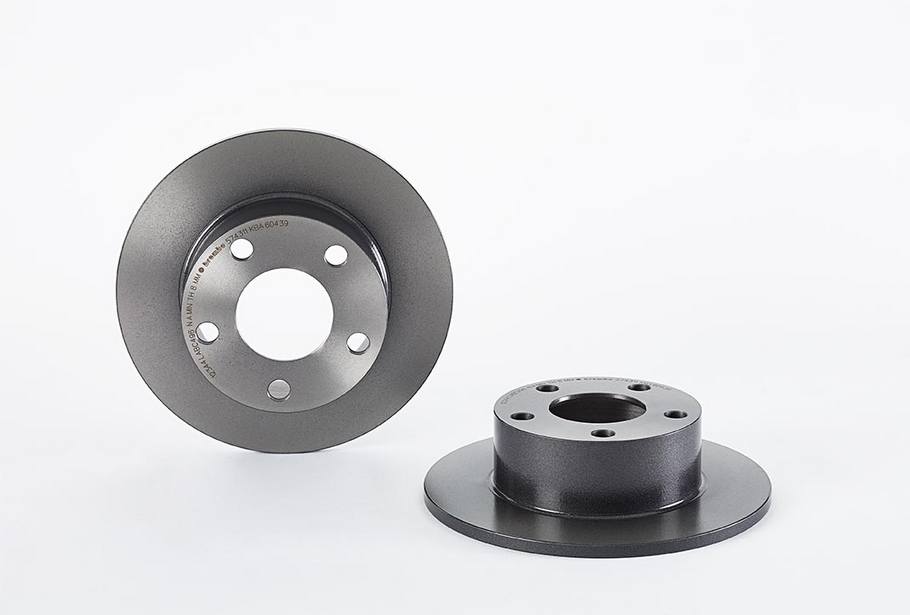

2 x Brembo 08.5743.11 Rear Disc Brake Rotors

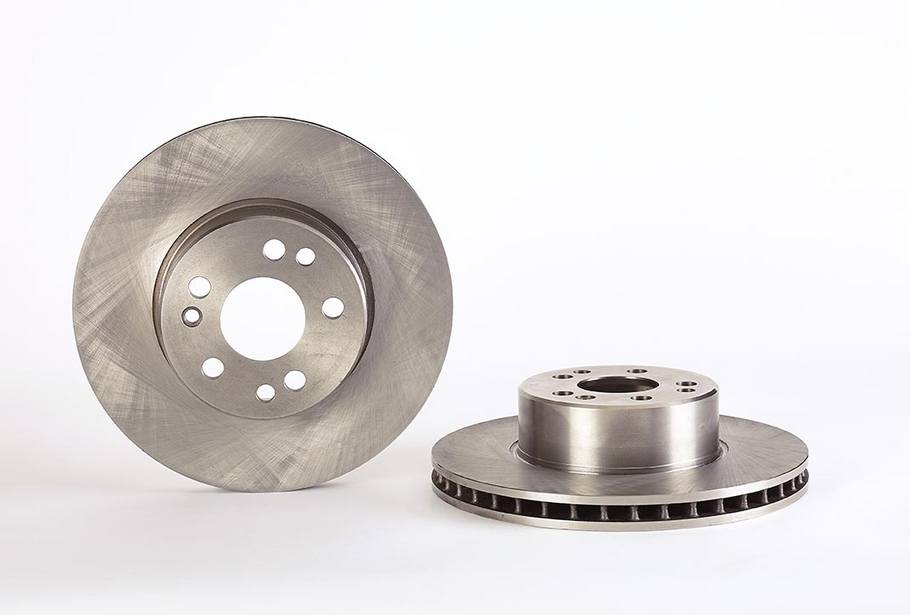

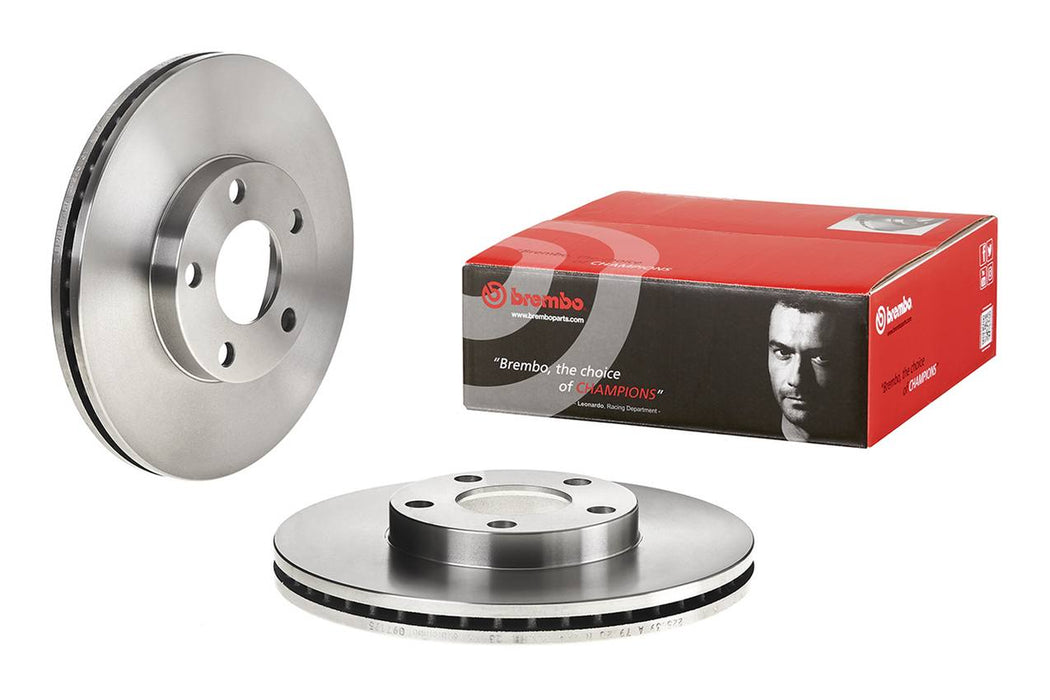

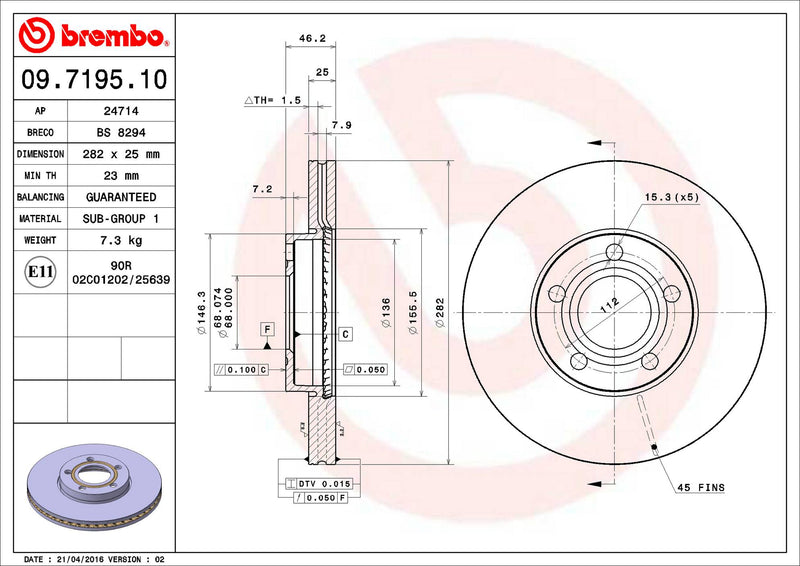

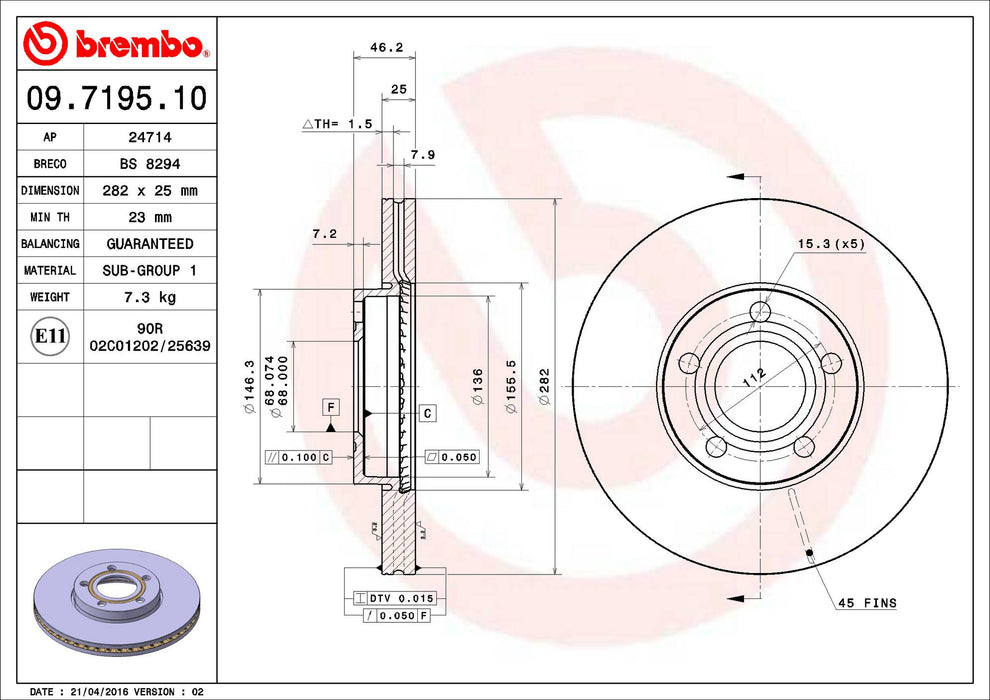

2 x Brembo 09.7195.10 Front Disc Brake Rotors

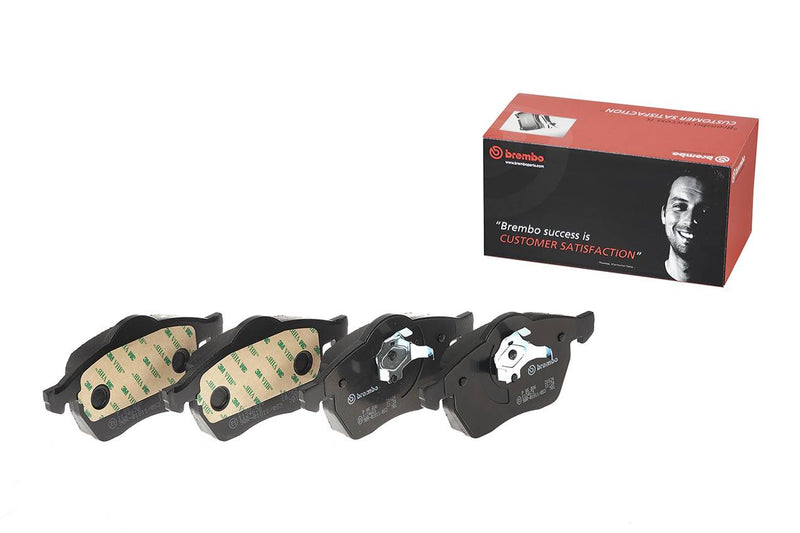

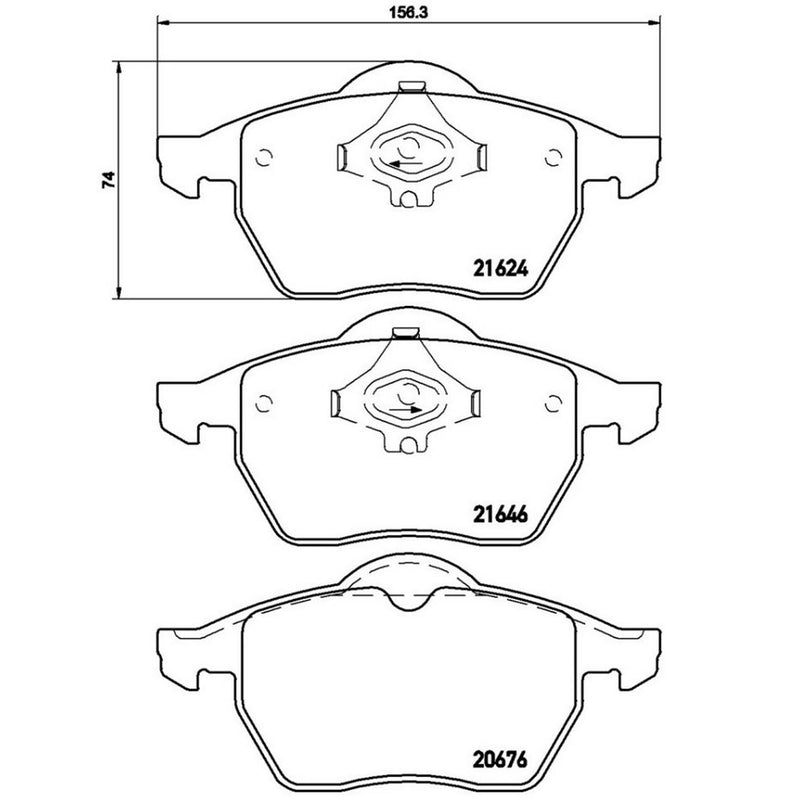

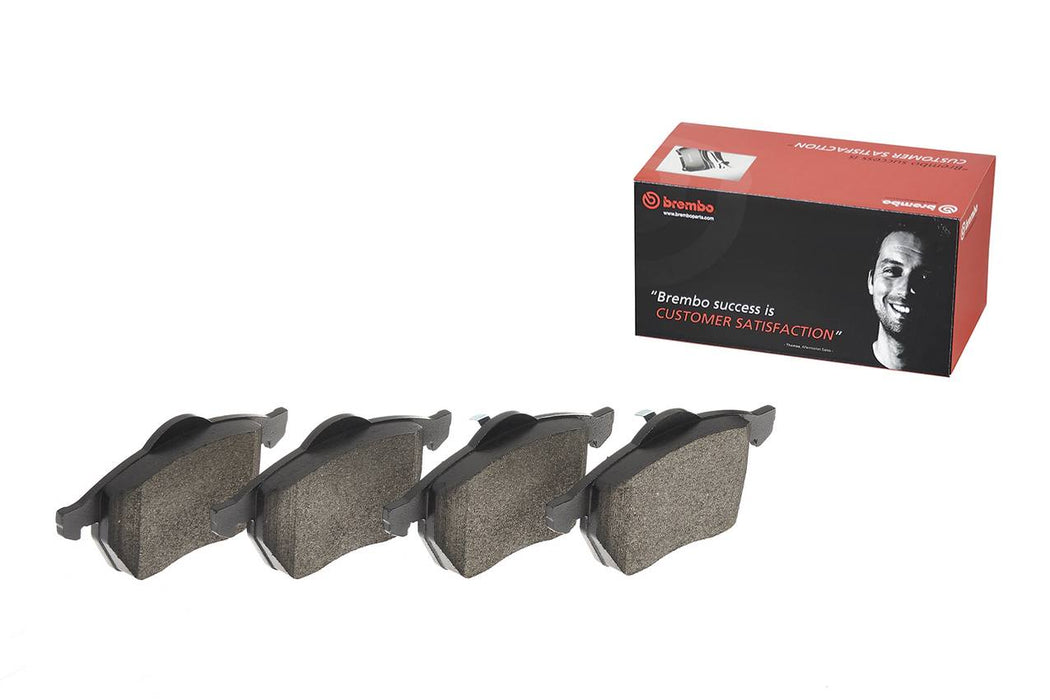

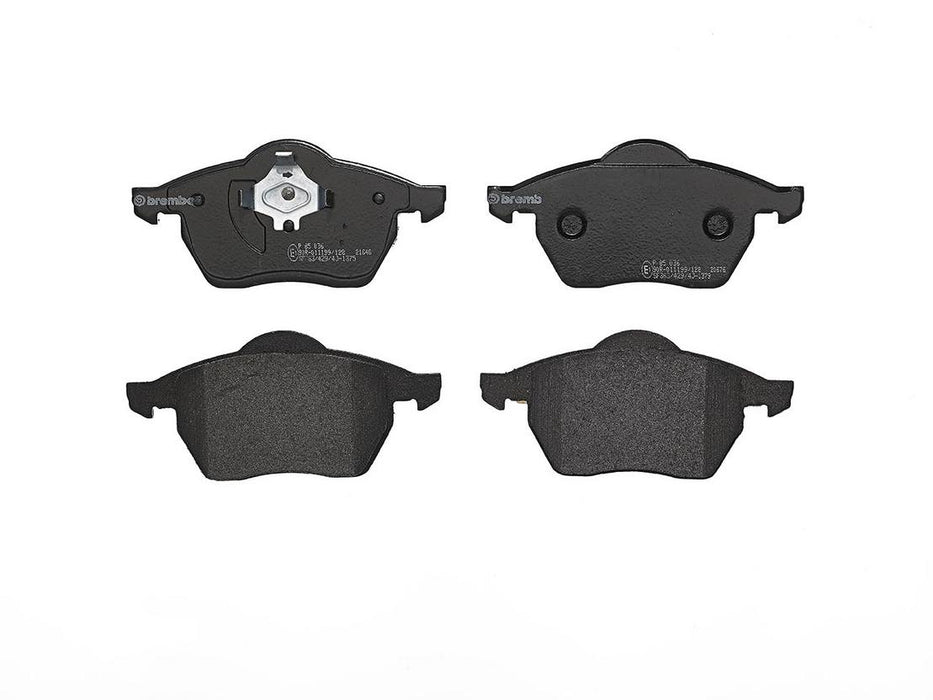

1 x Brembo P85036 Front Disc Brake Pad Set Low-Met

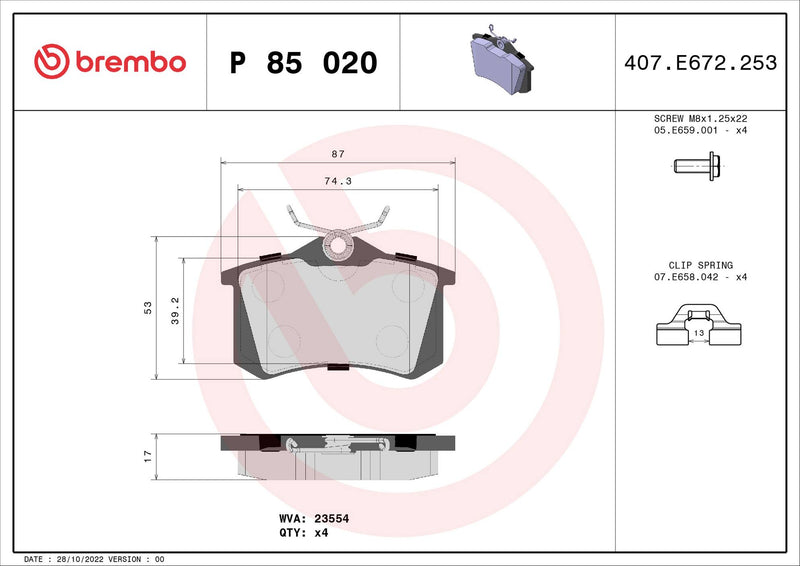

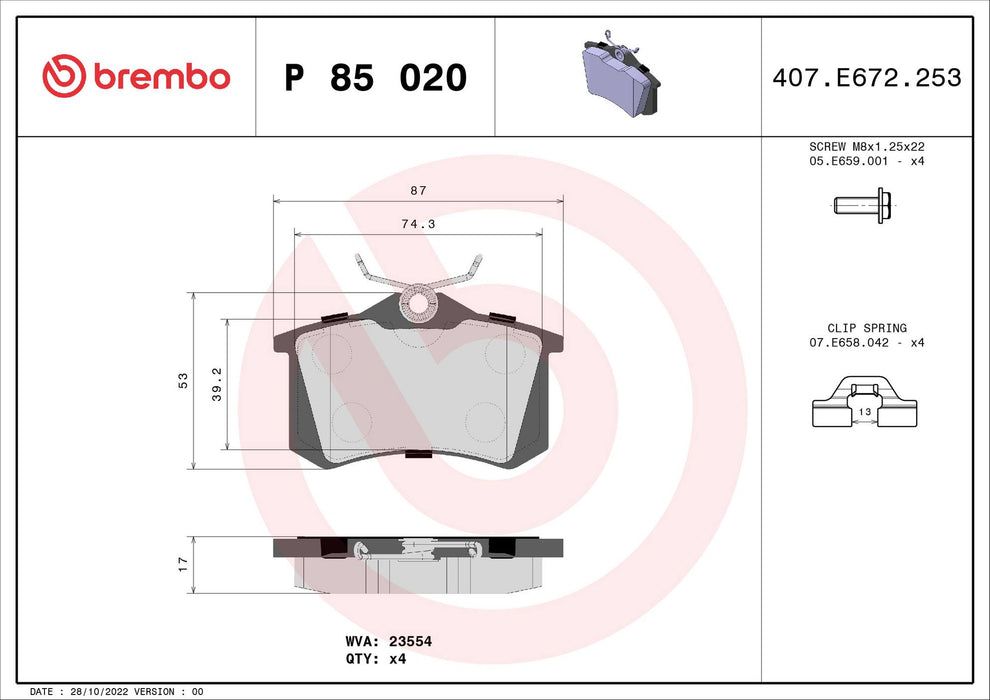

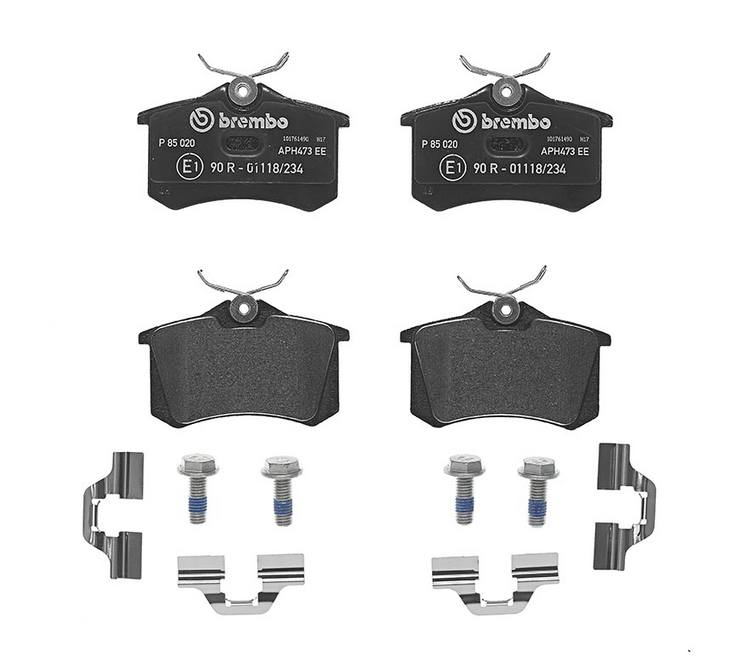

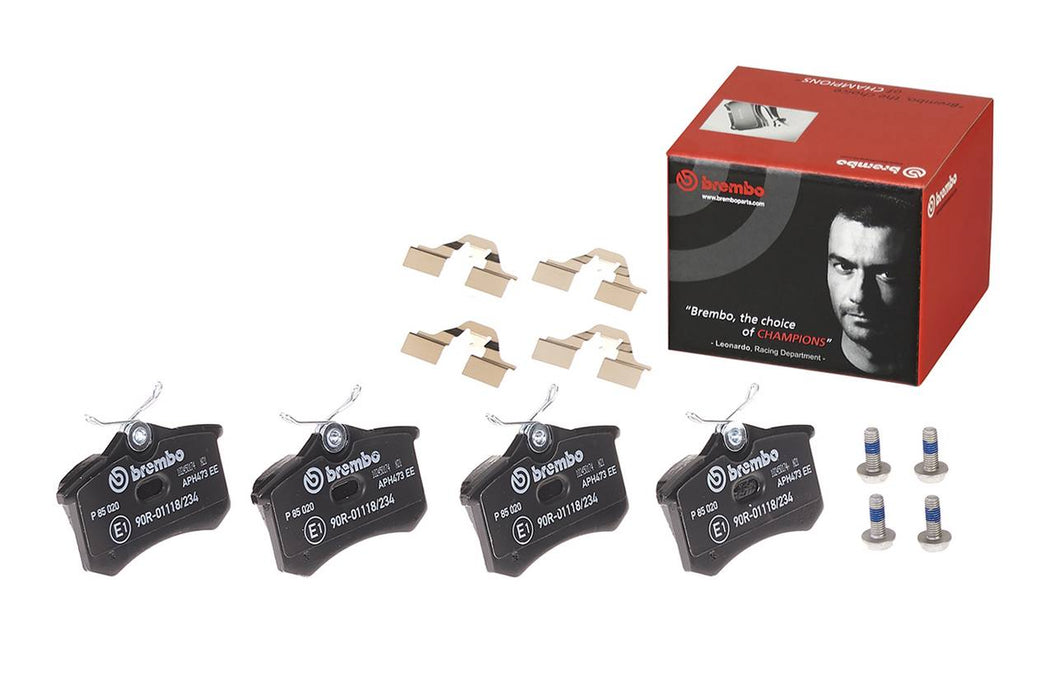

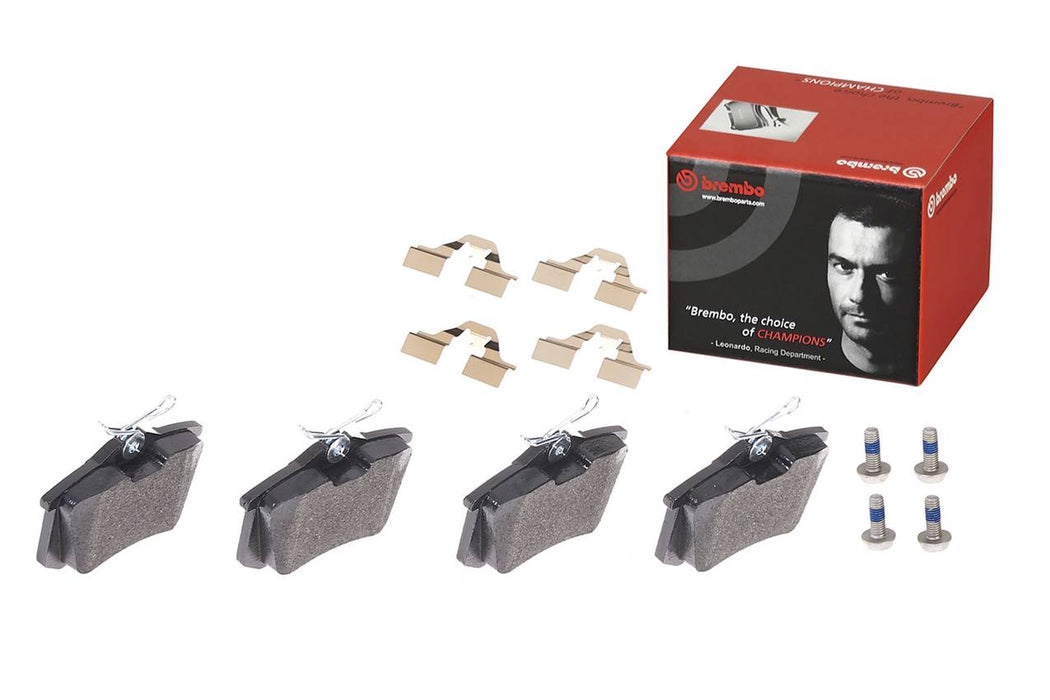

1 x Brembo P85020 Rear Disc Brake Pad Set Low-Met
Brake System | (Front Pads) Teves |
Brake System | (Rear Pads) Lucas |
Centring Diameter | (Front Rotors) 68 |
Centring Diameter | (Rear Rotors) 68 |
Coated | (Rear Rotors) UV Coated |
Diameter (mm) | (Front Rotors) 282 |
Diameter (mm) | (Rear Rotors) 245 |
Features | (Rear Pads) with hardware |
Friction Material Composition | (Pads) Low-Met |
Height (mm) | (Front Pads) 74 |
Height (mm) | (Front Rotors) 46.2 |
Height (mm) | (Rear Pads) 53 |
Height (mm) | (Rear Rotors) 63.9 |
Material | (Front Rotors) Grey Cast Iron |
Material | (Rear Rotors) Grey Cast Iron |
Minimum Thickness (mm) | (Front Rotors) 23 |
Minimum Thickness (mm) | (Rear Rotors) 8 |
Nominal Thickness (mm) | (Front Pads) 20.2 |
Nominal Thickness (mm) | (Front Rotors) 25 |
Nominal Thickness (mm) | (Rear Pads) 17.2 |
Nominal Thickness (mm) | (Rear Rotors) 10 |
Number Of Holes | (Front Rotors) 5 |
Number Of Holes | (Rear Rotors) 5 |
Surface Finishing | (Front Pads) chamfered |
Surface Finishing | (Rear Pads) chamfered |
Torque Spec (nm) | (Front Rotors) 120 |
Torque Spec (nm) | (Rear Rotors) 120 |
Ventilation Type | (Front Rotors) vented |
Ventilation Type | (Rear Rotors) solid |
Width (mm) | (Front Pads) 156.25 |
Width (mm) | (Rear Pads) 87 |
Brand | Part # |
---|
Brand | Part # |
---|---|
Audi | 8N0698151 |
Volkswagen | 1J0698451F |
Audi | 8E0698451A |
Volkswagen | 3A0698151A |
Volkswagen | 425056 |
Volkswagen | 1J0698451 |
Volkswagen | 1J0698451R |
Volkswagen | 4B0698451E |
Volkswagen | 1J0698451G |
Audi | 8D0698151A |
Audi | 4B0698451C |
Volkswagen | 8E0698451A |
Audi | 4B0698451B |
Volkswagen | 3B0698451 |
Volkswagen | 8D0698151A |
Volkswagen | 8E0615301C |
Volkswagen | 4B0698451B |
Audi | 4B0698451 |
Volkswagen | 1H0698451A |
Audi | 5K0298451B |
Volkswagen | 7D0698451J |
Volkswagen | 5K0298451B |
Volkswagen | 6C0698451A |
Volkswagen | 1H0698451C |
Volkswagen | 5Q0698451N |
Volkswagen | 1E0698451 |
Volkswagen | 1J0698451C |
Audi | 1J0698451P |
Audi | 1J0698451J |
Audi | 3B0698451 |
Audi | 1J0698451D |
Volkswagen | 5Q0698451C |
Volkswagen | 1J0698451B |
Volkswagen | 1E0698451G |
Volkswagen | 1E0698451E |
Volkswagen | 1J0698451E |
Volkswagen | 1E0698451B |
Volkswagen | 8E0698451 |
Audi | 8E0698451B |
Volkswagen | 8D0698151C |
Audi | 6C0698451A |
Audi | 8E0698451 |
Skoda | 4A0615601A |
Audi | 8D0698151E |
Volkswagen | 1J0698451D |
Volkswagen | 1J0698451J |
Audi | 1J0698451N |
Audi | 1J0698451E |
Volkswagen | 1H0690451A |
Volkswagen | 4A0615601A |
Audi | 5Q0698451N |
Volkswagen | 1J0698451P |
Audi | 4D0698451C |
Audi | 4D0698151C |
Volkswagen | 1H0698451D |
Audi | 1J0698451L |
Volkswagen | 1H0698451G |
Volkswagen | 8E0615601 |
Volkswagen | 8N0698151 |
Volkswagen | 1H0698451 |
Audi | 4B0698451E |
Volkswagen | 4B0698451A |
Volkswagen | 8E0698451K |
Volkswagen | 1J0698451K |
Volkswagen | 1H0690451 |
Audi | 1K0698451J |
Audi | 8D0698151C |
Volkswagen | 1E0698451C |
Volkswagen | 1J0698451A |
Audi | 4A0615601A |
Volkswagen | 8E0615301A |
Volkswagen | 5Q0698451E |
Audi | 5Q0698451C |
Volkswagen | 1K0698451J |
