Description

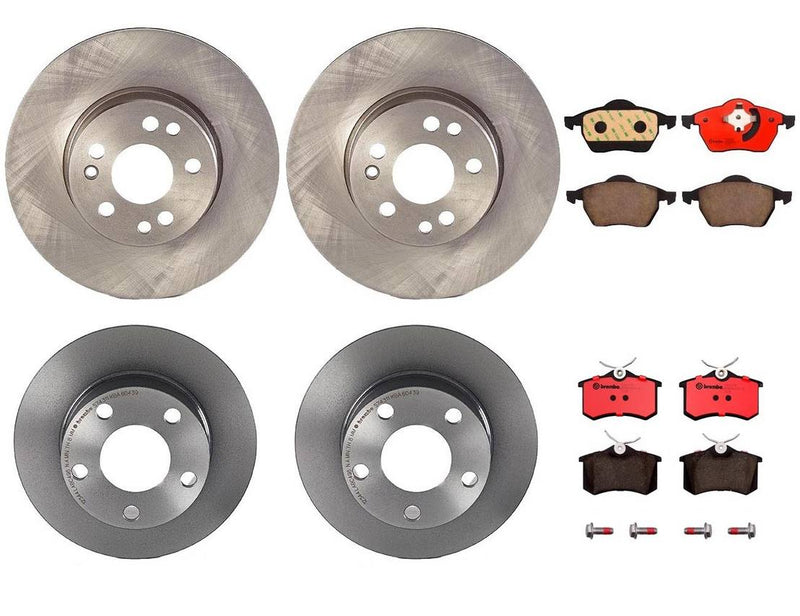

Kit Includes:

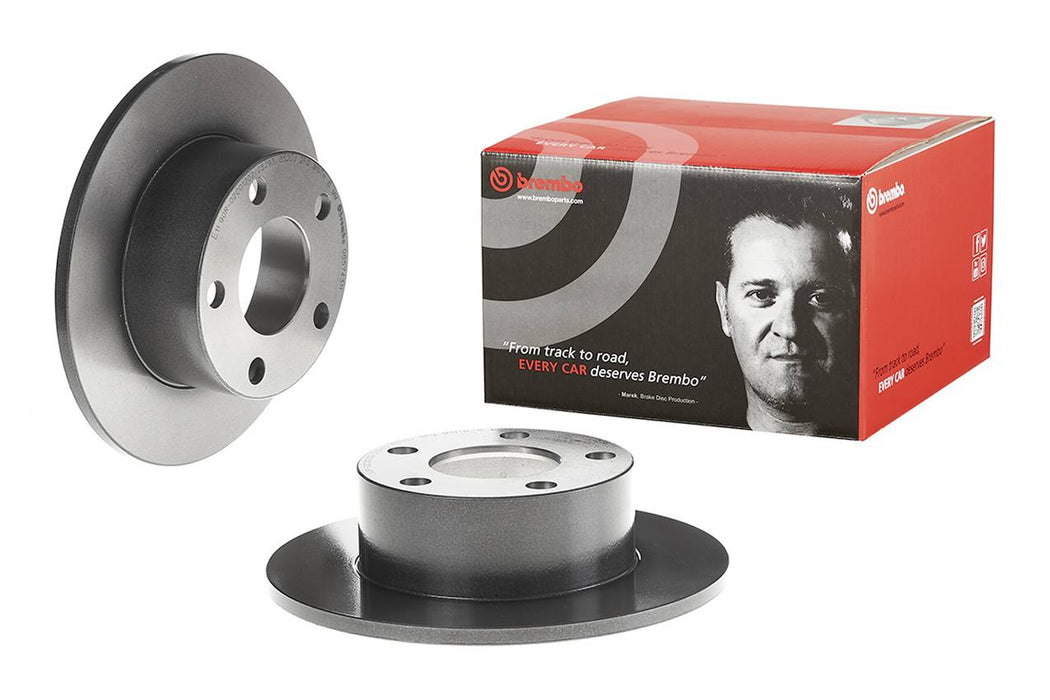

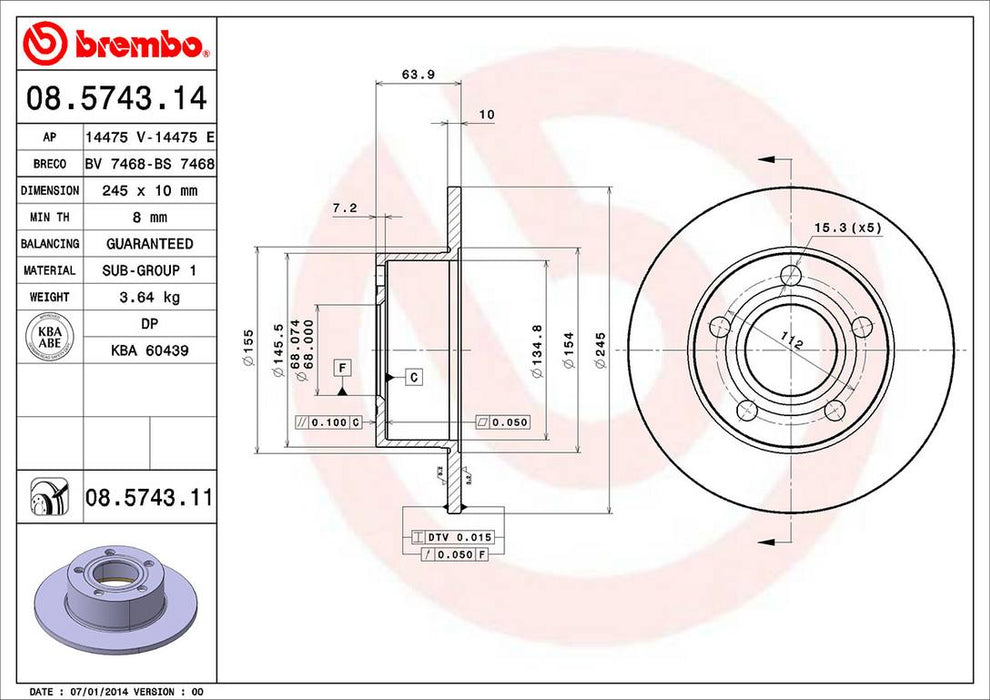

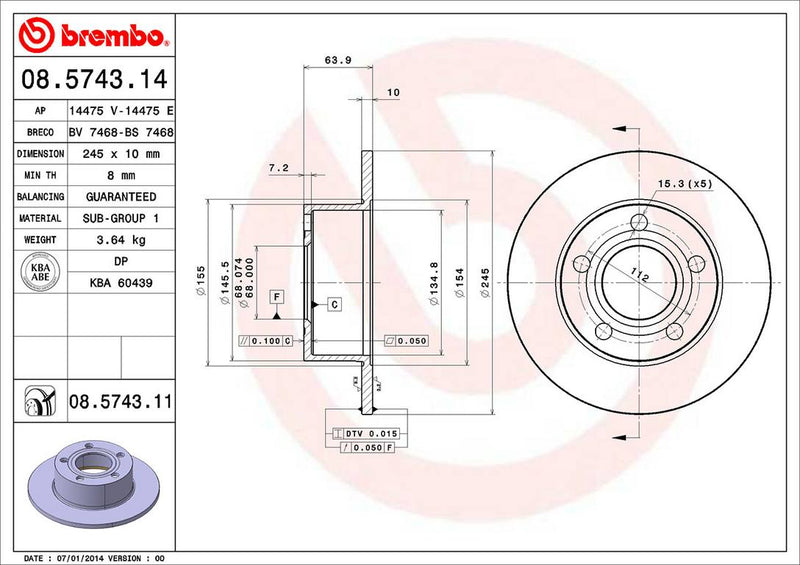

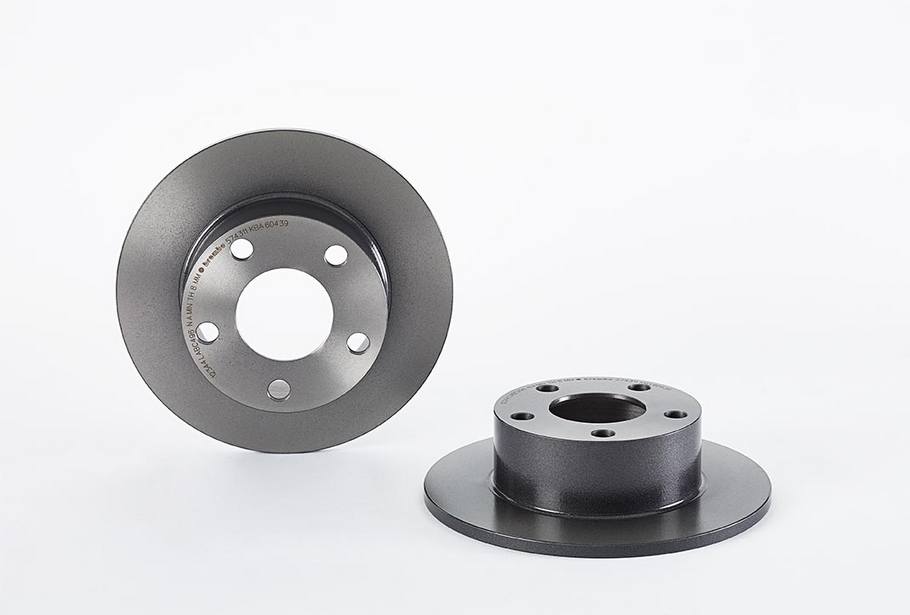

2 x Brembo 08.5743.11 Rear Disc Brake Rotors

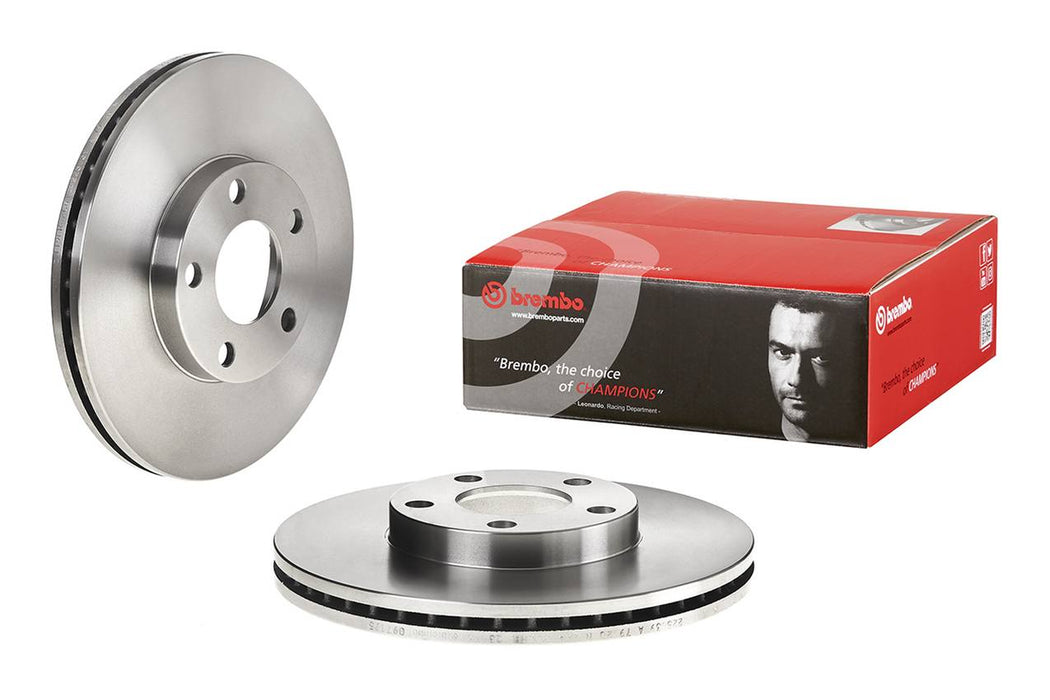

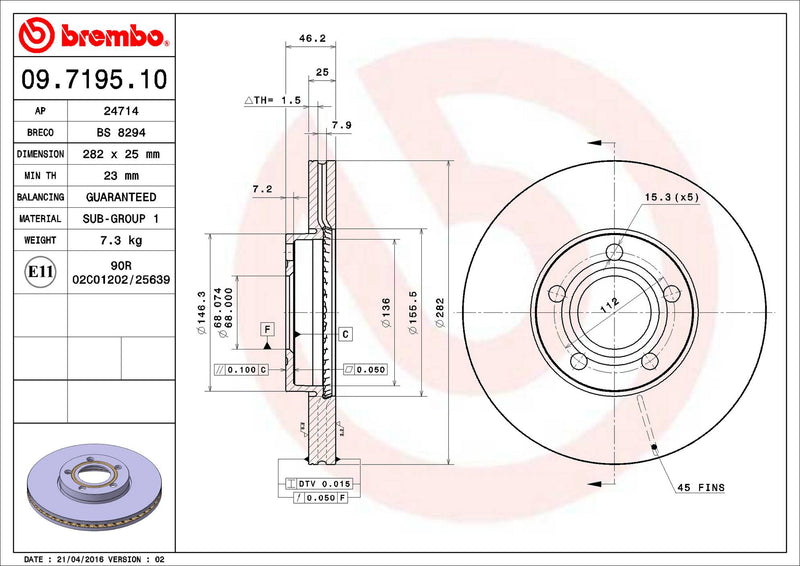

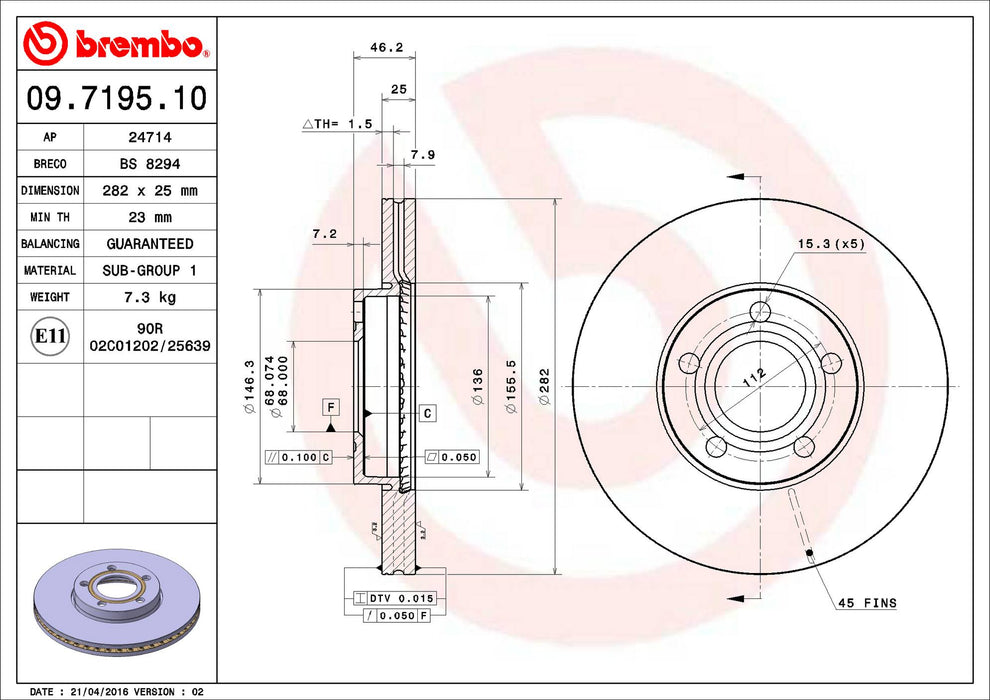

2 x Brembo 09.7195.10 Front Disc Brake Rotors

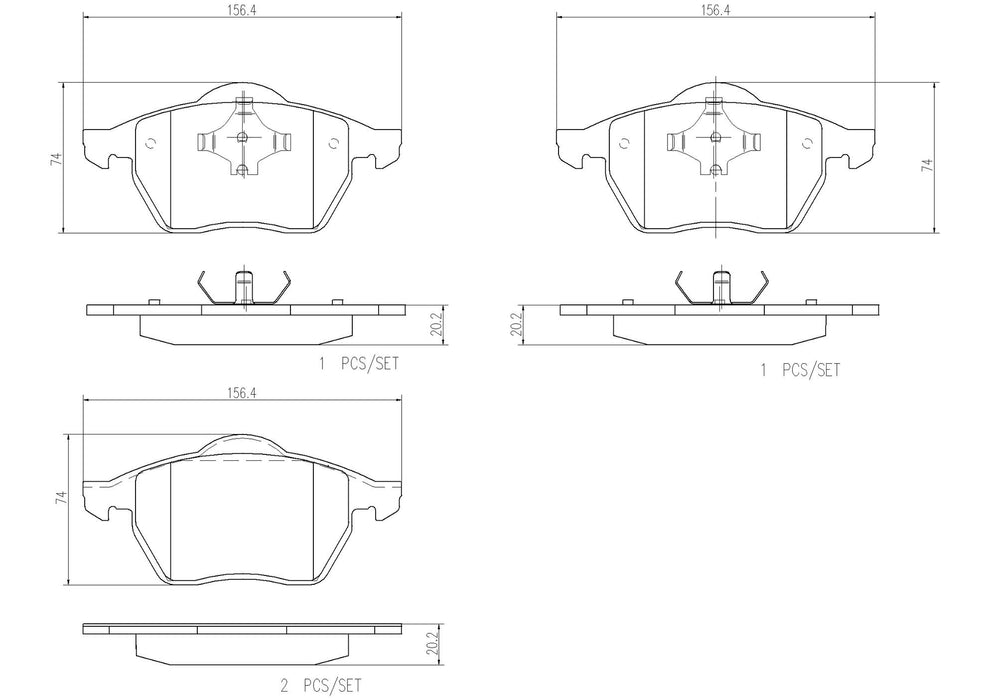

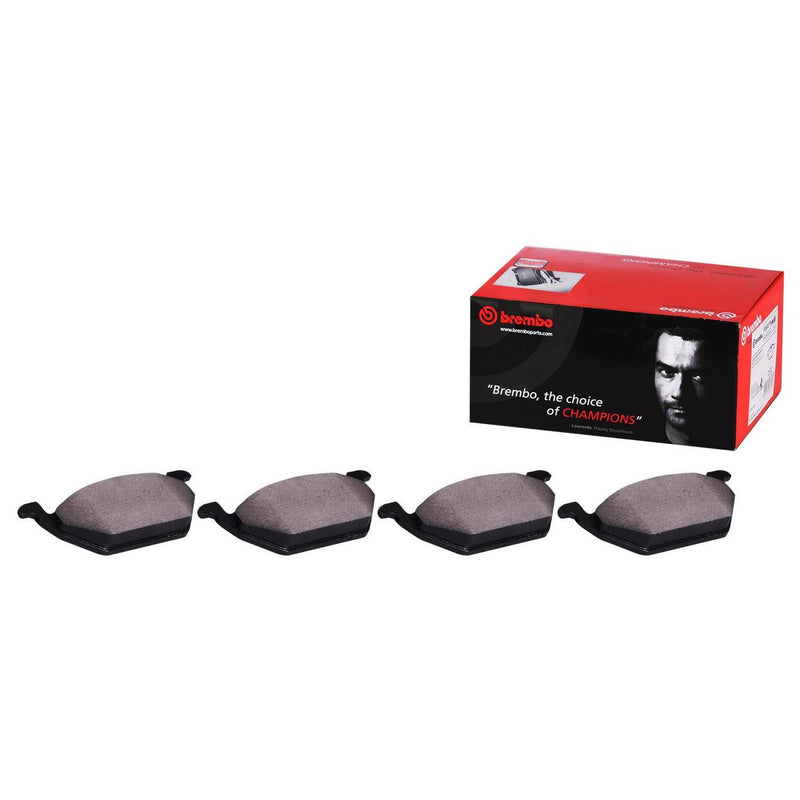

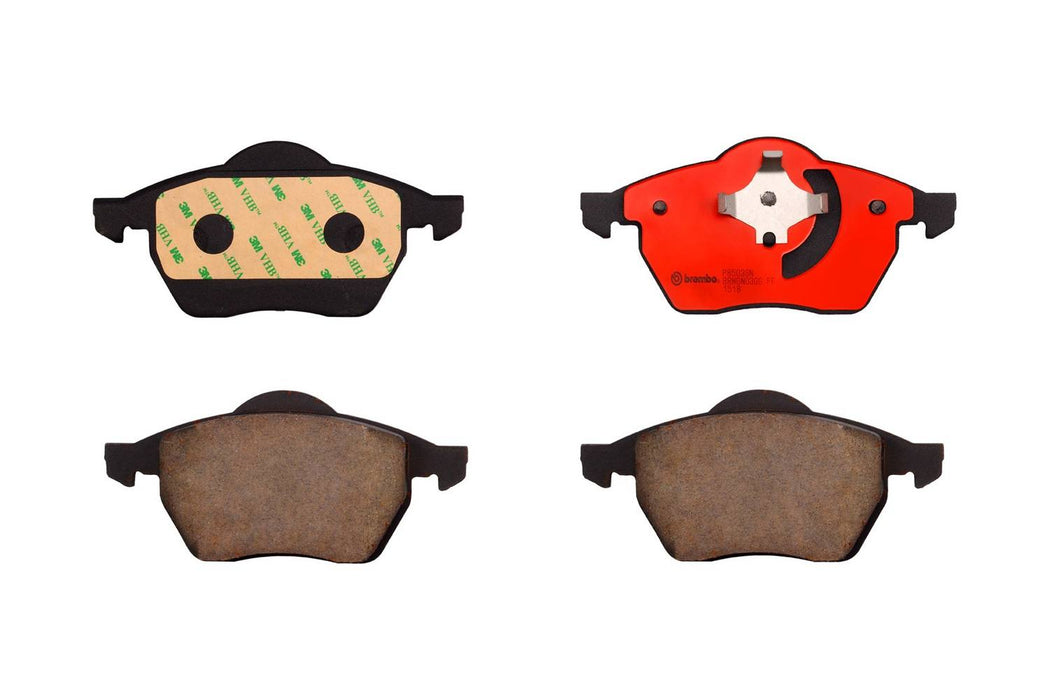

1 x Brembo P85036N Front Disc Brake Pad Set Ceramic

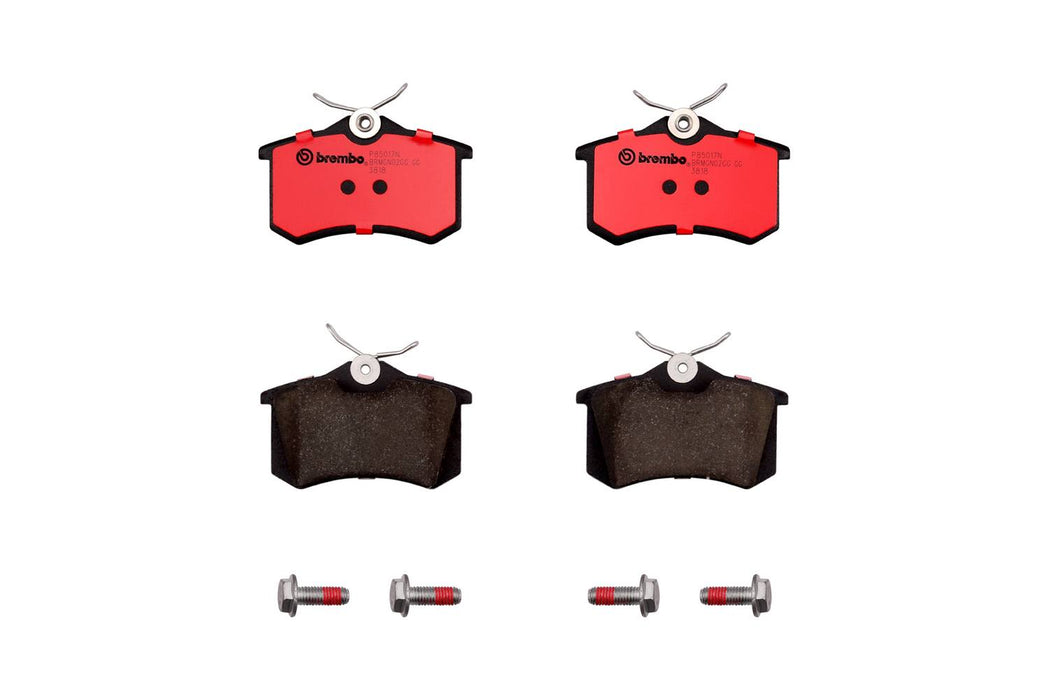

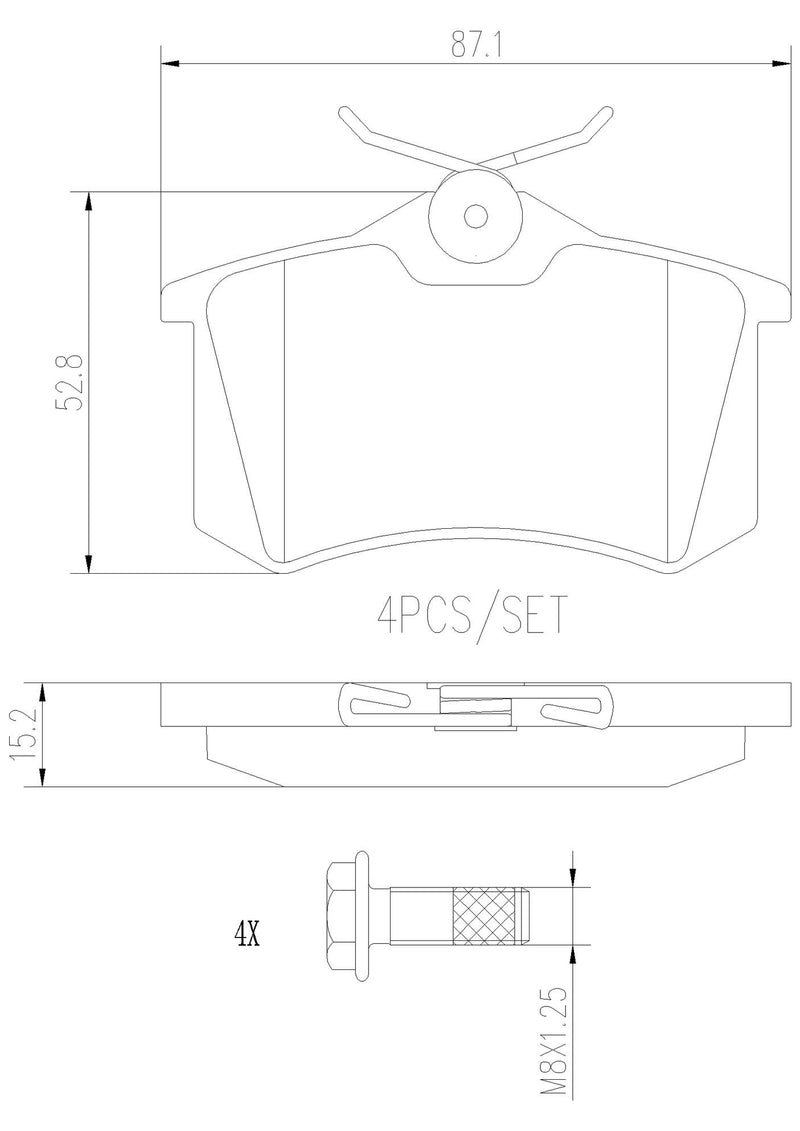

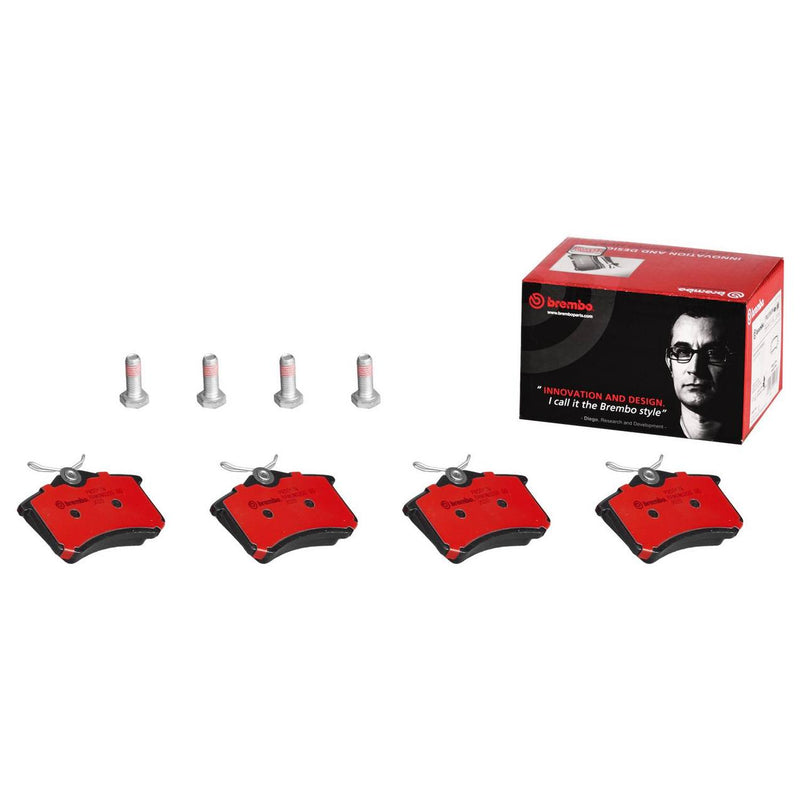

1 x Brembo P85017N Rear Disc Brake Pad Set Ceramic
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Centring Diameter | (Front Rotors) 68 |
| Centring Diameter | (Rear Rotors) 68 |
| Coated | (Rear Rotors) UV Coated |
| Diameter (mm) | (Front Rotors) 282 |
| Diameter (mm) | (Rear Rotors) 245 |
| Features | (Rear Pads) with hardware |
| Friction Material Composition | (Pads) Ceramic |
| Height (mm) | (Front Pads) 74 |
| Height (mm) | (Front Rotors) 46.2 |
| Height (mm) | (Rear Pads) 52.8 |
| Height (mm) | (Rear Rotors) 63.9 |
| Material | (Front Rotors) Grey Cast Iron |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (mm) | (Front Rotors) 23 |
| Minimum Thickness (mm) | (Rear Rotors) 8 |
| Nominal Thickness (mm) | (Front Pads) 20.2 |
| Nominal Thickness (mm) | (Front Rotors) 25 |
| Nominal Thickness (mm) | (Rear Pads) 15.2 |
| Nominal Thickness (mm) | (Rear Rotors) 10 |
| Number Of Holes | (Front Rotors) 5 |
| Number Of Holes | (Rear Rotors) 5 |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered |
| Torque Spec (nm) | (Front Rotors) 120 |
| Torque Spec (nm) | (Rear Rotors) 120 |
| Ventilation Type | (Front Rotors) vented |
| Ventilation Type | (Rear Rotors) solid |
| Width (mm) | (Front Pads) 156.4 |
| Width (mm) | (Rear Pads) 87.1 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 8E0698451D |
| Volkswagen | 8D0698151C |
| Volkswagen | 8E0615301A |
| Audi | 440607960R |
| Volkswagen | 8N0698151 |
| Volkswagen | 4A0615601A |
| Volkswagen | 3A0698151A |
| Audi | 4A0615601A |
| Audi | 8D0698151C |
| Volkswagen | 8E0615301C |
| Audi | 8E0698451L |
| Volkswagen | 8E0615601 |
| Audi | 8D0698151A |
| Audi | 8E0698451E |
| Audi | 8D0698151E |
| Volkswagen | 8D0698151A |
| Audi | 8N0698151 |
| Audi | 440602070R |
| Skoda | 4A0615601A |
