Description

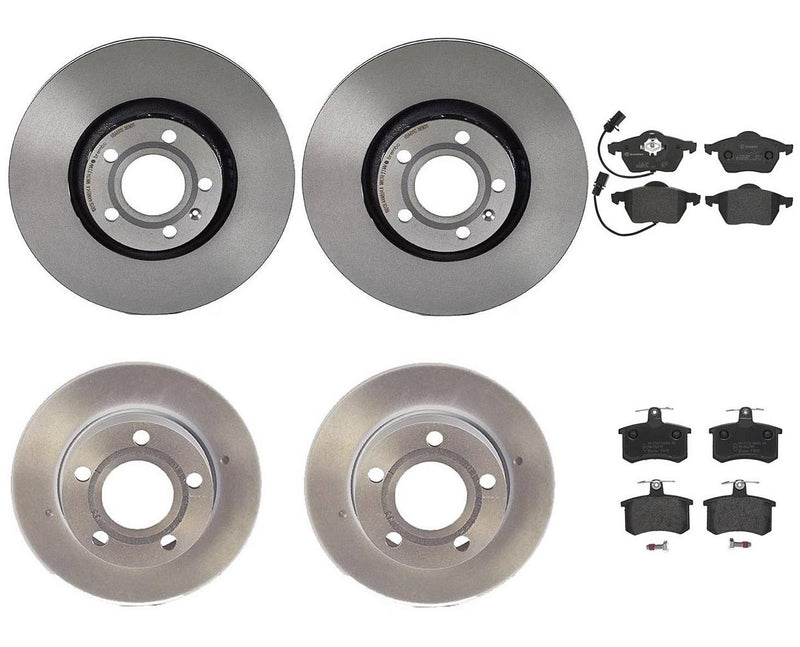

Kit Includes:

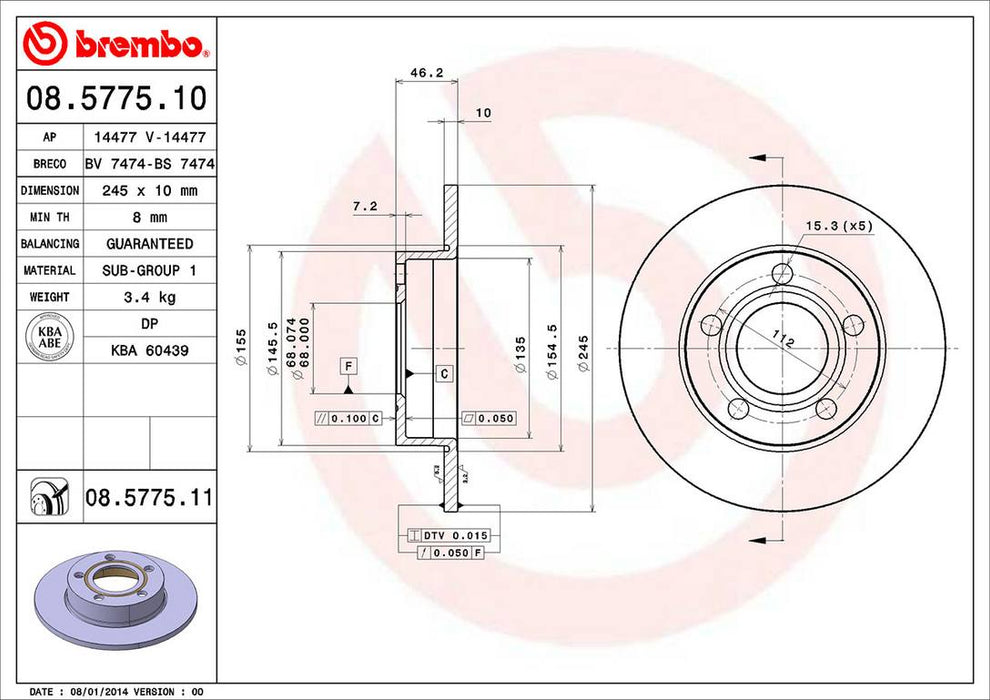

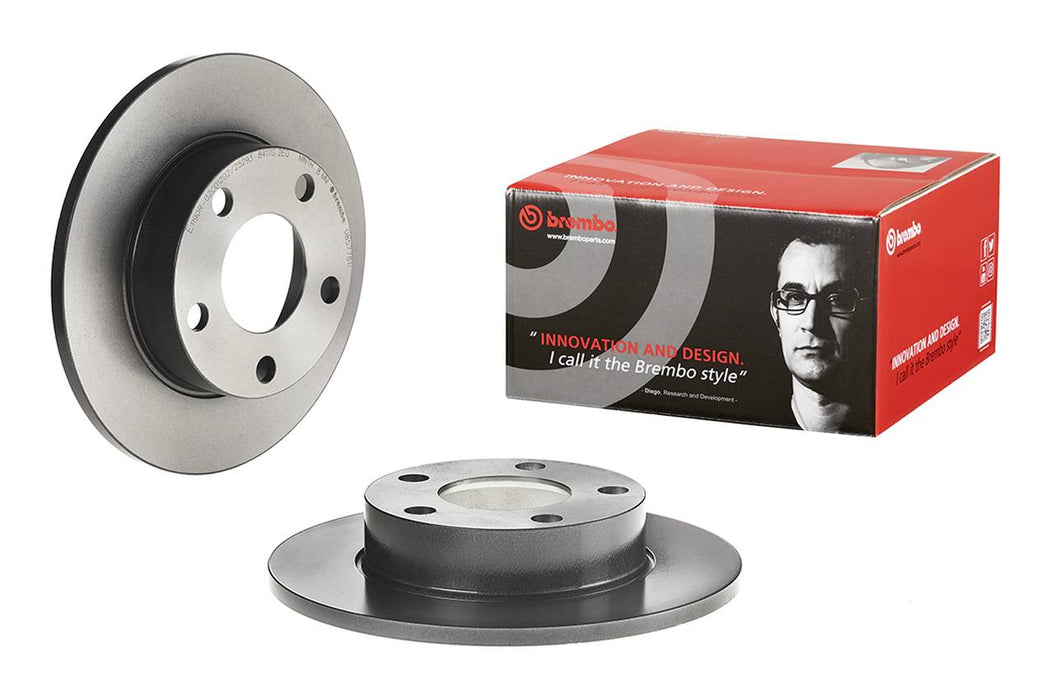

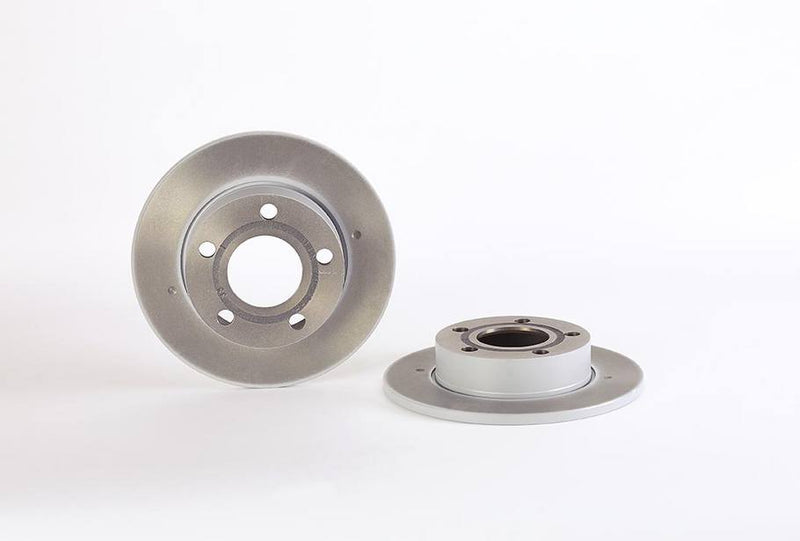

2 x Brembo 08.5775.11 Rear Disc Brake Rotors

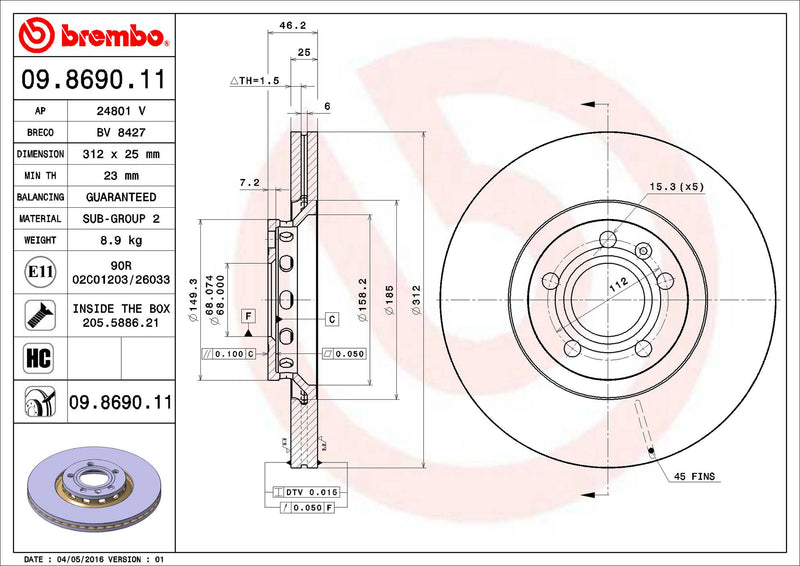

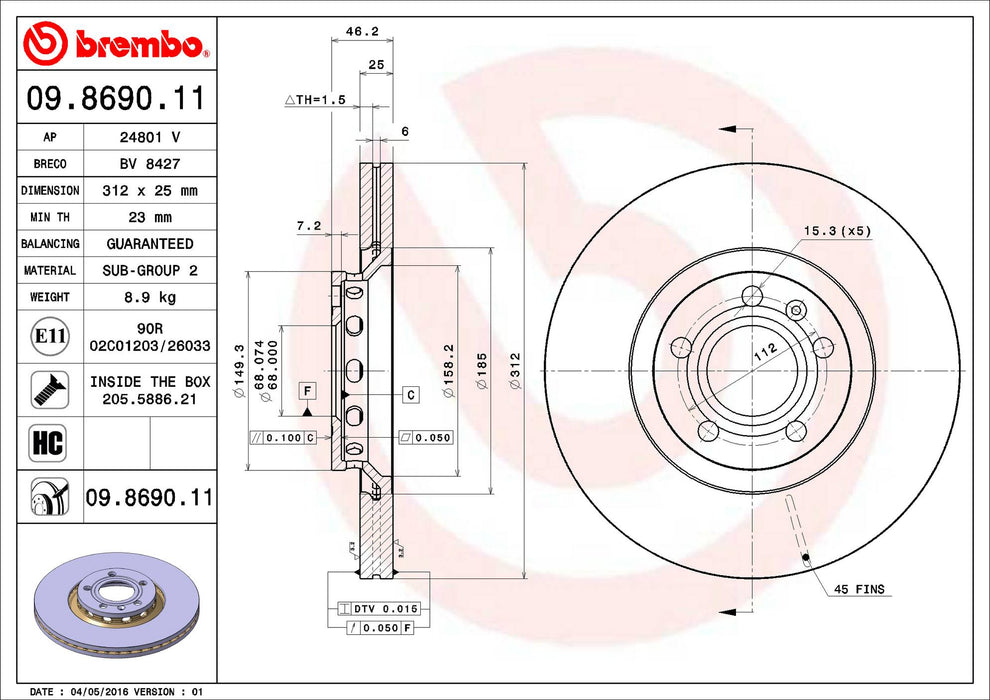

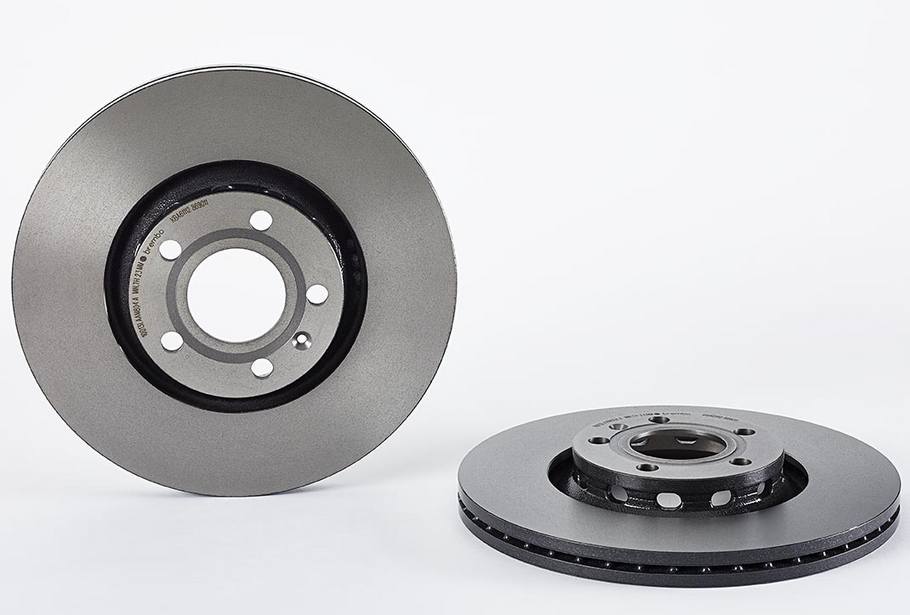

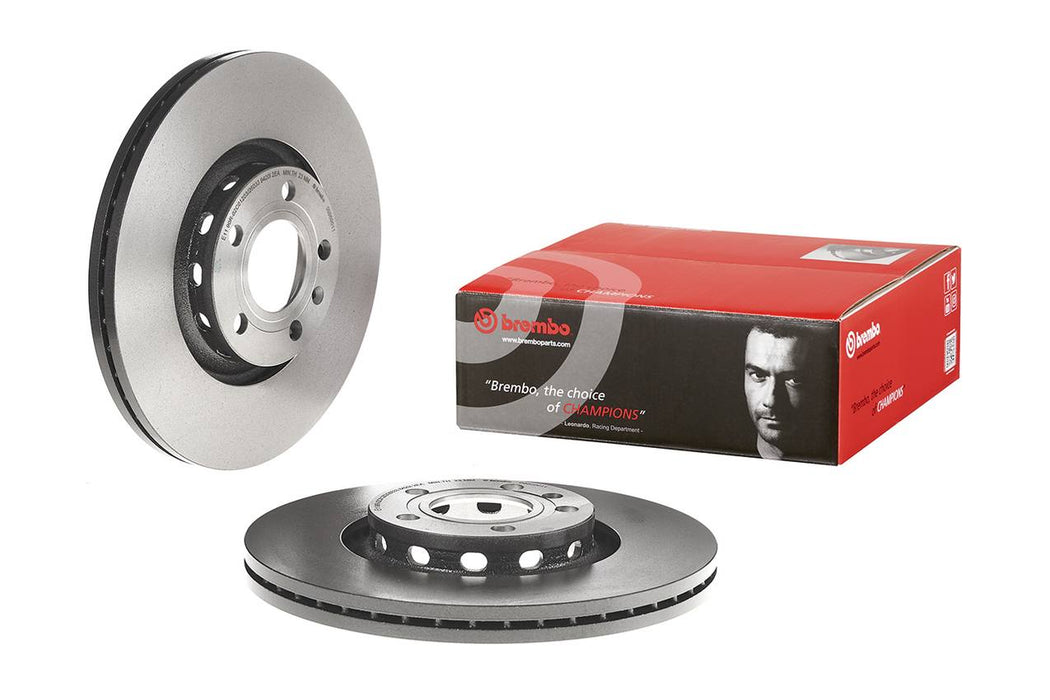

2 x Brembo 09.8690.11 Front Disc Brake Rotors

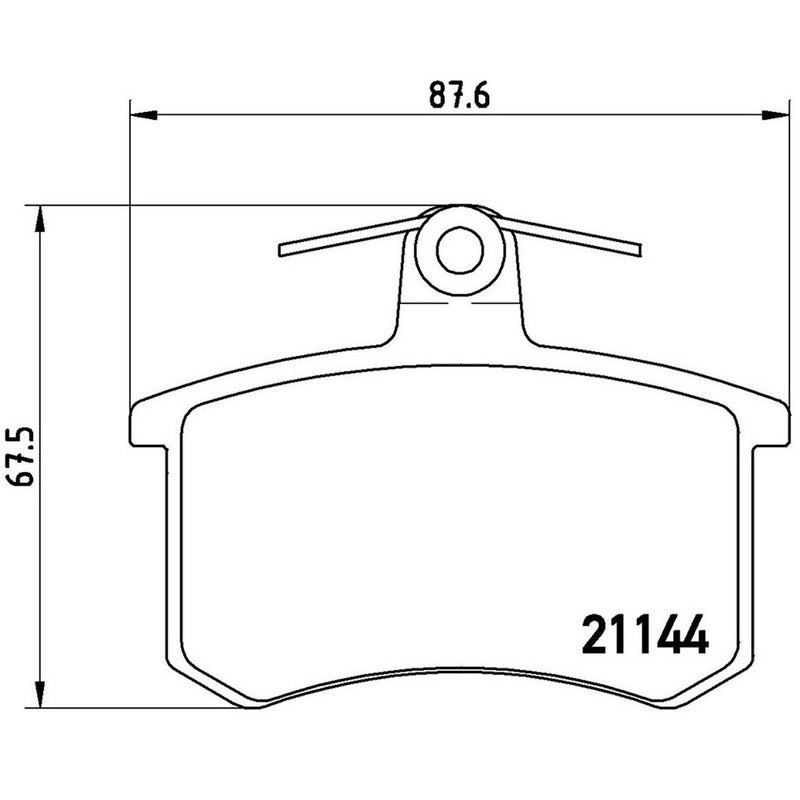

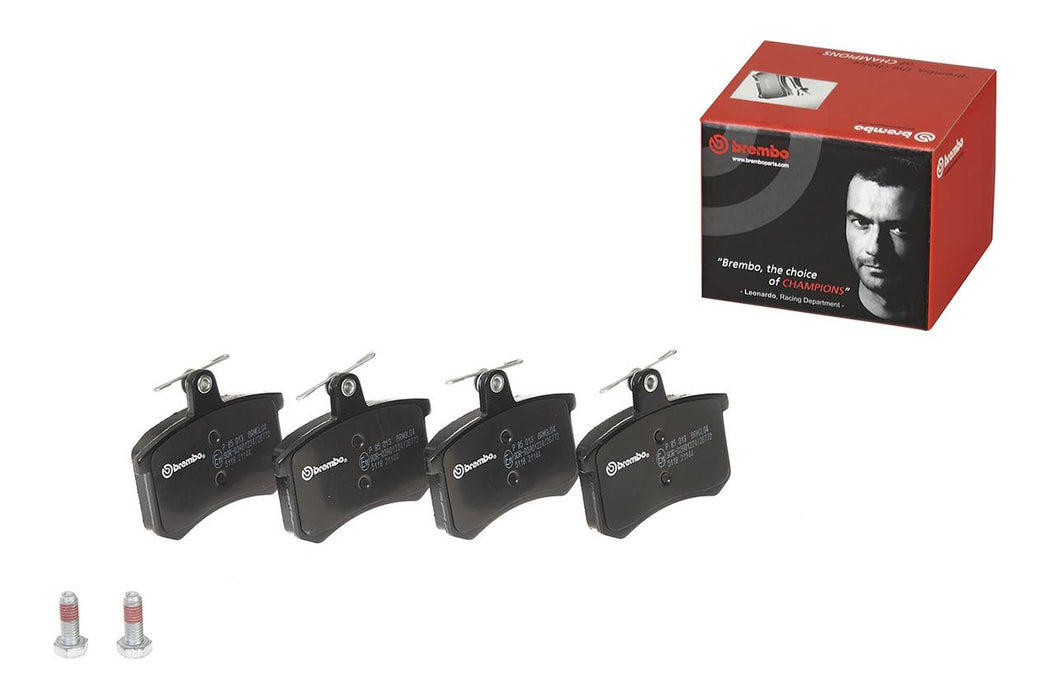

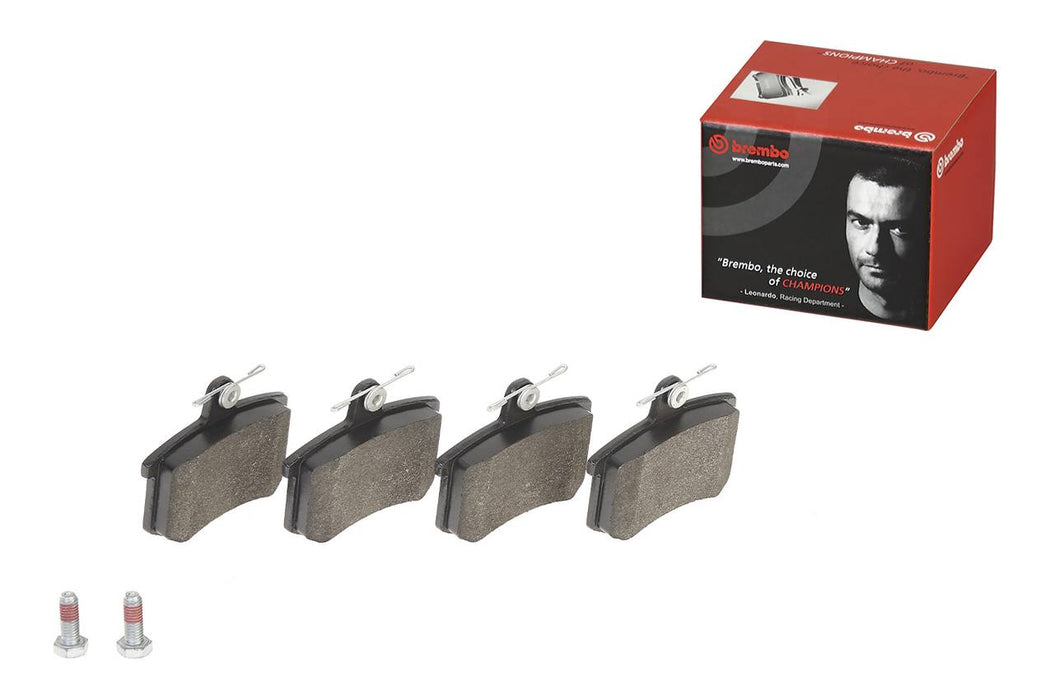

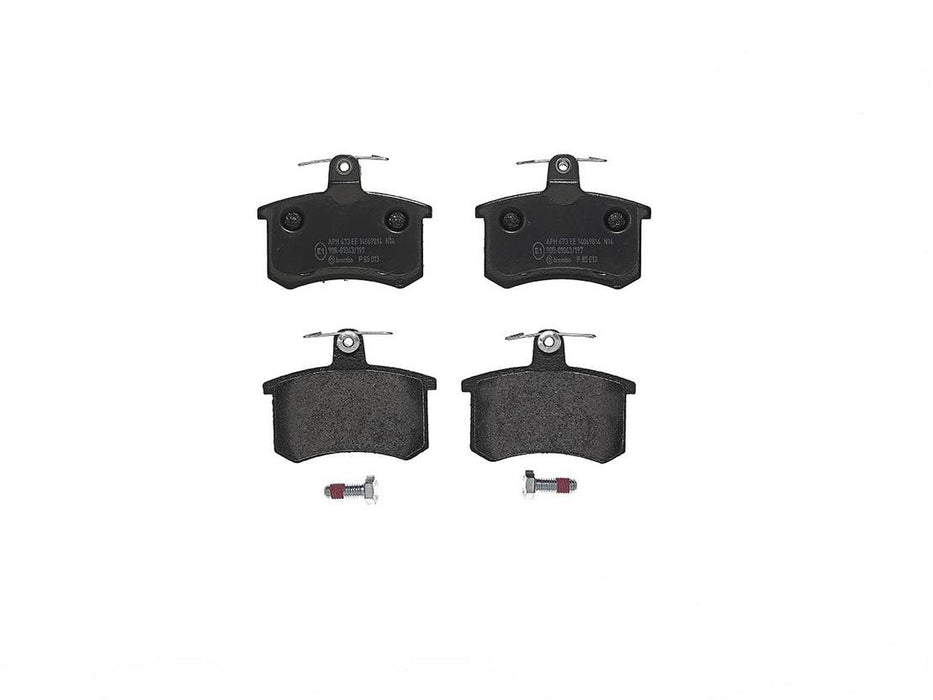

1 x Brembo P85013 Rear Disc Brake Pad Set Low-Met

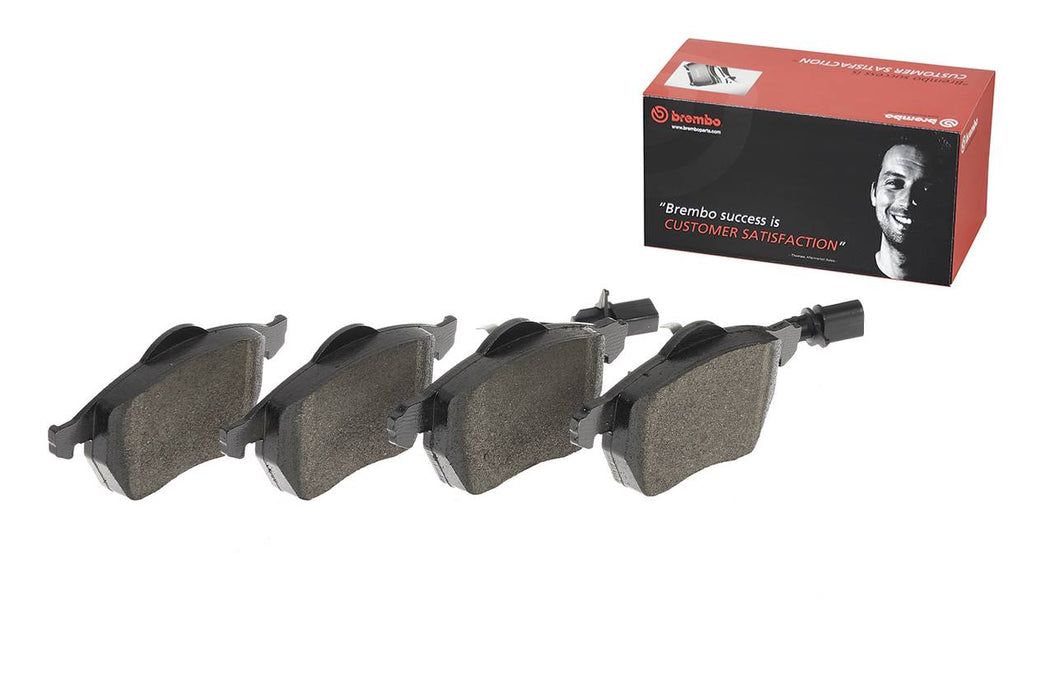

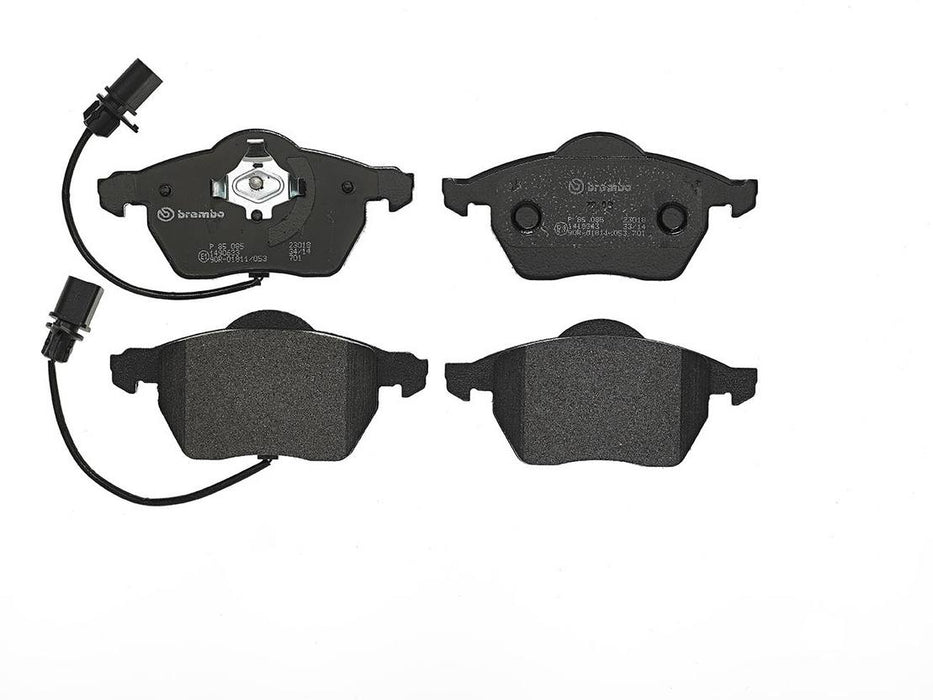

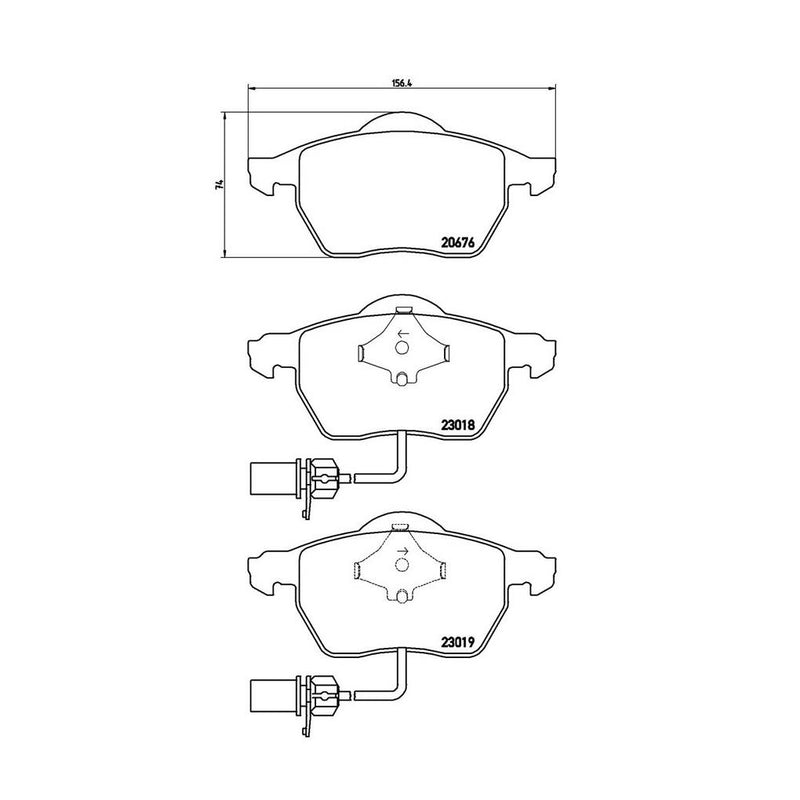

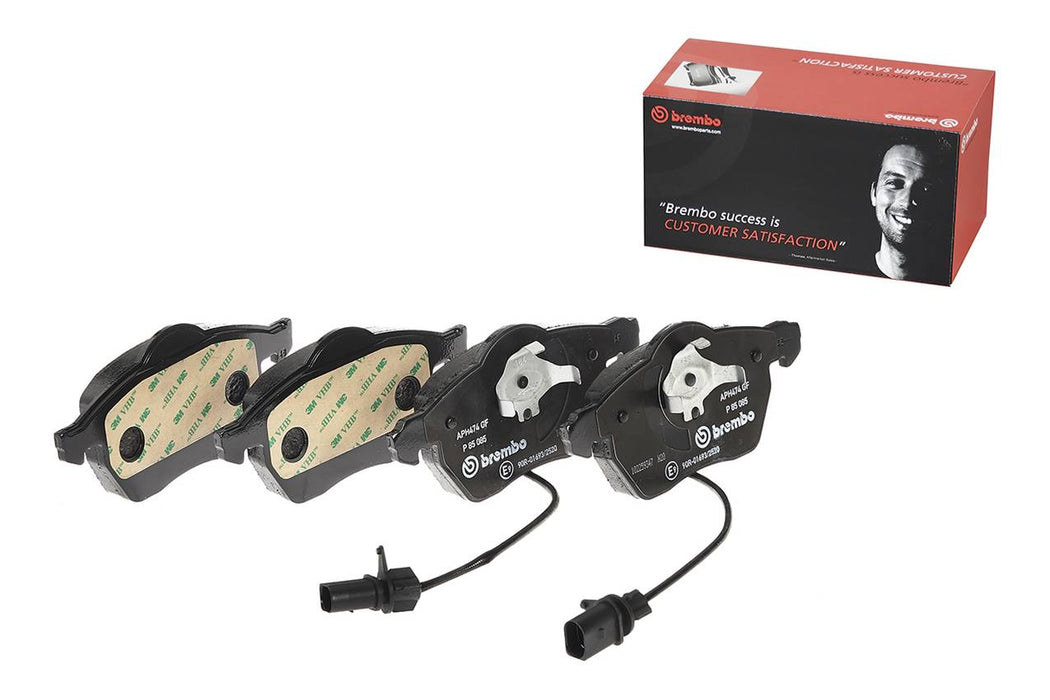

1 x Brembo P85085 Front Disc Brake Pad Set Low-Met
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Centring Diameter | (Front Rotors) 68 |
| Centring Diameter | (Rear Rotors) 68 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter (mm) | (Front Rotors) 312 |
| Diameter (mm) | (Rear Rotors) 245 |
| Features | with hardware |
| Fixing Screws | (Front Rotors) Included |
| Friction Material Composition | (Pads) Low-Met |
| Height (mm) | (Front Pads) 74 |
| Height (mm) | (Front Rotors) 46.2 |
| Height (mm) | (Rear Pads) 67 |
| Height (mm) | (Rear Rotors) 46.2 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (mm) | (Front Rotors) 23 |
| Minimum Thickness (mm) | (Rear Rotors) 8 |
| Nominal Thickness (mm) | (Front Pads) 20.4 / 19.6 |
| Nominal Thickness (mm) | (Front Rotors) 25 |
| Nominal Thickness (mm) | (Rear Pads) 16.6 |
| Nominal Thickness (mm) | (Rear Rotors) 10 |
| Number Of Holes | (Front Rotors) 5 |
| Number Of Holes | (Rear Rotors) 5 |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered |
| Torque Spec (nm) | (Front Rotors) 120 |
| Torque Spec (nm) | (Rear Rotors) 120 |
| Ventilation Type | (Front Rotors) vented |
| Ventilation Type | (Rear Rotors) solid |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (mm) | (Front Pads) 156.3 / 156.4 |
| Width (mm) | (Rear Pads) 87 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 82444382 |
| Audi | 8D0615301J |
| Audi | 9941873 |
| Volkswagen | 4B0698151J |
| Volkswagen | 4B0698151AF |
| Audi | 4B0698151AF |
| Audi | 4B0698151E |
| Audi | 8E0615301R |
| Audi | 9939503 |
| Audi | 9945750 |
| Audi | 443615601B |
| Audi | 431698451 |
| Skoda | 4B0615301A |
| Audi | 9945629 |
| Audi | 443698451A |
| Audi | 4B0615301A |
| Audi | 4B0698151K |
| Audi | 4D0698451B |
| Audi | 443698451C |
| Audi | 5892650 |
| Audi | 443698451B |
| Skoda | 8E0615301R |
| Audi | 4B0698151AB |
| Volkswagen | 4B0698151K |
| Volkswagen | 4B0698151N |
| Audi | 3B0615301B |
| Audi | 437698451 |
| Audi | 82444381 |
| Skoda | 8D0615301J |
| Audi | 4D0698151J |
