Description

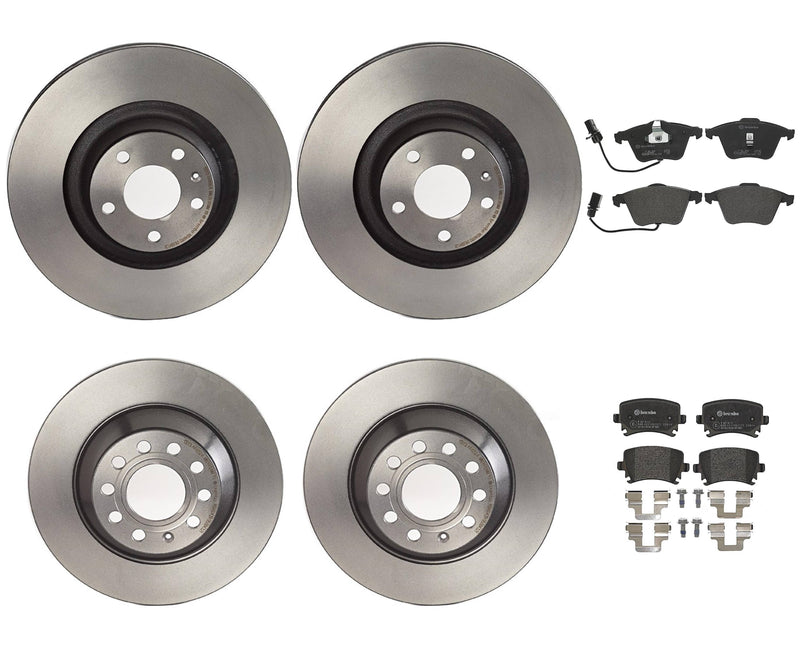

Kit Includes:

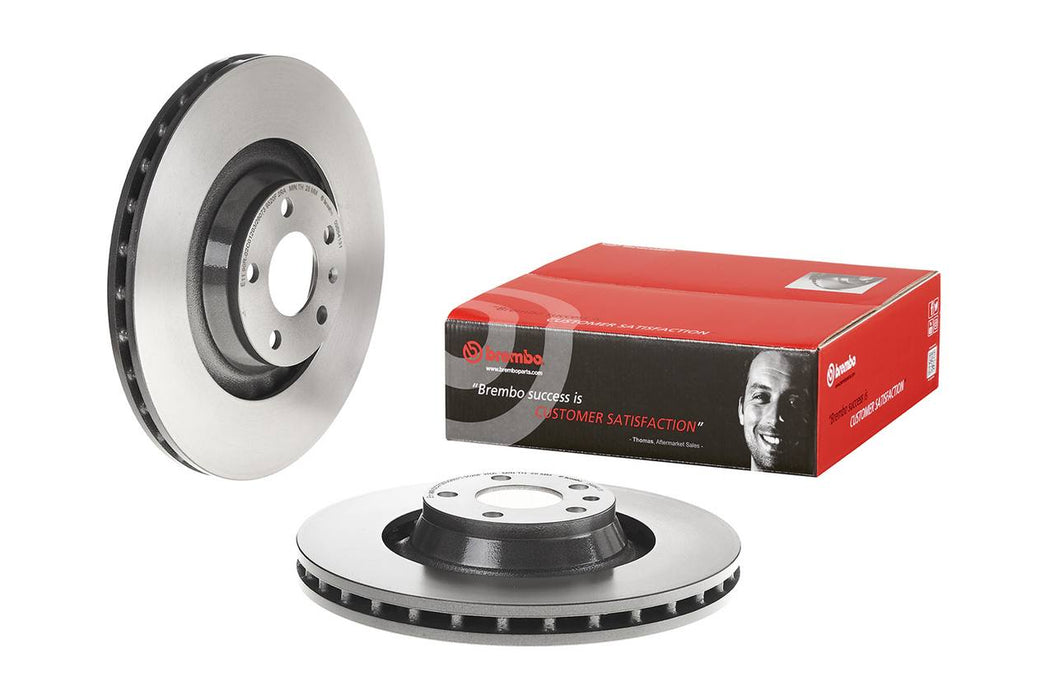

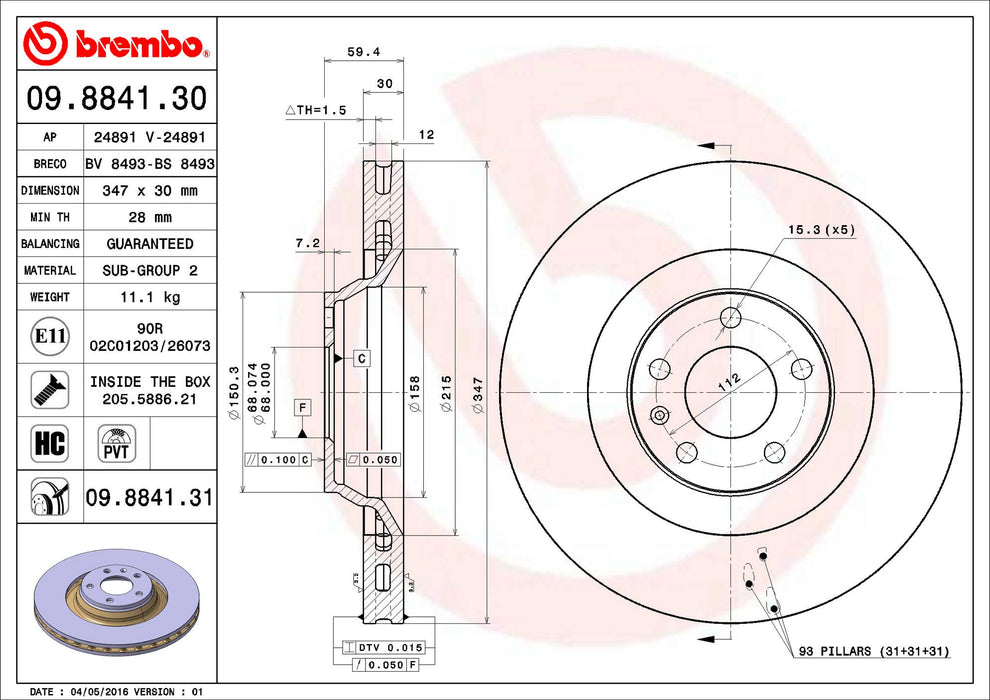

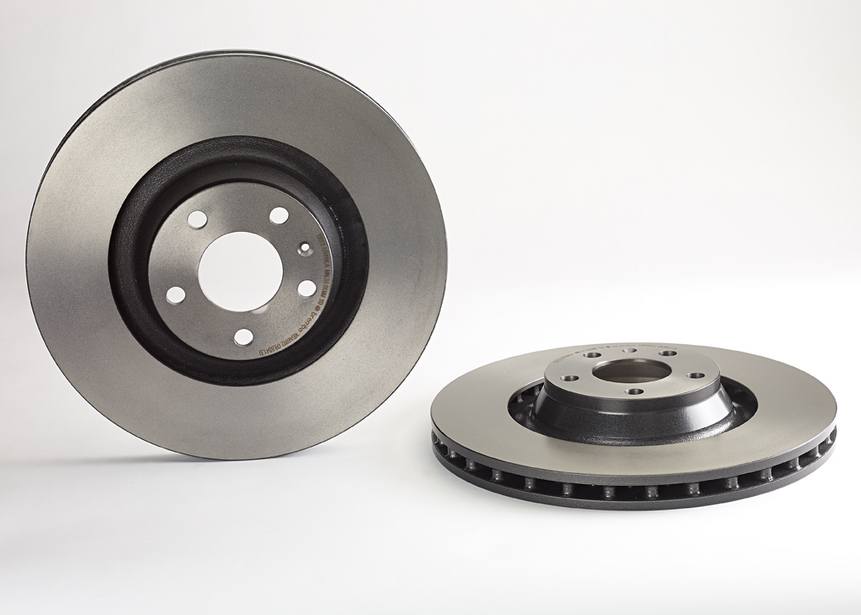

2 x Brembo 09.8841.31 Front Disc Brake Rotors

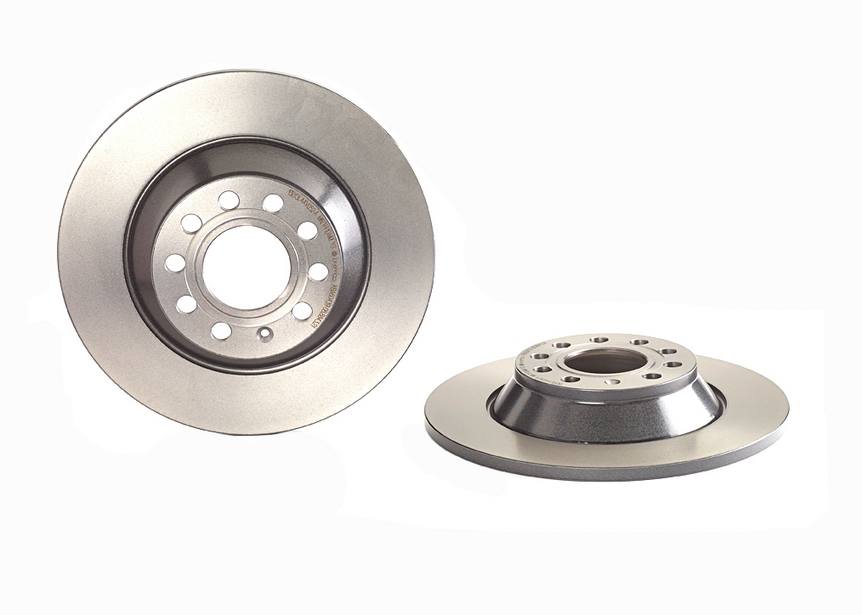

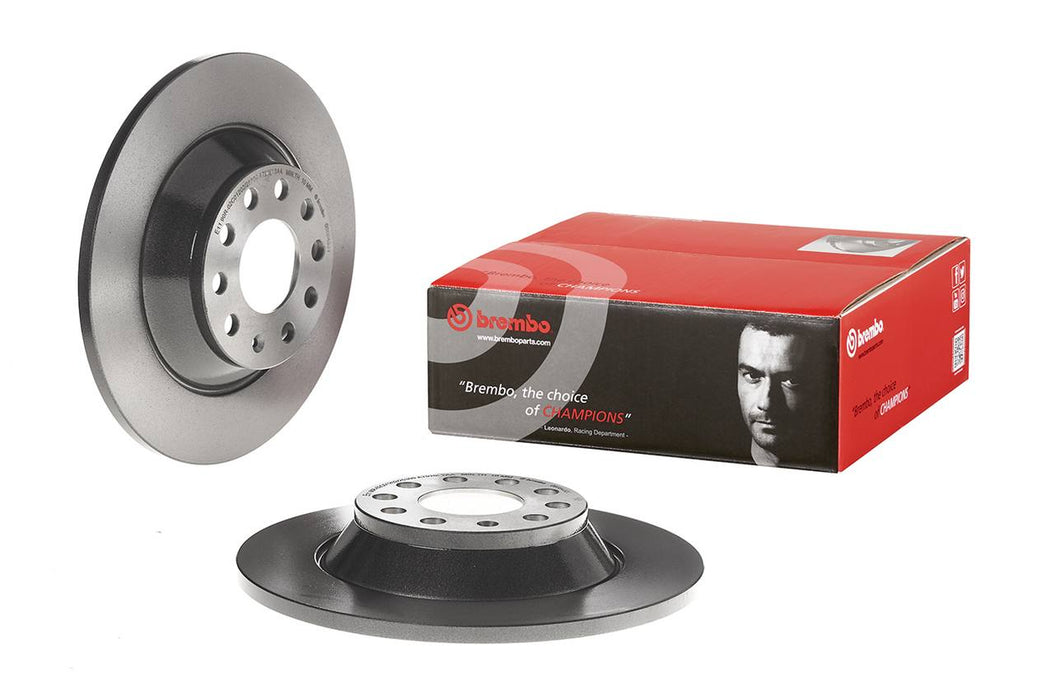

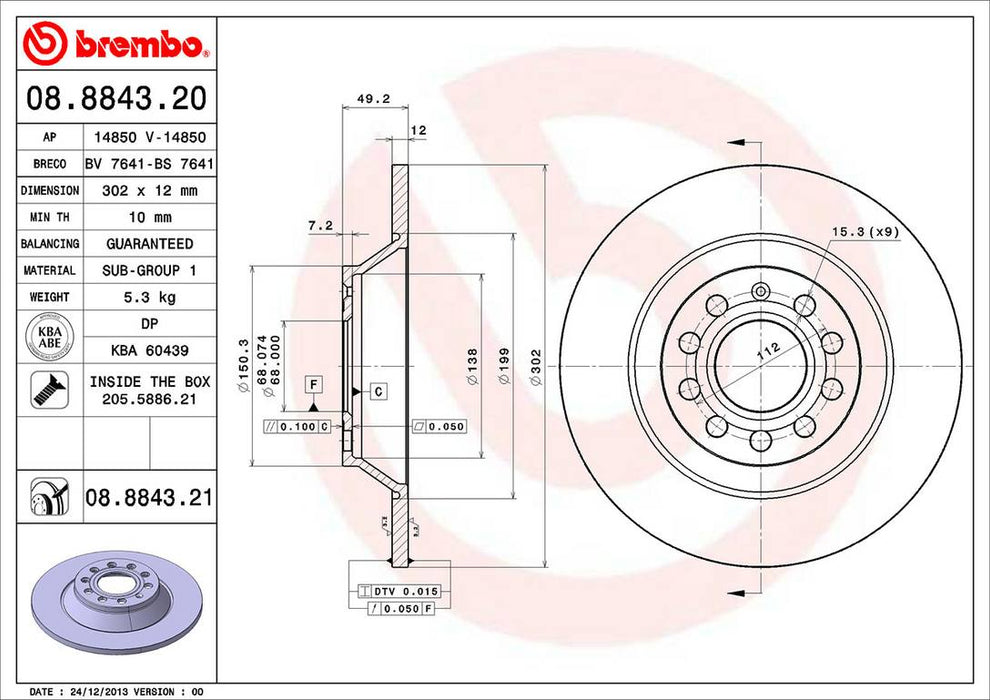

2 x Brembo 08.8843.21 Rear Disc Brake Rotors

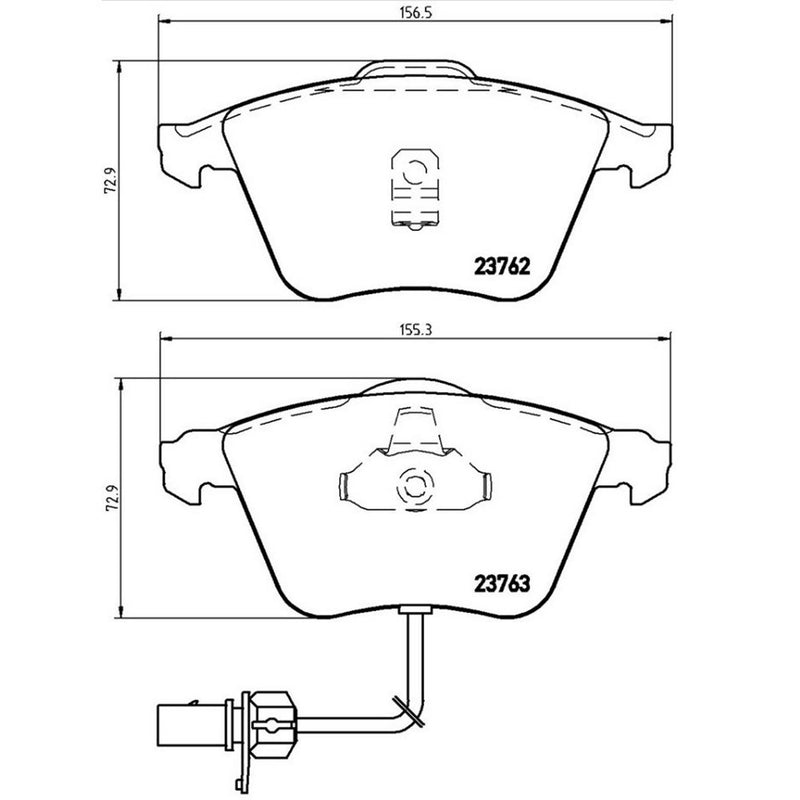

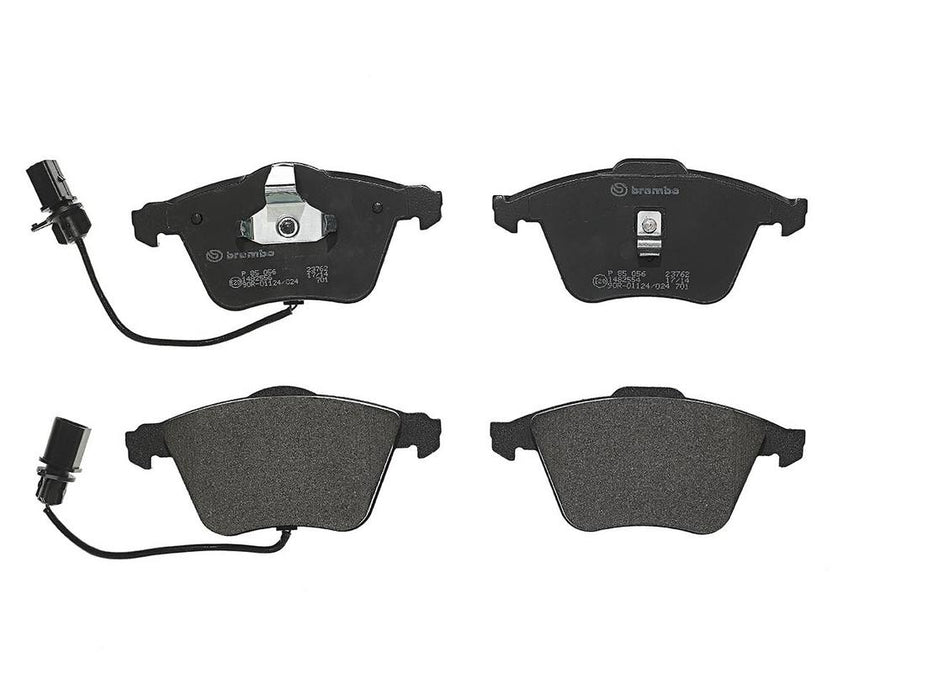

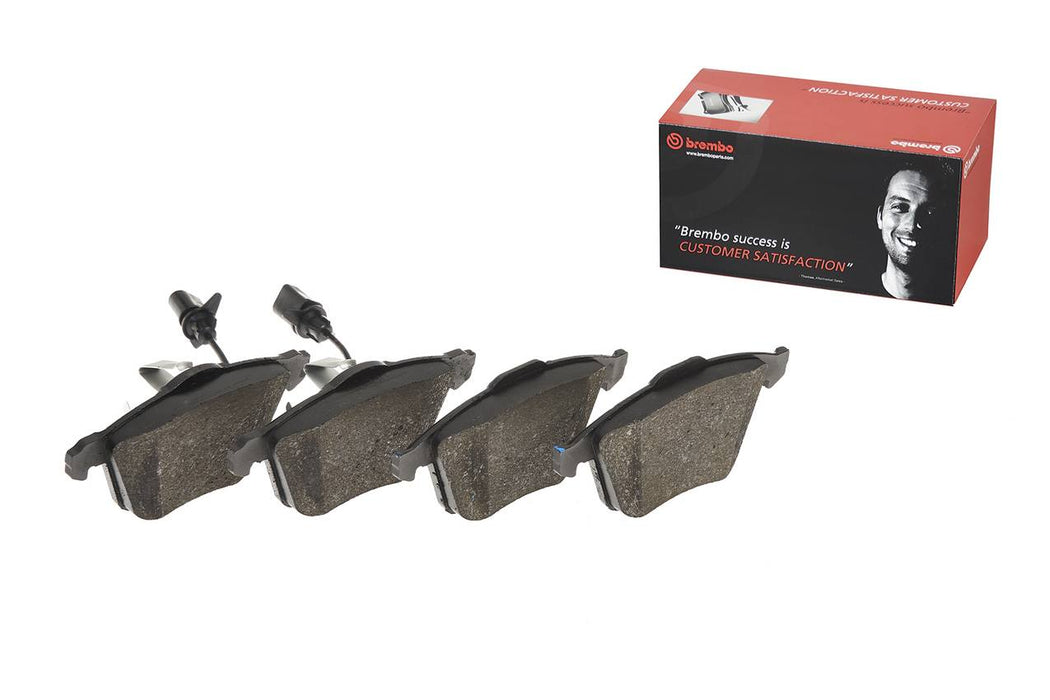

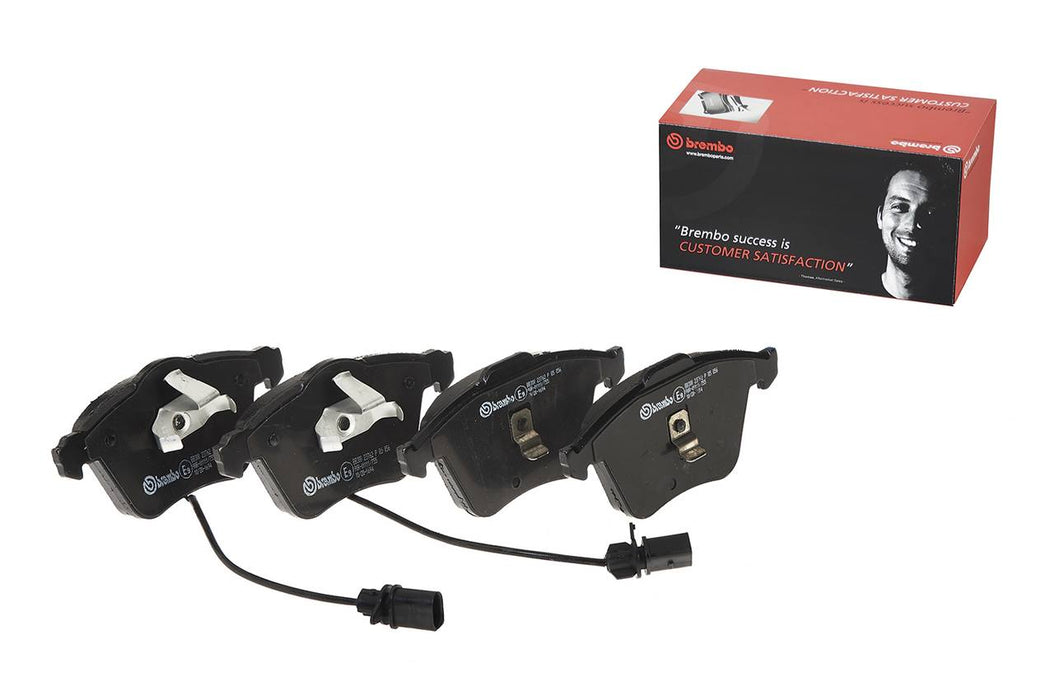

1 x Brembo P85056 Front Disc Brake Pad Set Low-Met

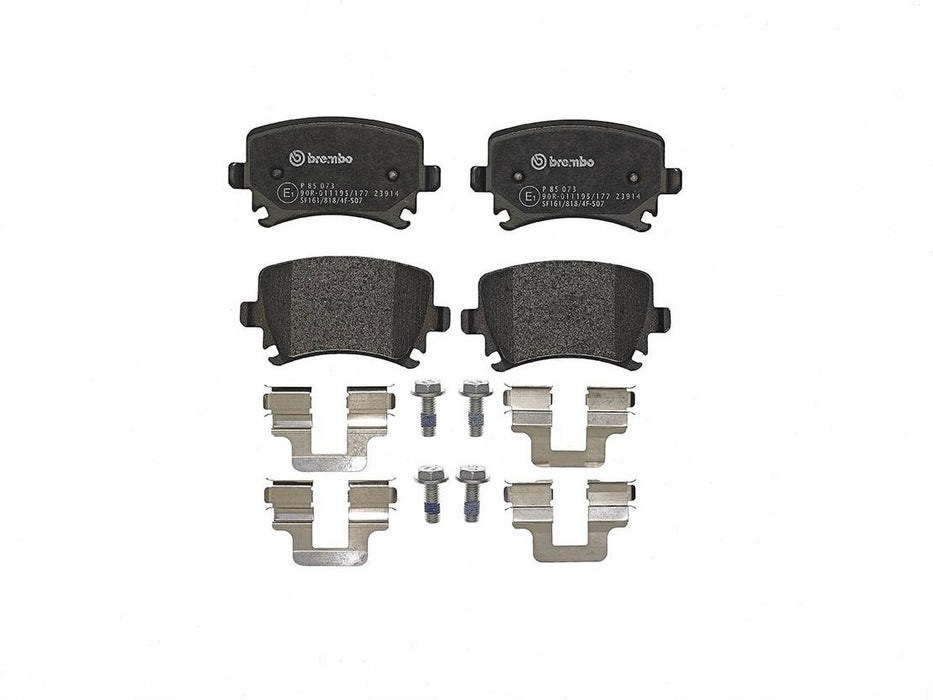

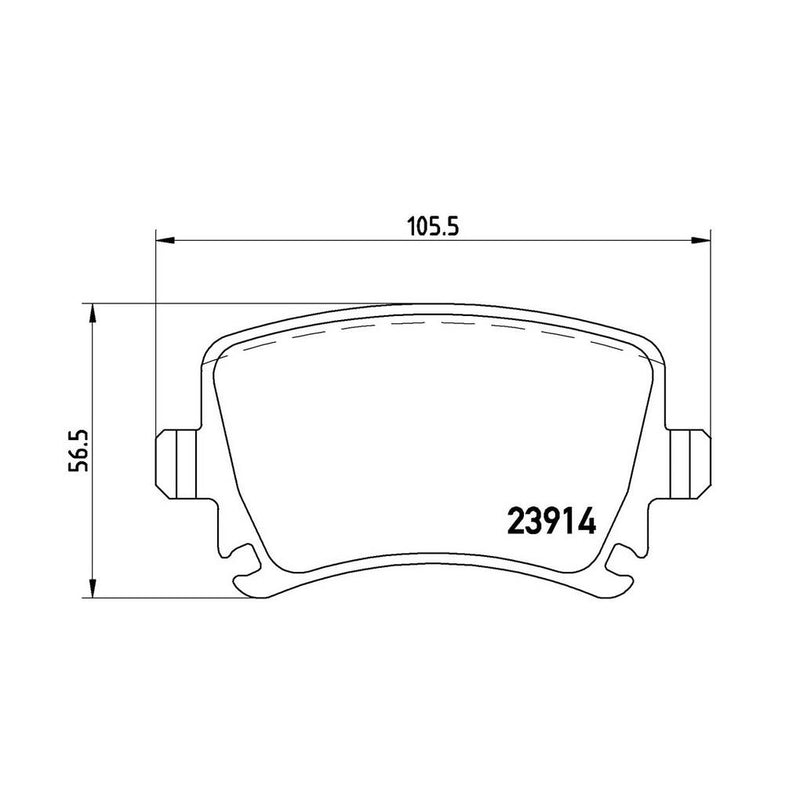

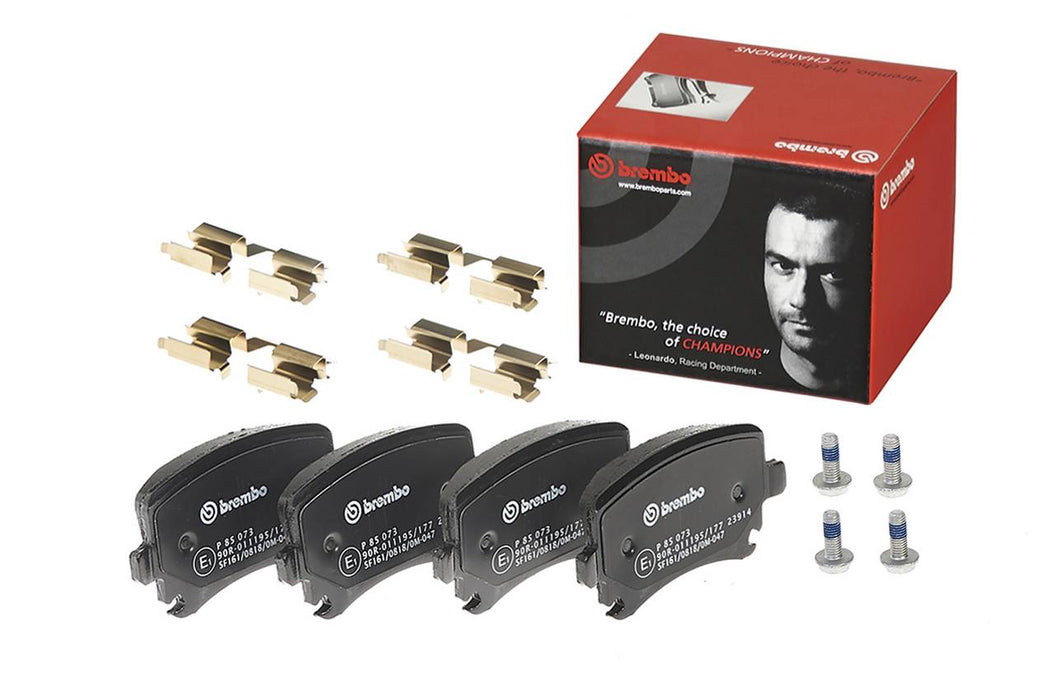

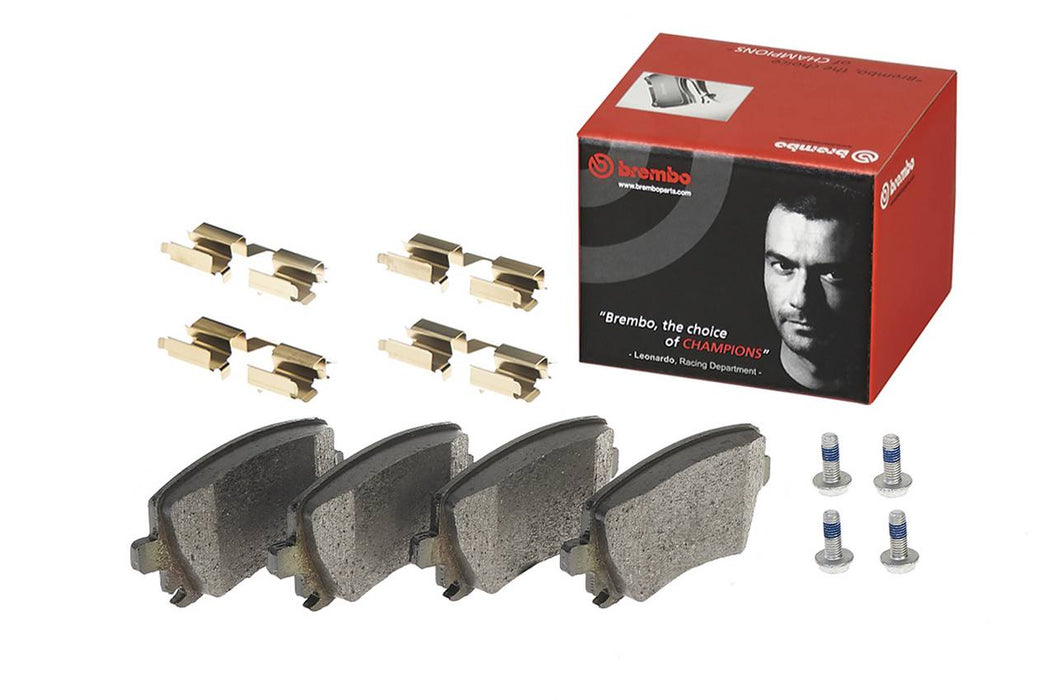

1 x Brembo P85073 Rear Disc Brake Pad Set Low-Met
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Centring Diameter | (Front Rotors) 68 |
| Centring Diameter | (Rear Rotors) 68 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter (mm) | (Front Rotors) 347 |
| Diameter (mm) | (Rear Rotors) 302 |
| Features | (Rear Pads) with hardware |
| Fixing Screws | (Front Rotors) Included |
| Fixing Screws | (Rear Rotors) Included |
| Friction Material Composition | (Pads) Low-Met |
| Height (mm) | (Front Pads) 72.8 |
| Height (mm) | (Front Rotors) 59.4 |
| Height (mm) | (Rear Pads) 56 |
| Height (mm) | (Rear Rotors) 49.2 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (mm) | (Front Rotors) 28 |
| Minimum Thickness (mm) | (Rear Rotors) 10 |
| Nominal Thickness (mm) | (Front Pads) 20.1 |
| Nominal Thickness (mm) | (Front Rotors) 30 |
| Nominal Thickness (mm) | (Rear Pads) 17.2 |
| Nominal Thickness (mm) | (Rear Rotors) 12 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered |
| Torque Spec (Nm) | (Front Rotors) 120 |
| Torque Spec (Nm) | (Rear Rotors) 120 |
| Ventilation Type | (Front Rotors) PVT |
| Ventilation Type | (Rear Rotors) solid |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Wear Indicator | (Rear Pads) prepared for wear indicator |
| Width (mm) | (Front Pads) 155.1 / 156.4 |
| Width (mm) | (Rear Pads) 105.3 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Volkswagen | 3C0698451C |
| Volkswagen | 1K0698451K |
| Audi | 4B0698151AD |
| Volkswagen | 3C0698451F |
| Audi | 4B0698151R |
| Volkswagen | 3AA698451 |
| Audi | 4F0615301G |
| Volkswagen | 3C0698451A |
| Audi | 8E0698151C |
| Volkswagen | 1K0698451E |
| Audi | 8E0698451J |
| Audi | 3AA698451 |
| Volkswagen | 3C0698451 |
| Volkswagen | 5N0698451 |
| Audi | 4F0615601E |
| Audi | 4F0698151A |
| Audi | 8E0698451M |
| Volkswagen | 3C0698451B |
| Audi | 1K0698451G |
| Audi | 4B0698151AC |
| Volkswagen | 1K0698451H |
| Volkswagen | 3C0698451D |
| Audi | 3AA698451A |
| Audi | 4F0698451A |
| Volkswagen | 1K0698451G |
| Volkswagen | 1K0698451F |
| Audi | 1K0698151B |
| Volkswagen | 3C0698451E |
| Audi | 1K0698451K |
| Audi | 1K0698451D |
| Audi | 8E0698451F |
| Volkswagen | 3AA698451A |
| Audi | 4F0698451D |
