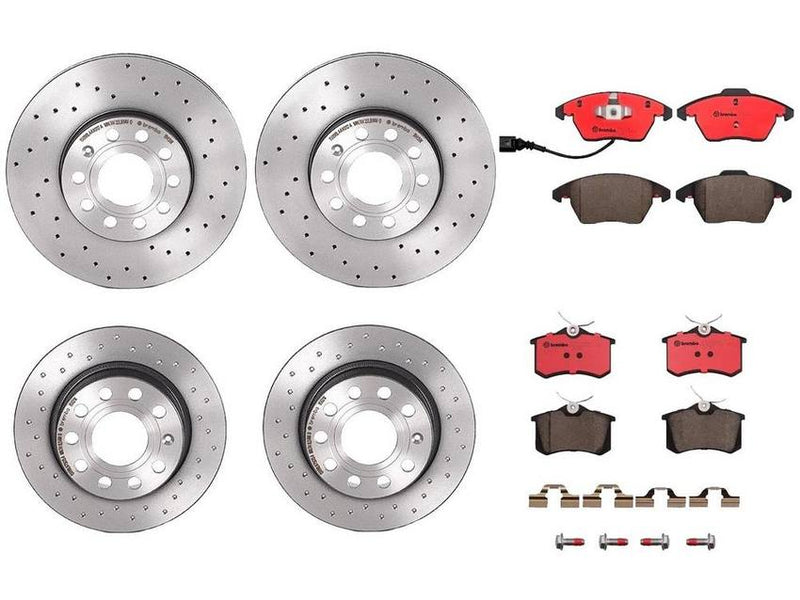

Kit Includes:

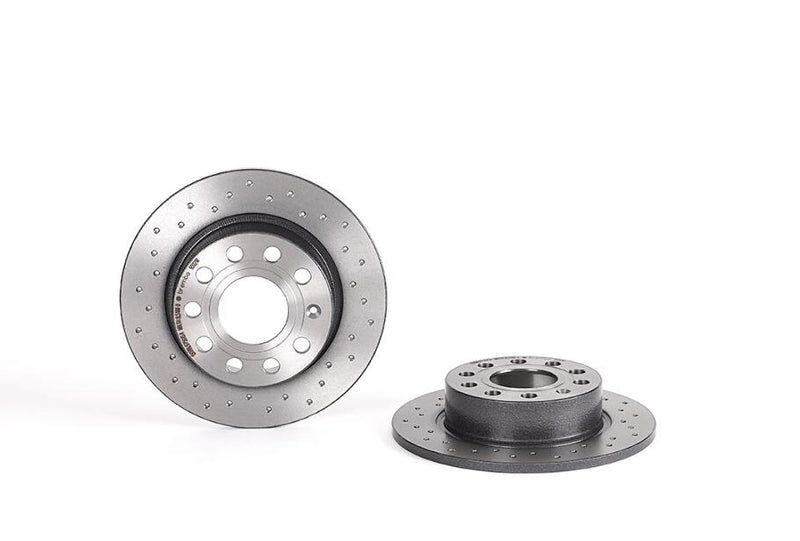

2 x Brembo 08.9502.1X Rear Disc Brake Rotors Drilled Xtra

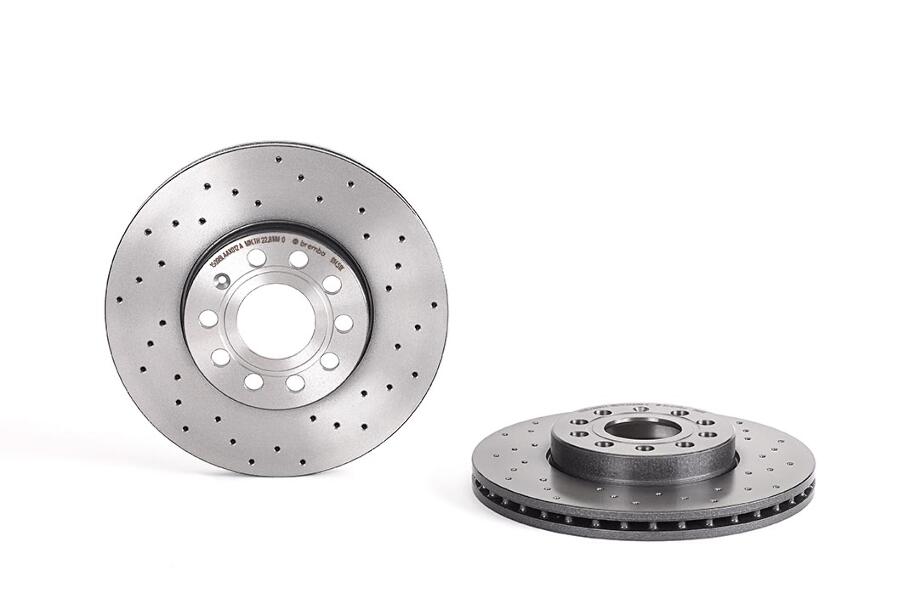

2 x Brembo 09.9145.1X Front Disc Brake Rotors Drilled Xtra
1 x Brembo P85075N Front Disc Brake Pad Set Ceramic
1 x Brembo P85020N Rear Disc Brake Pad Set Ceramic
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Centring Diameter | (Front Rotors) 65 |
| Centring Diameter | (Rear Rotors) 65 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter (mm) | (Front Rotors) 288 |
| Diameter (mm) | (Rear Rotors) 255 |
| Features | (Rear Pads) with hardware |
| Fixing Screws | (Front Rotors) Included |
| Fixing Screws | (Rear Rotors) Included |
| Friction Material Composition | (Pads) Ceramic |
| Height (mm) | (Front Pads) 66 / 71.5 |
| Height (mm) | (Front Rotors) 49.5 |
| Height (mm) | (Rear Pads) 52.8 |
| Height (mm) | (Rear Rotors) 51.3 |
| Material | (Front Rotors) Grey Cast Iron |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (mm) | (Front Rotors) 22.5 |
| Minimum Thickness (mm) | (Rear Rotors) 8.5 |
| Nominal Thickness (mm) | (Front Pads) 20.1 |
| Nominal Thickness (mm) | (Front Rotors) 25 |
| Nominal Thickness (mm) | (Rear Pads) 17.2 |
| Nominal Thickness (mm) | (Rear Rotors) 10 |
| Number Of Holes | (Front Rotors) 5 |
| Number Of Holes | (Rear Rotors) 5 |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered |
| Surface Type | (Rotors) Drilled |
| Torque Spec (nm) | (Front Rotors) 120 |
| Torque Spec (nm) | (Rear Rotors) 120 |
| Ventilation Type | (Front Rotors) vented |
| Ventilation Type | (Rear Rotors) solid |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (mm) | (Front Pads) 155.2 / 156.5 |
| Width (mm) | (Rear Pads) 87 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1J0698451D |
| Audi | 1J0698451E |
| Audi | 1J0698451J |
| Audi | 1J0698451L |
| Audi | 1J0698451N |
| Audi | 1J0698451P |
| Audi | 1K0615301K |
| Audi | 1K0615301T |
| Audi | 1K0615601AB |
| Audi | 1K0615601K |
| Audi | 1K0698151E |
| Audi | 1K0698451J |
| Audi | 3B0698451 |
| Audi | 3C0698151A |
| Audi | 3C0698151D |
| Audi | 4B0698451 |
| Audi | 4B0698451B |
| Audi | 4B0698451C |
| Audi | 4B0698451E |
| Audi | 4D0698151C |
| Audi | 4D0698451C |
| Audi | 5C0615301A |
| Audi | 5C0615301D |
| Audi | 5K0298451B |
| Audi | 5K0698151 |
| Audi | 5Q0615301H |
| Audi | 5Q0615601F |
| Audi | 5Q0698451C |
| Audi | 5Q0698451N |
| Audi | 6C0698451A |
| Audi | 8E0698451 |
| Audi | 8E0698451A |
| Audi | 8E0698451B |
| Audi | 8J0698151 |
| Audi | 8J0698151C |
| Seat | 1K0615301K |
| Seat | 1K0615301T |
| Skoda | 1K0615301K |
| Skoda | 1K0615301T |
| Volkswagen | 1E0698451 |
| Volkswagen | 1E0698451B |
| Volkswagen | 1E0698451C |
| Volkswagen | 1E0698451E |
| Volkswagen | 1E0698451G |
| Volkswagen | 1H0690451 |
| Volkswagen | 1H0690451A |
| Volkswagen | 1H0698451 |
| Volkswagen | 1H0698451A |
| Volkswagen | 1H0698451C |
| Volkswagen | 1H0698451D |
| Volkswagen | 1H0698451G |
| Volkswagen | 1J0698451 |
| Volkswagen | 1J0698451A |
| Volkswagen | 1J0698451B |
| Volkswagen | 1J0698451C |
| Volkswagen | 1J0698451D |
| Volkswagen | 1J0698451E |
| Volkswagen | 1J0698451F |
| Volkswagen | 1J0698451G |
| Volkswagen | 1J0698451J |
| Volkswagen | 1J0698451K |
| Volkswagen | 1J0698451P |
| Volkswagen | 1J0698451R |
| Volkswagen | 1K0615301T |
| Volkswagen | 1K0615601AB |
| Volkswagen | 1K0615601K |
| Volkswagen | 1K0698451J |
| Volkswagen | 3B0698451 |
| Volkswagen | 3C0698151A |
| Volkswagen | 3C0698151C |
| Volkswagen | 3C0698151J |
| Volkswagen | 425056 |
| Volkswagen | 4B0698451A |
| Volkswagen | 4B0698451B |
| Volkswagen | 4B0698451E |
| Volkswagen | 5C0615301A |
| Volkswagen | 5C0615301D |
| Volkswagen | 5C0615601 |
| Volkswagen | 5C0615601A |
| Volkswagen | 5C0698151A |
| Volkswagen | 5K0298451B |
| Volkswagen | 5K0698151 |
| Volkswagen | 5Q0615301H |
| Volkswagen | 5Q0615601F |
| Volkswagen | 5Q0698451C |
| Volkswagen | 5Q0698451E |
| Volkswagen | 5Q0698451N |
| Volkswagen | 6C0698451A |
| Volkswagen | 7D0698451J |
| Volkswagen | 8E0698451 |
| Volkswagen | 8E0698451A |
| Volkswagen | 8E0698451K |
