Description

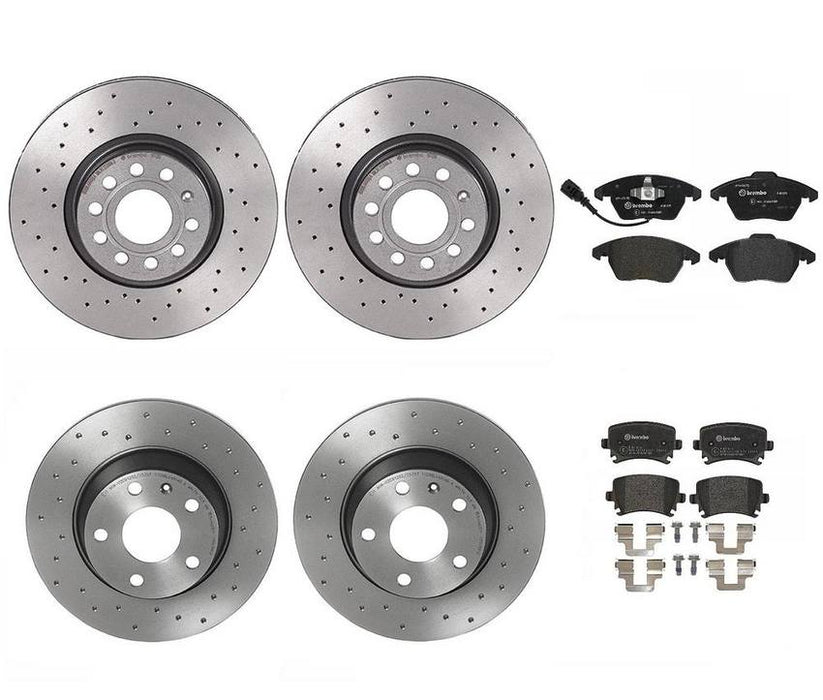

Kit Includes:

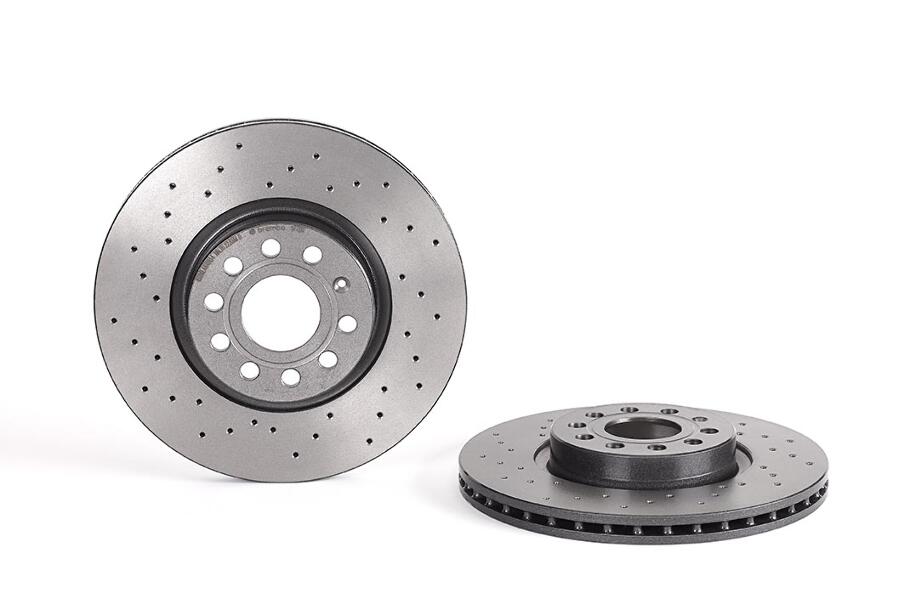

2 x Brembo 09.9772.1X Front Disc Brake Rotors Drilled Xtra

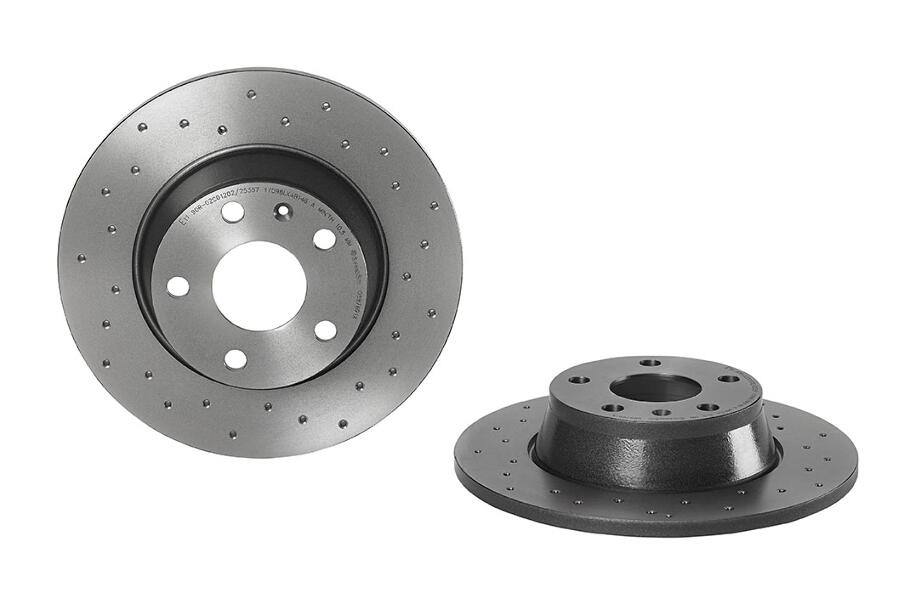

2 x Brembo 08.9769.1X Rear Disc Brake Rotors Drilled Xtra
1 x Brembo P85073 Rear Disc Brake Pad Set Low-Met
1 x Brembo P85075 Front Disc Brake Pad Set Low-Met
| Brake System | (Front pads) Teves |
| Brake System | (Rear pads) Lucas |
| Coated | ( Front Rotors ) Yes |
| Coated | ( Rear Rotors )Yes |
| Features | (Rear pads) with hardware |
| Fixing Screws | ( Front Rotors ) Yes |
| Fixing Screws | ( Rear Rotors )Yes |
| Friction Material Composition | (Pads) Low-Met |
| Height (mm) | (Front pads) 66 / 71.5 |
| Height (mm) | (Rear pads) 56 |
| High Carbon | ( Front Rotors ) Yes |
| Min TH (Discs)/Max Diameter (Drums) (mm) | ( Front Rotors ) 22.5 |
| Min TH (Discs)/Max Diameter (Drums) (mm) | ( Rear Rotors )10.5 |
| Nominal Thickness (mm) | ( Front Rotors ) 25 |
| Nominal Thickness (mm) | ( Rear Rotors )11.9 |
| Nominal Thickness (mm) | (Front pads) 20.1 |
| Nominal Thickness (mm) | (Rear pads) 17.2 |
| Outside Diameter (mm) | ( Front Rotors ) 312 |
| Outside Diameter (mm) | ( Rear Rotors )286 |
| Surface Finishing | (Front pads) chamfered |
| Surface Finishing | (Rear pads) chamfered |
| Surface Type | (Rotors) Drilled |
| Wear Indicator | (Front pads) with electric wear indicator |
| Wear Indicator | (Rear pads) prepared for wear indicator |
| Width (mm) | (Front pads) 155.2 / 156.5 |
| Width (mm) | (Rear pads) 105.3 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1K0 615 301A AA / 1K0615301AAA |
| Audi | 1K0 698 151E / 1K0698151E |
| Audi | 1K0 698 451D / 1K0698451D |
| Audi | 1K0 698 451G / 1K0698451G |
| Audi | 1K0 698 451K / 1K0698451K |
| Audi | 1K0615301AA |
| Audi | 1K0698151E |
| Audi | 1K0698451D |
| Audi | 1K0698451G |
| Audi | 1K0698451K |
| Audi | 3AA 698 451 / 3AA698451 |
| Audi | 3AA698451 |
| Audi | 3C0 698 151A / 3C0698151A |
| Audi | 3C0 698 151D / 3C0698151D |
| Audi | 3C0698151A |
| Audi | 3C0698151D |
| Audi | 4F0 698 451A / 4F0698451A |
| Audi | 4F0 698 451D / 4F0698451D |
| Audi | 4F0698451A |
| Audi | 4F0698451D |
| Audi | 5C0 615 301B / 5C0615301B |
| Audi | 5C0615301B |
| Audi | 5K0 698 151 / 5K0698151 |
| Audi | 5K0698151 |
| Audi | 5Q0 615 301F / 5Q0615301F |
| Audi | 5Q0615301F |
| Audi | 8E0 698 451F / 8E0698451F |
| Audi | 8E0 698 451J / 8E0698451J |
| Audi | 8E0 698 451M / 8E0698451M |
| Audi | 8E0698451F |
| Audi | 8E0698451J |
| Audi | 8E0698451M |
| Audi | 8J0 615 601 / 8J0615601 |
| Audi | 8J0 698 151 / 8J0698151 |
| Audi | 8J0 698 151C / 8J0698151C |
| Audi | 8J0615601 |
| Audi | 8J0698151 |
| Audi | 8J0698151C |
| Seat | 1K0615301AA |
| Skoda | 1K0615301AA |
| Volkswagen | 1K0 615 301 AA / 1K0615301AA |
| Volkswagen | 1K0 698 451E / 1K0698451E |
| Volkswagen | 1K0 698 451F / 1K0698451F |
| Volkswagen | 1K0 698 451G / 1K0698451G |
| Volkswagen | 1K0 698 451H / 1K0698451H |
| Volkswagen | 1K0 698 451K / 1K0698451K |
| Volkswagen | 1K0615301AA |
| Volkswagen | 1K0698451E |
| Volkswagen | 1K0698451F |
| Volkswagen | 1K0698451G |
| Volkswagen | 1K0698451H |
| Volkswagen | 1K0698451K |
| Volkswagen | 3C0 698 151A / 3C0698151A |
| Volkswagen | 3C0 698 151C / 3C0698151C |
| Volkswagen | 3C0 698 451 / 3C0698451 |
| Volkswagen | 3C0 698 451A / 3C0698451A |
| Volkswagen | 3C0 698 451B / 3C0698451B |
| Volkswagen | 3C0 698 451C / 3C0698451C |
| Volkswagen | 3C0 698 451D / 3C0698451D |
| Volkswagen | 3C0 698 451E / 3C0698451E |
| Volkswagen | 3C0 698 451F / 3C0698451F |
| Volkswagen | 3C0698151A |
| Volkswagen | 3C0698151C |
| Volkswagen | 3C0698451 |
| Volkswagen | 3C0698451A |
| Volkswagen | 3C0698451B |
| Volkswagen | 3C0698451C |
| Volkswagen | 3C0698451D |
| Volkswagen | 3C0698451E |
| Volkswagen | 3C0698451F |
| Volkswagen | 561 615 301A / 561615301A |
| Volkswagen | 561615301A |
| Volkswagen | 5C0 615 301B / 5C0615301B |
| Volkswagen | 5C0 698 151A / 5C0698151A |
| Volkswagen | 5C0615301B |
| Volkswagen | 5C0698151A |
| Volkswagen | 5K0 698 151 / 5K0698151 |
| Volkswagen | 5K0698151 |
| Volkswagen | 5N0 698 451 / 5N0698451 |
| Volkswagen | 5N0698451 |
| Volkswagen | 5Q0 615 301F / 5Q0615301F |
| Volkswagen | 5Q0615301F |
