Description

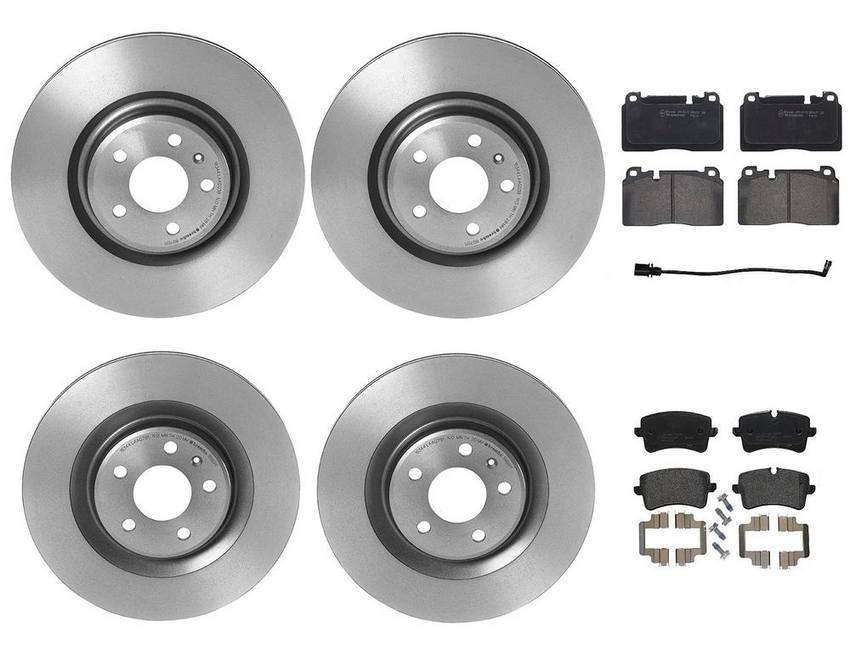

Kit Includes:

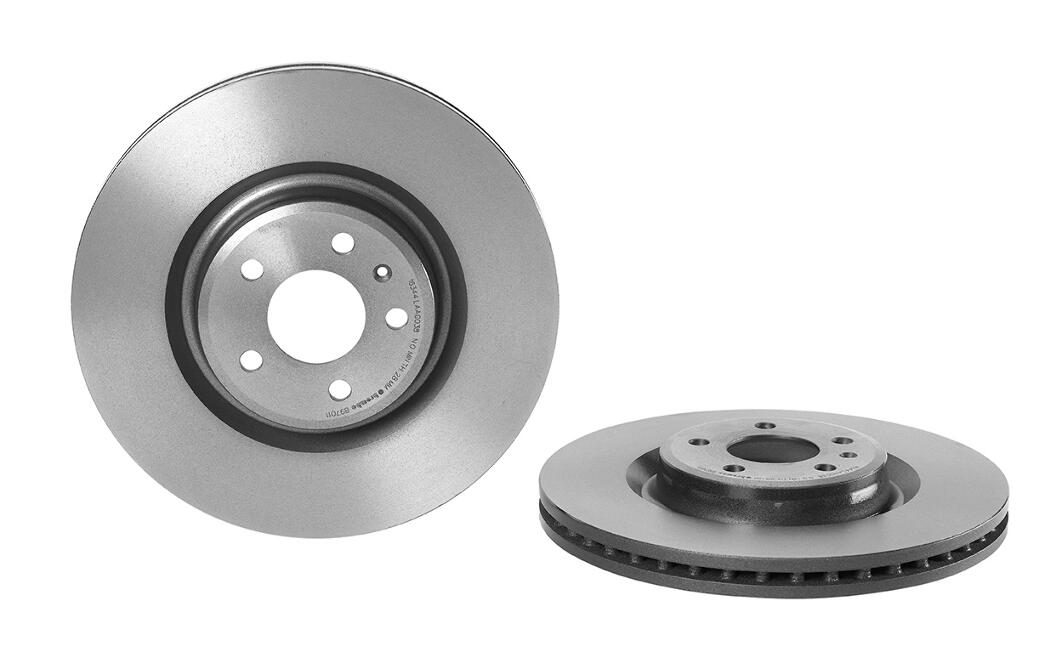

2 x Brembo 09.B970.11 Front Disc Brake Rotors

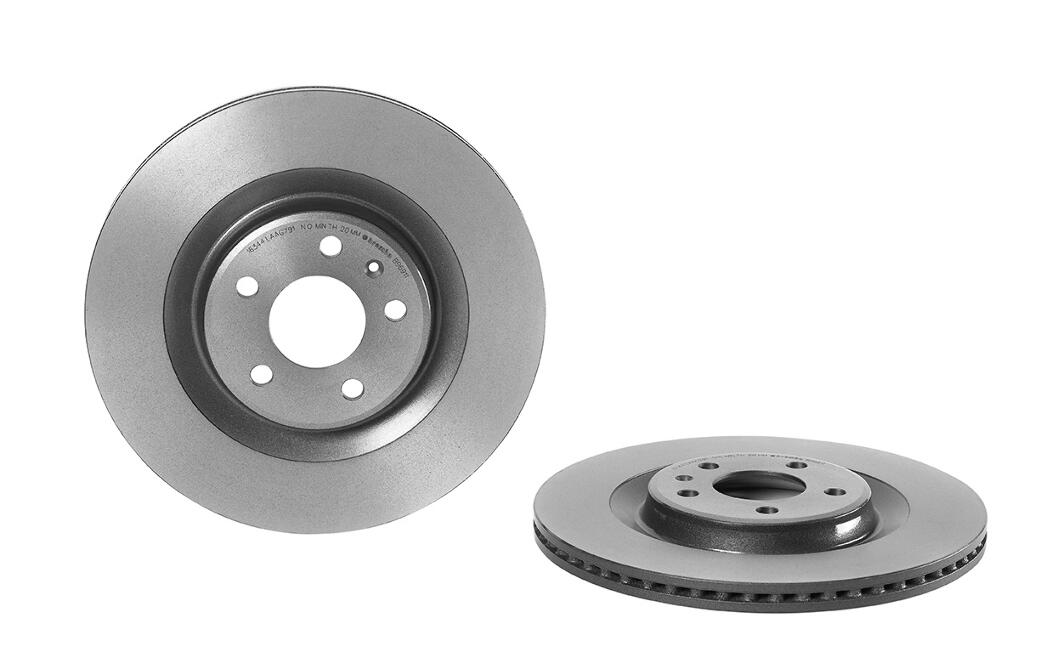

2 x Brembo 09.B969.11 Rear Disc Brake Rotors
1 x Brembo P85099 Rear Disc Brake Pad Set Low-Met
1 x Brembo P85133 Front Disc Brake Pad Set Low-Met
1 x eEuroParts XHDZ071 Front Disc Brake Pad Wear Sensor
| Brake System | (Front Pads) Brembo |
| Brake System | (Rear Pads) Lucas |
| Coated | ( Front Rotors ) Yes |
| Coated | ( Rear Rotors ) Yes |
| Features | (Front Pads) with hardware |
| Features | (Rear Pads) with hardware |
| Fixing Screws | ( Front Rotors ) Yes |
| Fixing Screws | ( Rear Rotors ) Yes |
| Friction Material Composition | (Pads) Low-Met |
| Height (mm) | (Front Pads) 77.5 |
| Height (mm) | (Rear Pads) 59 / 60 |
| High Carbon | ( Front Rotors ) Yes |
| High Carbon | ( Rear Rotors ) Yes |
| Min TH (Discs)/Max Diameter (Drums) (mm) | ( Front Rotors ) 28 |
| Min TH (Discs)/Max Diameter (Drums) (mm) | ( Rear Rotors ) 20 |
| Nominal Thickness (mm) | ( Front Rotors ) 30 |
| Nominal Thickness (mm) | ( Rear Rotors ) 22 |
| Nominal Thickness (mm) | (Front Pads) 16.5 |
| Nominal Thickness (mm) | (Rear Pads) 17.4 |
| Outside Diameter (mm) | ( Front Rotors ) 345 |
| Outside Diameter (mm) | ( Rear Rotors ) 330 |
| Pad Wear Sensor Included | (Front Pads) Yes |
| Pillar Vent | ( Front Rotors ) Yes |
| Pillar Vent | ( Rear Rotors ) Yes |
| Surface Finishing | (Front Pads) chamfered & slotted |
| Surface Finishing | (Rear Pads) chamfered |
| Wear Indicator | (Rear Pads) with electric wear indicator |
| Width (mm) | (Front Pads) 131.8 |
| Width (mm) | (Rear Pads) 116.3 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 4G0 615 301 / 4G0615301 |
| Audi | 4G0 615 301G / 4G0615301G |
| Audi | 4G0615301 |
| Audi | 4G0615301G |
| Audi | 4H0 615 601D / 4H0615601D |
| Audi | 4H0 615 601H / 4H0615601H |
| Audi | 4H0 615 601K / 4H0615601K |
| Audi | 4H0615601D |
| Audi | 4H0615601H |
| Audi | 4H0615601K |
| Audi | 8K0698451 |
| Audi | 8K0698451A |
| Audi | 8K0698451B |
| Audi | 8K0698451C |
| Audi | 8K0698451D |
| Audi | 8K0698451F |
| Audi | 8K0698451G |
| Audi | 8R0698151D |
| Audi | 8R0698151H |
| Audi | 8R0698151J |
| Audi | 8R0698151L |
| Porsche | 95B 615 301B / 95B615301B |
| Porsche | 95B 615 601A / 95B615601A |
| Porsche | 95B615301B |
| Porsche | 95B615601A |
