Description

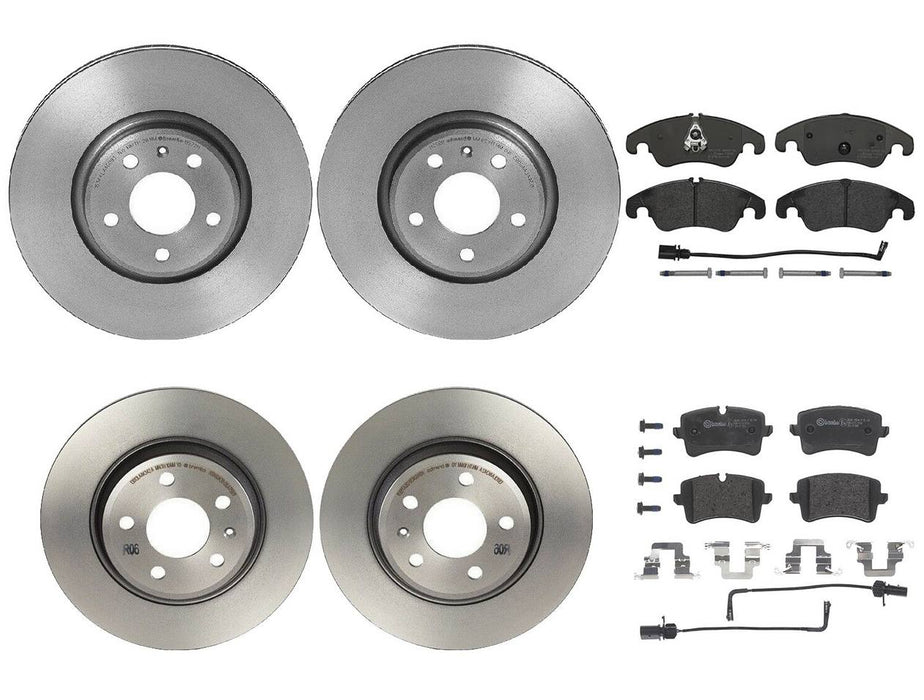

Kit Includes:

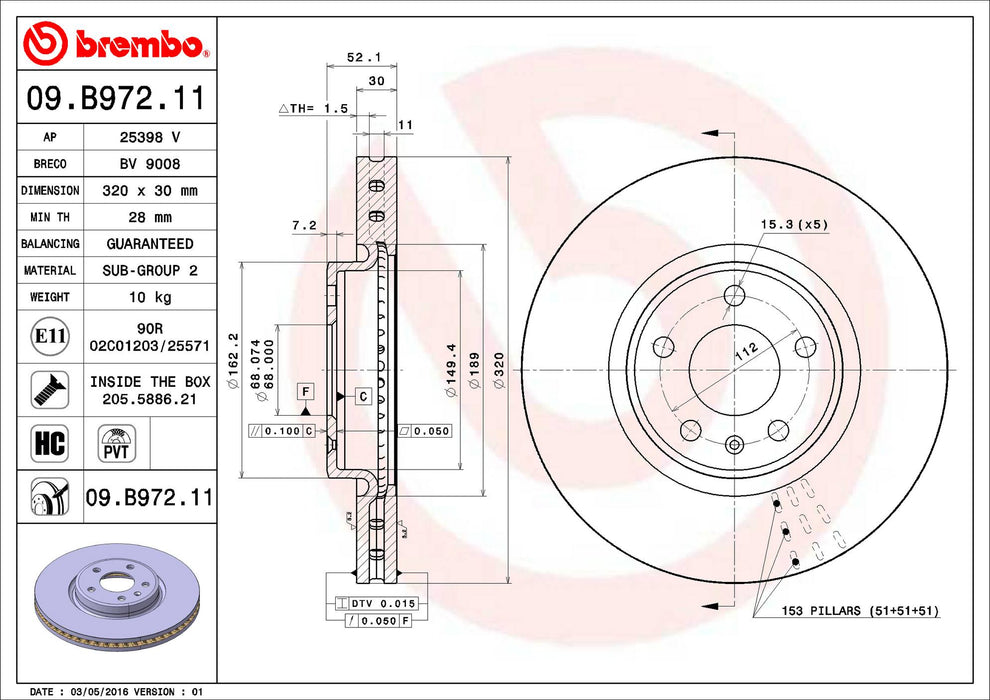

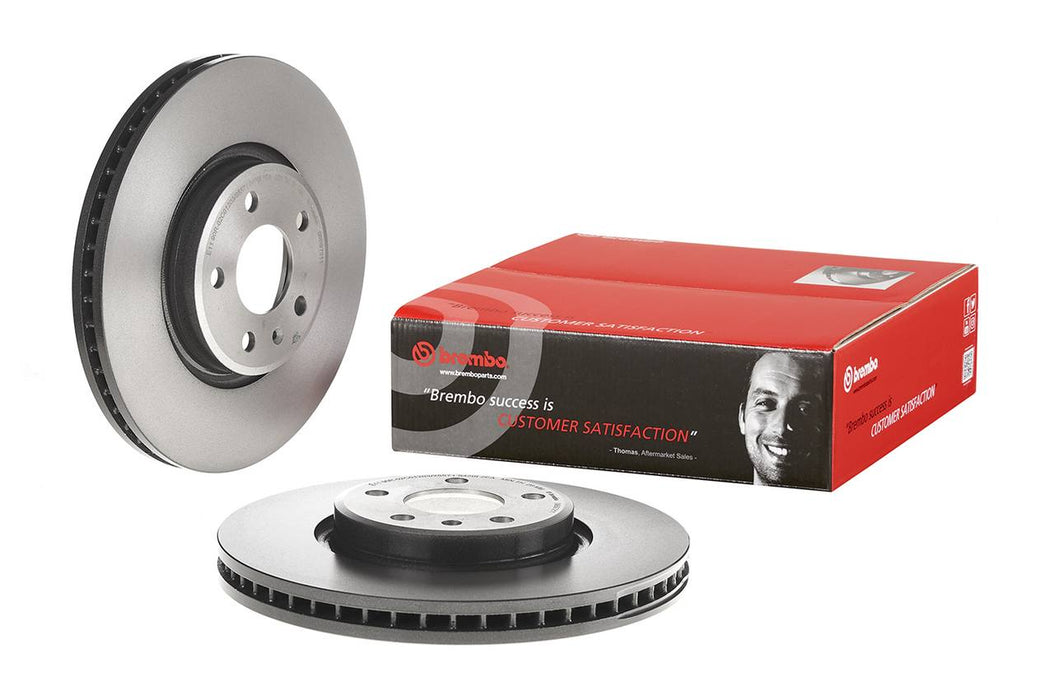

2 x Brembo 09.B972.11 Front Disc Brake Rotors

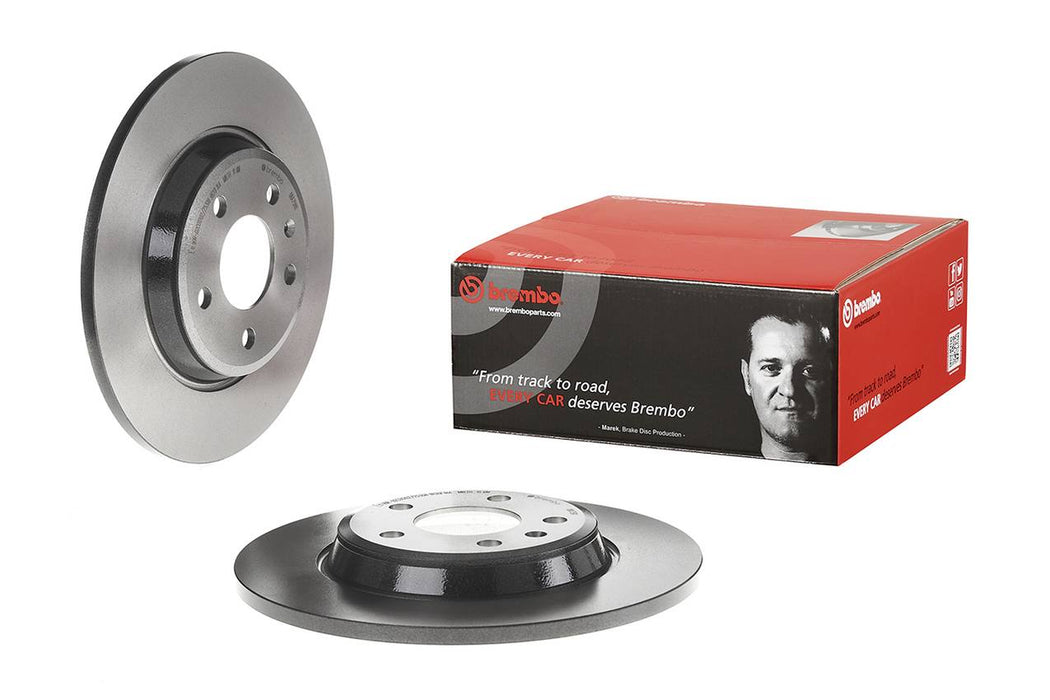

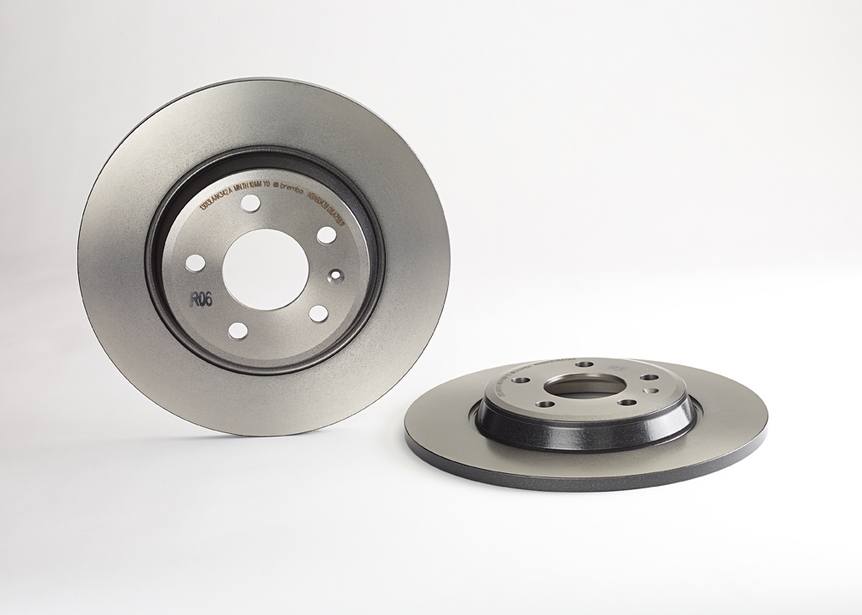

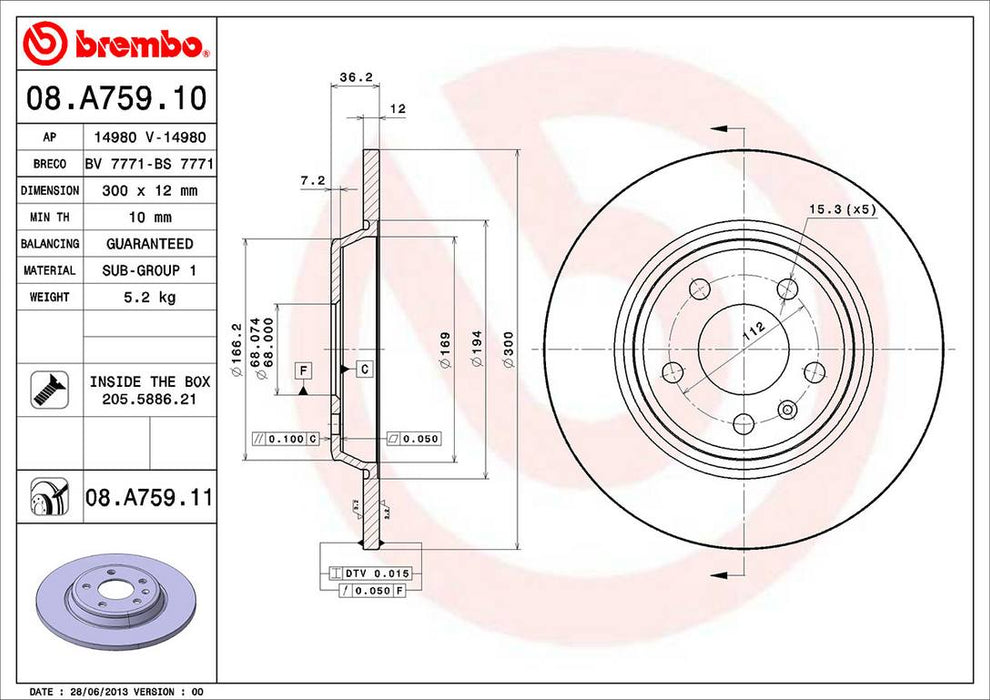

2 x Brembo 08.A759.11 Rear Disc Brake Rotors

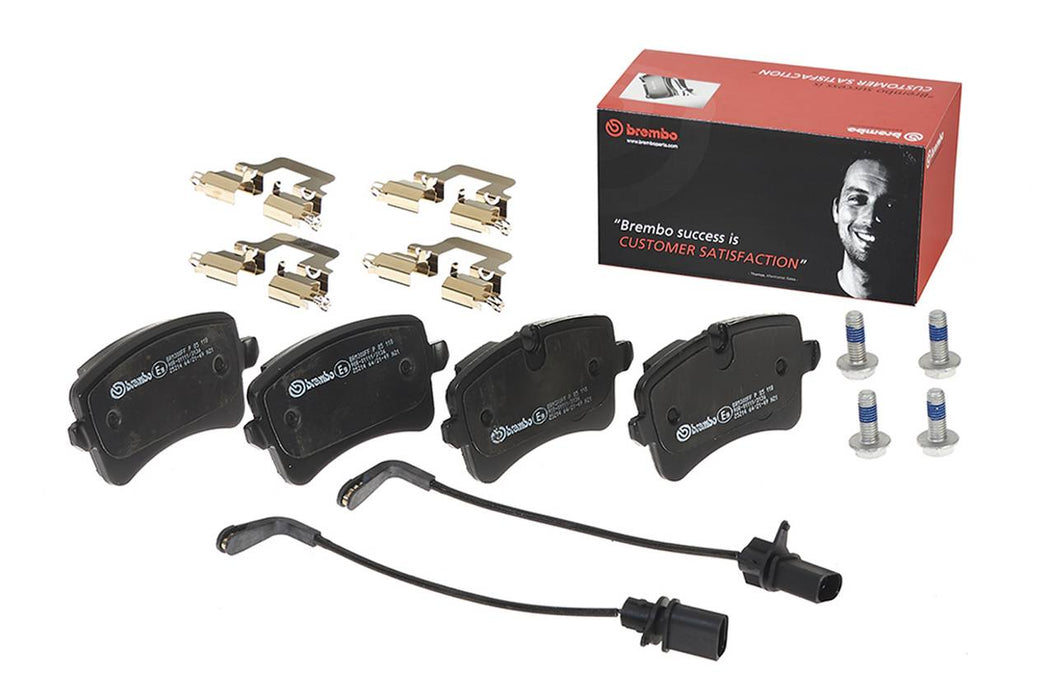

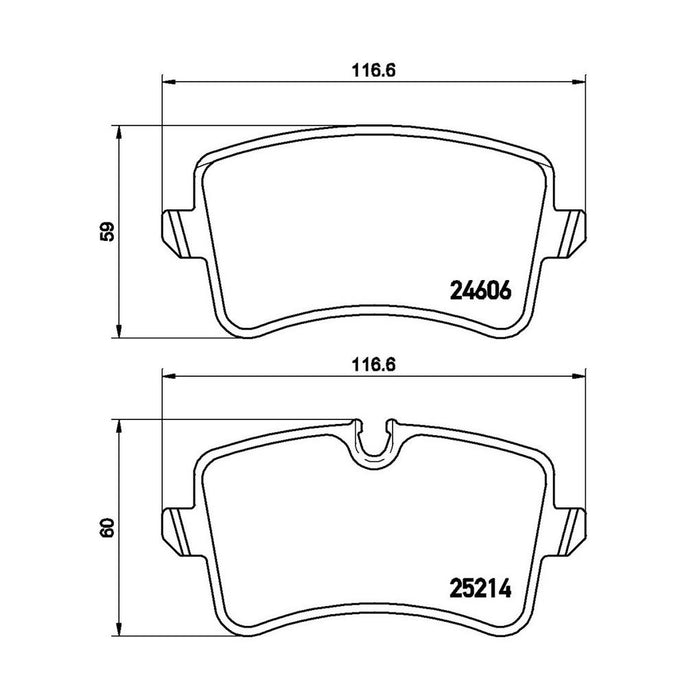

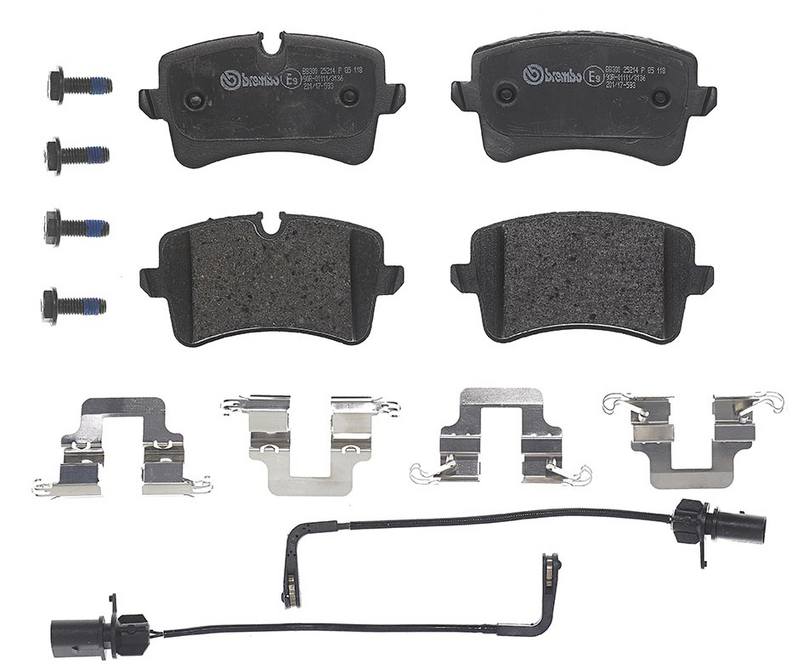

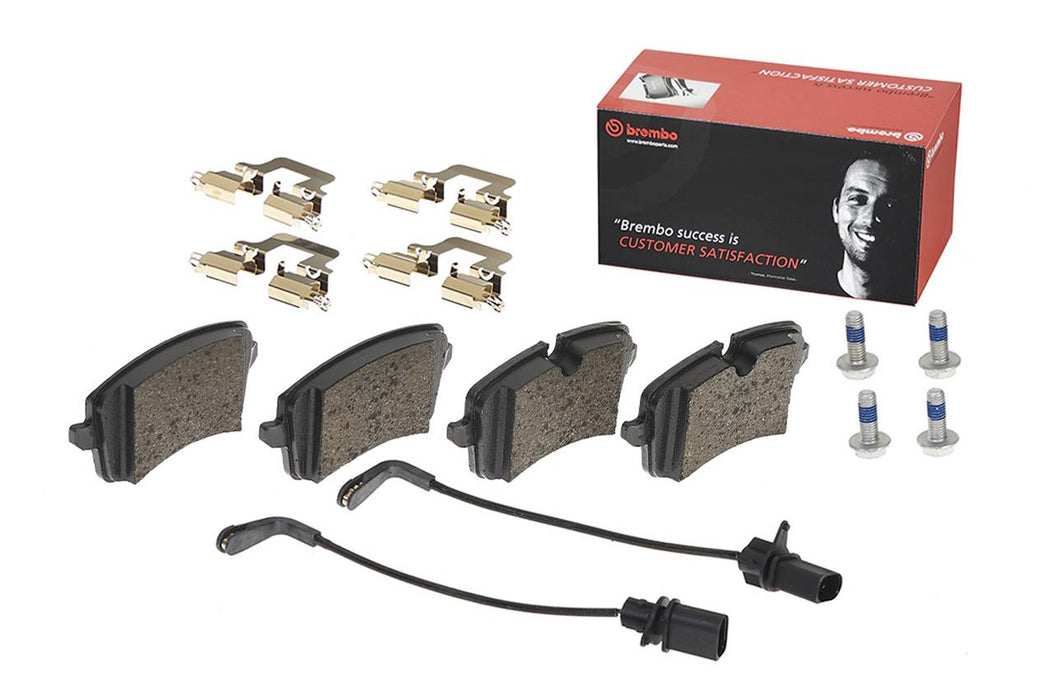

1 x Brembo P85118 Rear Disc Brake Pad Set Low-Met

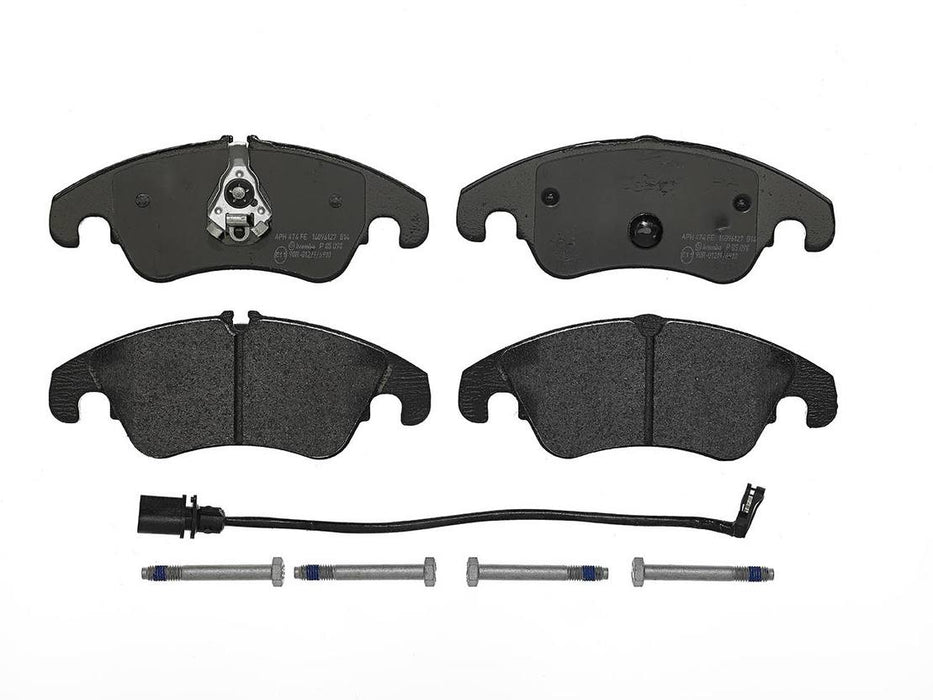

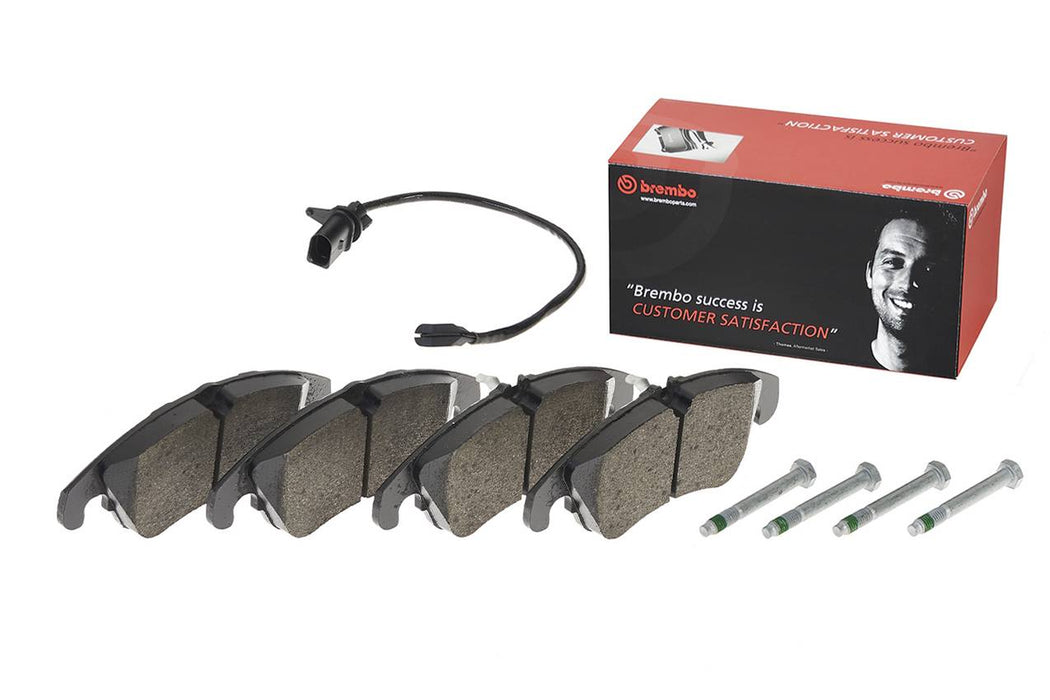

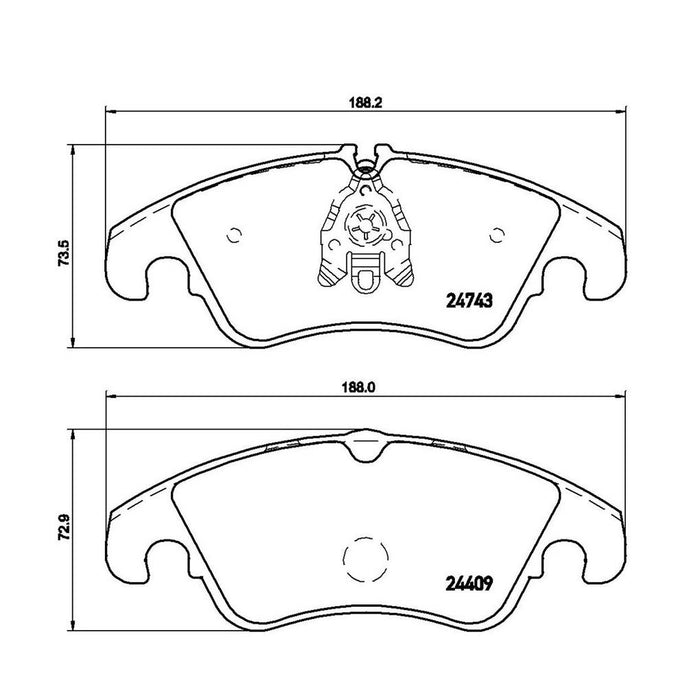

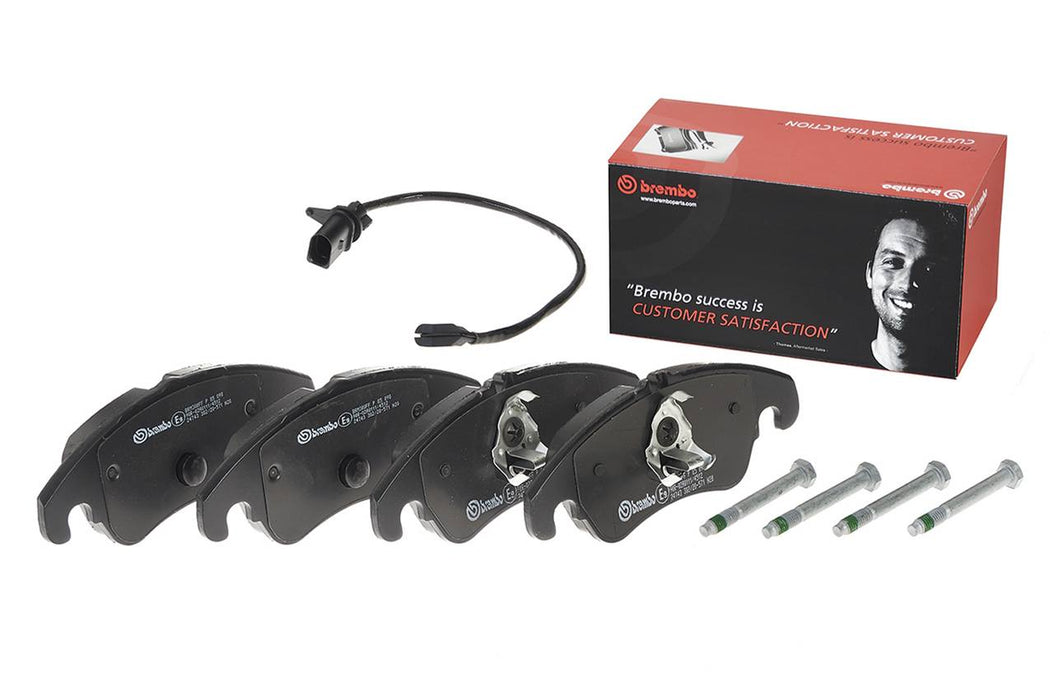

1 x Brembo P85098 Front Disc Brake Pad Set Low-Met
| Abutment Clips Included | (Rear) Yes |
| Brake System | (Front Pads) Lucas |
| Brake System | (Rear Pads) Lucas |
| Centring Diameter | (Front Rotors) 68 |
| Centring Diameter | (Rear Rotors) 68 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter (mm) | (Front Rotors) 320 |
| Diameter (mm) | (Rear Rotors) 300 |
| Features | (Front Pads) with hardware |
| Features | (Rear Pads) with hardware |
| Fixing Screws | (Front Rotors) Included |
| Fixing Screws | (Rear Rotors) Included |
| Friction Material Composition | (Pads) Low-Met |
| Height (mm) | (Front Pads) 72.9 / 73.5 |
| Height (mm) | (Front Rotors) 52.1 |
| Height (mm) | (Rear Pads) 59/60 |
| Height (mm) | (Rear Rotors) 36.2 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (mm) | (Front Rotors) 28 |
| Minimum Thickness (mm) | (Rear Rotors) 10 |
| Nominal Thickness (mm) | (Front Pads) 18.3 / 18.8 |
| Nominal Thickness (mm) | (Front Rotors) 30 |
| Nominal Thickness (mm) | (Rear Pads) 16.7 |
| Nominal Thickness (mm) | (Rear Rotors) 12 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Surface Finishing | (Front Pads) chamfered & slotted |
| Surface Finishing | (Rear Pads) chamfered |
| Torque Spec (Nm) | (Rear Rotors) 120 |
| Ventilation Type | (Front Rotors) PVT |
| Ventilation Type | (Rear Rotors) solid |
| Wear Indicator | (Pads) with electric wear indicators |
| Width (mm) | (Front Pads) 188 |
| Width (mm) | (Rear Pads) 116.3 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 8K0698151E |
| Audi | 8K0698151C |
| Audi | 8K0615601M |
| Audi | 4G0698451 |
| Audi | 8R0615301D |
| Audi | 8K0698151 |
| Audi | 8K0615601B |
| Audi | 8K0698151H |
| Audi | 8K0615601J |
| Audi | 8R0615301F |
| Audi | 8K0698151L |
| Audi | 8K0698151G |
| Audi | 4G0698151D |
| Audi | 8R0698151A |
| Audi | 8R0698151 |
| Audi | 8K0698151J |
| Audi | 8R0615301 |
| Audi | 8K0698151D |
| Audi | 8K0698151B |
| Audi | 8K0698151K |
