Description
Kit Includes:

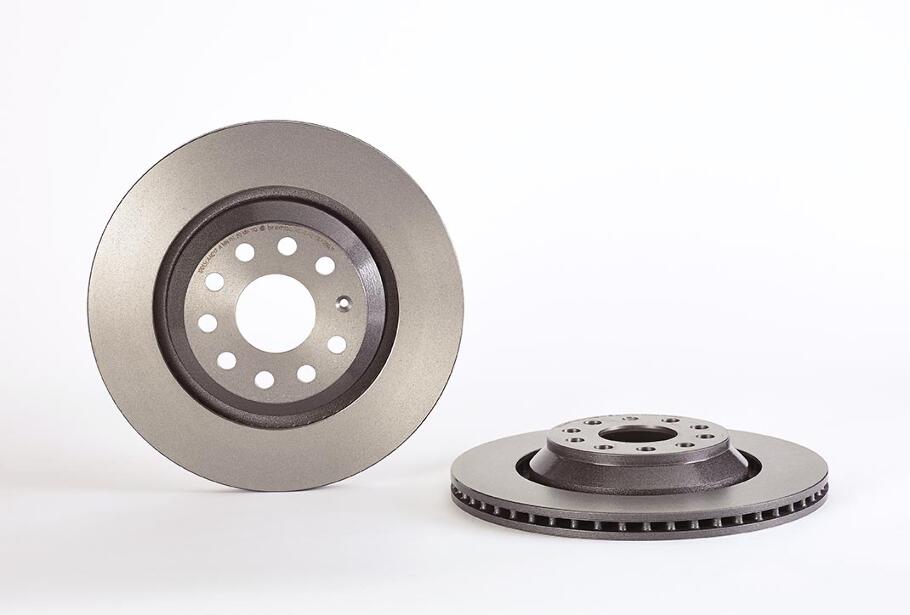

2 x Brembo 09.A200.11 Rear Disc Brake Rotors
2 x Brembo 09.C306.11 Front Disc Brake Rotors
1 x Brembo P85144 Front Disc Brake Pad Set Low-Met
1 x Brembo P85124 Rear Disc Brake Pad Set Low-Met
| Brake Type | (Front Pads) TRW |
| Brake Type | (Rear Pads) Teves |
| Center Diameter | (Rear Rotors) 65 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter | (Front Rotors) 340 |
| Diameter | (Rear Rotors) 310 |
| Friction Material Composition | (Pads) Low-Met |
| Hardware Material | (Front Pads) with hardware, with brake caliper screws |
| Height | (Front Pads) 69 |
| Height | (Front Rotors) 49.7 |
| Height | (Rear Pads) 56.4/61.3 |
| Height | (Rear Rotors) 48.2 |
| Indicator Type | (Front Pads) with electric wear indicator |
| Material | (Front Rotors) High Carbon Cast Iron |
| Material | (Rear Rotors) High Carbon |
| Minimum Thickness | (Front Rotors) 27 |
| Minimum Thickness | (Rear Rotors) 20 |
| Nominal Thickness | (Front Pads) 20 |
| Nominal Thickness | (Front Rotors) 30 |
| Nominal Thickness | (Rear Pads) 16.4 |
| Nominal Thickness | (Rear Rotors) 22 |
| Quantity | (Rear Rotors) 5 |
| Screw Material | (Front Rotors) included |
| Screw Material | (Rear Rotors) Included |
| Solid Or Vented Type Rotor | (Front Rotors) PVT |
| Solid Or Vented Type Rotor | (Rear Rotors) vented |
| Torque Increments | (Rear Rotors) 120 |
| Width | (Front Pads) 175.1 |
| Width | (Rear Pads) 123 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 3Q0698451E |
| Audi | 5Q0698451P |
| Audi | 8V0698151C |
| Audi | 8V0698451A |
| Audi | 8V0698451D |
| Volkswagen | 3Q0698451C |
| Volkswagen | 3Q0698451D |
| Volkswagen | 3Q0698451E |
| Volkswagen | 5Q0698451P |
| Volkswagen | 8V0698151C |
| Volkswagen | 8V0698451D |
