Description

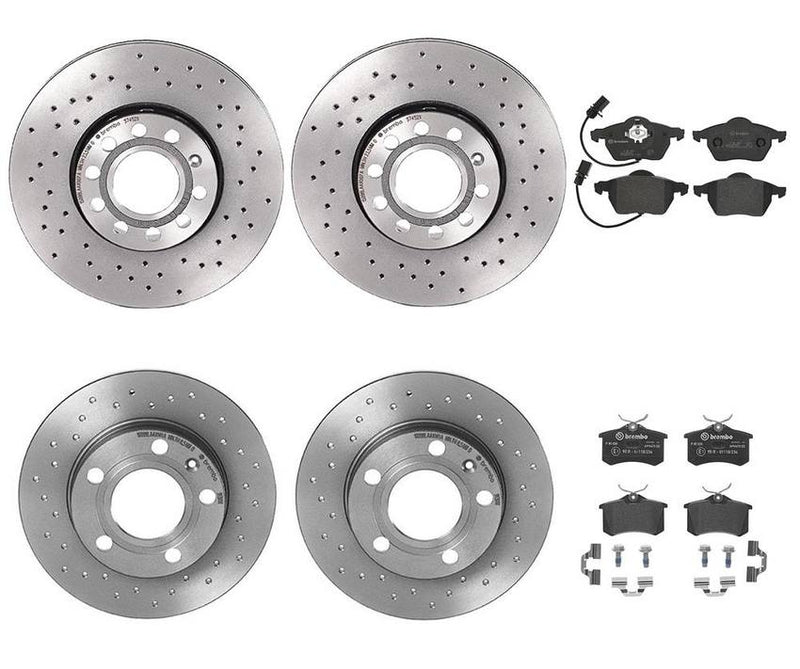

Kit Includes:

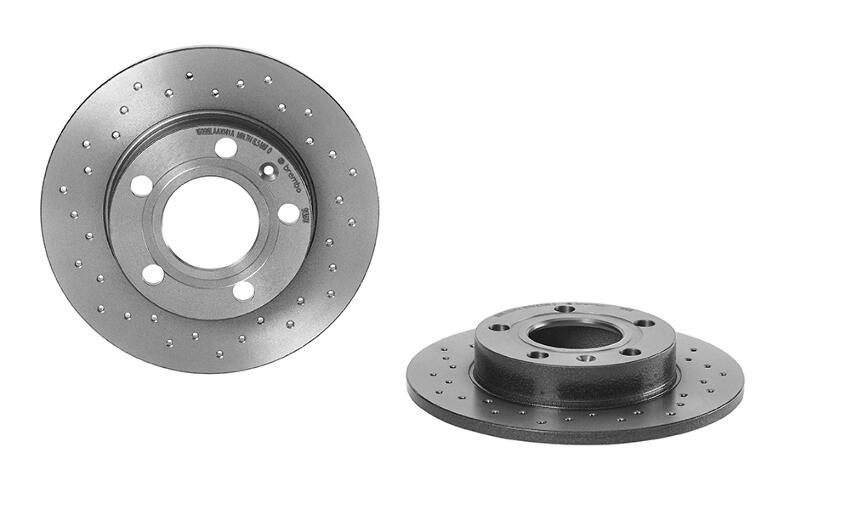

2 x Brembo 08.9136.1X Rear Disc Brake Rotors Drilled Xtra

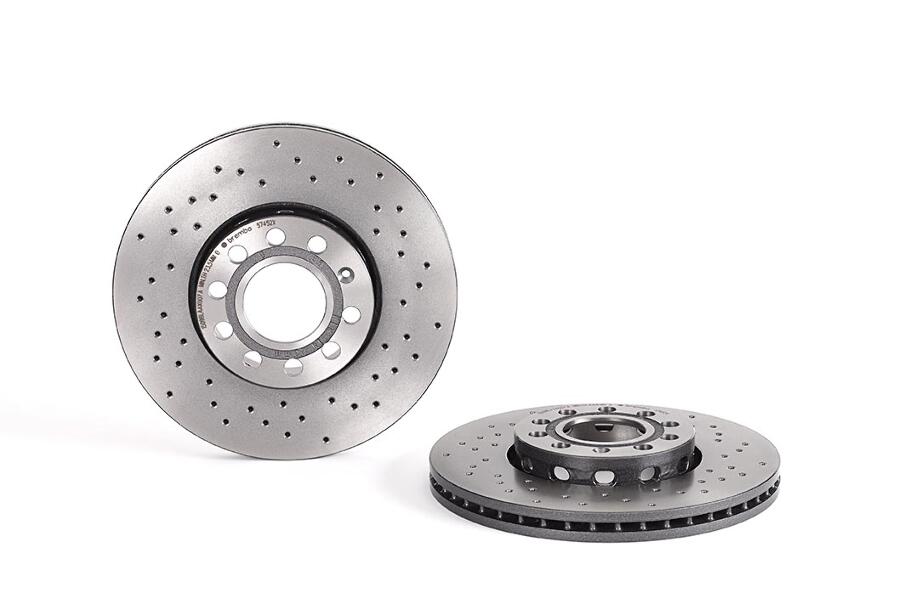

2 x Brembo 09.5745.2X Front Disc Brake Rotors Brembo Xtra
1 x Brembo P85020 Rear Disc Brake Pad Set Low-Met
1 x Brembo P85085 Front Disc Brake Pad Set Low-Met
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Braking Surface | (Front Rotors) Drilled |
| Braking Surface | (Rear Rotors) Drilled |
| Centering Diameter (MM) | (Front Rotors) 68 |
| Centering Diameter (MM) | (Rear Rotors) 68 |
| Features | (Rear Pads) with hardware |
| Fixing Screws | (Front Rotors) included |
| Fixing Screws | (Rear Rotors) included |
| Friction Material Composition | (Pads) Low-Met |
| Height (MM) | (Front Pads) 74 |
| Height (MM) | (Front Rotors) 46.2 |
| Height (MM) | (Rear Pads) 52.8 |
| Height (MM) | (Rear Rotors) 39.8 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (MM) | (Front Rotors) 23.5 |
| Minimum Thickness (MM) | (Rear Rotors) 8 |
| Nominal Thickness (MM) | (Front Pads) 20.4 / 19.6 |
| Nominal Thickness (MM) | (Front Rotors) 25 |
| Nominal Thickness (MM) | (Rear Pads) 17.2 |
| Nominal Thickness (MM) | (Rear Rotors) 10 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Outside Diameter (MM) | (Front Rotors) 288 |
| Outside Diameter (MM) | (Rear Rotors) 245 |
| Rust Resistant Coating | (Front Rotors) UV Coated |
| Rust Resistant Coating | (Rear Rotors) UV Coated |
| Solid Or Vented Type Rotor | (Front Rotors) vented |
| Solid Or Vented Type Rotor | (Rear Rotors) solid |
| Suface Finishing | (Front Pads) chamfered |
| Suface Finishing | (Rear Pads) chamfered |
| Torque Spec(NM) | (Front Rotors) 120 |
| Torque Spec(NM) | (Rear Rotors) 120 |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (MM) | (Front Pads) 156.3 / 156.4 |
| Width (MM) | (Rear Pads) 87 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1J0698451D |
| Audi | 1J0698451E |
| Audi | 1J0698451J |
| Audi | 1J0698451L |
| Audi | 1J0698451N |
| Audi | 1J0698451P |
| Audi | 1K0698451J |
| Audi | 3B0698451 |
| Audi | 4A0615301C |
| Audi | 4A0615301D |
| Audi | 4B0698151AB |
| Audi | 4B0698151AF |
| Audi | 4B0698151E |
| Audi | 4B0698151K |
| Audi | 4B0698451 |
| Audi | 4B0698451B |
| Audi | 4B0698451C |
| Audi | 4B0698451E |
| Audi | 4D0698151C |
| Audi | 4D0698151J |
| Audi | 4D0698451C |
| Audi | 5C0698451A |
| Audi | 5K0298451B |
| Audi | 5Q0698451C |
| Audi | 5Q0698451N |
| Audi | 6C0698451A |
| Audi | 8E0615301Q |
| Audi | 8E0615601B |
| Audi | 8E0615601P |
| Audi | 8E0698451 |
| Audi | 8E0698451A |
| Audi | 8E0698451B |
| Skoda | 4A0615301D |
| Skoda | 4A0615301E |
| Skoda | 8E0615301Q |
| Volkswagen | 1E0698451 |
| Volkswagen | 1E0698451B |
| Volkswagen | 1E0698451C |
| Volkswagen | 1E0698451E |
| Volkswagen | 1E0698451G |
| Volkswagen | 1H0690451 |
| Volkswagen | 1H0690451A |
| Volkswagen | 1H0698451 |
| Volkswagen | 1H0698451A |
| Volkswagen | 1H0698451C |
| Volkswagen | 1H0698451D |
| Volkswagen | 1H0698451G |
| Volkswagen | 1J0698451 |
| Volkswagen | 1J0698451A |
| Volkswagen | 1J0698451B |
| Volkswagen | 1J0698451C |
| Volkswagen | 1J0698451D |
| Volkswagen | 1J0698451E |
| Volkswagen | 1J0698451F |
| Volkswagen | 1J0698451G |
| Volkswagen | 1J0698451J |
| Volkswagen | 1J0698451K |
| Volkswagen | 1J0698451P |
| Volkswagen | 1J0698451R |
| Volkswagen | 1K0698451J |
| Volkswagen | 3B0698451 |
| Volkswagen | 425056 |
| Volkswagen | 4A0615301C |
| Volkswagen | 4A0615301E |
| Volkswagen | 4B0698151AF |
| Volkswagen | 4B0698151J |
| Volkswagen | 4B0698151K |
| Volkswagen | 4B0698151N |
| Volkswagen | 4B0698451A |
| Volkswagen | 4B0698451B |
| Volkswagen | 4B0698451E |
| Volkswagen | 5C0698451 |
| Volkswagen | 5C0698451B |
| Volkswagen | 5C0698451C |
| Volkswagen | 5C098451A |
| Volkswagen | 5C698451A |
| Volkswagen | 5K0298451B |
| Volkswagen | 5Q0698451C |
| Volkswagen | 5Q0698451E |
| Volkswagen | 5Q0698451N |
| Volkswagen | 6C0698451A |
| Volkswagen | 7D0698451J |
| Volkswagen | 8E0698451 |
| Volkswagen | 8E0698451A |
| Volkswagen | 8E0698451K |
