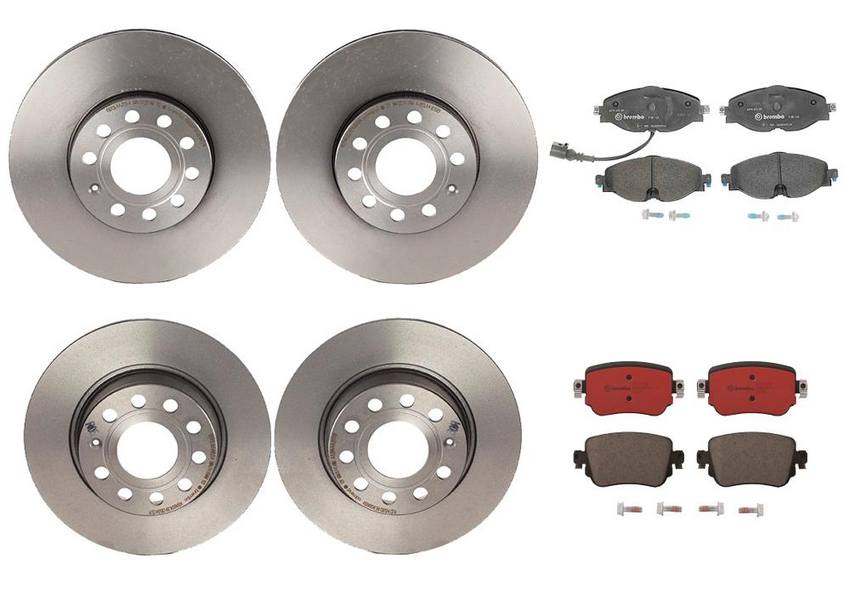

Kit Includes:

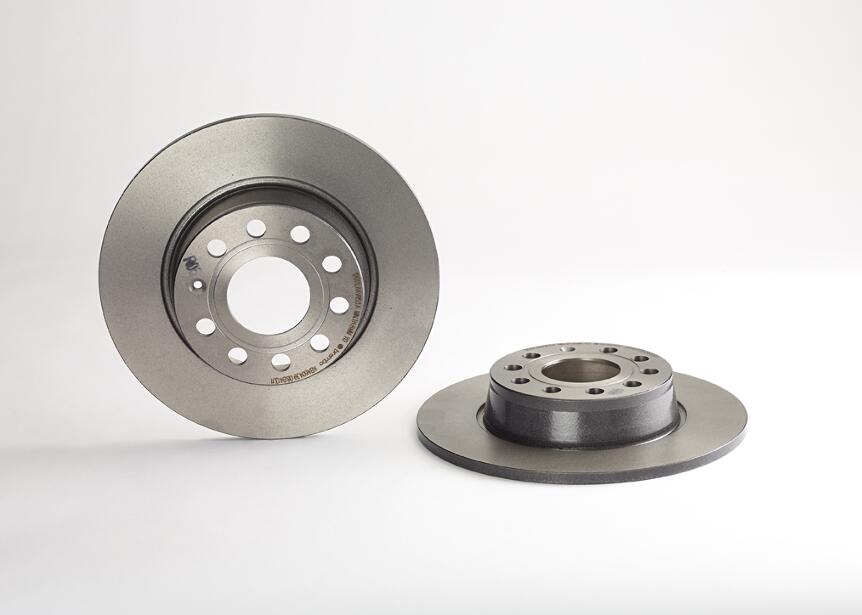

2 x Brembo 08.B413.11 Rear Disc Brake Rotors - 272mm , Solid , Coated

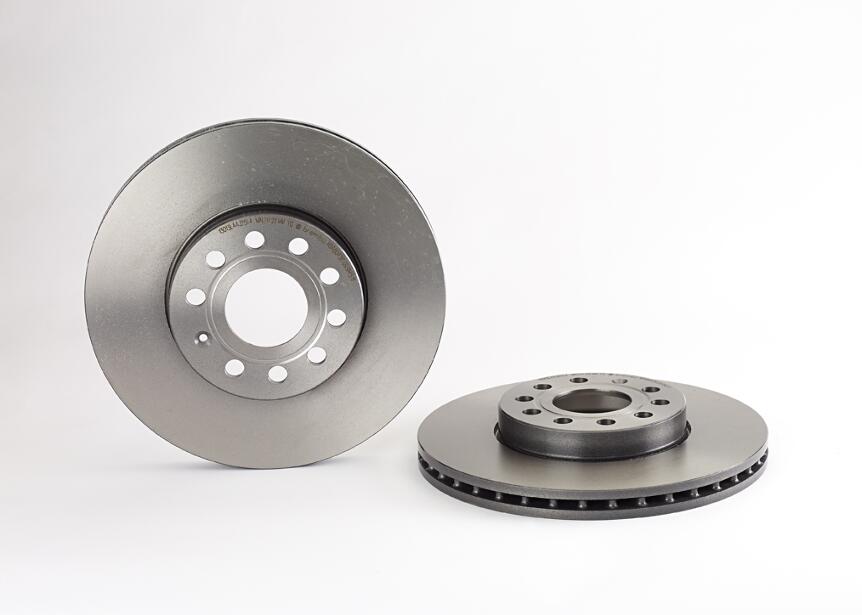

2 x Brembo 09.9145.11 Front Disc Brake Rotors - 288mm , Vented , Coated
1 x Brembo P85126N Front Disc Brake Pad Set Ceramic; with Wear Sensor
1 x Brembo P85140N Rear Disc Brake Pad Set Ceramic
| Brake System | (Front Pads) TRW |
| Brake System | (Rear Pads) TRW |
| Centring Diameter | (Front Rotors) 65 |
| Centring Diameter | (Rear Rotors) 65 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter (mm) | (Front Rotors) 288 |
| Diameter (mm) | (Rear Rotors) 272 |
| Features | (Front Pads) with hardware and brake caliprer screws |
| Features | (Rear Pads) w/ith hardware |
| Fixing Screws | (Front Rotors) Included |
| Fixing Screws | (Rear Rotors) Included |
| FMSI Number | (Front Pads) D1760 8989 |
| FMSI Number | (Rear Pads) D1779 9008 |
| Friction Material Composition | (Pads) Ceramic |
| Height (MM) | (Front Pads) 64.5 |
| Height (mm) | (Front Rotors) 49.5 |
| Height (MM) | (Rear Pads) 52.2 |
| Height (mm) | (Rear Rotors) 48.2 |
| Material | (Front Rotors) Grey Cast Iron |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (mm) | (Front Rotors) 22 |
| Minimum Thickness (mm) | (Rear Rotors) 8 |
| Nominal Thickness (MM) | (Front Pads) 20.3 |
| Nominal Thickness (mm) | (Front Rotors) 25 |
| Nominal Thickness (MM) | (Rear Pads) 17.5 |
| Nominal Thickness (mm) | (Rear Rotors) 10 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Suface Finishing | (Rear Pads) chamfered |
| Torque Spec (Nm) | (Front Rotors) 120 |
| Torque Spec (Nm) | (Rear Rotors) 120 |
| Ventilation Type | (Front Rotors) vented |
| Ventilation Type | (Rear Rotors) solid |
| Wear Indicator | (Front Pads) with Electric wear indicator |
| Wear Indicator | (Rear Pads) with acoustic wear indicator |
| Width (MM) | (Front Pads) 160.1 |
| Width (MM) | (Rear Pads) 104.10 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1K0615301K |
| Audi | 1K0615301T |
| Audi | 1K0615601AA |
| Audi | 5C0615301A |
| Audi | 5C0615301D |
| Audi | 5Q0615301H |
| Audi | 5Q0615601D |
| Audi | 6R0615601 |
| Audi | 7N0698451A |
| Audi | 8U0698451F |
| Audi | 8V0698151D |
| Audi | 8V0698151G |
| Seat | 1K0615301K |
| Seat | 1K0615301T |
| Skoda | 1K0615301K |
| Skoda | 1K0615301T |
| Volkswagen | 1K0615301T |
| Volkswagen | 1K0615601AA |
| Volkswagen | 561615601 |
| Volkswagen | 561615601A |
| Volkswagen | 5C0615301A |
| Volkswagen | 5C0615301D |
| Volkswagen | 5Q0615301H |
| Volkswagen | 5Q0615601D |
| Volkswagen | 5Q0698451B |
| Volkswagen | 7N0698451A |
| Volkswagen | 8U0698451F |
| Volkswagen | 8V0698151D |
| Volkswagen | 8V0698151G |
