Description

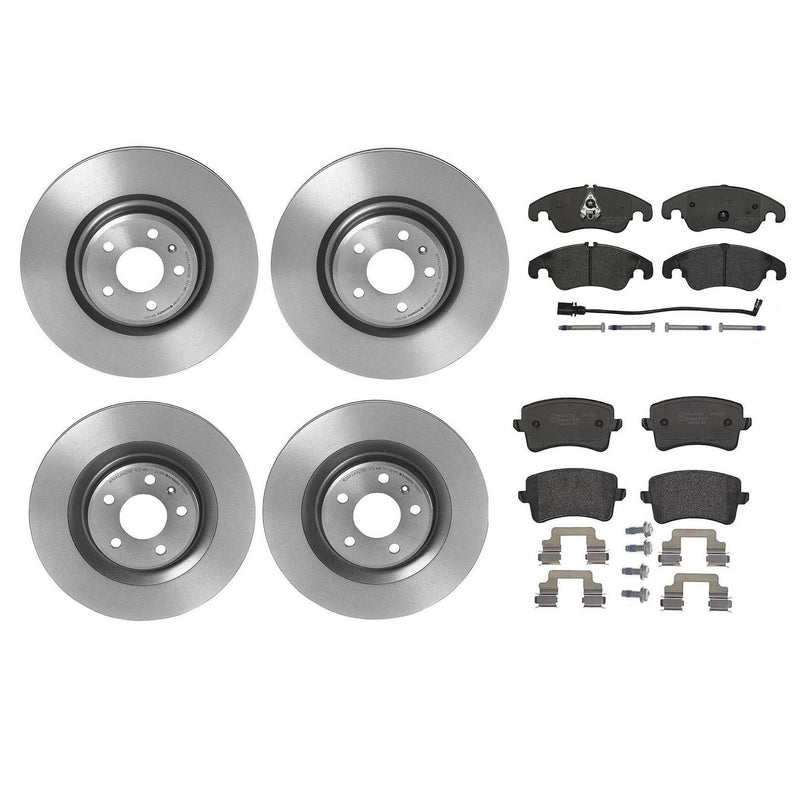

Kit Includes:

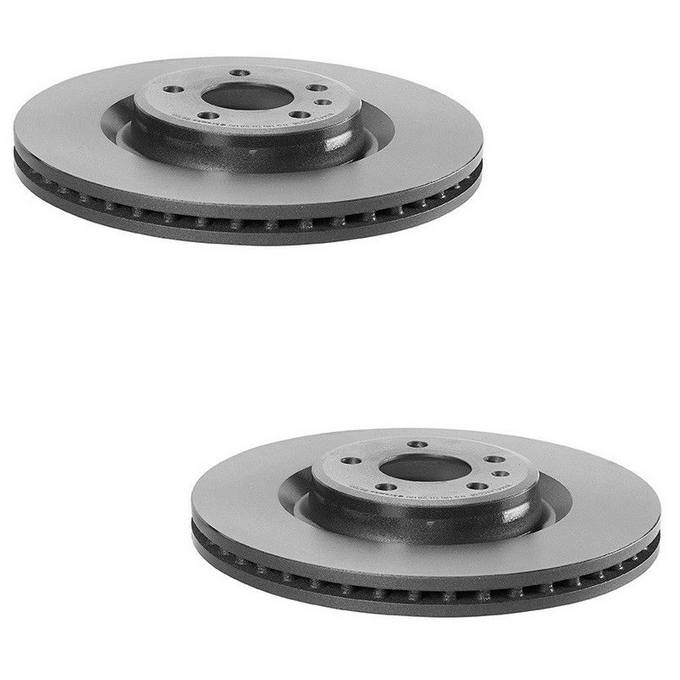

2 x Brembo 09.B970.11 Front Disc Brake Rotors - 345mm, PVT, Coated

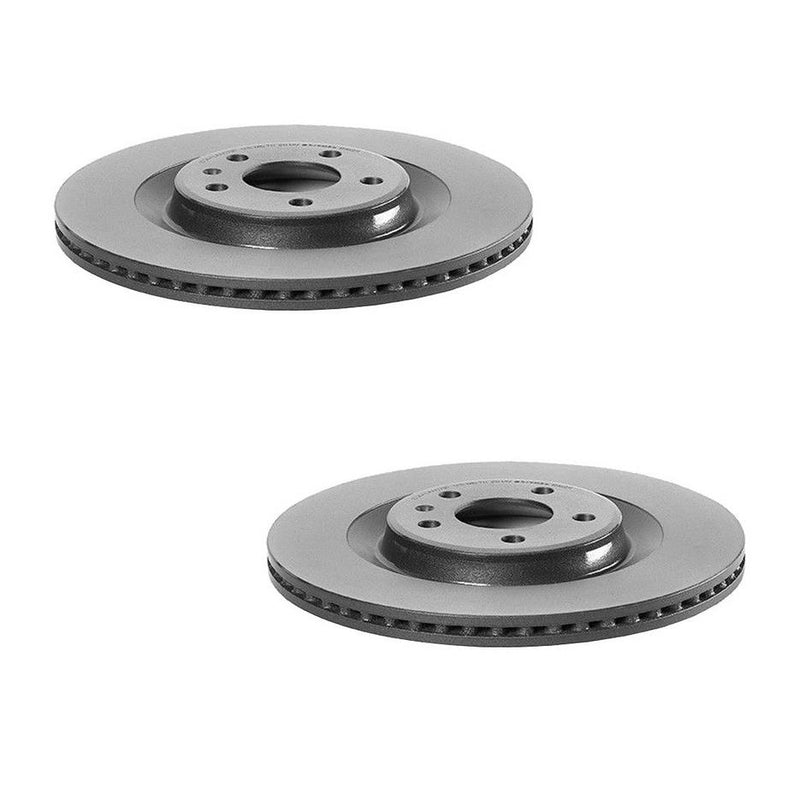

2 x Brembo 09.B969.11 Rear Disc Brake Rotors - 330mm, PVT, Coated
1 x Brembo P85098 Front Disc Brake Pad Set Low-Met with Electric wear sensor
1 x Brembo P85100 Rear Disc Brake Pad Set Low-Met
| Brake System | (Front Pads) Lucas |
| Brake System | (Rear Pads) Lucas |
| Centering Diameter (MM) | (Front Rotors) 68 |
| Centering Diameter (MM) | (Rear Rotors) 68 |
| Features | (Front Pads) with hardware |
| Features | (Rear Pads) with hardware, with brake caliper screws |
| Fixing Screws | (Front Rotors) included |
| Fixing Screws | (Rear Rotors) included |
| FMSI Number | (Front Pads) D1322 8434 |
| FMSI Number | (Rear Pads) D13868494 |
| Friction Material Composition | (Pads) Low-Met |
| Height (MM) | (Front Pads) 72.9 / 73.5 |
| Height (MM) | (Front Rotors) 52.1 |
| Height (MM) | (Rear Pads) 59 |
| Height (MM) | (Rear Rotors) 36.1 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) High Carbon |
| Minimum Thickness (MM) | (Front Rotors) 28 |
| Minimum Thickness (MM) | (Rear Rotors) 20 |
| Nominal Thickness (MM) | (Front Pads) 18.3 / 18.8 |
| Nominal Thickness (MM) | (Front Rotors) 30 |
| Nominal Thickness (MM) | (Rear Pads) 17.7 |
| Nominal Thickness (MM) | (Rear Rotors) 22 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Outside Diameter (MM) | (Front Rotors) 345 |
| Outside Diameter (MM) | (Rear Rotors) 330 |
| Rust Resistant Coating | (Front Rotors) UV Coated |
| Rust Resistant Coating | (Rear Rotors) UV Coated |
| Solid Or Vented Type Rotor | (Front Rotors) PVT |
| Solid Or Vented Type Rotor | (Rear Rotors) PVT |
| Suface Finishing | (Front Pads) chamfered & slotted |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Wear Indicator | (Rear Pads) with acoustic wear indicator |
| Width (MM) | (Front Pads) 188.2 |
| Width (MM) | (Rear Pads) 116.6 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 4G0615301 |
| Audi | 4G0615301AE |
| Audi | 4G0615301AF |
| Audi | 4G0615301G |
| Audi | 4G0615301M |
| Audi | 4G0615301Q |
| Audi | 4G0698151D |
| Audi | 4H0615601D |
| Audi | 4H0615601H |
| Audi | 4H0615601K |
| Audi | 4H0615601Q |
| Audi | 8K0698151 |
| Audi | 8K0698151B |
| Audi | 8K0698151C |
| Audi | 8K0698151D |
| Audi | 8K0698151E |
| Audi | 8K0698151G |
| Audi | 8K0698151H |
| Audi | 8K0698151J |
| Audi | 8K0698151K |
| Audi | 8K0698151L |
| Audi | 8R0698151 |
| Audi | 8R0698151A |
| Audi | 8W0615601E |
| Porsche | 95B615301B |
| Porsche | 95B615601A |
