Description

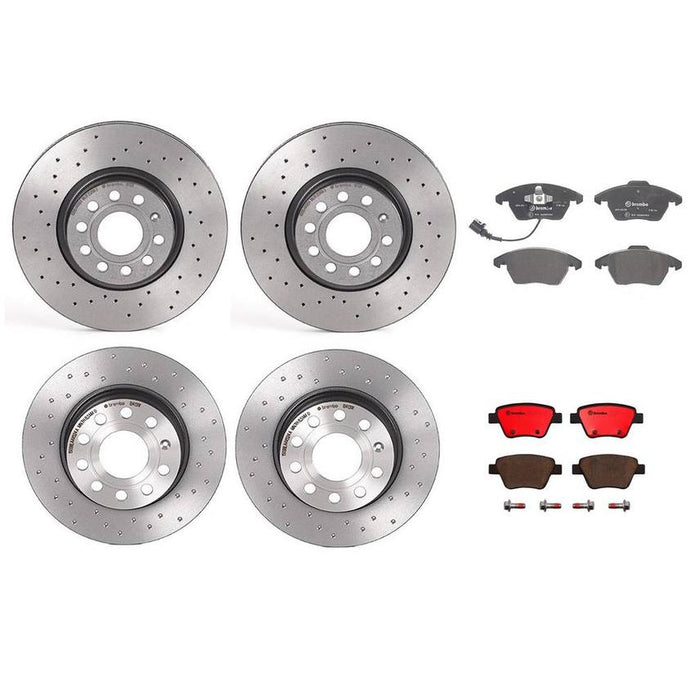

Kit Includes:
1 x Brembo P85146N Front Ceramic Disc Brake Pad Set with electric wear indicator
1 x Brembo P85114N Rear Ceramic Disc Brake Pad Set with hardware

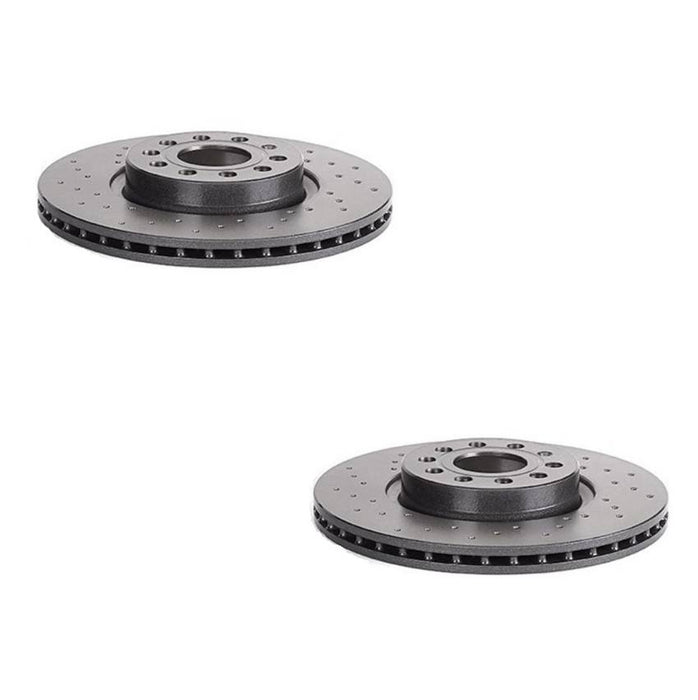

2 x Brembo 09.9772.1X Front Disc Brake Rotors Xtra - Drilled, High Carbon, UV Coated, Vented, 312mm

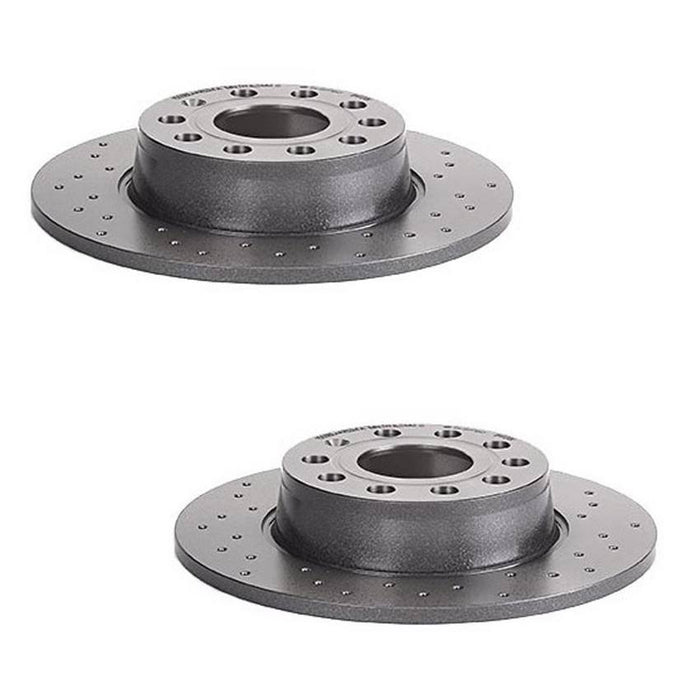

2 x Brembo 08.B413.1X Rear Disc Brake Rotors Xtra - Drilled, Grey Cast Iron, UV Coated, 272mm
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Bosch |
| Braking Surface | (Front Rotors) Drilled |
| Braking Surface | (Rear Rotors) Drilled |
| Centering Diameter (MM) | (Front Rotors) 65 |
| Centering Diameter (MM) | (Rear Rotors) 65 |
| Features | (Rear Pads) with hardware |
| Fixing Screws | (Front Rotors) included |
| Fixing Screws | (Rear Rotors) included |
| Friction Material Composition | (Pads) Ceramic |
| Height (MM) | (Front Pads) 66/71.5 |
| Height (MM) | (Front Rotors) 49.5 |
| Height (MM) | (Rear Pads) 53.5 |
| Height (MM) | (Rear Rotors) 48.2 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (MM) | (Front Rotors) 22.8 |
| Minimum Thickness (MM) | (Rear Rotors) 8.5 |
| Nominal Thickness (MM) | (Front Pads) 20.3 |
| Nominal Thickness (MM) | (Front Rotors) 25 |
| Nominal Thickness (MM) | (Rear Pads) 16.5 |
| Nominal Thickness (MM) | (Rear Rotors) 10 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Outside Diameter (MM) | (Front Rotors) 312 |
| Outside Diameter (MM) | (Rear Rotors) 272 |
| Rust Resistant Coating | (Front Rotors) UV Coated |
| Rust Resistant Coating | (Rear Rotors) UV Coated |
| Solid Or Vented Type Rotor | (Front Rotors) vented |
| Solid Or Vented Type Rotor | (Rear Rotors) solid |
| Suface Finishing | (Rear Pads) chamfered |
| Torque Spec(NM) | (Front Rotors) 120 |
| Torque Spec(NM) | (Rear Rotors) 120 |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (MM) | (Front Pads) 155.2 |
| Width (MM) | (Rear Pads) 109.3 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1K0615301AA |
| Audi | 1K0615601AA |
| Audi | 3C0698151A |
| Audi | 3C0698151C |
| Audi | 3C0698151D |
| Audi | 3C0698151J |
| Audi | 5C0615301B |
| Audi | 5Q0615301F |
| Audi | 5Q0615601D |
| Audi | 6R0615601 |
| Audi | 8J0698151 |
| Audi | 8J0698151C |
| Seat | 1K0615301AA |
| Volkswagen | 1K0615301AA |
| Volkswagen | 1K0615601AA |
| Volkswagen | 3C0698151A |
| Volkswagen | 3C0698151C |
| Volkswagen | 3C0698151D |
| Volkswagen | 3C0698151J |
| Volkswagen | 561615301A |
| Volkswagen | 561615601 |
| Volkswagen | 561615601A |
| Volkswagen | 5C0615301B |
| Volkswagen | 5C0615301E |
| Volkswagen | 5K0698451 |
| Volkswagen | 5K0698451A |
| Volkswagen | 5K0698451C |
| Volkswagen | 5Q0615301F |
| Volkswagen | 5Q0615601D |
| Volkswagen | 8J0698151 |
| Volkswagen | 8J0698151C |
