Description

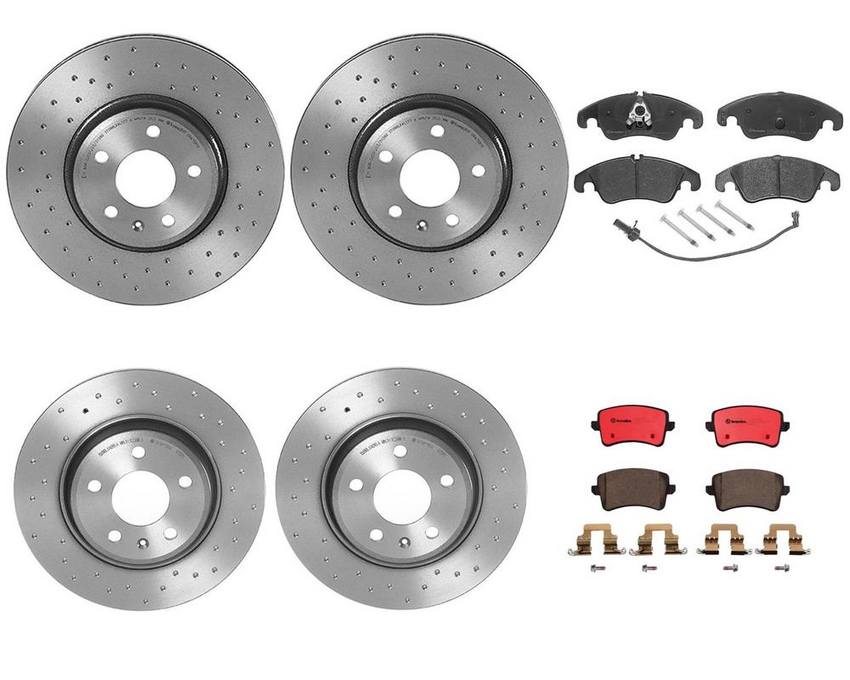

Kit Includes:

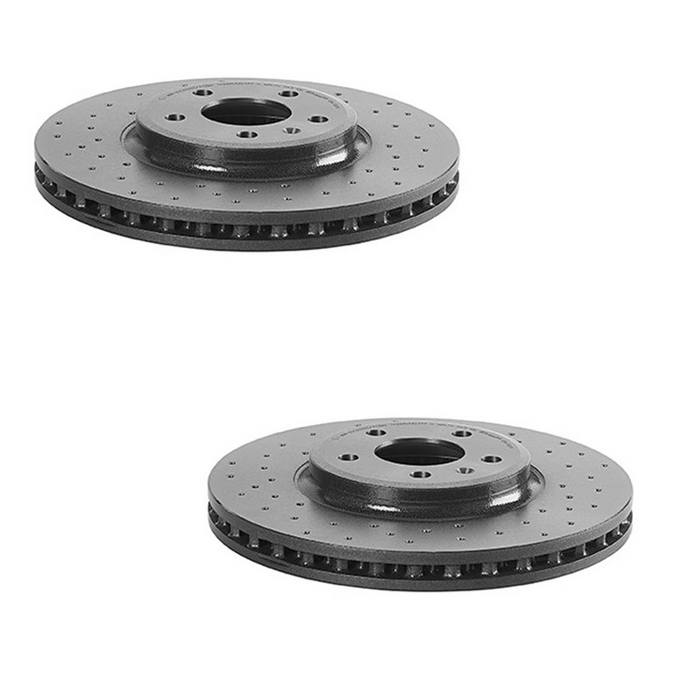

2 x Brembo 09.A758.1X Front Disc Brake Rotors Xtra - 320mm, Pillar Vented, Coated, Drilled
1 x Brembo P85145N Front Disc Brake Pad Set Ceramic

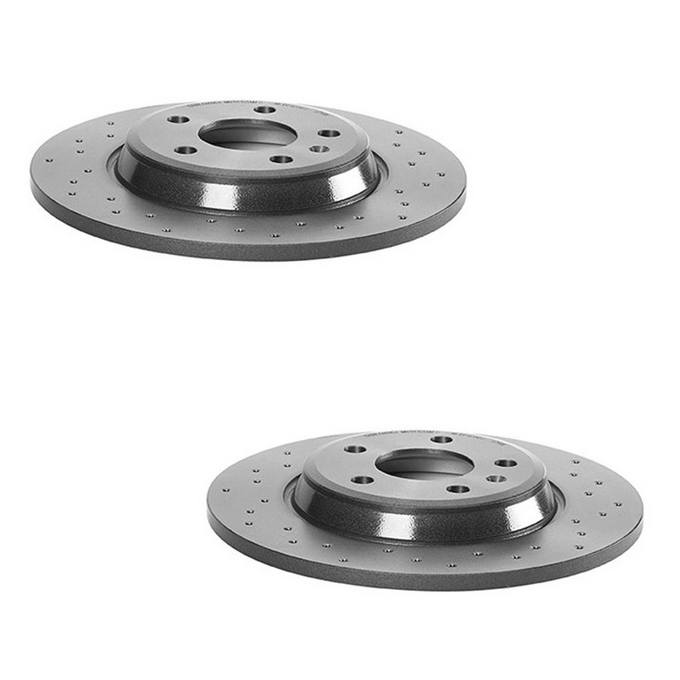

2 x Brembo 08.A759.1X Rear Disc Brake Rotors Xtra - 300mm, Solid, Coated, Drilled
1 x Brembo P85099N Rear Disc Brake Pad Set Ceramic
| Brake System | (Front Pads) Lucas |
| Brake System | (Rear Pads) Lucas |
| Braking Surface | (Front Rotors) Drilled |
| Braking Surface | (Rear Rotors) Drilled |
| Centering Diameter (MM) | (Front Rotors) 68 |
| Centering Diameter (MM) | (Rear Rotors) 68 |
| Features | (Front Pads) with brake caliper screws |
| Features | (Rear Pads) with hardware |
| Fixing Screws | (Front Rotors) included |
| Fixing Screws | (Rear Rotors) included |
| Friction Material Composition | (Pads) Ceramic |
| Height (MM) | (Front Pads) 72.9/73.5 |
| Height (MM) | (Front Rotors) 52.2 |
| Height (MM) | (Rear Pads) 58.6 |
| Height (MM) | (Rear Rotors) 36.2 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (MM) | (Front Rotors) 28 |
| Minimum Thickness (MM) | (Rear Rotors) 10.5 |
| Nominal Thickness (MM) | (Front Pads) 19.4 |
| Nominal Thickness (MM) | (Front Rotors) 30 |
| Nominal Thickness (MM) | (Rear Pads) 17.5 |
| Nominal Thickness (MM) | (Rear Rotors) 12 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Outside Diameter (MM) | (Front Rotors) 320 |
| Outside Diameter (MM) | (Rear Rotors) 300 |
| Rust Resistant Coating | (Front Rotors) UV Coated |
| Rust Resistant Coating | (Rear Rotors) UV Coated |
| Solid Or Vented Type Rotor | (Front Rotors) PVT |
| Solid Or Vented Type Rotor | (Rear Rotors) solid |
| Suface Finishing | (Rear Pads) chamfered |
| Torque Spec(NM) | (Front Rotors) 120 |
| Torque Spec(NM) | (Rear Rotors) 120 |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (MM) | (Front Pads) 188 |
| Width (MM) | (Rear Pads) 116.1 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 4G0698151 |
| Audi | 4G0698151AA |
| Audi | 4G0698151D |
| Audi | 4G0698151L |
| Audi | 4GD698151B |
| Audi | 8K0615301A |
| Audi | 8K0615601B |
| Audi | 8K0615601J |
| Audi | 8K0615601M |
| Audi | 8K0698151C |
| Audi | 8K0698151L |
| Audi | 8K0698451 |
| Audi | 8K0698451A |
| Audi | 8K0698451B |
| Audi | 8K0698451C |
| Audi | 8K0698451D |
| Audi | 8K0698451F |
| Audi | 8K0698451G |
| Audi | 8R0698151A |
| Audi | 8R0698151S |
