Description

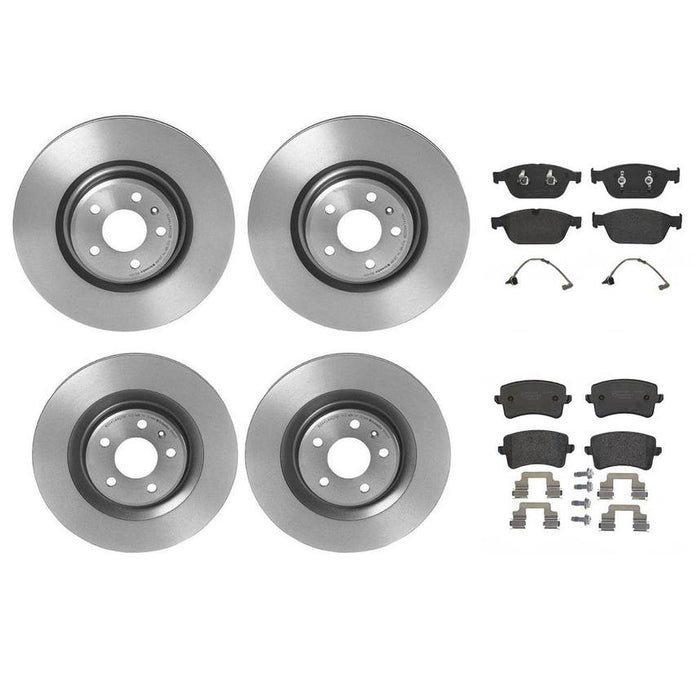

Kit Includes:

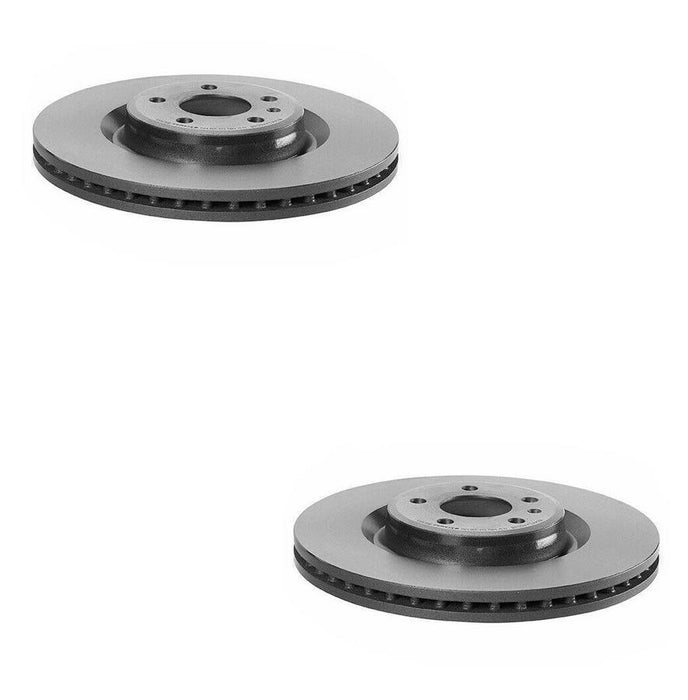

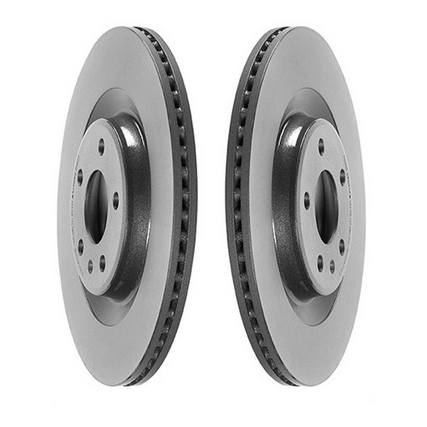

2 x Brembo 09.B970.11 Front High Carbon Pillar Vented Coated 345x30mm 5 Lugs Rotors
2 x Brembo 09.B969.11 Rear Disc Brake Rotors - Coated; Vented; 330 x 22 mm; 5 Lugs
1 x Brembo P85128 Front Low-Met Chamfered & Slotted Disc Brake Pad Set
1 x Brembo P85100 Rear Low-Met Disc Brake Pad Set with Hardware and Acoustic Wear Indicator
2 x eEuroParts XHDZ026 Front Disc Brake Pad Wear Sensors
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Centering Diameter (MM) | (Front Rotors) 68 |
| Centering Diameter (MM) | (Rear Rotors) 68 |
| Features | (Rear Pads) with hardware, with brake caliper screws |
| Fixing Screws | (Front Rotors) included |
| Fixing Screws | (Rear Rotors) included |
| Friction Material Composition | Low-Met |
| Height (MM) | (Front Pads) 76.4 |
| Height (MM) | (Front Rotors) 52.1 |
| Height (MM) | (Rear Pads) 59 |
| Height (MM) | (Rear Rotors) 36.1 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) High Carbon |
| Minimum Thickness (MM) | (Front Rotors) 28 |
| Minimum Thickness (MM) | (Rear Rotors) 20 |
| Nominal Thickness (MM) | (Front Pads) 19.9 |
| Nominal Thickness (MM) | (Front Rotors) 30 |
| Nominal Thickness (MM) | (Rear Pads) 17.7 |
| Nominal Thickness (MM) | (Rear Rotors) 22 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Outside Diameter (MM) | (Front Rotors) 345 |
| Outside Diameter (MM) | (Rear Rotors) 330 |
| Pad Wear Sensor Included | Yes |
| Rust Resistant Coating | (Front Rotors) UV Coated |
| Rust Resistant Coating | (Rear Rotors) UV Coated |
| Solid Or Vented Type Rotor | (Front Rotors) PVT |
| Solid Or Vented Type Rotor | (Rear Rotors) PVT |
| Suface Finishing | (Front Pads) chamfered & slotted |
| Wear Indicator | (Front Pads) prepared for wear indicator |
| Wear Indicator | (Rear Pads) with acoustic wear indicator |
| Width (MM) | (Front Pads) 192.9 |
| Width (MM) | (Rear Pads) 116.6 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 4G0615301 |
| Audi | 4G0615301AE |
| Audi | 4G0615301AF |
| Audi | 4G0615301G |
| Audi | 4G0615301M |
| Audi | 4G0615301Q |
| Audi | 4H0 615 601D / 4H0615601D |
| Audi | 4H0 615 601H / 4H0615601H |
| Audi | 4H0 615 601K / 4H0615601K |
| Audi | 4H0615121J |
| Audi | 4H0615601D |
| Audi | 4H0615601H |
| Audi | 4H0615601K |
| Audi | 4H0698151E |
| Audi | 4H0698151H |
| Audi | 4H0698151L |
| Audi | 4H0698151N |
| Audi | 8K0698451 |
| Audi | 8K0698451D |
| Audi | 8K0698451E |
| Audi | 8K0698451G |
| Audi | 8R0698151F |
| Porsche | 95B 615 601A / 95B615601A |
| Porsche | 95B615301B |
| Porsche | 95B615601A |
